中文：MINI DIN 全包屏蔽母座 4-9P 带弹片 PCB 插座 S 端子连接器
English: MINI DIN Shielded Female Socket 4-9Pin With Shrapnel, S-Terminal PCB Connector
产品描述（中英双语）
中文：MINI DIN 全包金属屏蔽母座，带固定弹片结构，卧式直插 PCB 焊接。可选 4P~9P 多种芯数，金属外壳有效抗电磁干扰，阻燃塑胶基座，磷铜接触端子镀镍处理，插拔耐久稳定。常用于工控设备、视频影音、仪器信号传输接口，规格齐全，支持针位定制，适配各类线束配套与电路板组装。

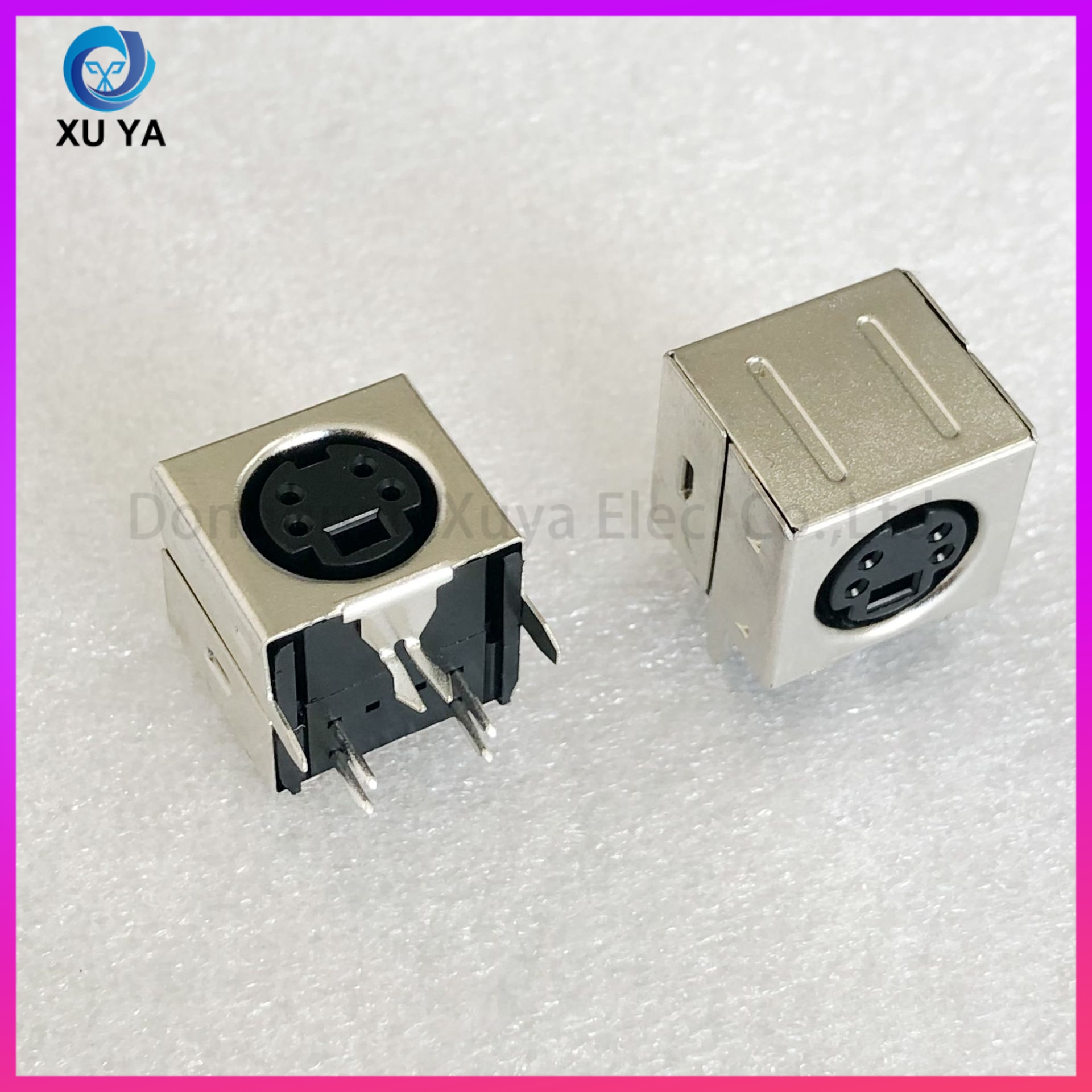

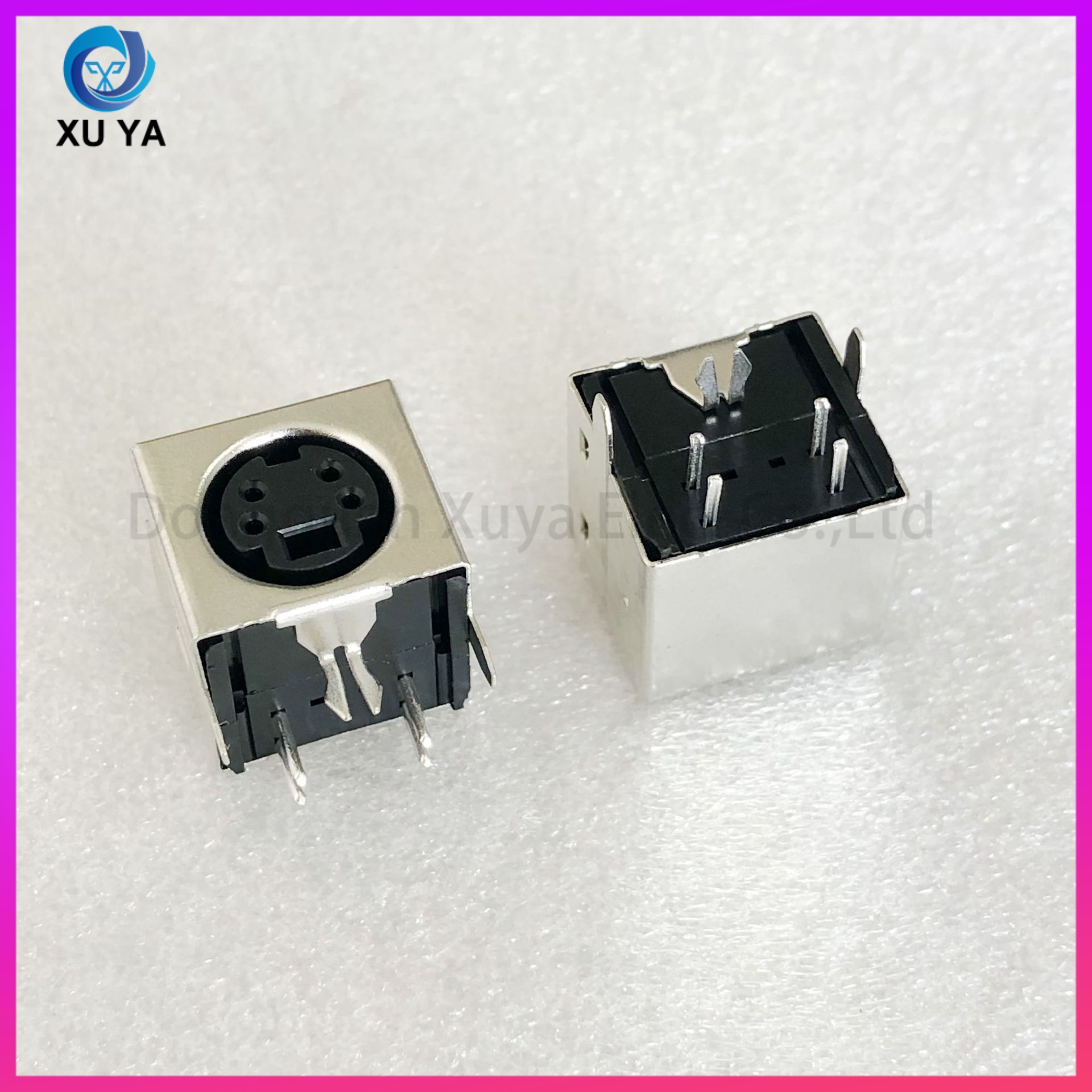

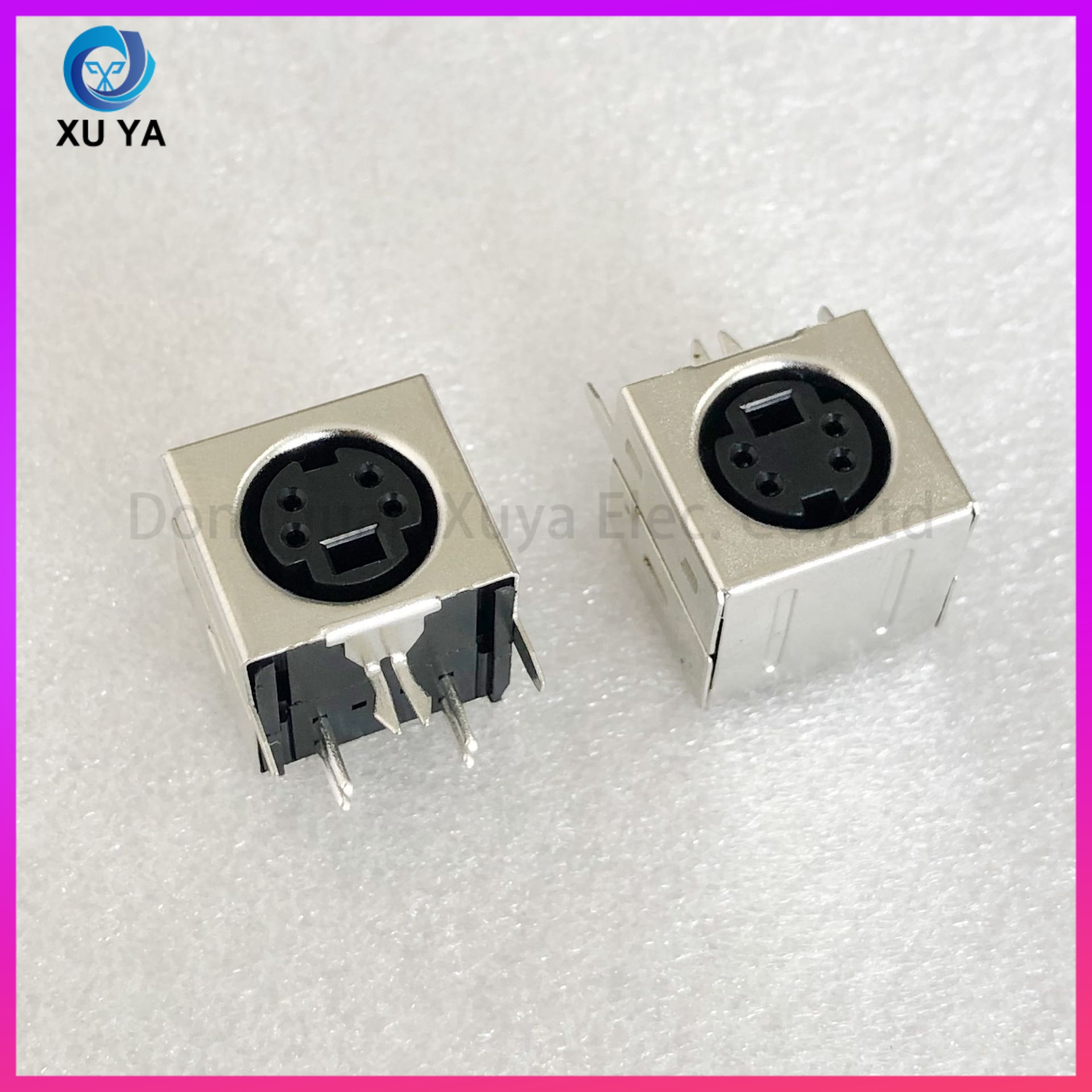

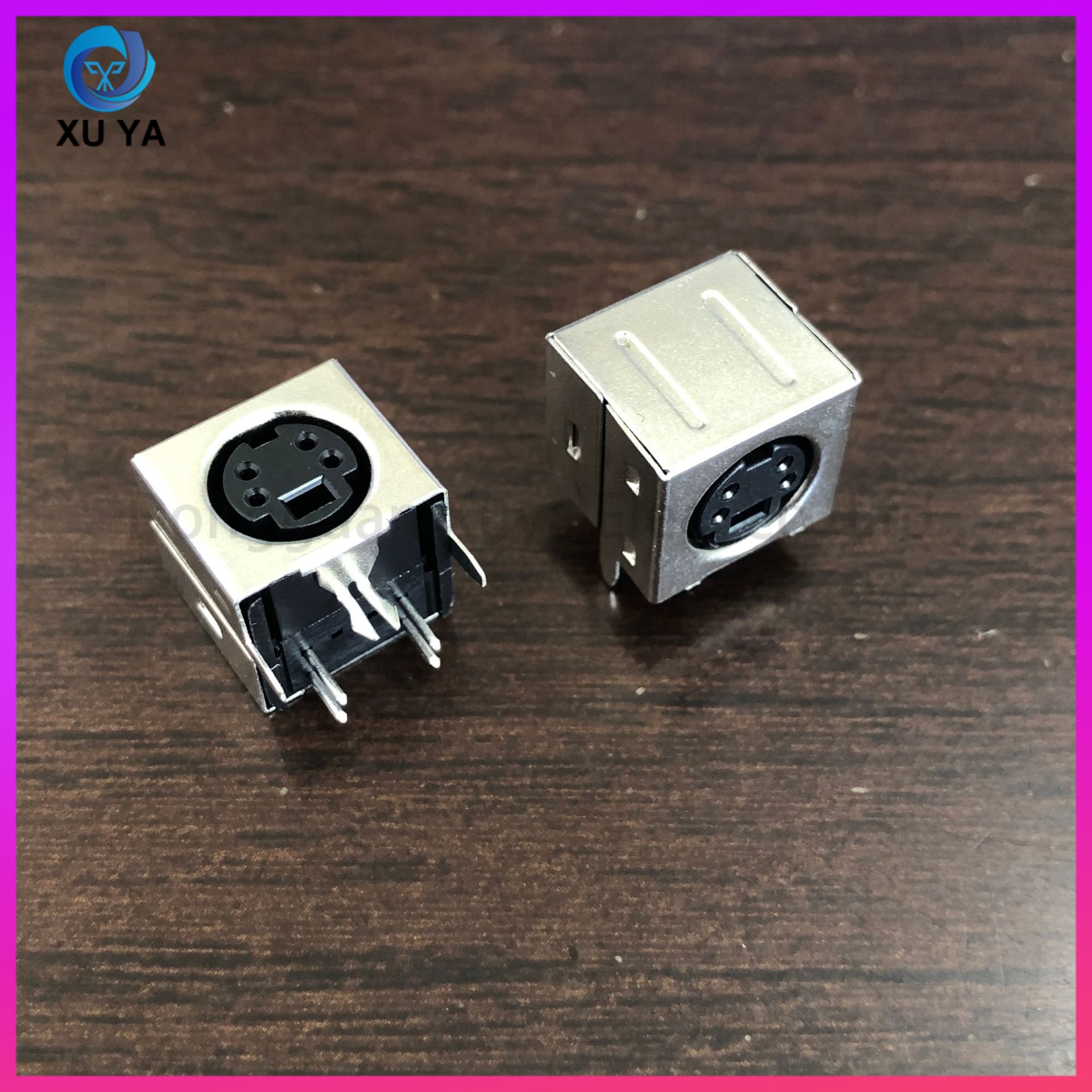

English: Fully shielded MINI DIN female socket with fixing shrapnel, horizontal through-hole soldering for PCB. Available from 4Pin to 9Pin. Metal shell provides excellent EMI shielding. Flame-retardant plastic base, nickel-plated phosphor bronze terminals ensure stable connection and long plug life. Widely used in industrial controllers, audio & video equipment and measuring instruments. Various specifications in stock, custom pin layout supported for wiring harness and PCB assembly.
FAQ 中英双语
Q1：有哪些芯数可选？
A1：4P/5P/6P/7P/8P/9P 规格均可供应。
Q1: Available pin options?
A1: 4P/5P/6P/7P/8P/9Pin are available.
Q2：外壳是否具备屏蔽功能？
A2：全包金属外壳搭配接地弹片，实现电磁屏蔽。
Q2: Is the shell shielded?
A2: Full metal housing with ground shrapnel for EMI shielding.
Q3：端子表面镀层标准是什么？
A3：常规镀镍，可根据需求定制镀金。
Q3: Standard terminal plating?
A3: Standard nickel plating, gold plating can be customized.
Q4：适配哪种焊接方式？
A4：卧式直插针脚，适用于 PCB 手工焊与波峰焊。
Q4: Suitable soldering method?
A4: Horizontal through-hole pins for manual soldering and wave soldering.
Q5：可以提供样品测试吗？
A5：支持试样，大批量订单价格与交期可协商。
Q5: Can samples be provided for testing?
A5: Samples are available, price and lead time negotiable for bulk orders.
