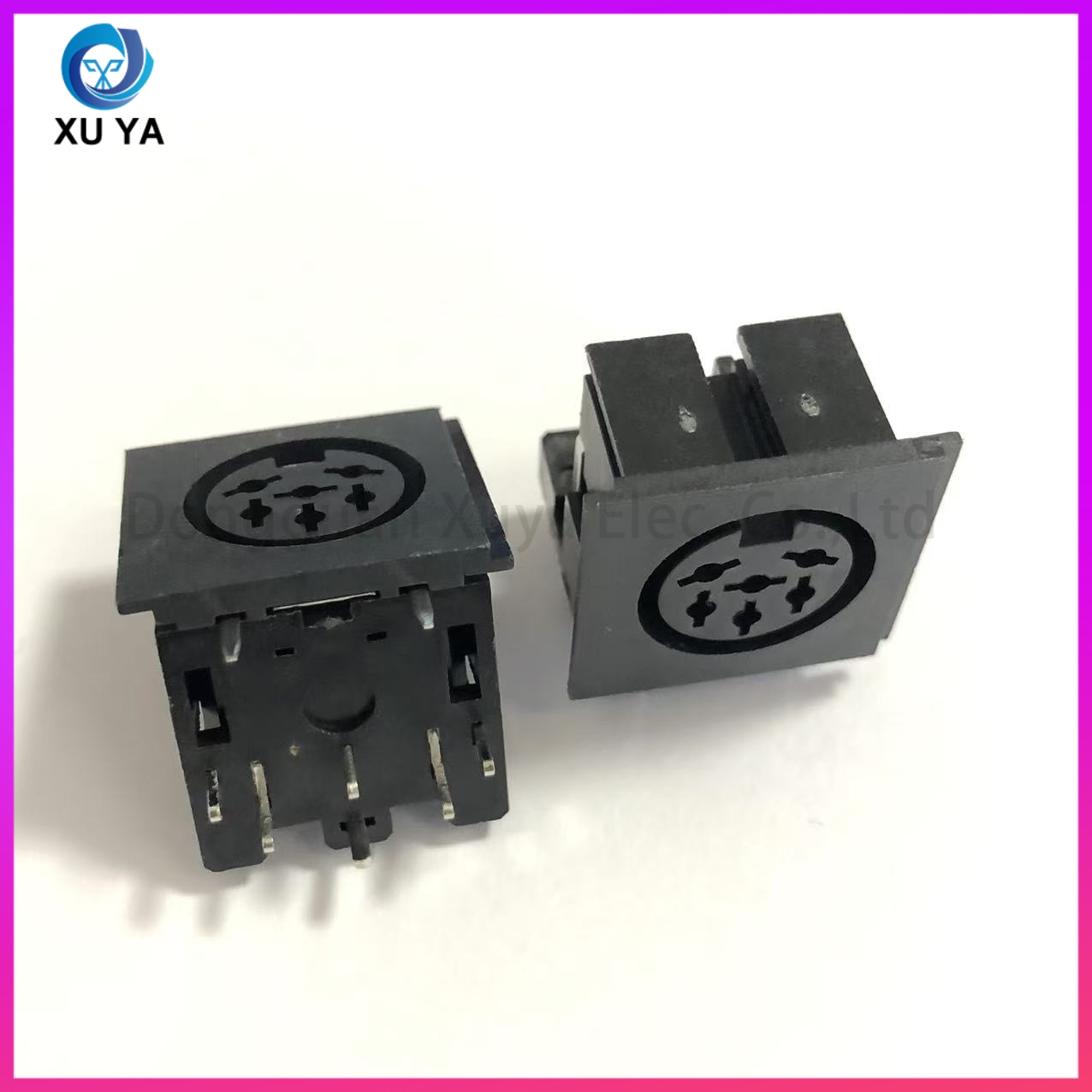

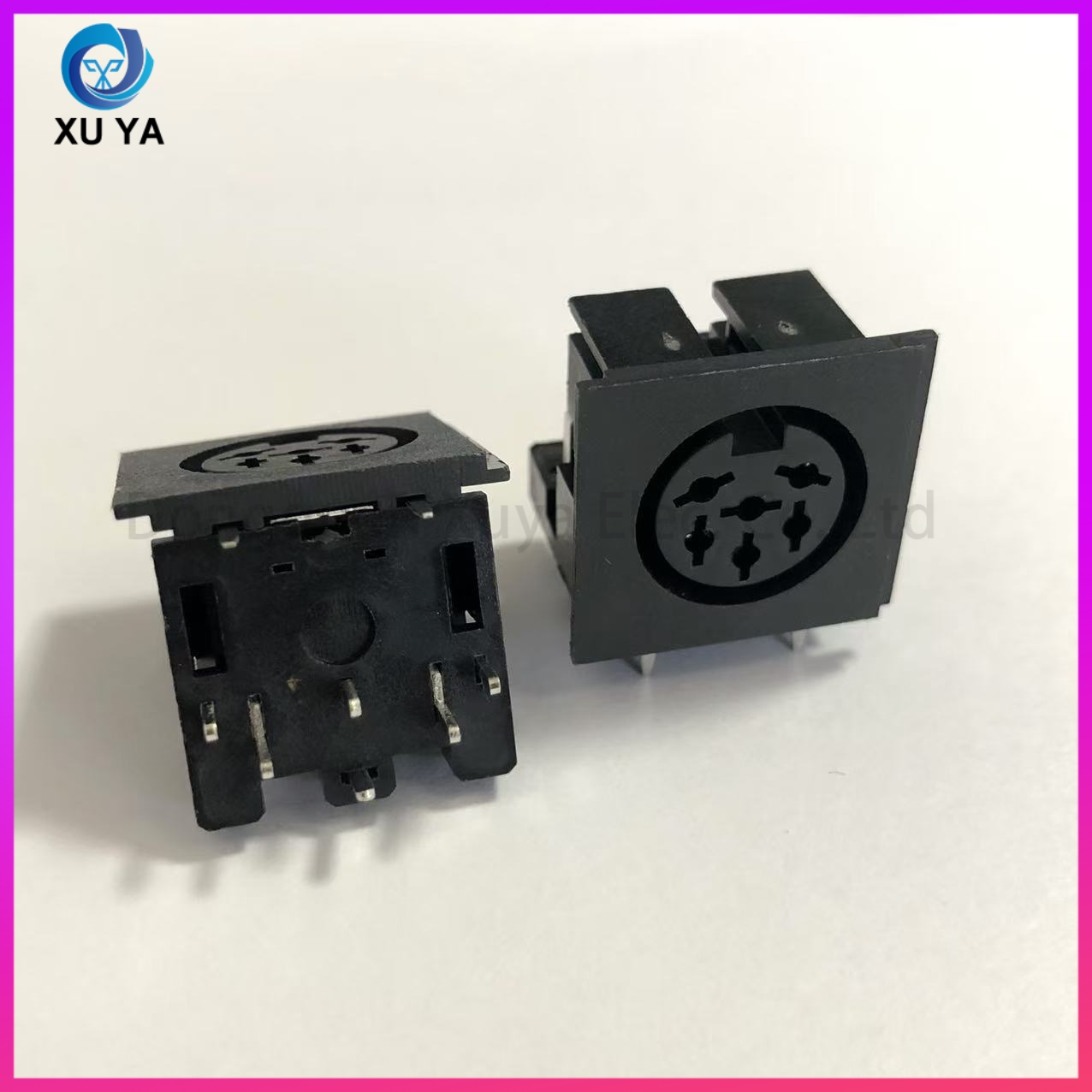

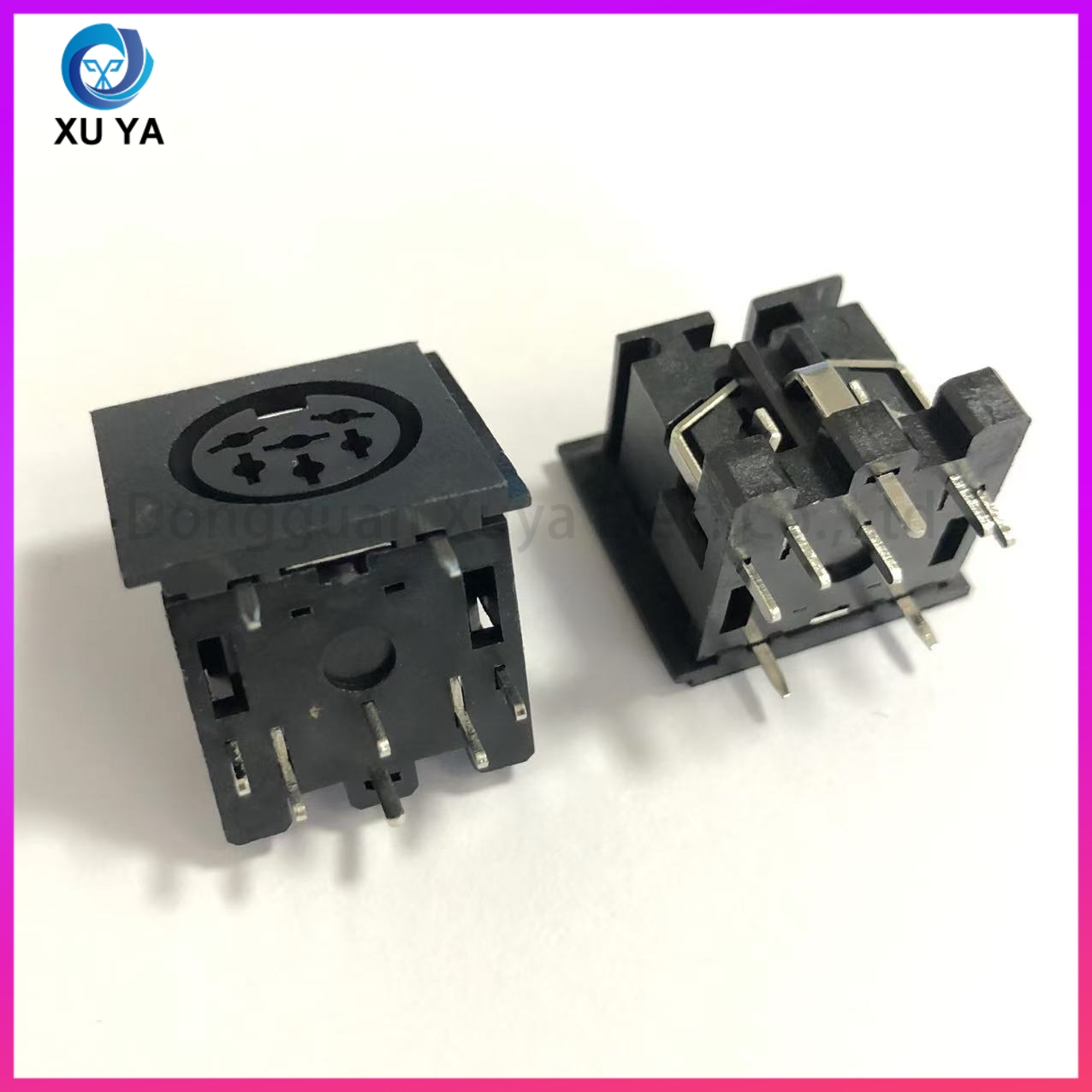

中文：DS 端子 DIN 母座 90 度插板母头 2-8 芯卧式 PCB 插板连接器
English: DS Terminal DIN Socket, 90 Degree PCB Female Header, 2-8Pin Horizontal Connector
产品描述（中英双语）
中文：DS 型 DIN 卧式插座，90 度弯脚插板结构，适配 PCB 板焊接。可选 2P 至 8P 多种芯数，阻燃塑胶壳体，磷铜端子镀镍处理，接触稳定耐插拔。标准方形面板安装孔位，广泛应用于控制器、音响设备、仪器仪表信号接口，规格齐全，支持针位、脚位定制，适合批量贴片与线束配套使用。
English: DS type DIN horizontal socket with 90-degree bent pins for PCB soldering. Optional 2P~8Pin. Flame-retardant plastic housing, nickel-plated phosphor bronze terminals for stable contact and long service life. Standard square panel cutout. Widely used on controllers, audio equipment and instruments for signal connection. Complete specifications, custom pin layout available for mass PCB assembly and wiring harness matching.
FAQ 中英双语
Q1：支持多少芯数规格？
A1：2P、3P、4P、5P、6P、7P、8P 均可供货。
Q1: Available pin versions?
A1: 2P,3P,4P,5P,6P,7P,8Pin in stock.
Q2：插脚形式是直插还是 90 度弯脚？

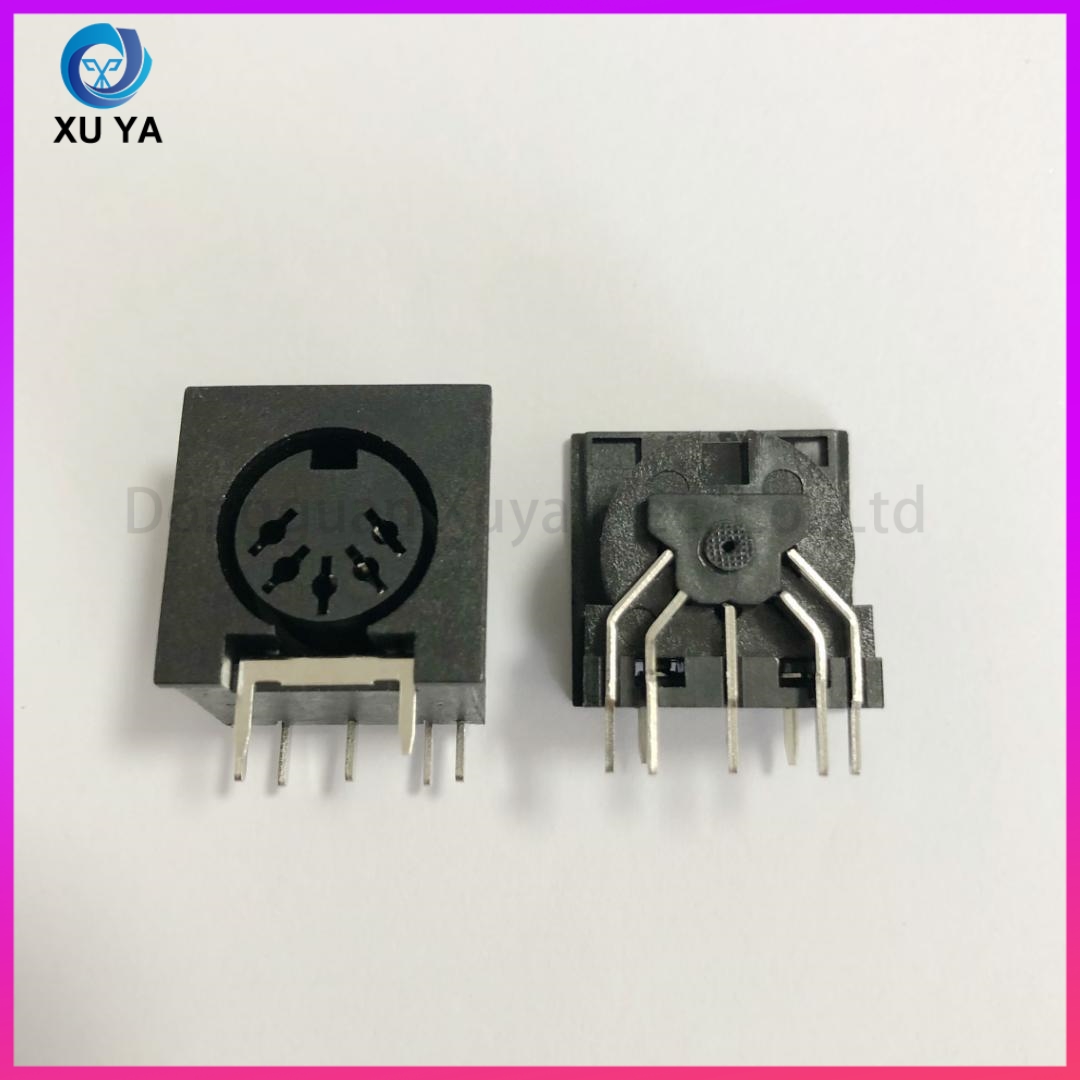

A2：图中款式为 90 度卧式弯脚 PCB 插板型。
Q2: Pin type straight or 90 degree?
A2: This model is 90-degree horizontal bent pin for PCB mounting.
Q3：端子材质与镀层是什么？
A3：磷铜端子，标准镀镍，可协商镀金。
Q3: Terminal material & plating?
A3: Phosphor bronze with nickel plating, gold plating optional.
Q4：主要应用什么设备？
A4：工控控制器、音响、医疗器械、检测仪器信号接口。
Q4: Typical applications?
A4: Industrial controllers, audio devices, medical equipment, testing instruments.
Q5：能否提供样品测试？
A5：支持试样，大批量订单单价与交期可沟通。
Q5: Can samples be provided for testing?
A5: Samples available, unit price & lead time negotiable for bulk orders.
