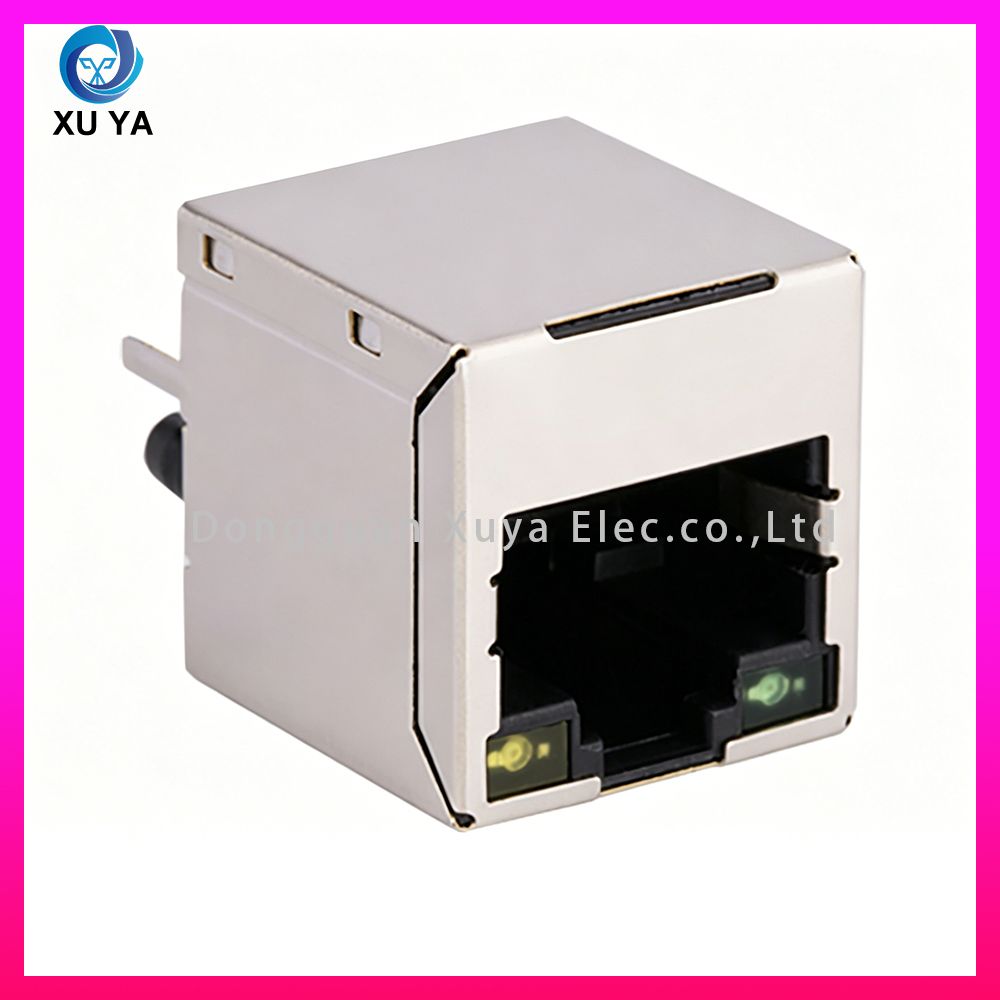

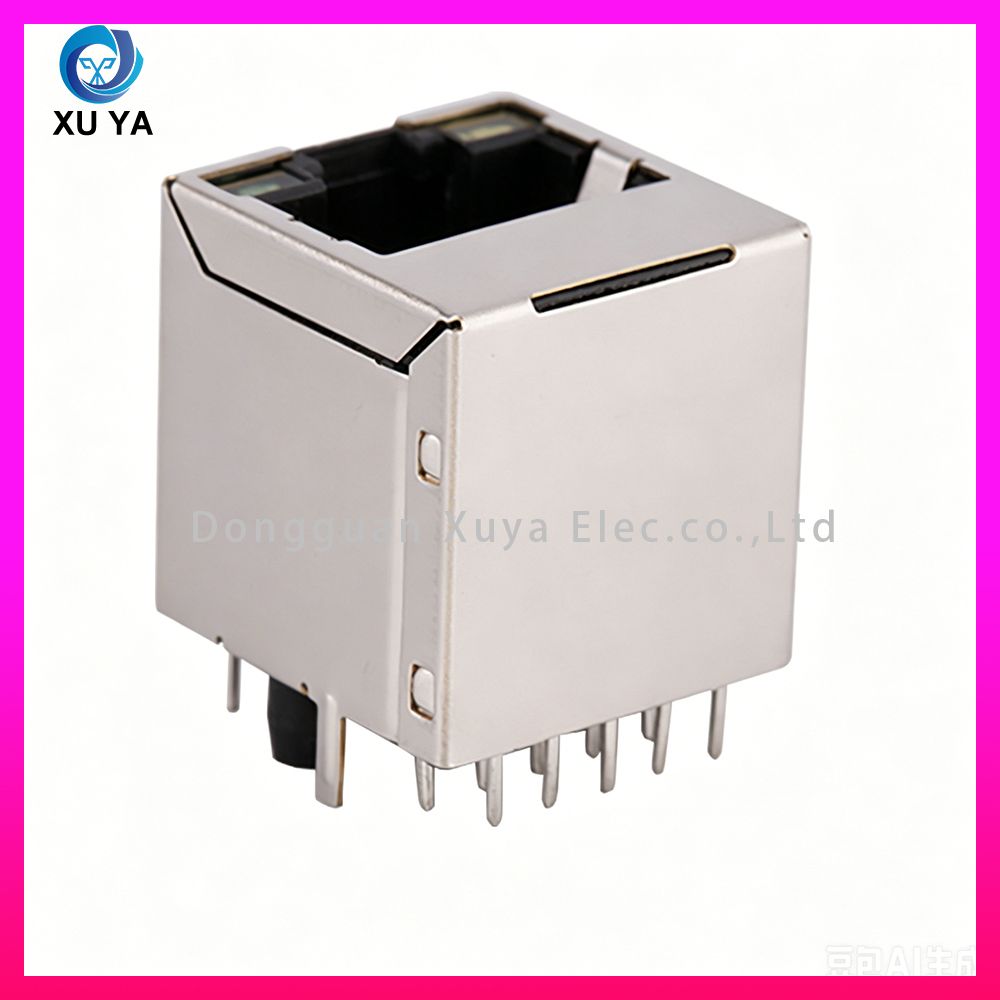

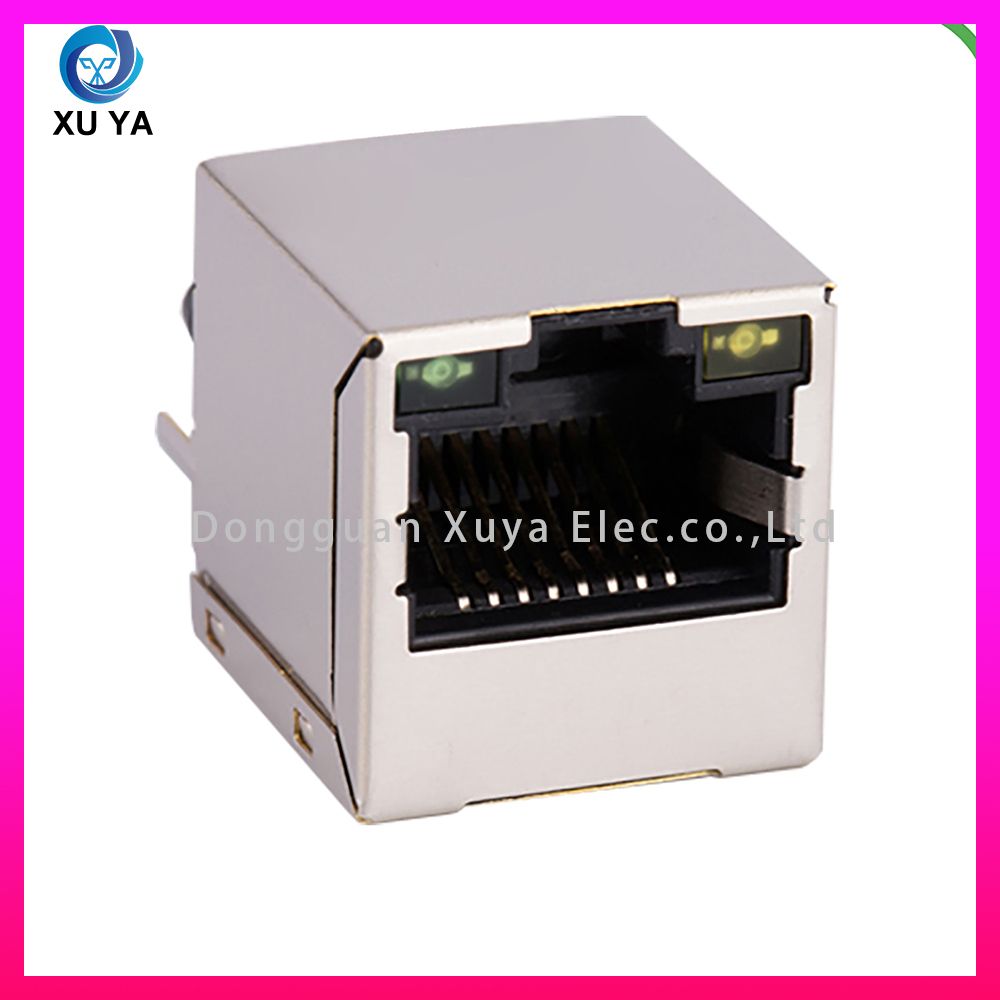

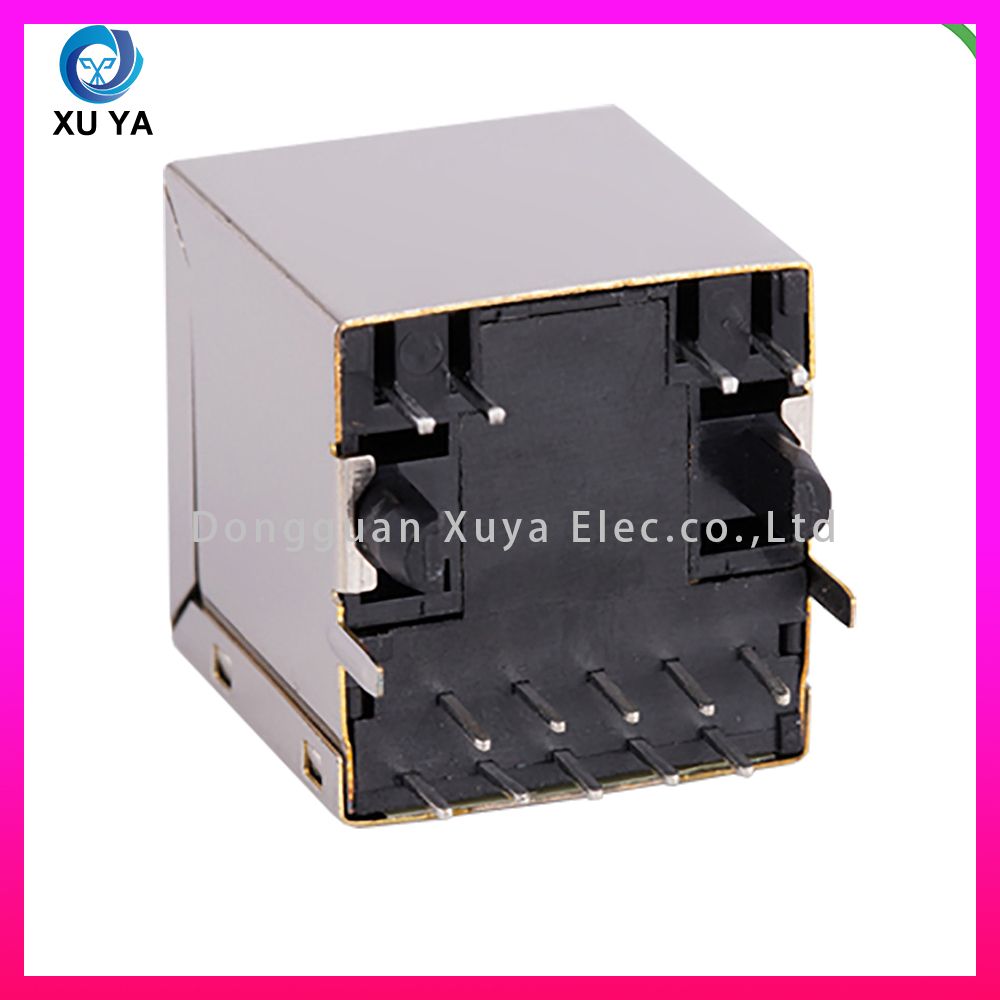

180 度立式千兆 RJ45 插座

千兆 180 度立式以太网插座 内置局域网隔离变压器 RJ45 网口连接器
Gigabit 180 Degree Ethernet Jack with Built-in LAN Transformer, RJ45 Connector
       180 度立式单口屏蔽 RJ45 以太网插座，内置专用千兆 LAN 隔离变压器，支持 10/100/1000M 自适应千兆网络传输；一体式镀锌钢金属屏蔽外壳，端口集成绿、黄双色状态指示灯，标准 8P8C 镀金接触针脚；内置隔离变压器可隔离高低压、滤除线路杂波干扰，有效防止静电击穿，工业、弱电复杂环境下信号稳定无丢包；180 度立式 DIP 通孔焊接结构，侧边定位卡扣牢牢贴合 PCB 线路板，过炉焊接不易偏移、虚焊；绿灯常亮代表网线链路正常，黄灯闪烁实时反馈数据收发状态；广泛适配工业网关、千兆路由器、工控主板、安防 NVR、物联网通讯设备；标准整箱 3800PCS，现货交期 2-3 个工作日，可定制无灯、沉板、贴片、百兆版本，源头工厂批量供货。
      180° vertical single port shielded RJ45 Ethernet jack with built-in dedicated gigabit LAN isolation transformer, supporting 10/100/1000M adaptive gigabit transmission. Integrated galvanized steel full shielding shell equipped with built-in green & yellow dual LED indicator lights and standard 8P8C gold-plated contact pins. The built-in isolation transformer insulates high and low voltage and filters line clutter interference to avoid electrostatic breakdown, ensuring stable signal without packet loss under industrial and complex weak-current environments. 180° vertical DIP through-hole soldering design with side positioning buckles fits PCB tightly to prevent shifting and cold solder joints during reflow soldering. Solid green light indicates normal network link, flashing yellow light displays real-time data transceiving status. Widely applied to industrial gateways, gigabit routers, industrial control boards, surveillance NVR and IoT communication equipment. 3800 pieces per export carton, stock lead time 2-3 working days. Custom non-LED, sunken, SMD and 10/100M versions are available, factory mass supply for cross-border merchants.

Q1. 规格 Spec
这款 RJ45 插座焊接角度、传输速率与内置配件是什么？
180 度立式通孔 DIP 焊接，支持千兆自适应网络，内置 LAN 隔离变压器，自带黄绿双色 LED 指示灯，8P8C 标准针脚。 What are the soldering angle, transmission rate and built-in accessories of this RJ45 jack?
180° vertical DIP through-hole soldering, gigabit adaptive network support, built-in LAN isolation transformer, with green & yellow dual LED lights, standard 8P8C pins.

Q2. 内置变压器作用 Transformer Function
内置局域网隔离变压器能解决哪些线路问题？
隔离强弱电压差、抑制浪涌静电、过滤电磁杂波干扰，保护后端芯片，稳定千兆网络传输。
What circuit problems can the built-in LAN isolation transformer solve?
Isolate voltage difference between strong and weak current, restrain surge static electricity, filter EMI noise, protect rear-end chips and stabilize gigabit signal transmission.

Q3. 屏蔽与材质 Shield & Material
屏蔽外壳与触点材质优势是什么？
整体镀锌钢全包屏蔽罩，隔绝外部电磁干扰；针脚加厚镀金，耐磨抗氧化，上万次插拔接触稳定。
What advantages do the shielding shell and contact pins have?
Full galvanized steel shielding shell blocks external EMI; thick gold-plated pins resist abrasion and oxidation with stable contact after ten thousand plug cycles.

Q4.LED 指示灯含义 LED Function
两个指示灯分别代表什么网络状态？
绿色常亮：网口链路成功连接；黄色闪烁：设备正在上传 / 下载网络数据。
What network status do the two LED lights represent respectively?
Solid green light: Network link connected successfully; Flashing yellow light: The device is uploading and downloading network data.

Q5. 装箱数量 Carton Qty
标准外贸纸箱一箱可装多少个该款千兆 RJ45 连接器？
每箱 3800 个，独立防静电袋分装，运输避免金属壳刮花、针脚弯折变形。
How many pieces of this gigabit RJ45 connector can be packed in one export carton?
3800 pieces per carton with separate anti-static packaging to prevent shell scratch and pin bending during transportation.
