立式带灯屏蔽 RJ45 连接器

立式带灯屏蔽 RJ45 连接器 8P8C 千兆网口插座 工厂直供
RJ45 Shielded Connector with LED, 8p8c, Vertical Network Socket Factory

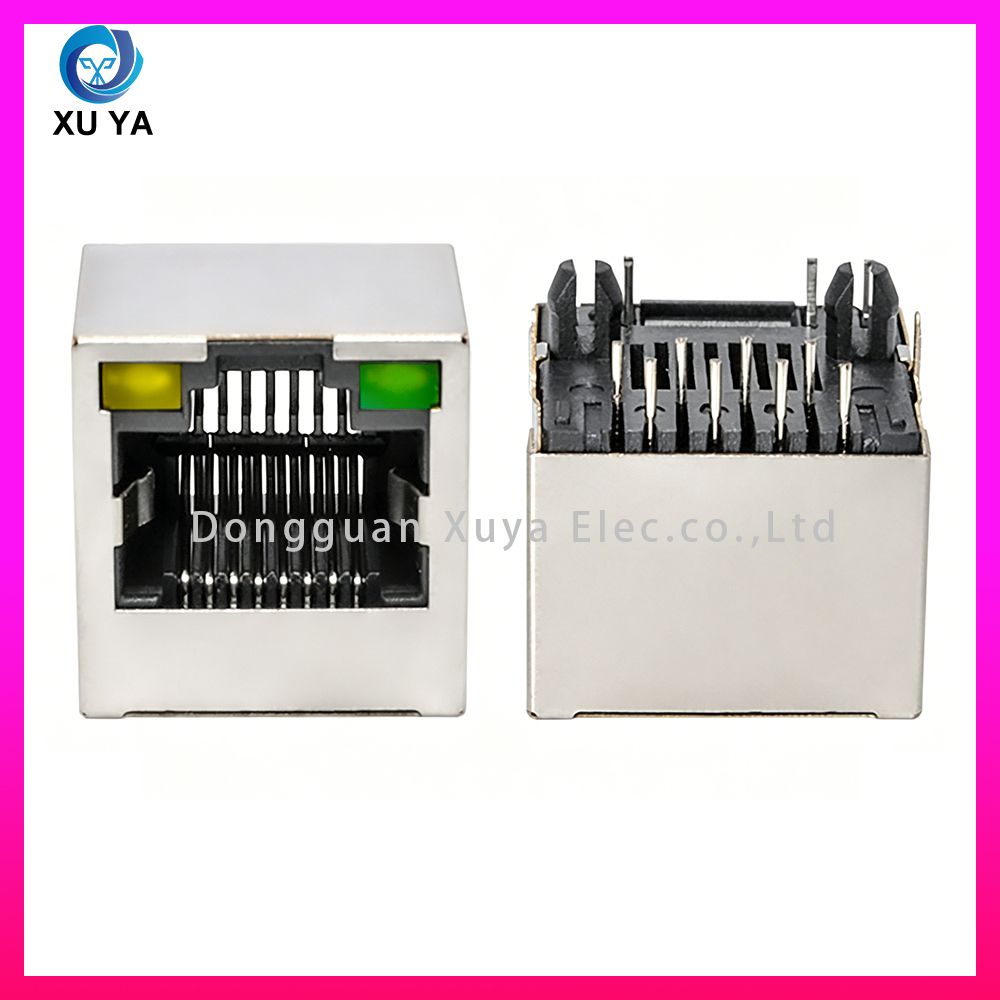

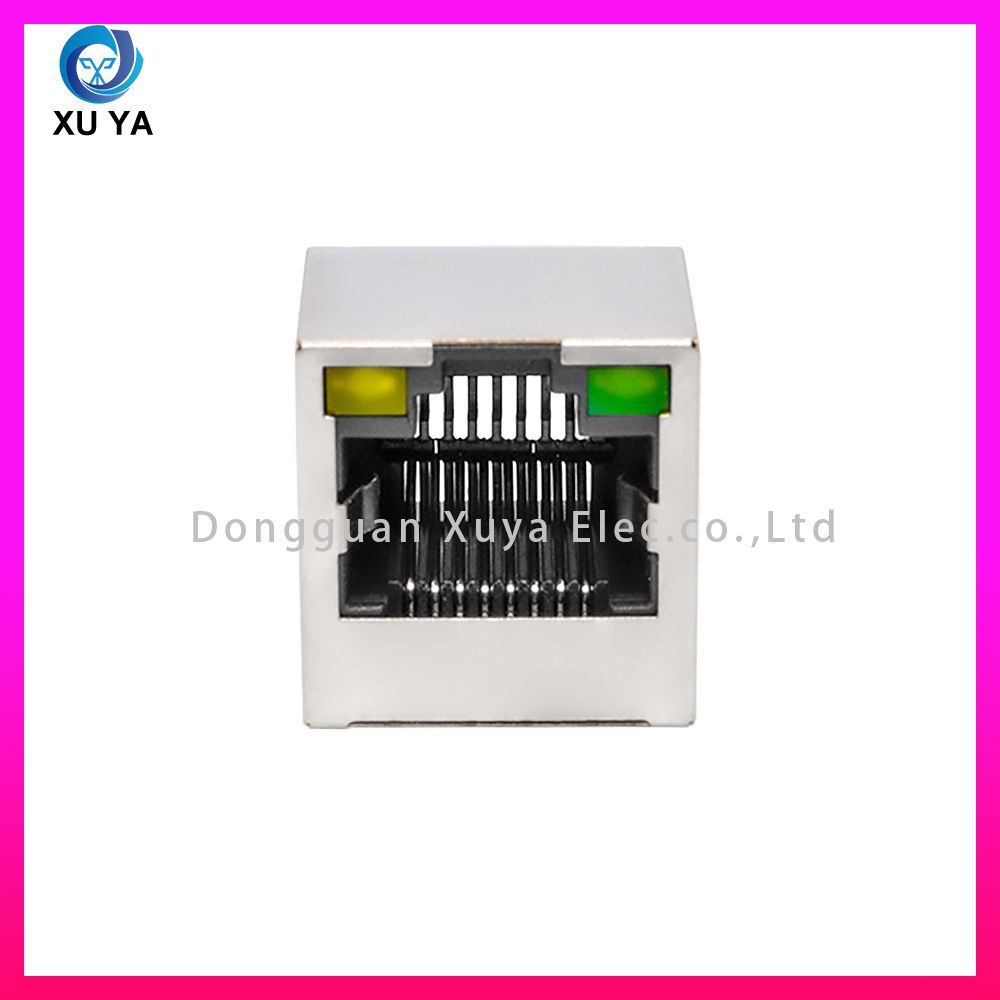

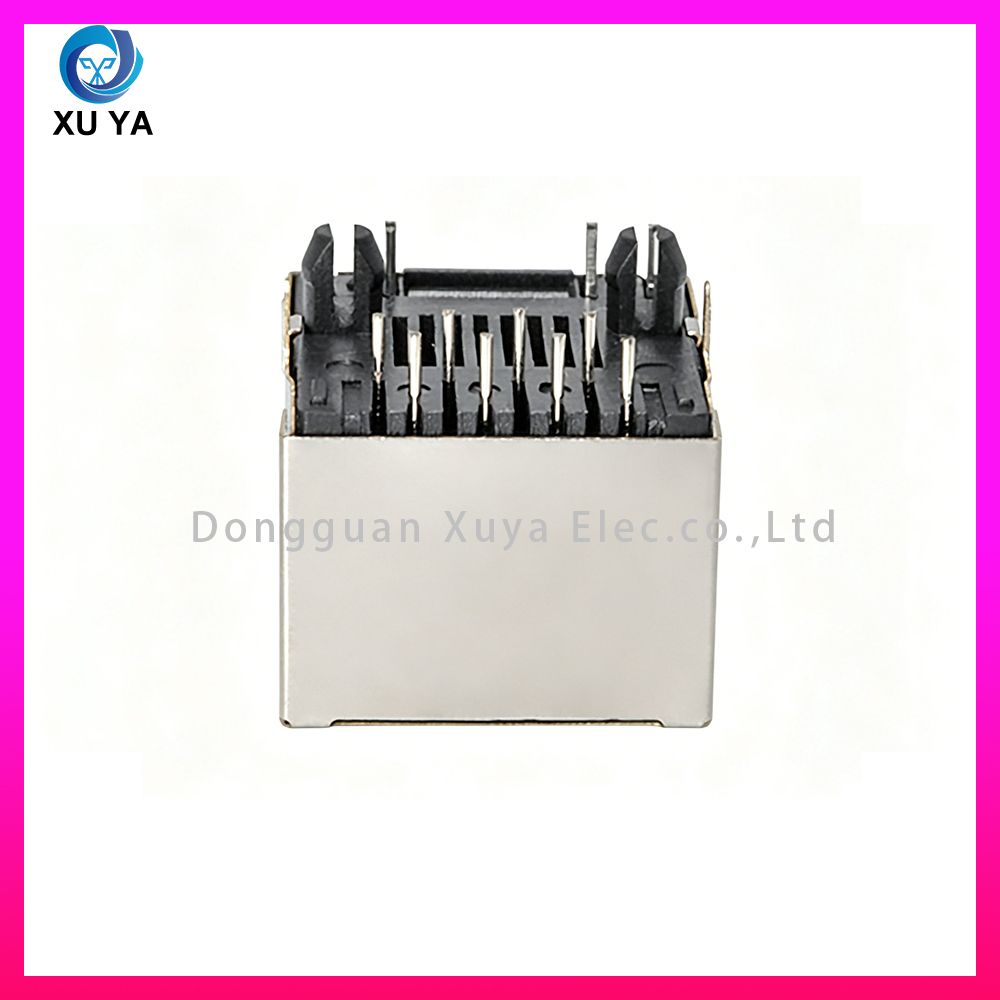

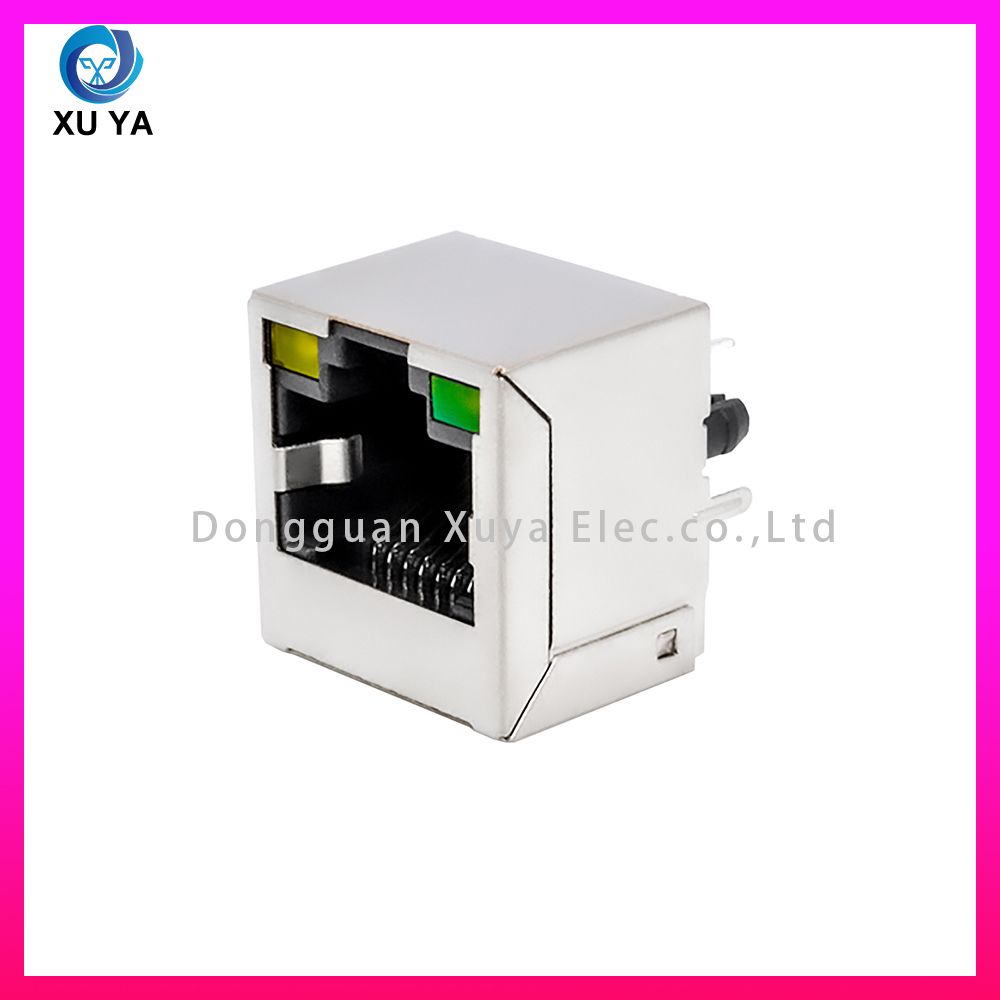

        180 度立式通孔单口屏蔽 RJ45 网口插座，标准 8P8C 针脚，端口内置黄、绿双色 LED 指示灯；整体镀锌钢全包金属屏蔽壳体，内部集成滤波磁环，有效隔离电源、高频设备电磁干扰，稳定传输千兆网络信号；针脚加厚镀金工艺，耐磨抗氧化，搭配两侧定位卡扣，PCB 通孔焊接定位稳固，不易出现虚焊、偏移；绿灯常亮代表网线链路正常连通，黄灯闪烁提示设备数据收发，可直观判断端口运行状态；适用于家用路由器、迷你交换机、工业工控主板、安防监控主机、嵌入式物联网设备；标准整箱 4000PCS，现货交期 2-3 个工作日，支持无灯款、沉板款、贴片款定制，源头工厂跨境批量供货。
       180° vertical through-hole single port shielded RJ45 socket with standard 8P8C pins, built-in yellow & green dual LED indicator lights on each port. The full galvanized steel shielding shell with internal integrated filter coil effectively isolates electromagnetic interference from power supplies and high-frequency equipment to realize stable gigabit signal transmission. Thick gold-plated pins are wear-resistant and anti-oxidation, equipped with dual-side positioning buckles for firm PCB through-hole soldering without cold solder joints or shifting. Steady green light indicates normal network link, flashing yellow light shows data transceiving for quick port status checking. Widely applied to household routers, mini switches, industrial control boards, surveillance mainframes and embedded IoT devices. 4000 pieces per export carton, stock lead time 2-3 working days. Custom versions without LED, sunken board and SMD types are available, factory mass supply for cross-border merchants.

Q1. 规格 Spec
这款 RJ45 插座针脚规格、焊接方式与指示灯配置是什么？
标准 8P8C 针脚，180 度立式 DIP 通孔焊接，端口集成黄绿双色 LED 指示灯，兼容千兆以太网传输。
What are the pin spec, soldering type and LED configuration of this RJ45 jack?
Standard 8P8C pins, 180° vertical DIP through-hole soldering, built-in green & yellow dual LED lights, compatible with gigabit Ethernet transmission.

Q2. 屏蔽抗干扰 Shield Performance
屏蔽外壳材质与内置滤波能适配工业复杂电磁环境吗？
一体式镀锌钢全包屏蔽罩，内置隔离滤波磁环，大幅降低电磁干扰，工业场景下网络不易丢包。
What material is the shielding shell made of? Can the built-in filter adapt to complex industrial EMI environment?
Integrated full-wrap galvanized steel shielding shell with isolated filter coil greatly reduces EMI and avoids packet loss under industrial environment.

Q3.LED 指示灯功能 LED Function
黄绿指示灯分别对应哪种网络工作状态？
绿色常亮：网线正常接入、链路连通；黄色闪烁：端口正在接收 / 发送网络数据。
What working status do green and yellow LED lights correspond to?
Solid green light: Normal cable access and stable link; Flashing yellow light: The port is receiving and sending network data.

Q4. 适用设备 Application
立式带灯屏蔽 RJ45 插座适配哪些网络通讯主板？
家用路由器、小型桌面交换机、工业控制主板、监控 NVR 录像机、物联网嵌入式主板。
What network communication mainboards fit this vertical LED shielded RJ45 socket?
Household routers, desktop mini switches, industrial control boards, surveillance NVR and IoT embedded mainboards.

Q5. 装箱数量 Carton Qty
标准外贸纸箱一箱可装多少个该款 RJ45 连接器？
每箱 4000 个，独立防静电袋分装，运输过程防止金属外壳刮花、针脚弯折氧化。
How many pieces of this RJ45 connector can be packed in one export carton?
4000 pieces per carton with separate anti-static packaging to prevent shell scratch and pin bending oxidation during transportation.
