中文：0.5mm 翻盖下接 FPC 连接器 掀盖式 FFC 扁平排线插座 液晶屏连接器

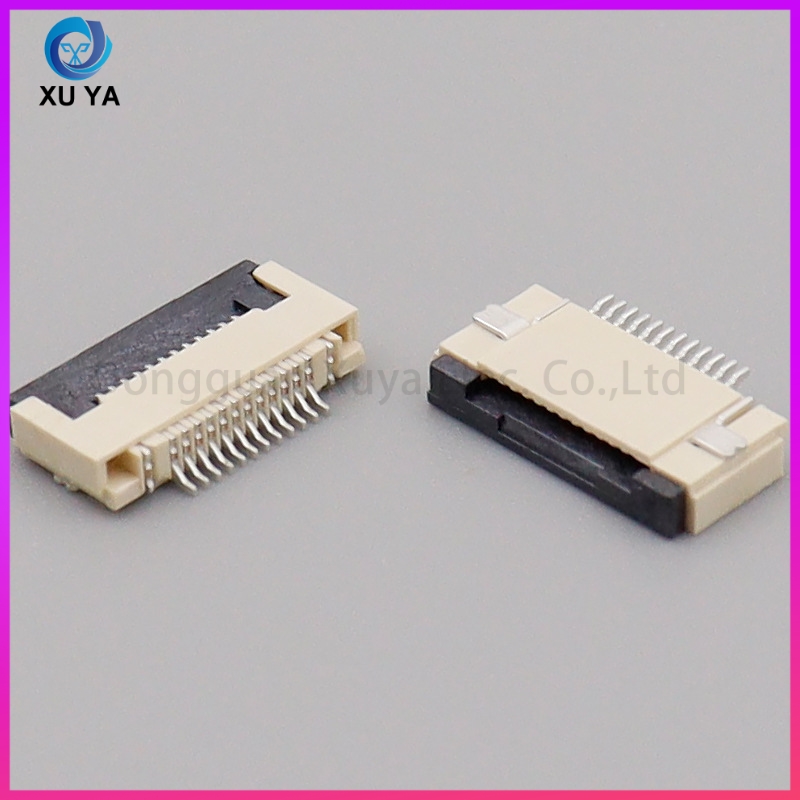

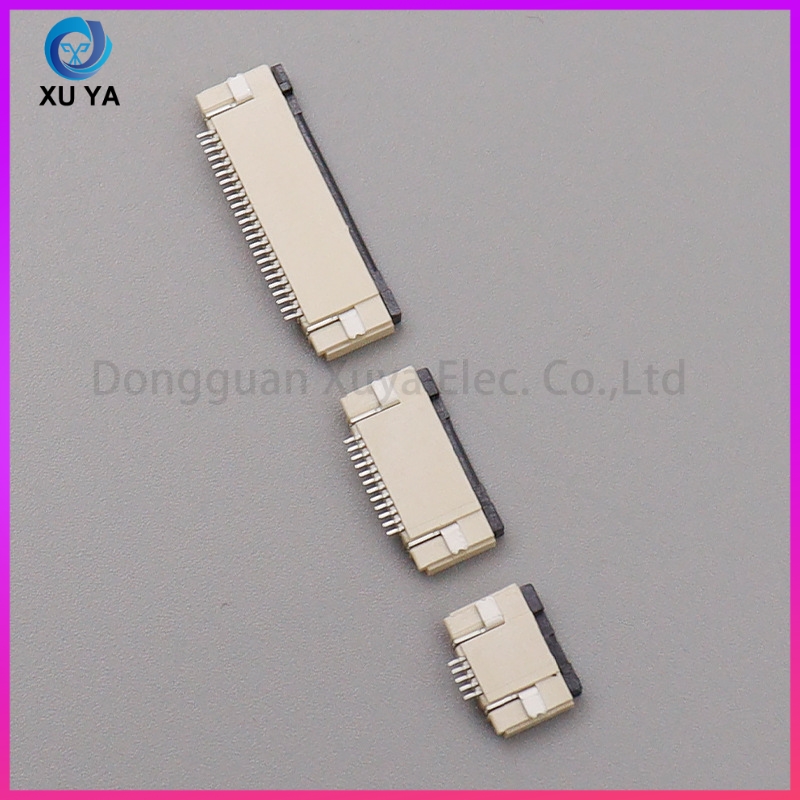

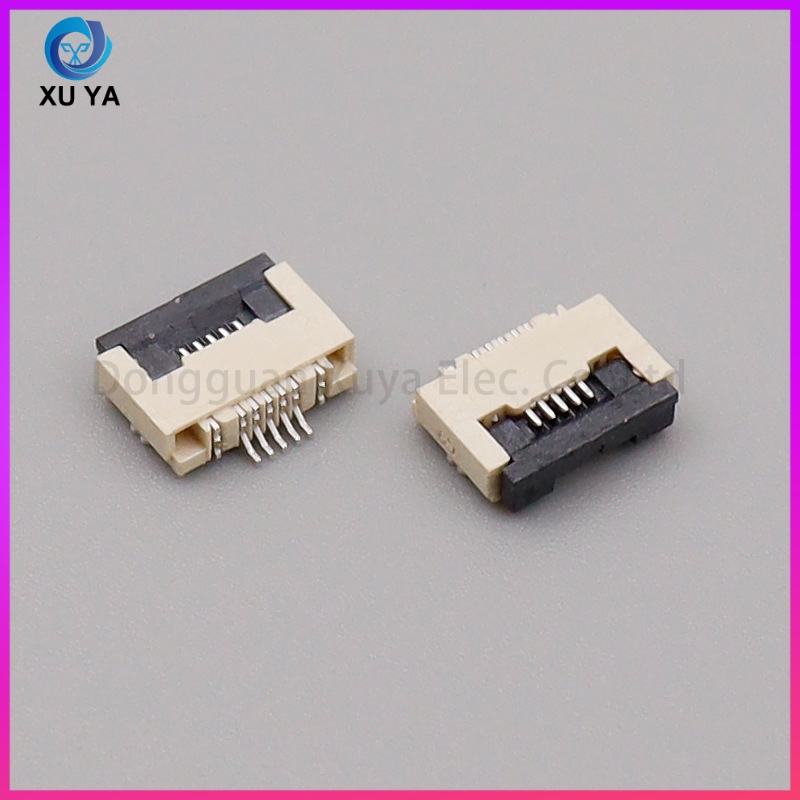

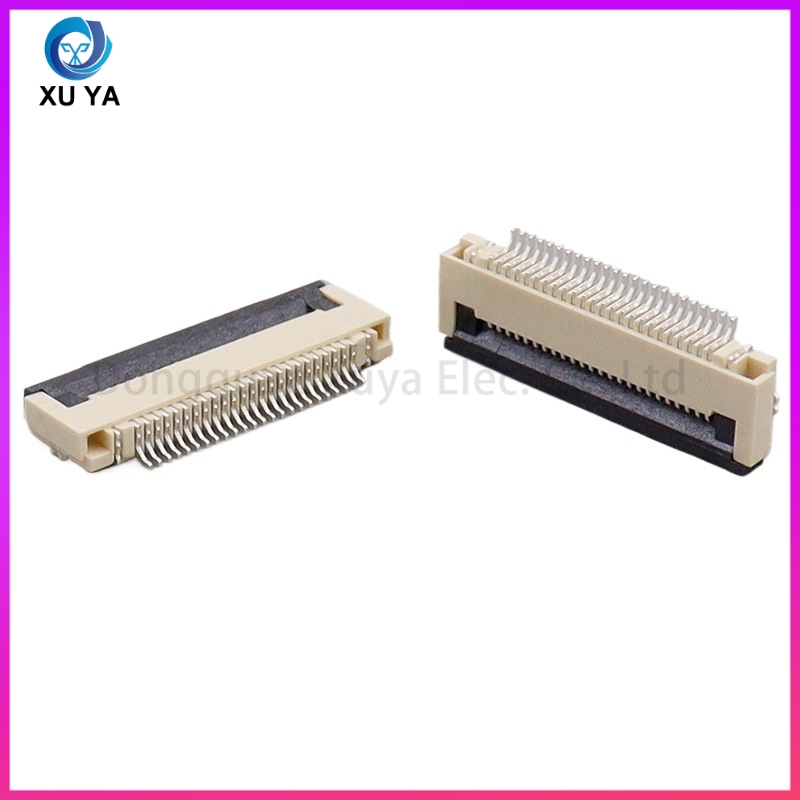

English: 0.5mm Flip Bottom Contact FPC Connector, FFC Flat Cable Socket For LCD Screen
产品描述（中英双语）
中文
0.5mm 间距翻盖下接式 FPC 连接器，掀盖锁紧结构，适配 FFC/FPC 扁平排线。端子镀金，接触稳定，阻抗低；贴片 SMT 焊接，节省 PCB 空间。支持多 Pin 位选型，常规 4P~60Pin 现货，广泛应用显示屏、数码设备、智能家居、工控主板排线连接，可提供样品测试，支持定制规格。
English
0.5mm pitch flip type bottom contact FPC connector with flip lock structure for FFC/FPC flat cable. Gold-plated terminals provide stable contact and low impedance. SMT surface mount design saves PCB space. Multiple pin counts available from 4Pin to 60Pin. Widely used for LCD panels, digital products, smart home and industrial control mainboard wiring. Samples available, customized specifications are supported.
FAQ 中英双语
Q1：连接器间距是 0.5mm 下接翻盖款吗？
A1：是的，0.5mm 间距，翻盖下接触点结构。
Q1: Is it 0.5mm pitch flip type bottom contact connector?
A1: Yes, 0.5mm pitch, flip lock, bottom contact version.
Q2：支持多少 Pin 位可以选择？
A2：4P~60Pin 常规规格均有库存，可按需选购。
Q2: What pin numbers are optional?
A2: 4Pin~60Pin standard types in stock for selection.
Q3：适配 FFC 扁平排线还是 FPC 软板？
A3：FFC 扁平排线、FPC 柔性线路板均可配套使用。
Q3: Compatible with FFC flat cable or FPC flexible circuit?
A3: Works with both FFC flat cable and FPC flexible board.
Q4：主要用于哪些产品？
A4：液晶显示屏、摄像头模组、消费数码、仪器主板。
Q4: What products are commonly used?
A4: LCD screen, camera module, consumer electronics, instrument mainboards.
Q5：能否申请样品测试？大批量交期多久？
A5：支持拿样测试，批量订单交期稳定。
Q5: Can I get samples? How about bulk lead time?
A5: Sample testing supported, stable delivery time for bulk orders.
