中文：200A 储能穿墙接线柱 家储锂电池连接器 三四轮电动车大电流端子
English: 200A Energy Storage Wall-through Terminal, Home Energy Storage Connector, High Current Terminal for 3/4 Wheel EV
产品描述（中英双语）
中文

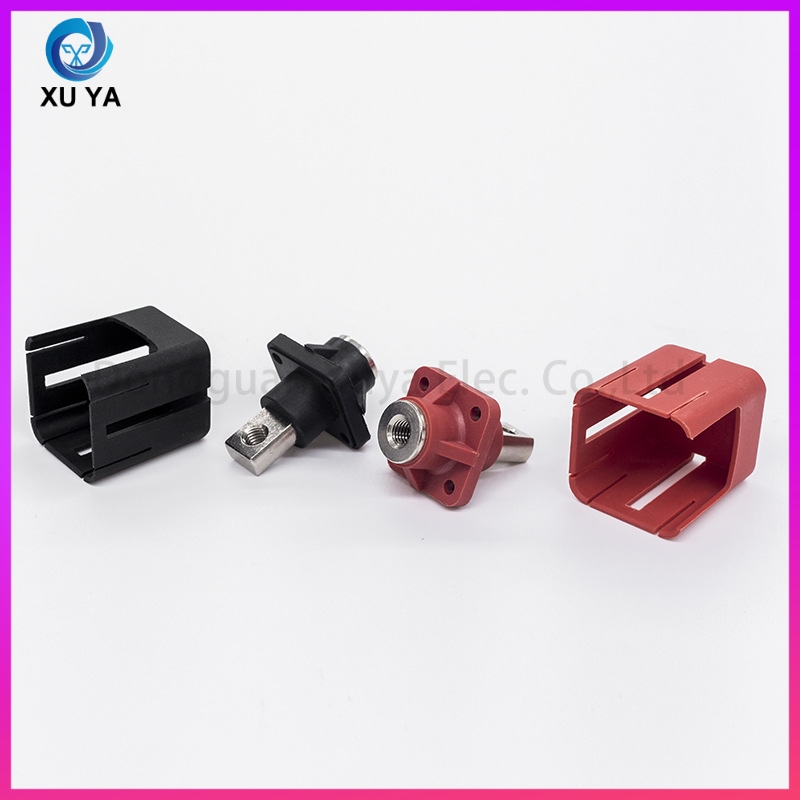

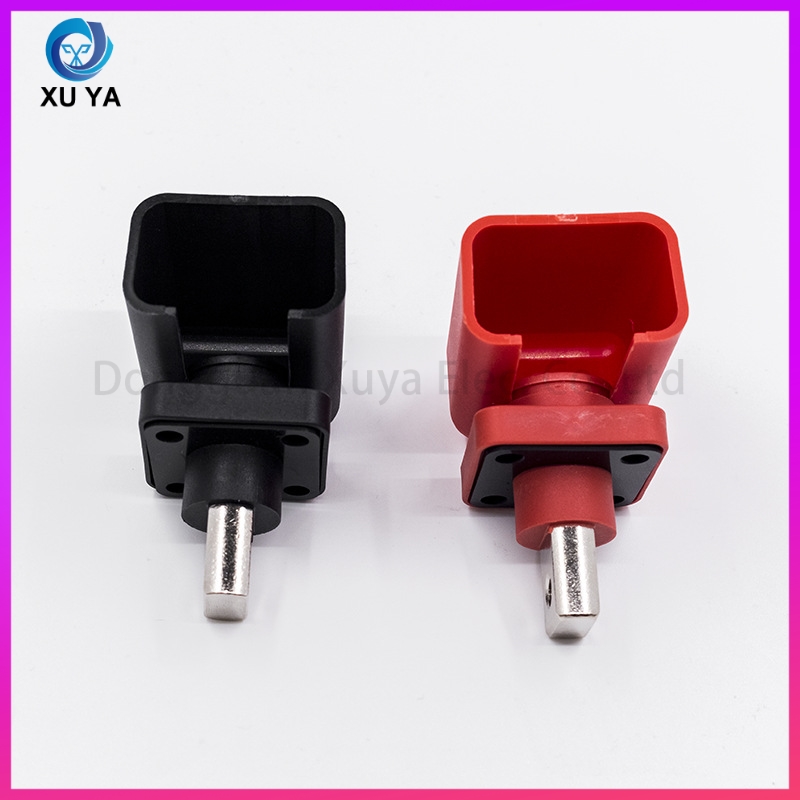

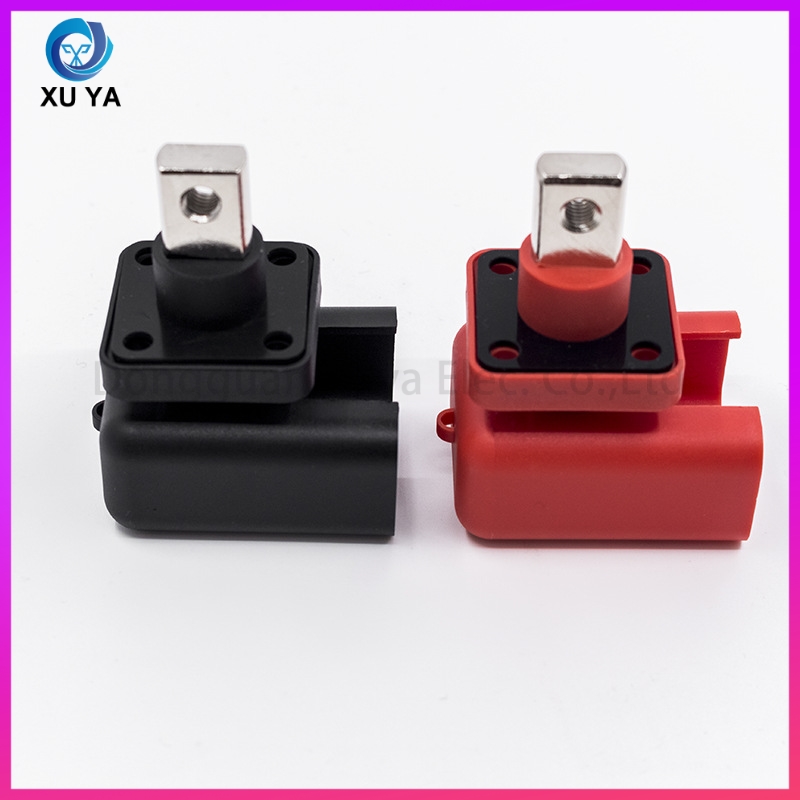

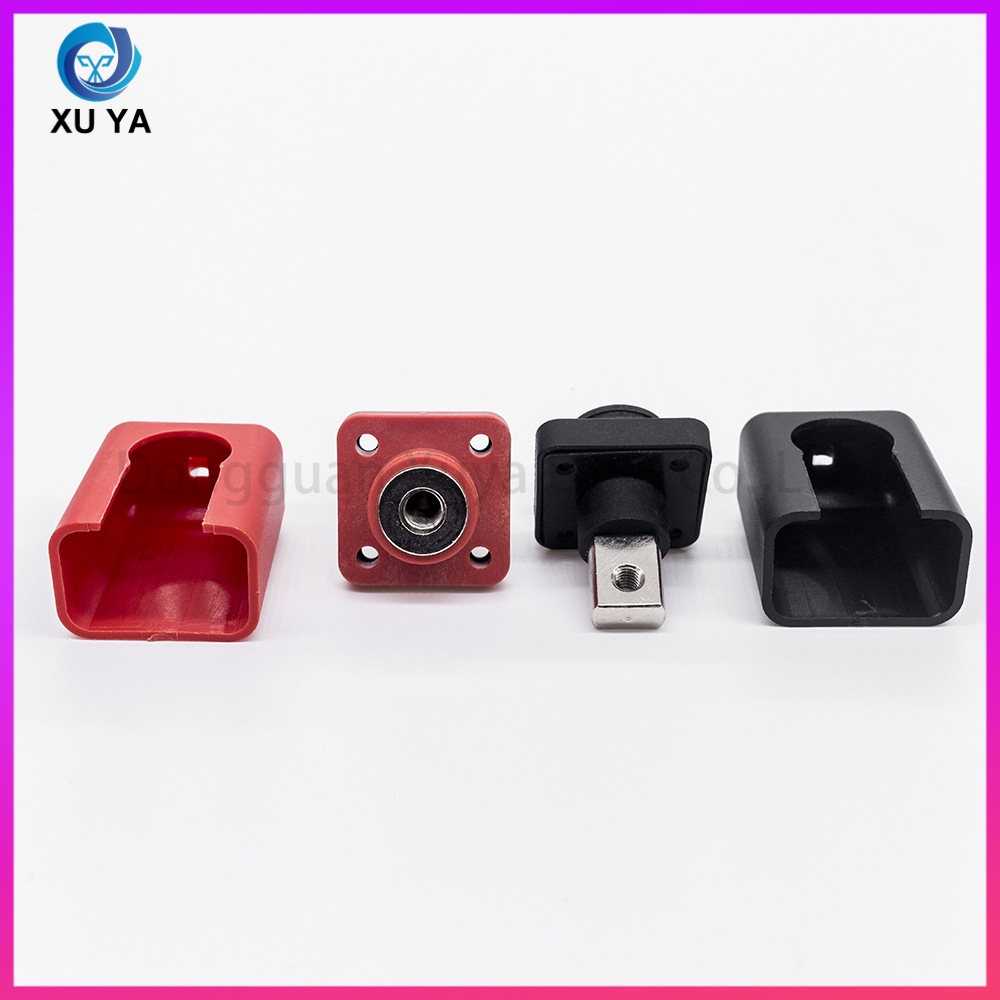

额定 200A 大电流储能穿墙接线端子，法兰面板固定式安装，配套绝缘防护保护壳，红黑双色区分正负极。主体采用耐高温阻燃绝缘壳体，导电铜件加厚镀银，导电性能优异、温升低。适用于家用储能电池箱、储能逆变器、三四轮电动车电源系统，支持线束压接加工，拆装便捷，现货供应多种规格。
English
200A high-current wall-through terminal for energy storage, flange panel mounting with matched insulating protective cover. Red and black colors for positive and negative polarity identification. High-temperature flame-retardant housing, thick silver-plated copper conductor for excellent conductivity and low temperature rise. Widely used in home energy storage battery box, inverter, 3/4 wheel electric vehicle power system. Custom wire harness crimping service available, easy assembly, various specifications in stock.
FAQ 中英双语
Q1：端子额定电流是多少？
A1：标准规格额定 200A，适配大功率储能与电动车供电。
Q1: What is the rated current of the terminal?
A1: Standard rated current 200A, suitable for high-power energy storage and EV power supply.
Q2：支持面板安装吗？
A2：方形法兰底座，预留安装孔，可直接固定在箱体面板穿墙使用。
Q2: Does it support panel mounting?
A2: Square flange base with mounting holes, directly fixed on cabinet panel for wall-through connection.
Q3：颜色是否可以区分正负极？
A3：提供红色正极、黑色负极两种配色，便于线路识别布线。
Q3: Can colors distinguish positive and negative poles?
A3: Red for positive pole, black for negative pole, convenient for circuit identification.
Q4：适用哪些设备？
A4：家用储能电池、储能逆变器、电动三四轮车、动力电池组。
Q4: What equipment is it applicable to?
A4: Home energy storage battery, inverter, 3/4 wheel electric vehicles, power battery packs.
Q5：能否定制加工配套线束？
A5：支持导线压接组装成品线束，线径、长度按需定制。
Q5: Can matched wiring harness be customized?
A5: Wire crimping and harness assembly supported, wire gauge and length customizable.
