KCD4 防水船型开关 4 脚 2 档 带灯磨砂面螺丝脚 大功率大电流防水翘板电源开关

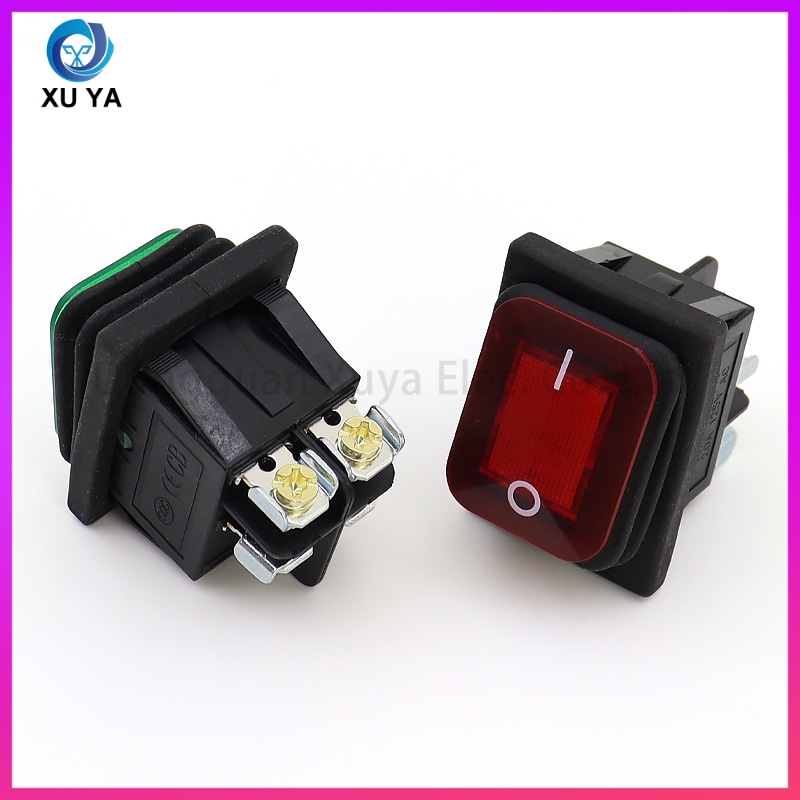

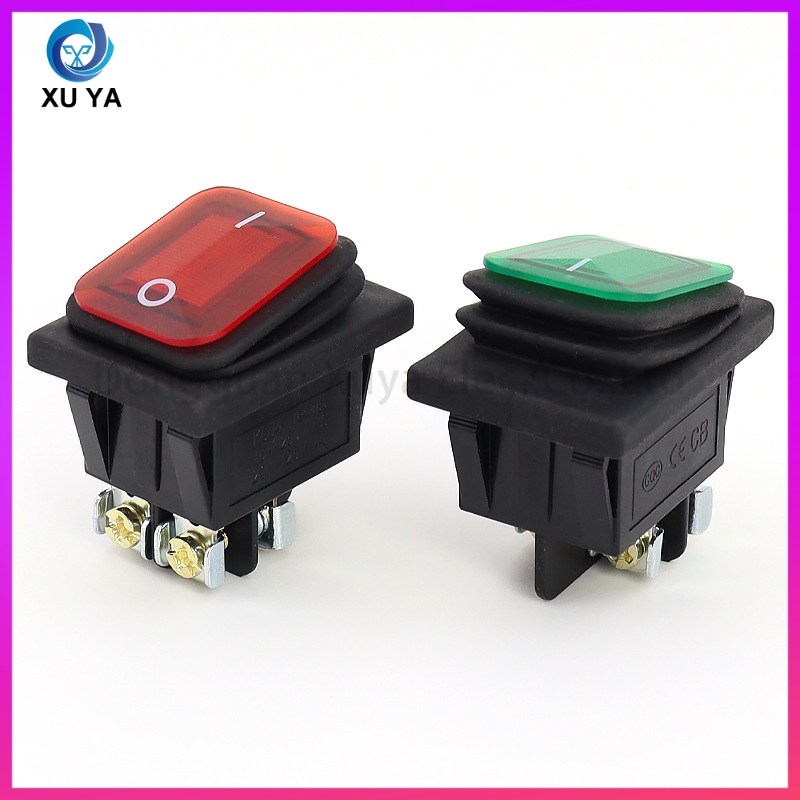

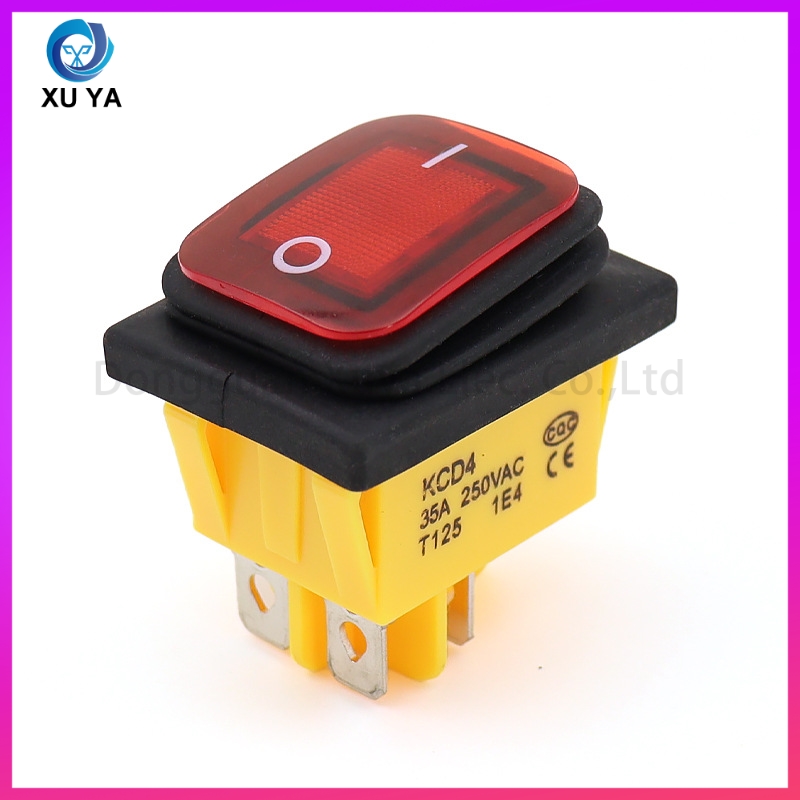

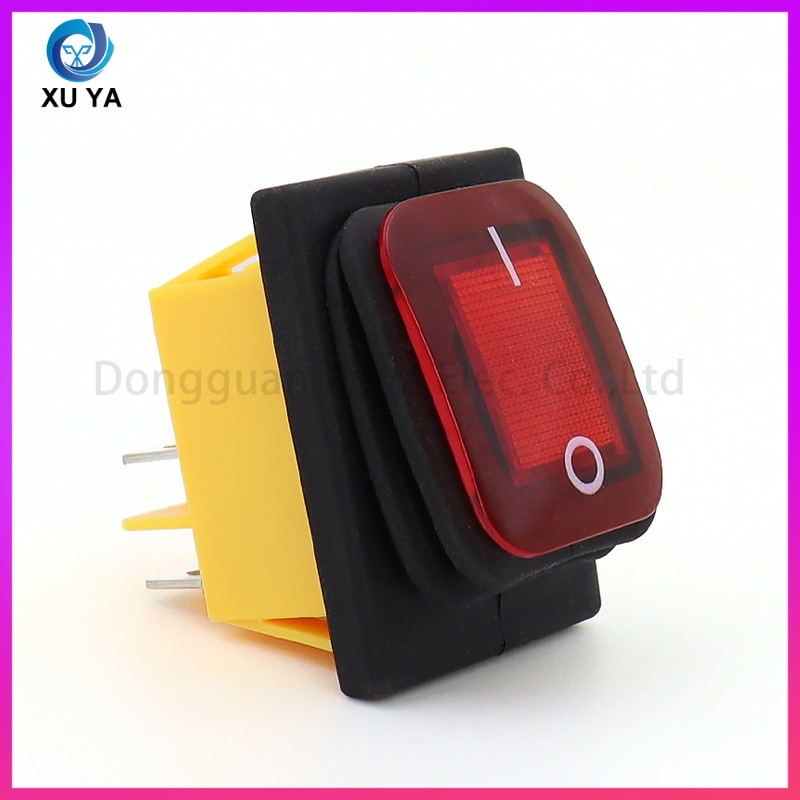

KCD4 Waterproof Rocker Switch, 4Pin 2Position, Illuminated Screw Terminal, High Current Waterproof Power Switch
产品描述（中英双语）
中文：KCD4 防水款船型开关，标准开孔 25×32mm，4 脚二档自锁结构，配备双层硅胶防水密封圈，具备良好防水防尘能力。可选插片端子与螺丝紧固端子，带灯款式红、绿灯光可选，磨砂透光翘板。耐高温阻燃外壳，大容量触点，支持 35A 大电流，适用于清洗设备、船载设备、户外器械、大功率加热设备，支持丝印定制。
English: KCD4 waterproof rocker switch, standard cutout 25×32mm, 4Pin 2-position locking. Double silicone waterproof sealing ring for dustproof and waterproof performance. Blade terminal and screw terminal optional, illuminated version available in red & green with frosted transparent rocker. Heat-resistant flame-retardant housing, heavy-duty contacts support 35A high current. Suitable for cleaning equipment, marine equipment, outdoor machinery and high-power heating devices. Custom printing available.
FAQ 中英双语
Q1：开关标准开孔尺寸是多少？
A1：标准开孔 25mm×32mm，通用 KCD4 规格。
Q1: What is the standard cutout size?
A1: Standard cutout 25mm×32mm, universal KCD4 dimension.
Q2：端子类型有哪几种？
A2：直插插片端子、螺丝紧固端子两种可选。
Q2: What terminal types are available?
A2: Quick connect blade terminal and screw terminal optional.
Q3：防水结构有什么特点？
A3：双层硅胶密封圈，有效防水防尘，适合潮湿环境使用。
Q3: Features of waterproof structure?
A3: Double silicone sealing ring, good waterproof & dustproof performance for humid environment.
Q4：额定电流电压参数？
A4：35A 250VAC，大功率负载专用。
Q4: Rated electrical parameters?
A4: 35A 250VAC, designed for high power load.
Q5：适用哪些设备？
A5：洗车机、船用电器、户外设备、大功率加热器、商用清洁器械。
Q5: Application equipment?
A5: Car washer, marine electrical appliances, outdoor equipment, high-power heater, commercial cleaning machines.
