KCD3 船型开关 2 脚 3 脚 4 脚 二档三档 大电流带灯翘板开关 电热锅电炒锅电源开关

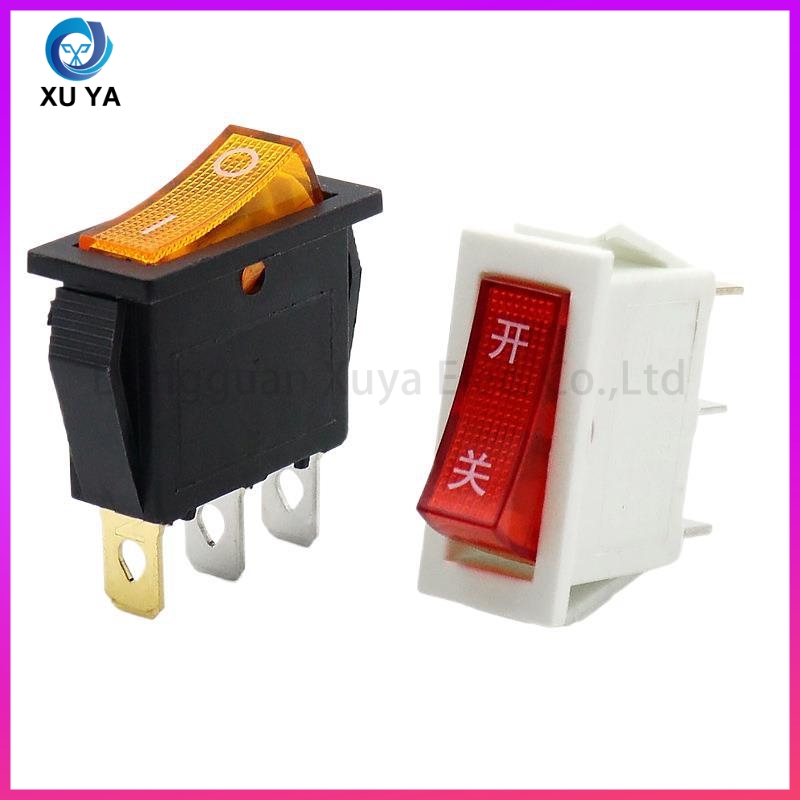

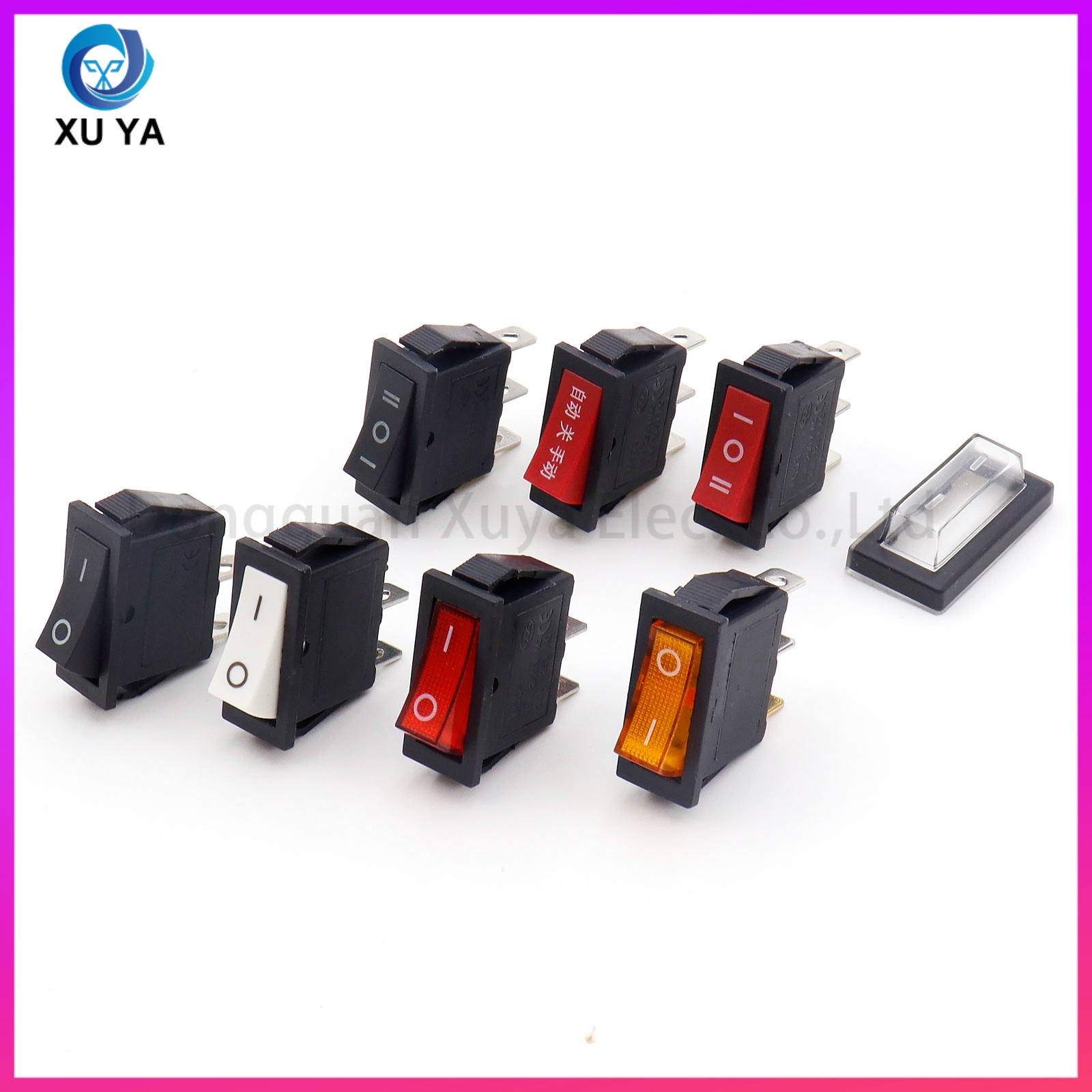

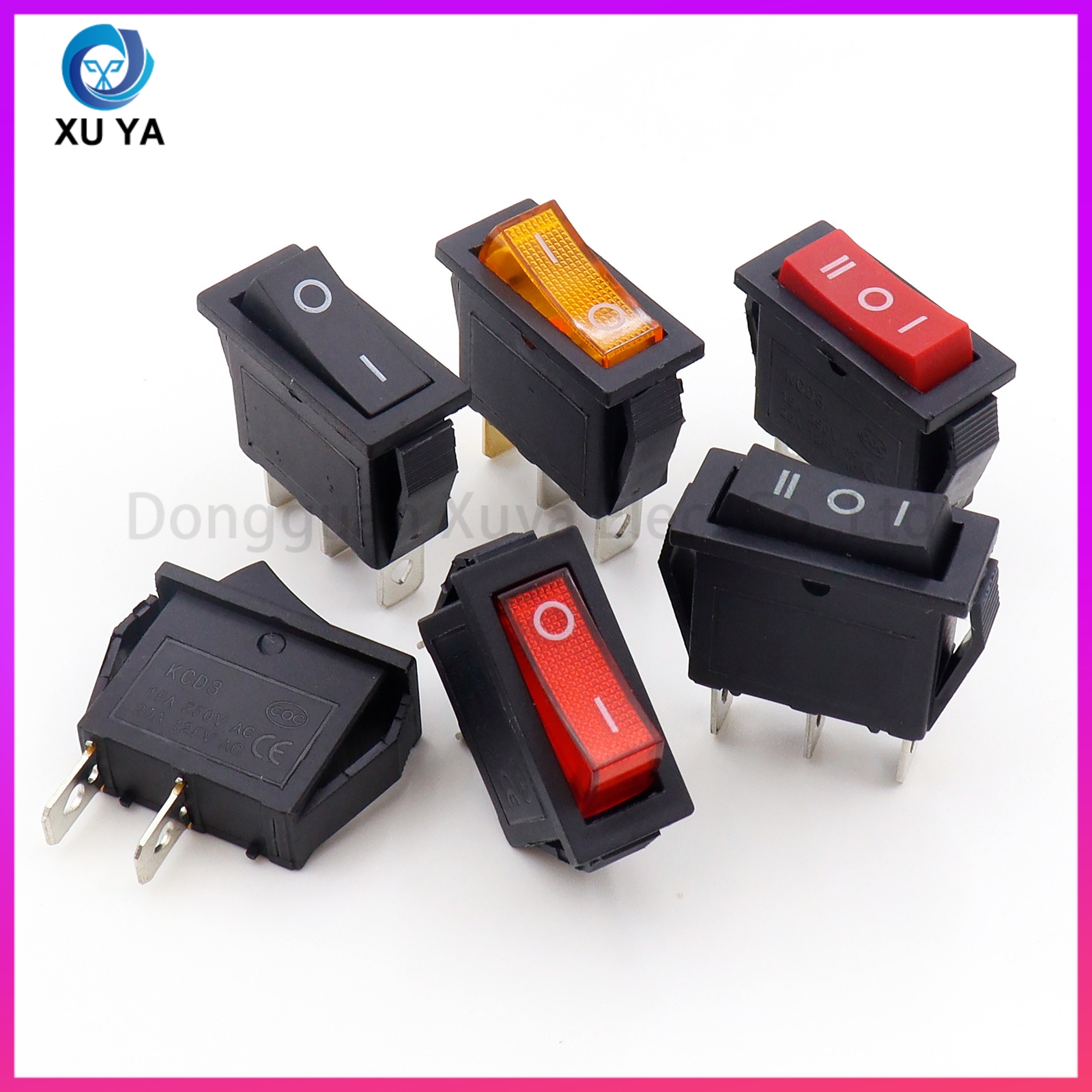

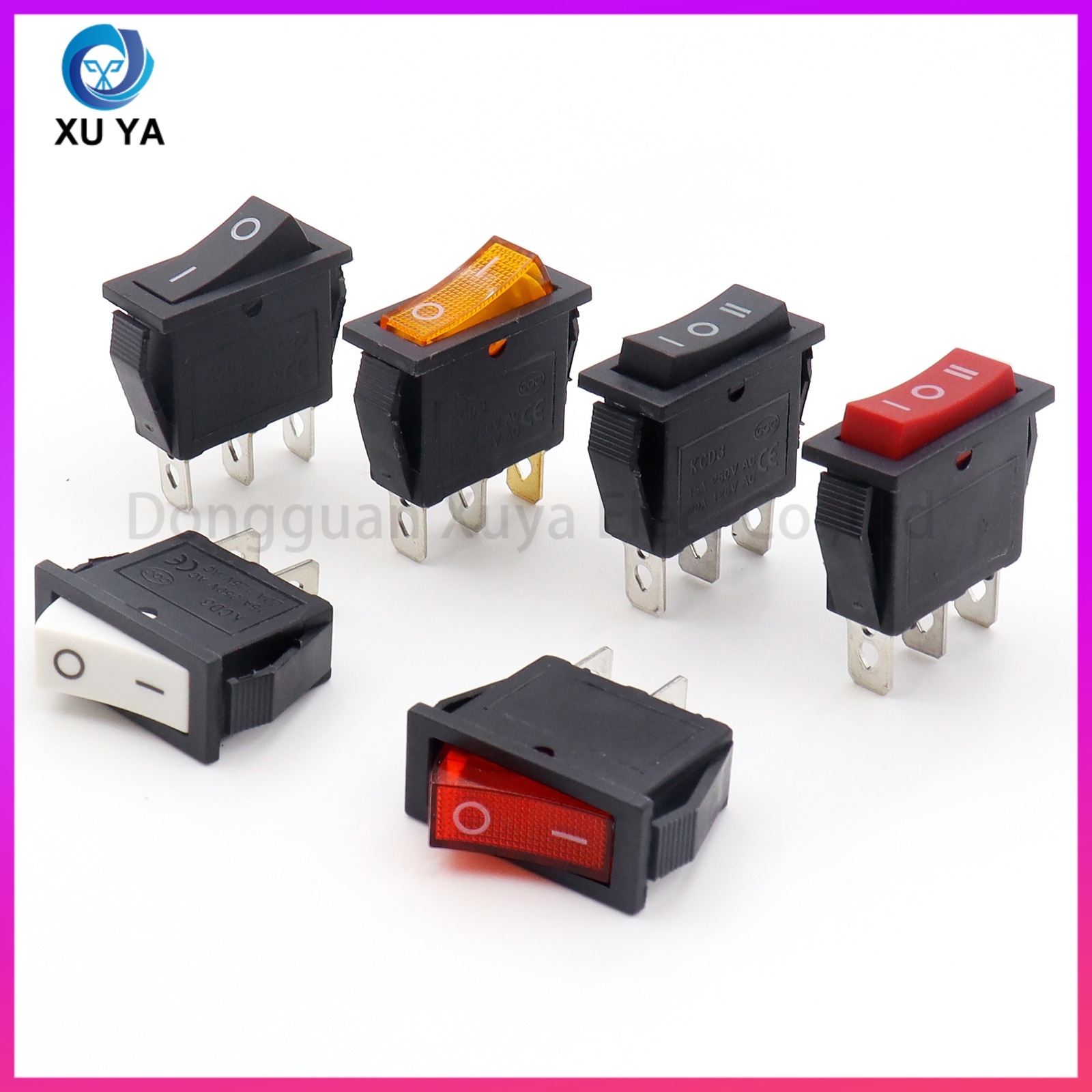

KCD3 Rocker Switch, 2/3/4Pin, 2/3 Position, High Current Illuminated Switch for Electric Hot Pot
产品描述（中英双语）
中文：KCD3 大功率船型开关，常规开孔 21×28mm，支持 2 脚、3 脚、4 脚结构，二档自锁、三档自锁可选。区分无灯与红、黄、绿透光带灯款式，阻燃外壳，加厚铜触点，承载电流大，耐高温，适配电热锅、电炒锅、取暖器、烤箱等大功率厨电设备。额定 10A 250VAC，翘板颜色多样，支持字符丝印定制。
English: KCD3 high-power rocker switch, standard cutout 21×28mm. 2/3/4Pin terminals, 2-position & 3-position locking optional. Illuminated (Red/Yellow/Green) and non-illuminated versions available. Flame-retardant housing, thick copper contacts with high current capacity and heat resistance. Ideal for electric hot pot, electric frying pan, heater, oven and other high-power kitchen appliances. Rated 10A 250VAC. Multiple rocker colors & custom printing available.
FAQ 中英双语
Q1：标准开孔尺寸是多少？
A1：常规开孔 21mm×28mm，通用 KCD3 尺寸。
Q1: What is standard cutout size?
A1: Standard cutout 21mm×28mm, universal KCD3 dimension.
Q2：有哪些引脚档位规格？
A2：2 脚二档、3 脚二档、4 脚二档、4 脚三档现货可选。
Q2: Available terminals and positions?
A2: 2Pin 2P,3Pin 2P,4Pin 2P,4Pin 3P in stock.
Q3：适合什么电器使用？
A3：电热锅、电炒锅、取暖炉、烤箱、大功率小家电。
Q3: Suitable appliances?
A3: Electric hot pot, electric frying pan, heater, oven and high-power small appliances.
Q4：额定电气参数？
A4：标准 10A 250VAC，耐高温适合发热电器。
Q4: Rated electrical parameters?
A4: Standard 10A 250VAC, heat resistant for heating appliances.
Q5：可以定制按键印刷标识吗？
A5：批量订单支持翘板符号、文字丝印定制。
Q5: Custom marking supported?
A5: Custom printed symbols and texts for bulk orders.
