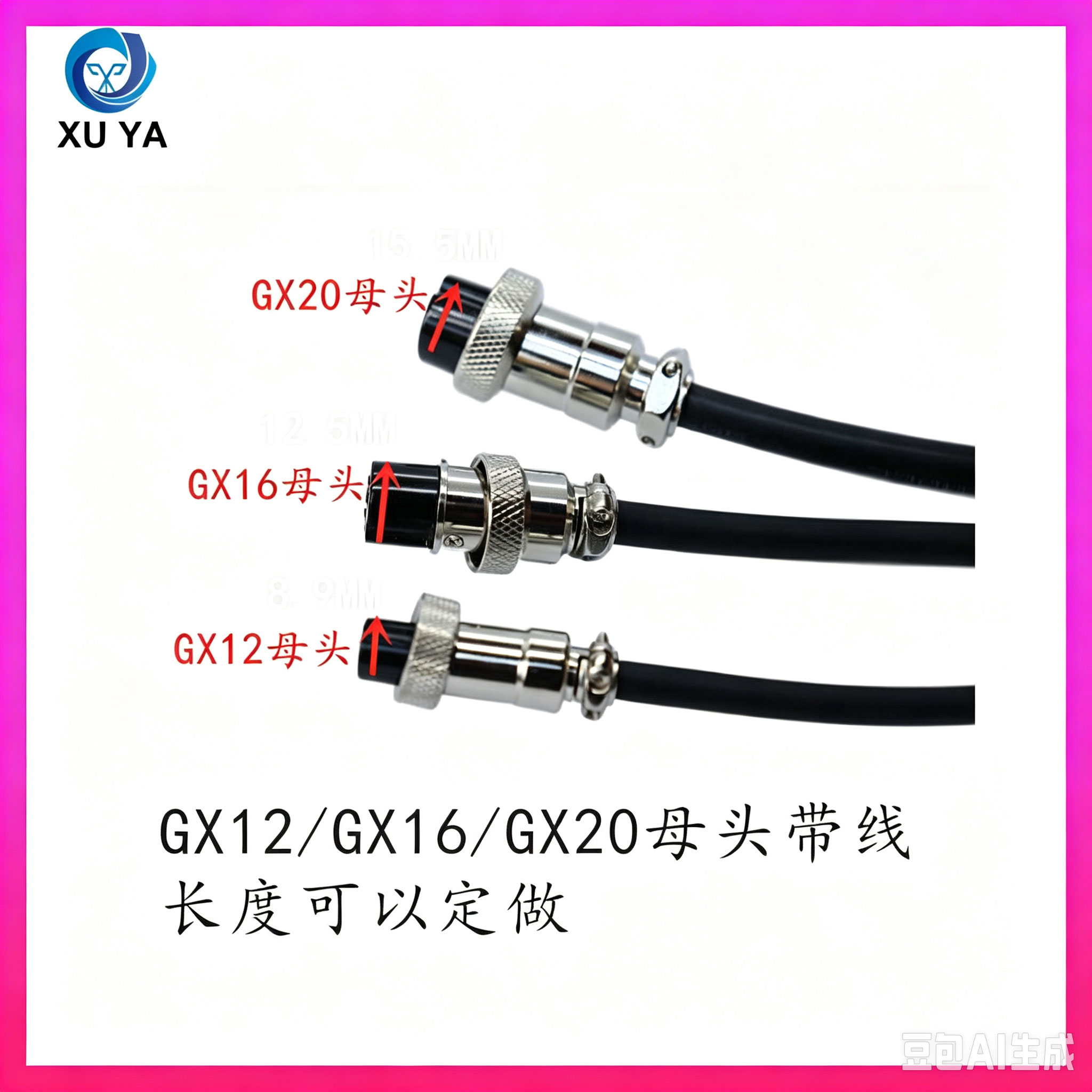

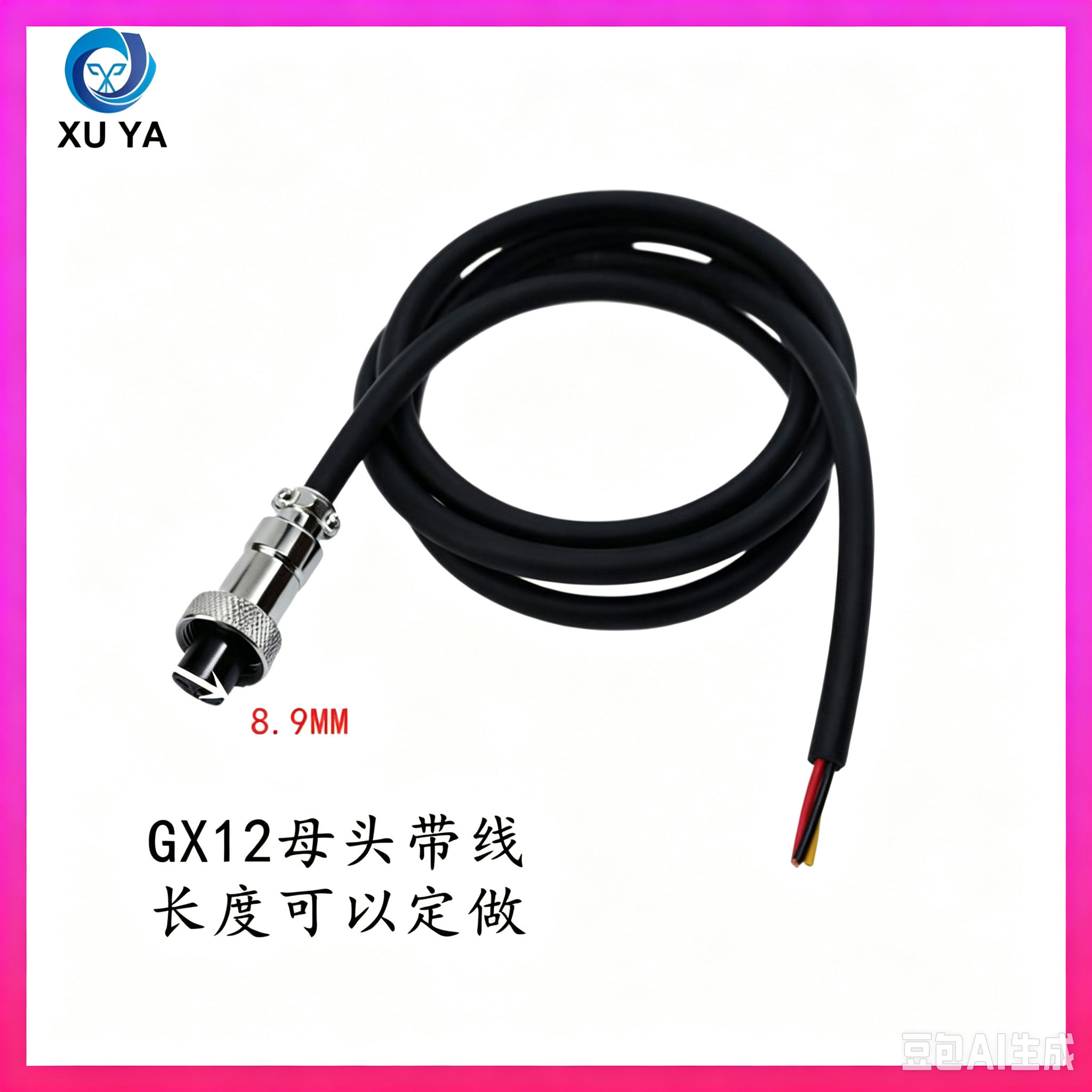

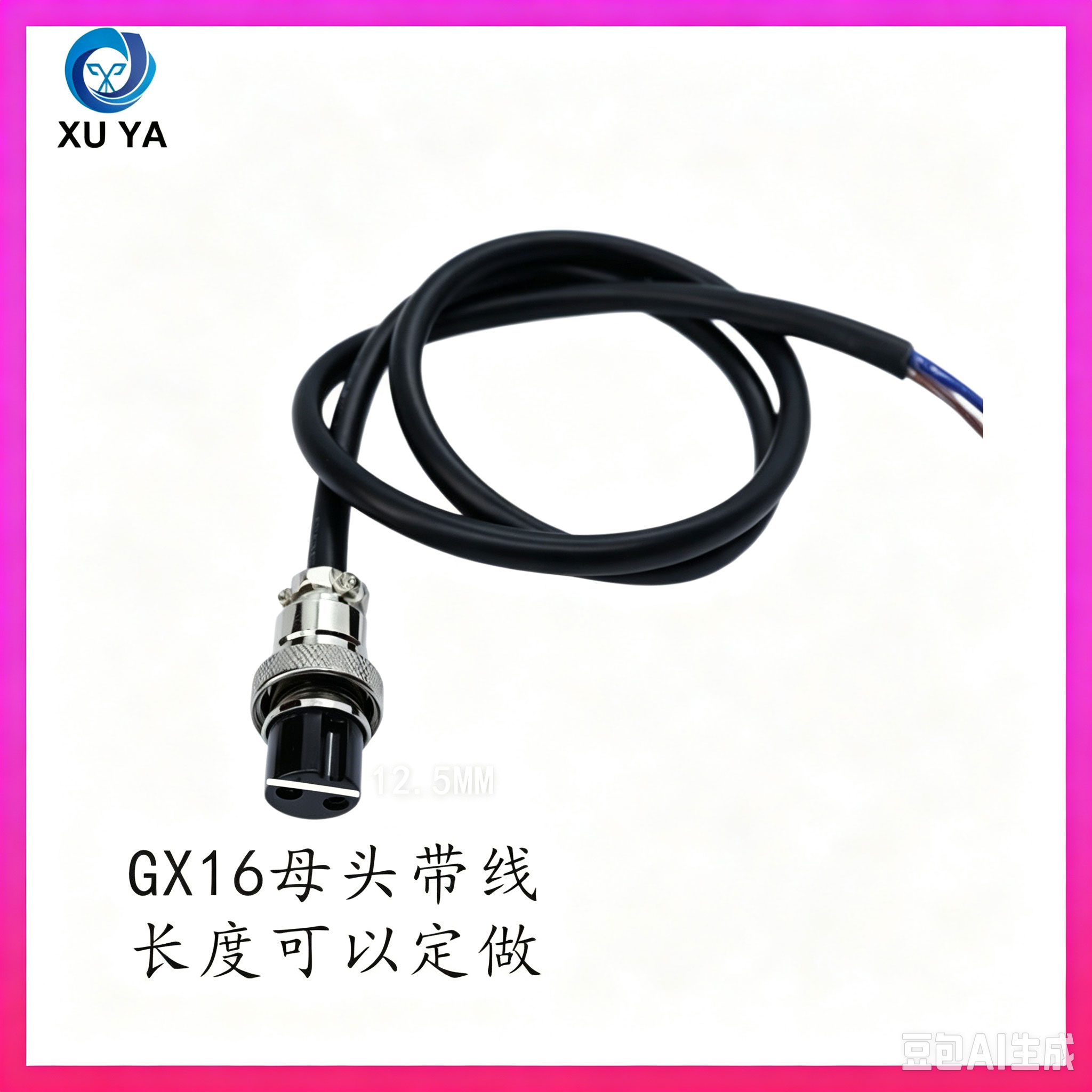

GX12/GX16/GX20 带线航空插头插座
GX12/GX16/GX20 wired aviation plug and socket
核心要点
1. 规格分类：GX12、GX16、GX20 三款带线航空插头插座，适配不同设备面板开孔尺寸；针位可选 2 芯、3 芯、4 芯、5 芯、6 芯、7 芯、8 芯、12 芯，满足不同电源与信号线路需求。
2. 结构特点：圆形螺纹锁紧航空连接器，金属镀镍外壳，滚花螺纹帽便于手动旋紧；插头插座插合后连接牢固，设备震动工况下不易松脱断电。
3. 材质工艺：内部插针铜镀金，接触稳定、抗氧化、低阻抗；线缆采用黑色柔性 PVC 护套，耐弯折、耐磨抗老化，多色分芯便于接线区分与检修。

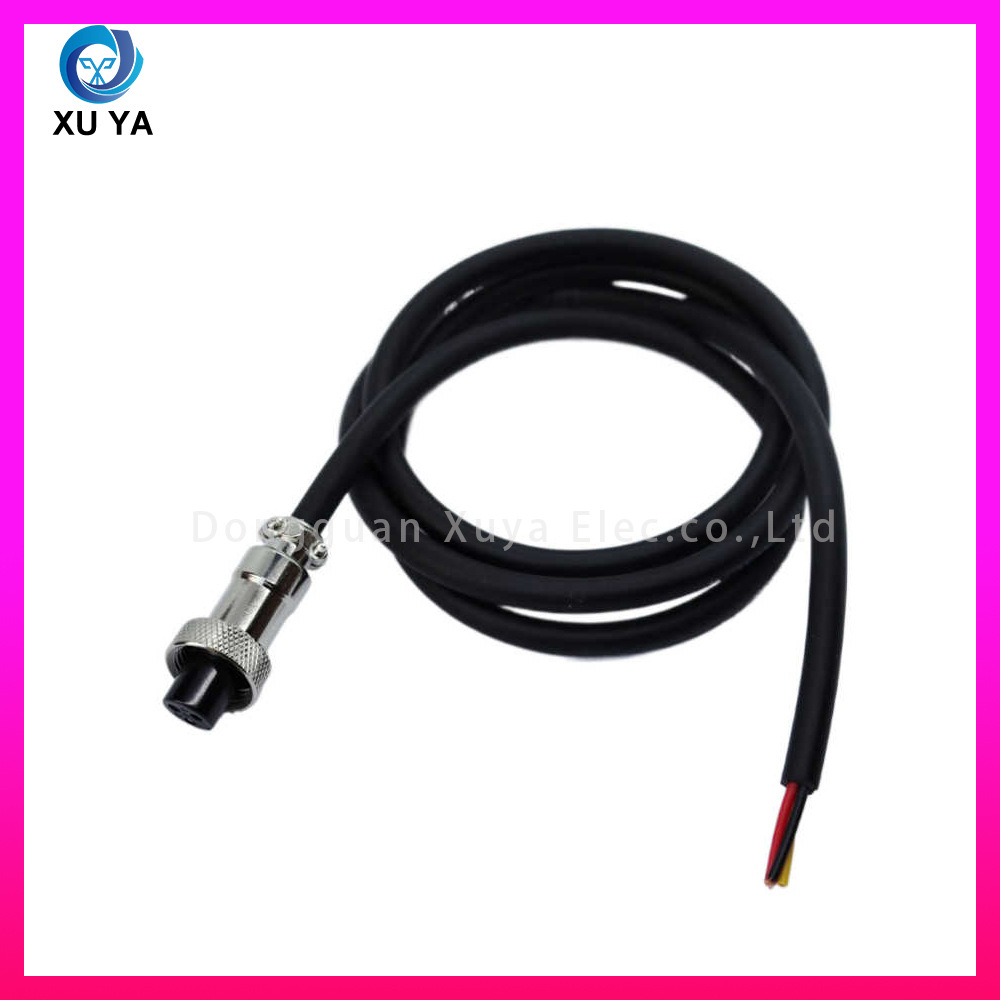

4. 线束规格：常规成品长度 2 米，支持 0.1m–30m 任意长度定制；工厂一体焊接成型，减少现场二次加工，到手可直接接线使用。
5. 适用场景：仪器仪表、工业自动化设备、安防设备、医疗设备、检测探头、小型机床、工控系统电源与信号连接。
产品描述
GX12/GX16/GX20 带线航空插头插座，属于工业圆形螺纹锁紧航空连接器，分为 GX12、GX16、GX20 三种规格，适配不同设备面板开孔尺寸和线路数量需求。插头与插座采用螺纹旋紧结构，金属镀镍外壳防锈耐磨，滚花纹螺帽便于手动锁紧，插合后连接紧密，设备长期震动环境下不易松动脱落。内部导电插针采用铜镀金工艺，接触电阻小、不易氧化，稳定传输电源与信号。可选针位覆盖 2 芯、3 芯、4 芯、5 芯、6 芯、7 芯、8 芯、12 芯，可根据设备供电、信号传输、传感器线路等不同需求选择。线缆采用黑色柔性 PVC 护套，耐反复弯折、耐磨抗老化，内部多色分芯导线，方便区分电源、信号与地线，便于现场接线和故障检修。成品线束由工厂一体焊接成型，标准现货长度 2 米，支持按需定制长度，广泛用于仪器仪表、工业自动化设备、安防设备、医疗设备、检测探头、小型机床、工控系统的电源与信号连接。
GX12/GX16/GX20 wired aviation plug and socket are industrial circular threaded locking aviation connectors, available in GX12, GX16 and GX20 sizes to match different equipment panel opening sizes and circuit requirements. The plug and socket adopt threaded tightening structure. The nickel-plated metal housing provides rust-proof and wear-resistant performance, and the knurled nut is easy to lock manually. After mating, the connection is tight and resistant to loosening and falling off under long-term equipment vibration. Internal gold-plated copper contact pins have low contact resistance and excellent oxidation resistance, ensuring stable power and signal transmission. Available pin configurations cover 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin and 12Pin, which can be selected according to different requirements such as equipment power supply, signal transmission and sensor circuits. The cable adopts flexible black PVC sheath with excellent bending resistance, wear resistance and aging resistance. The internal multi-color core wires facilitate the identification of power, signal and ground wires, making on-site wiring and fault maintenance more convenient. The finished cable is integrally welded in factory, with a standard stock length of 2 meters and custom lengths supported. Widely used for power and signal connection of instruments, industrial automation equipment, security equipment, medical equipment, detection probes, small machine tools and industrial control systems.
