GX16/YB16 矿用防爆航空插头连接线
GX16/YB16 Explosion-Proof Aviation Plug Connecting Cable for Mining Use
核心要点

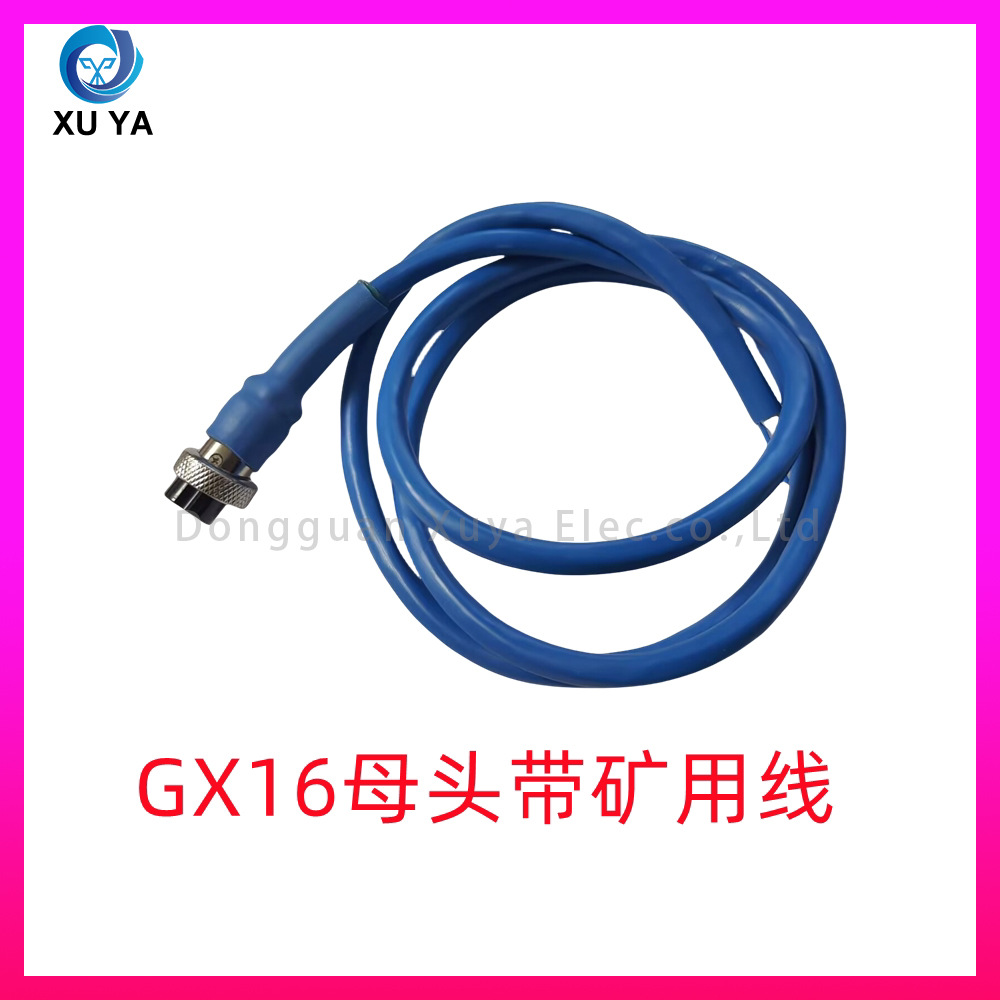

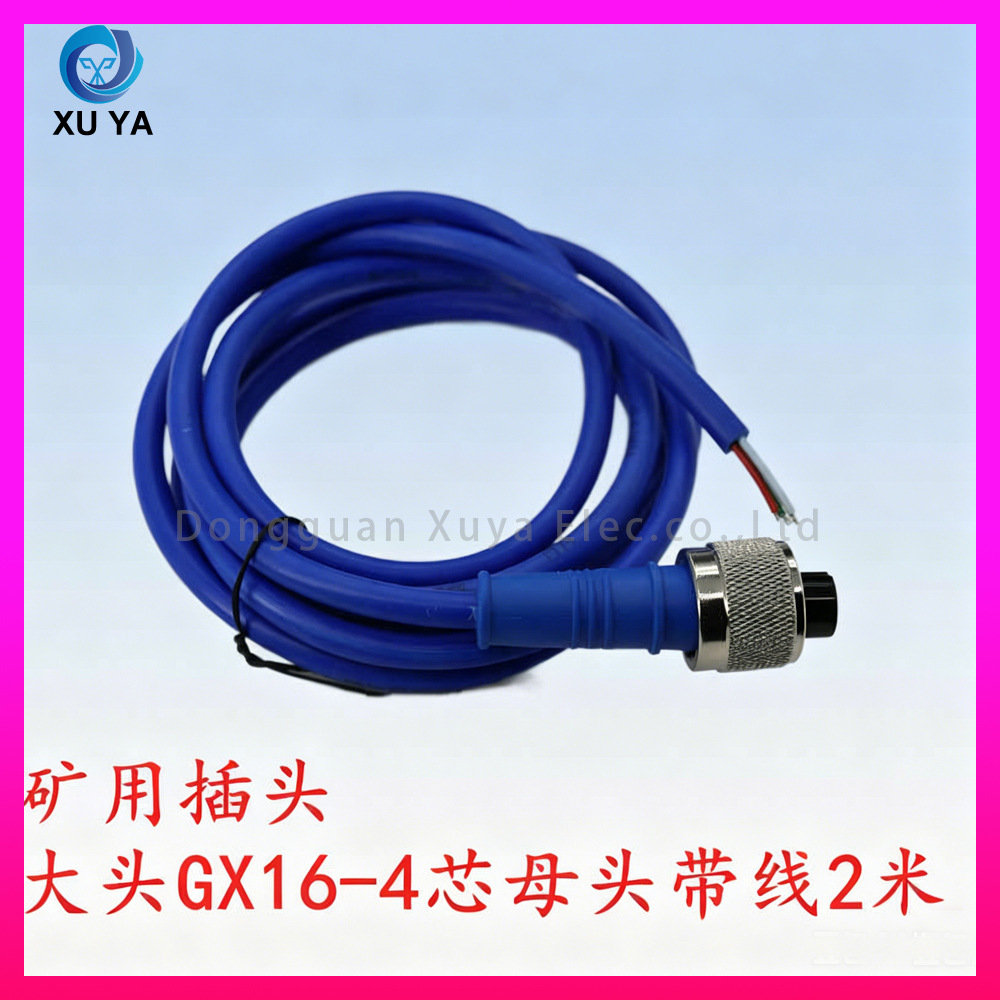

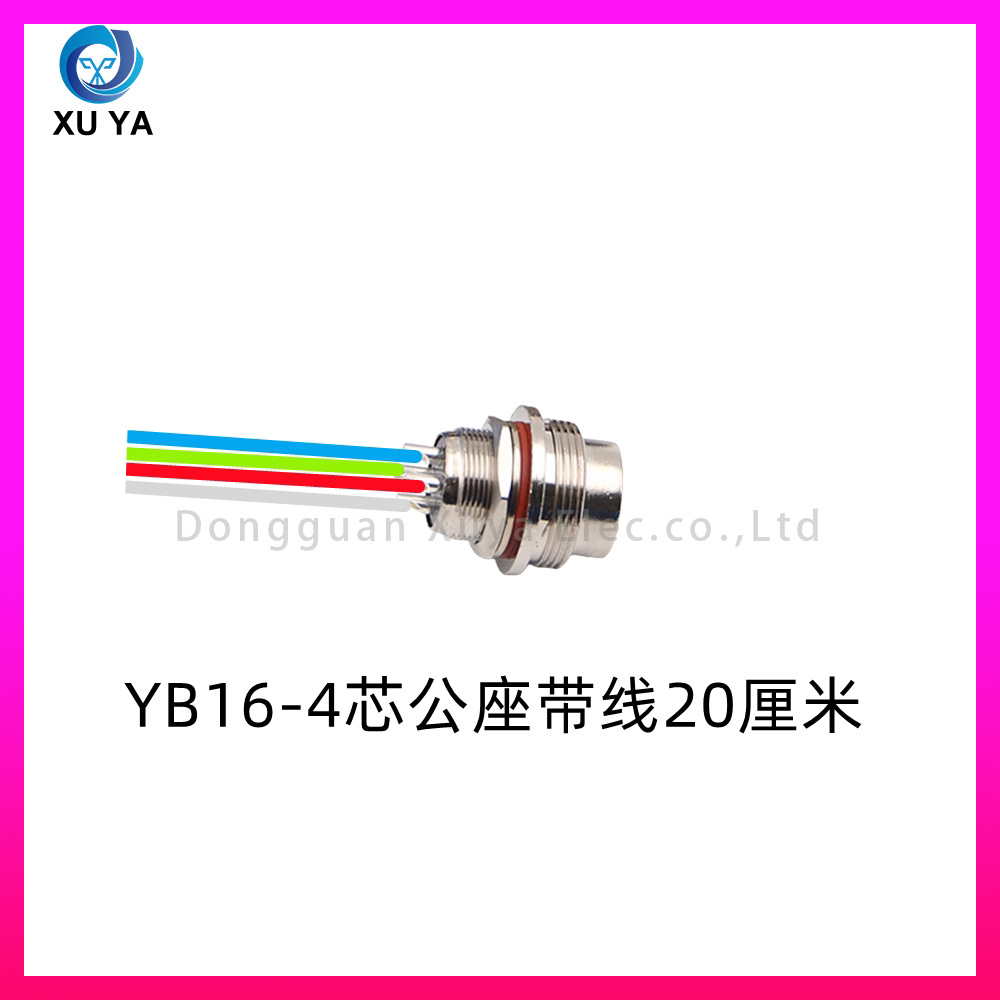

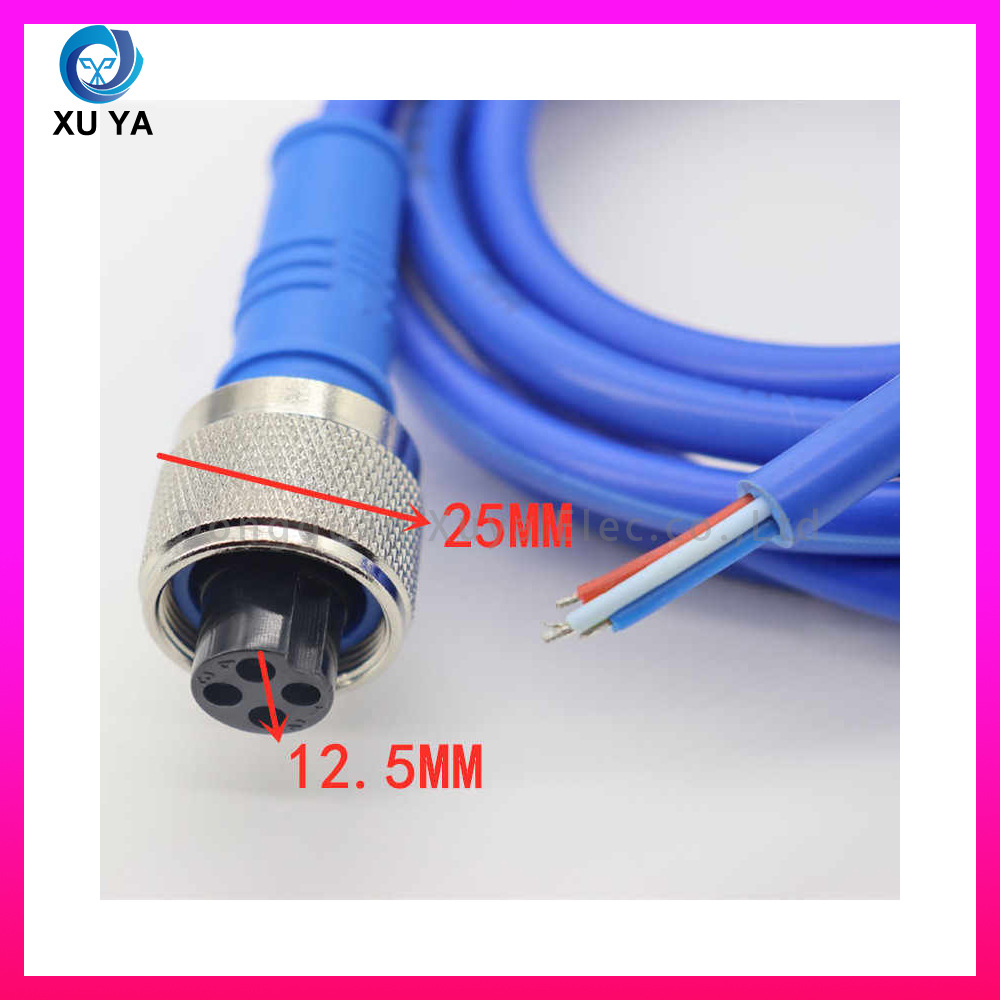

1. 产品规格：大头防爆 GX16 母头带线、YB16-4 芯面板公座带线，KJ90 四孔 4 芯专用，适配矿用监测、瓦斯传感器设备；接头外径 25mm，插孔 12.5mm。
2. 矿用防爆专用线缆：外层高韧性蓝色矿用护套，耐井下潮湿、粉尘、腐蚀环境，抗拉伸、耐弯折，具备井下安全使用特性。
3. 螺纹锁紧防爆结构：金属滚花镀镍螺纹帽，旋紧后密封贴合，搭配尾部加厚防水防拉胶套，防尘防潮防脱落，满足井下设备抗震稳定连接；YB16 公座带防水密封圈，面板安装密封防爆。
4. 导电工艺：内部 4 芯纯铜多股软线，插针铜镀金，低阻抗、抗氧化，稳定传输矿用监测信号；多色分线便于井下接线区分检修。
5. 线束定制：GX16 母头标准现货 2 米，YB16 公座标配 20cm 短线；全线长 0.1m–30m 均可按需定做，工厂一体焊接成型，到手直接接线使用。
5. 适用场景：煤矿 KJ90 安全监控系统、瓦斯传感器、井下环境监测仪器、矿用传感信号传输线路。
产品描述
GX16/YB16 矿用防爆航空插头连接线，专为煤矿 KJ90 监测系统设计，分为单头 GX16 大头母头成品线、YB16-4 芯面板安装公座短线两款，标准 4 芯四孔结构。线缆采用蓝色矿专用护套材质，适配井下潮湿、粉尘、腐蚀性气体复杂工况，抗拉耐磨、反复弯折不易开裂。航空接头为加大防爆螺纹结构，金属外壳镀镍防锈，滚花纹螺帽可快速拧紧锁紧，尾部一体成型加厚防水缓冲胶套，有效缓冲线缆拉扯力，杜绝井下震动导致的松脱断电；YB16 面板公座配套橡胶防水垫圈，设备安装后密封防尘防爆。内部导电插针采用铜镀金工艺，接触电阻小、长期井下使用不易氧化；内部 4 芯多色纯铜软导线，方便现场区分电源、信号线路，检修便捷。成品线束工厂预焊完成，GX16 母头常规现货长度 2 米，YB16 公座标配 20 厘米短线，支持任意长度定制，广泛配套煤矿 KJ90 瓦斯传感器、井下环境监控设备，用于矿用监测信号稳定传输。
GX16/YB16 mining explosion-proof aviation connector cable is specially designed for coal mine KJ90 monitoring system, including two types: single-head large-size GX16 female finished cable and YB16-4Pin panel-mount male socket short cable with standard 4-hole 4Pin structure. The cable adopts blue special mining sheath material, adapting to complex underground working conditions with humidity, dust and corrosive gas. It features tensile and wear resistance, and resists cracking after repeated bending. The aviation connector adopts enlarged explosion-proof threaded structure, nickel-plated metal housing for rust prevention, knurled nut for quick tightening and locking. The integrated thickened waterproof buffer rubber sleeve at the tail effectively buffers cable pulling force and avoids loosening and power failure caused by underground vibration. The YB16 panel male socket is equipped with rubber waterproof gasket to realize sealing, dustproof and explosion-proof after equipment installation. Internal gold-plated copper pins deliver low contact resistance and excellent oxidation resistance for long-term underground operation. The 4 multi-color inner pure copper flexible wires facilitate on-site distinction of power and signal circuits for easy maintenance. All finished cables are pre-welded in factory. The regular stock length of GX16 female cable is 2 meters, YB16 male socket is standard 20cm short cable, and custom lengths are supported. Widely matched with coal mine KJ90 gas sensors and underground environmental monitoring equipment for stable transmission of mining monitoring sign
