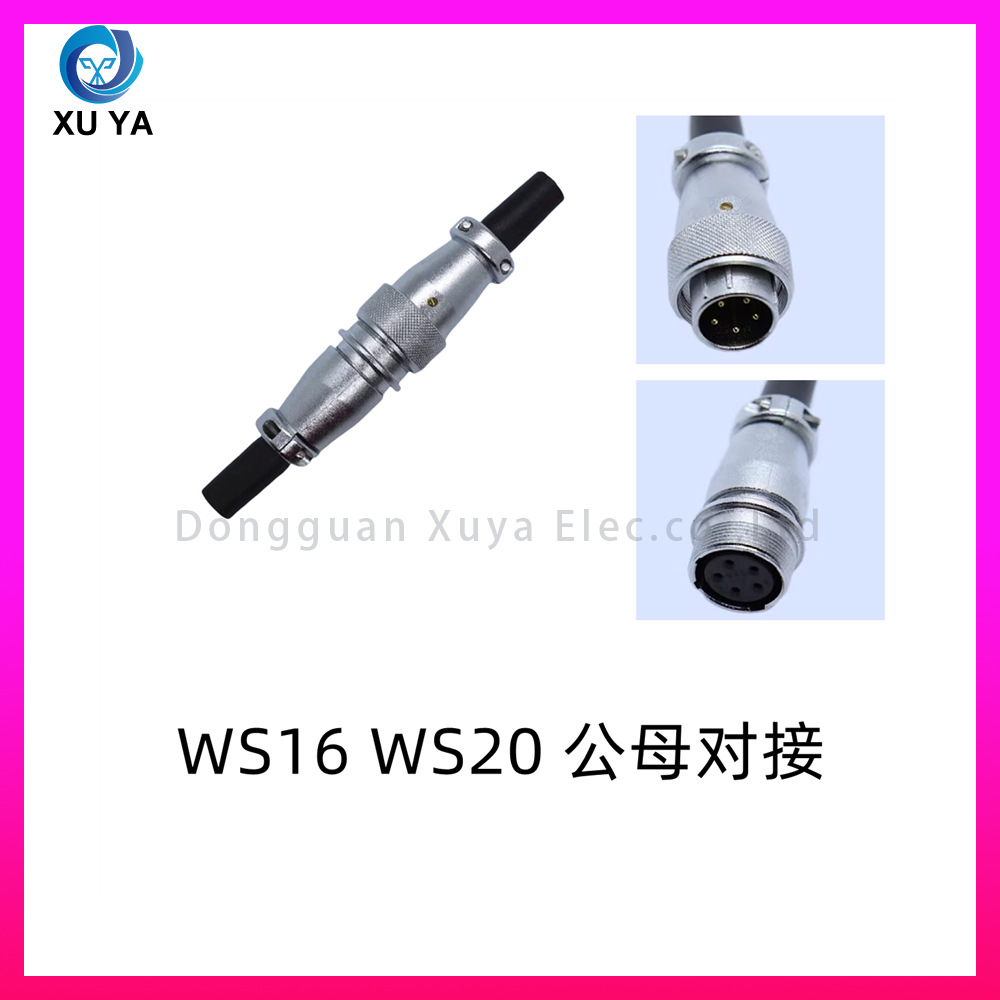

WS16/WS20 螺纹锁紧公母对接航空线束
WS16/WS20 Thread Lock Male-Female Mating Aviation Wiring Harness
核心要点

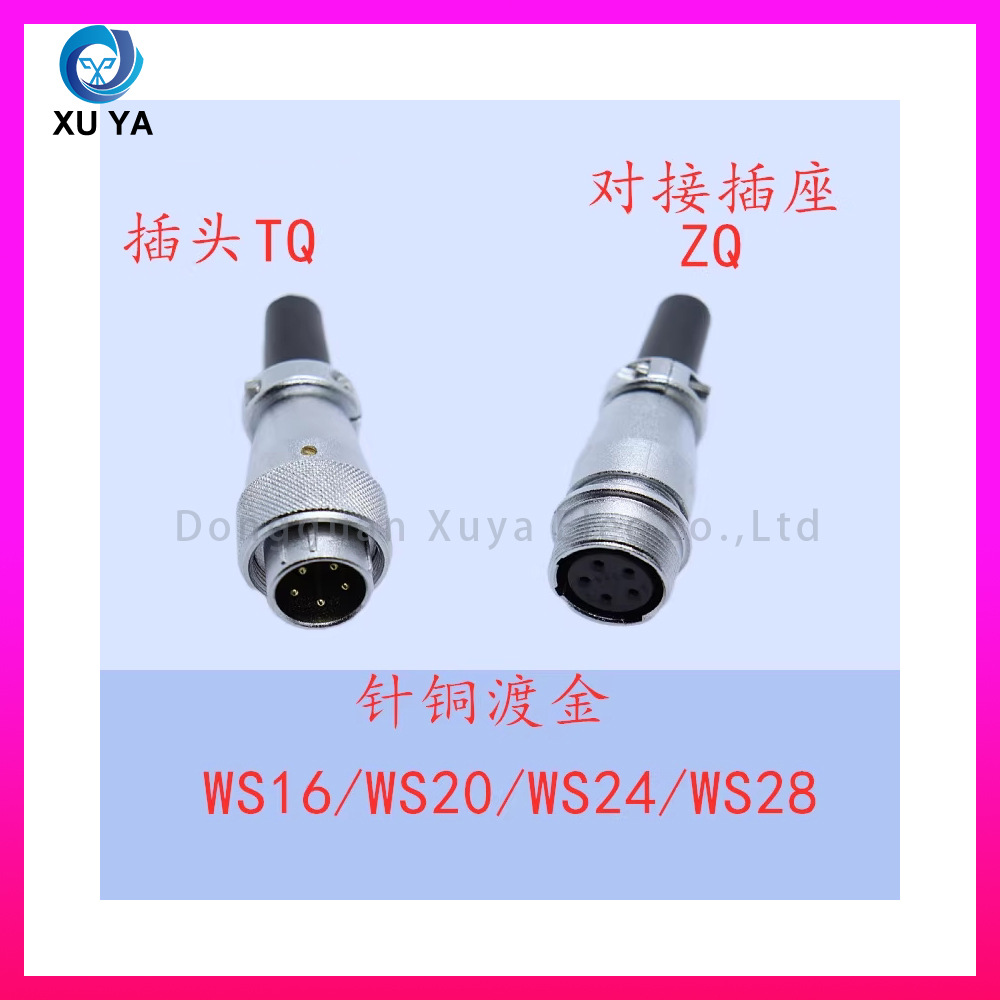

产品规格：WS16、WS20 标准螺纹航空连接器，双头公母对接成品线束；针位齐全 2/4/5/6/7/8/9/10/12/14/15 芯，插针铜镀金，低阻抗、抗氧化，强弱电信号稳定传输。

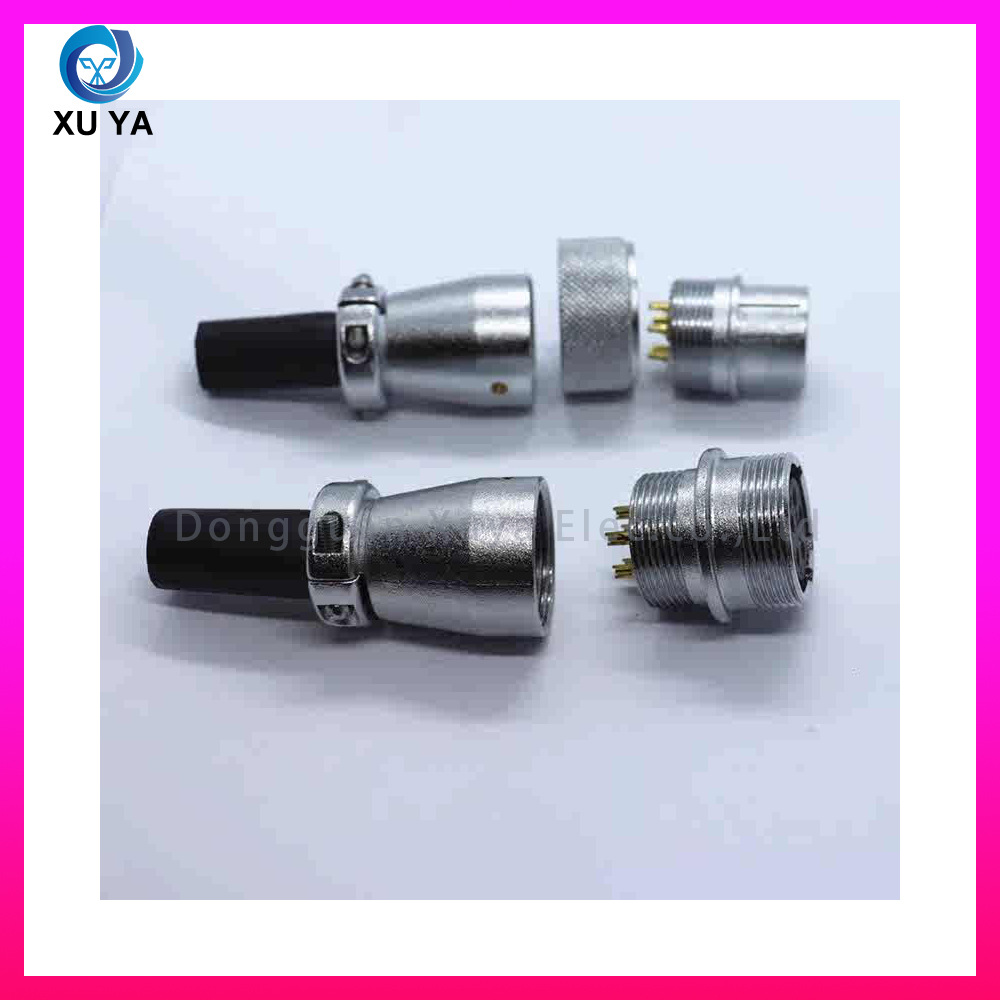

螺纹旋紧锁紧结构：采用滚花纹螺纹旋套，拧紧后紧密咬合，抗震防脱落，适配工业震动设备、户外设备，防水防尘防护性能优秀。
材质工艺：连接器锌合金外壳镀镍，防锈耐油污、耐磨抗腐蚀；尾部带线缆防拉锁卡扣，有效保护线材根部不易折断；线缆黑色柔性 PVC 护套，耐弯折、耐磨损、抗老化，多色分内线便于接线区分检修。

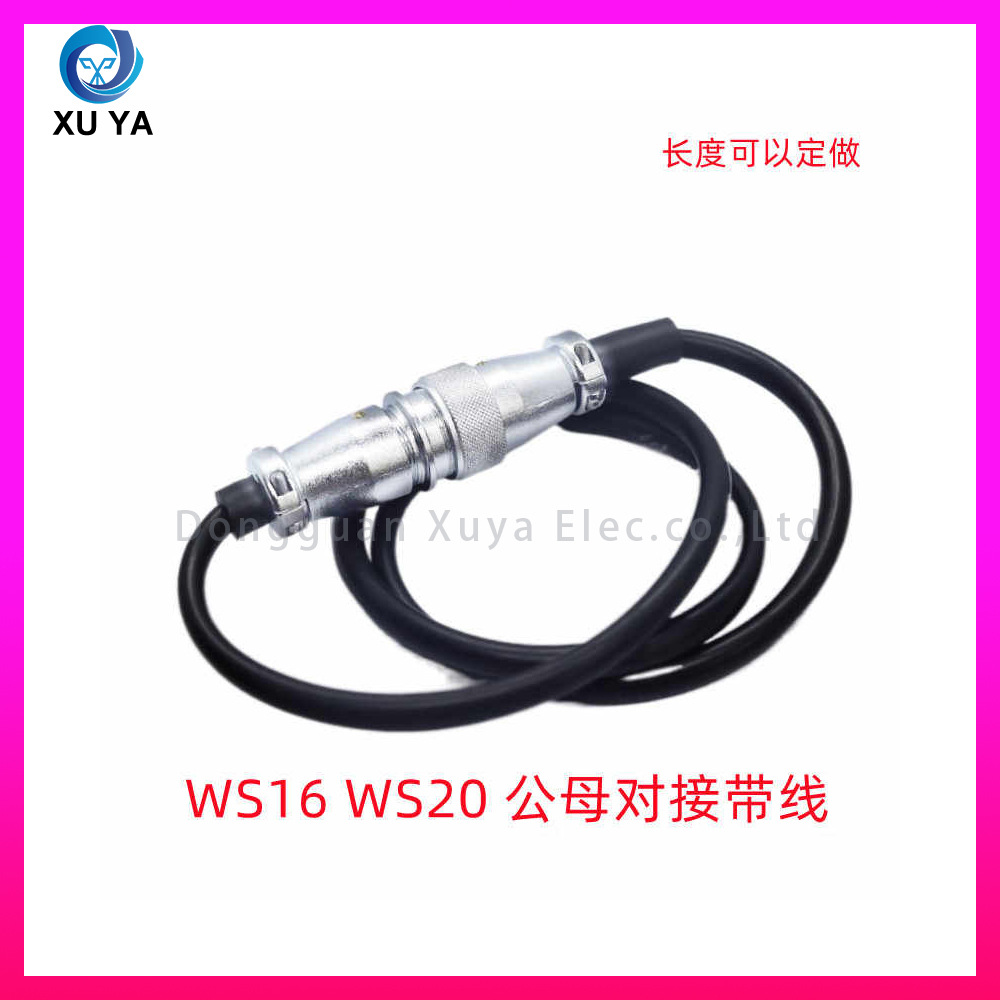

线束定制：标准现货长度 2 米，支持 0.1m–20m 任意长度定做；公母双头一体焊接成型，无需客户二次加工，直接对接完成线路连接。
适用场景：工业机械设备、数控设备、户外检测仪器、自动化传感器、电源设备、工控仪器大功率供电与信号传输。
产品描述
WS16/WS20 螺纹锁紧公母对接航空线束，工业标准圆形螺纹航空连接器，分为 WS16 小型款、WS20 中型款两大系列，适配不同设备安装孔径与电流负载需求。采用滚花防滑螺纹锁紧结构，旋紧后公母插头紧密贴合，内部搭配密封圈，防尘防油污，设备长期震动工况下不易松脱断电；尾部配备线缆防拉卡扣，缓冲拉扯力，大幅降低线材断裂故障率。连接器外壳锌合金镀镍成型，硬度高、耐腐蚀、耐工业油污；内部导电插针铜镀金工艺，接触电阻小、不易氧化，可稳定传输弱电信号与中大功率电源。可选针位覆盖 2/4/5/6/7/8/9/10/12/14/15 芯，满足单路供电、多路信号同步传输等各类设备接线需求。成品公母双头对接线束工厂一体化焊接，到手即插即用，无需额外焊接加工；线缆外层高韧性 PVC 护套，可反复弯折不开裂，内部多色分芯导线，方便快速区分线路与故障检修。常规现货长度 2 米，全线长均可按需定制，广泛用于数控机床、自动化产线传感器、户外检测设备、工业电源、工控仪表的供电与信号连接。
WS16/WS20 threaded locking male-female docking aviation cable is an industrial standard circular threaded aviation connector, divided into WS16 compact series and WS20 medium series to match different mounting hole sizes and current loads of equipment. It adopts knurled anti-slip threaded locking structure; the male and female plugs fit tightly after tightening with built-in sealing rings for dust and oil resistance, and anti-loosening performance under long-term equipment vibration to avoid power cut-off. The cable strain relief clip at the tail buffers pulling force and greatly reduces wire breakage failure rate. The zinc alloy nickel-plated connector housing features high hardness, corrosion resistance and industrial oil resistance. Internal gold-plated copper pins deliver low contact resistance and oxidation resistance, supporting stable transmission of weak electrical signals and medium-high power supply. Pin configurations including 2/4/5/6/7/8/9/10/12/14/15Pin are available to meet wiring demands of single power supply and multi-channel synchronous signal transmission. The finished male-female docking cable is integrally welded in factory for plug-and-play without secondary welding processing. The high-toughness outer PVC cable jacket resists cracking after repeated bending, while multi-color inner wires enable fast circuit identification and fault maintenance. Standard stock length is 2 meters, custom lengths ranging from 0.1m to 20m are supported. Widely applied for power and signal connection of CNC machine tools, automated production line sensors, outdoor testing equipment, industrial power supplies and industrial control instruments.
