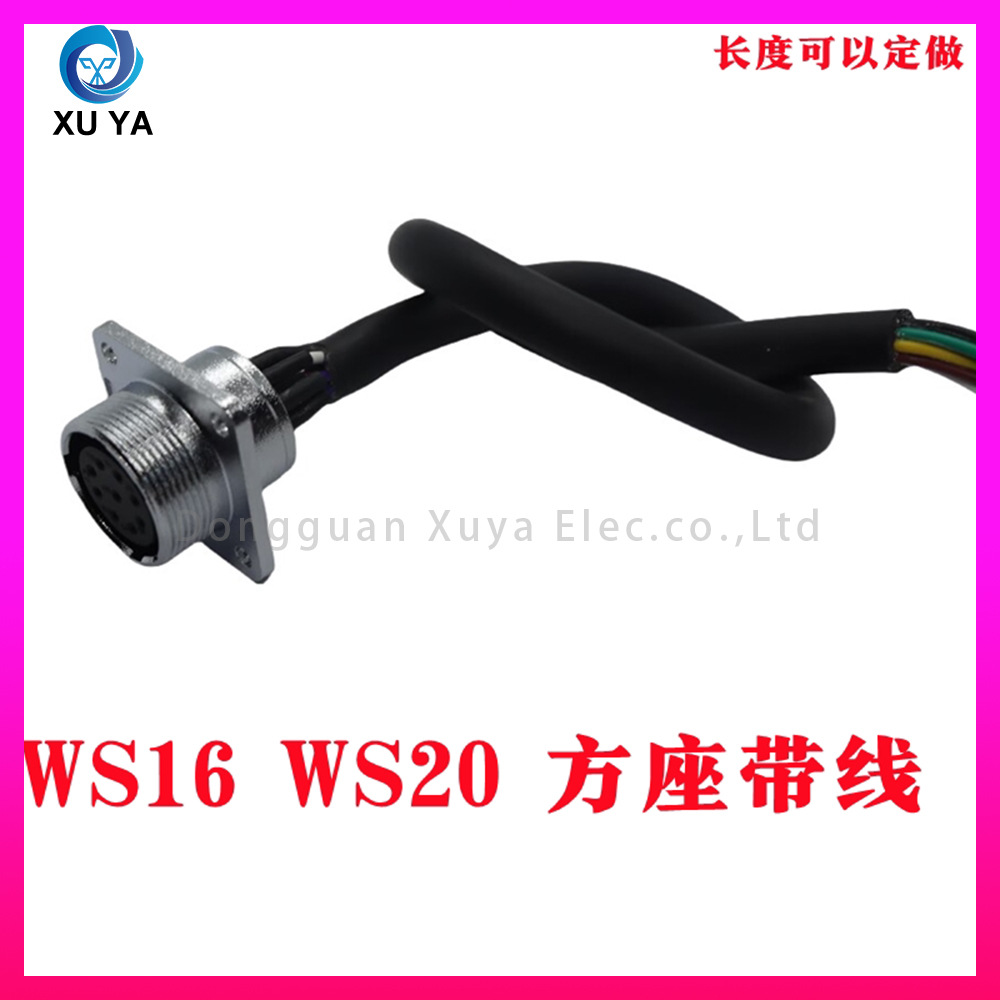

WS20 方形法兰航空方座带线
WS20 Square Flange Aviation Square Base with Wire
核心要点
WS20 工业圆形航空连接器，配套直式公插头、方形四孔法兰面板方座；芯数齐全 2/3/4/5/6/7/8/9/10/12 芯，螺纹锁紧连接稳固抗震
电气参数稳定：单针额定电流 25A，工作电压 500V AC，耐压 1500V AC，插针孔径 Φ2.5mm，载流能力强；导电插针铜镀金，低阻抗抗氧化
金属锌合金外壳，耐磨防锈；线束长度 0.1m–20m 支持任意定制；黑色加厚 PVC 线缆耐弯折、耐磨抗老化，多色分内线方便接线检修
适用场景：大功率工业设备、伺服电机、工控机床、自动化设备、大功率检测仪器电源与信号连接
产品描述

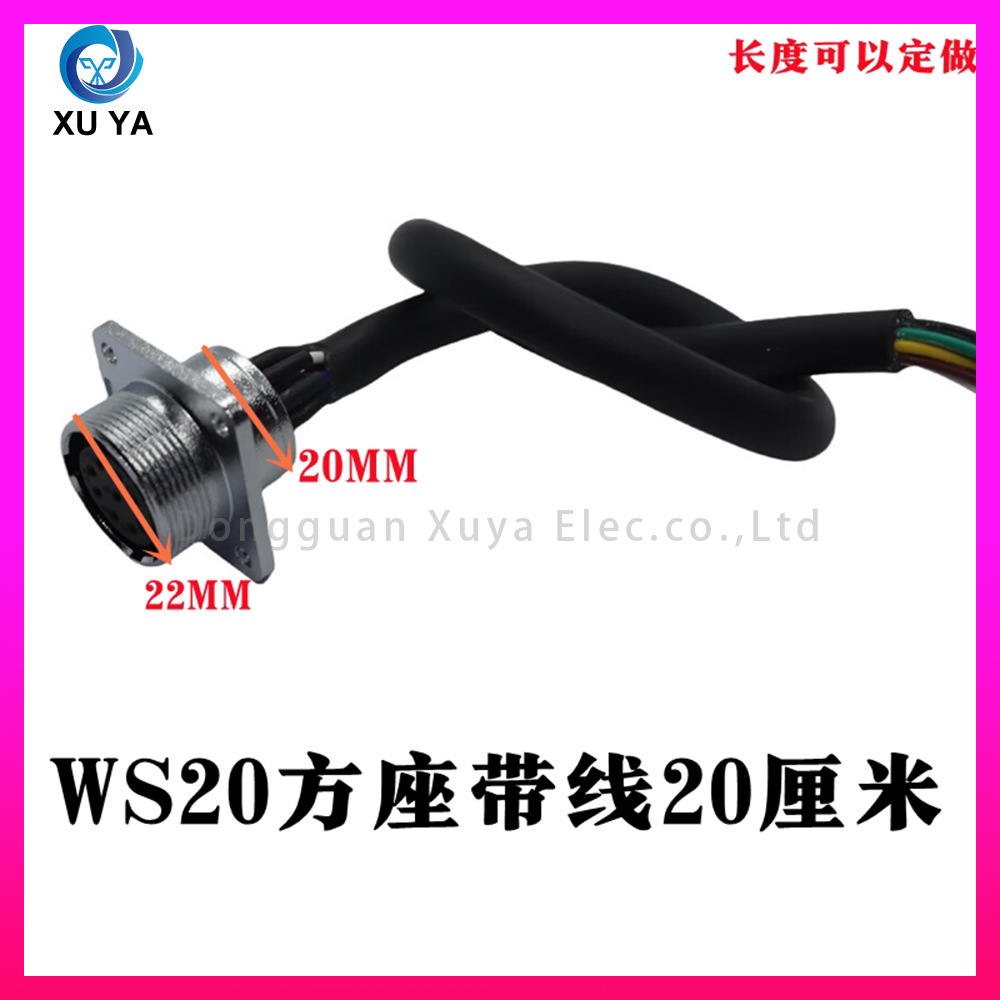

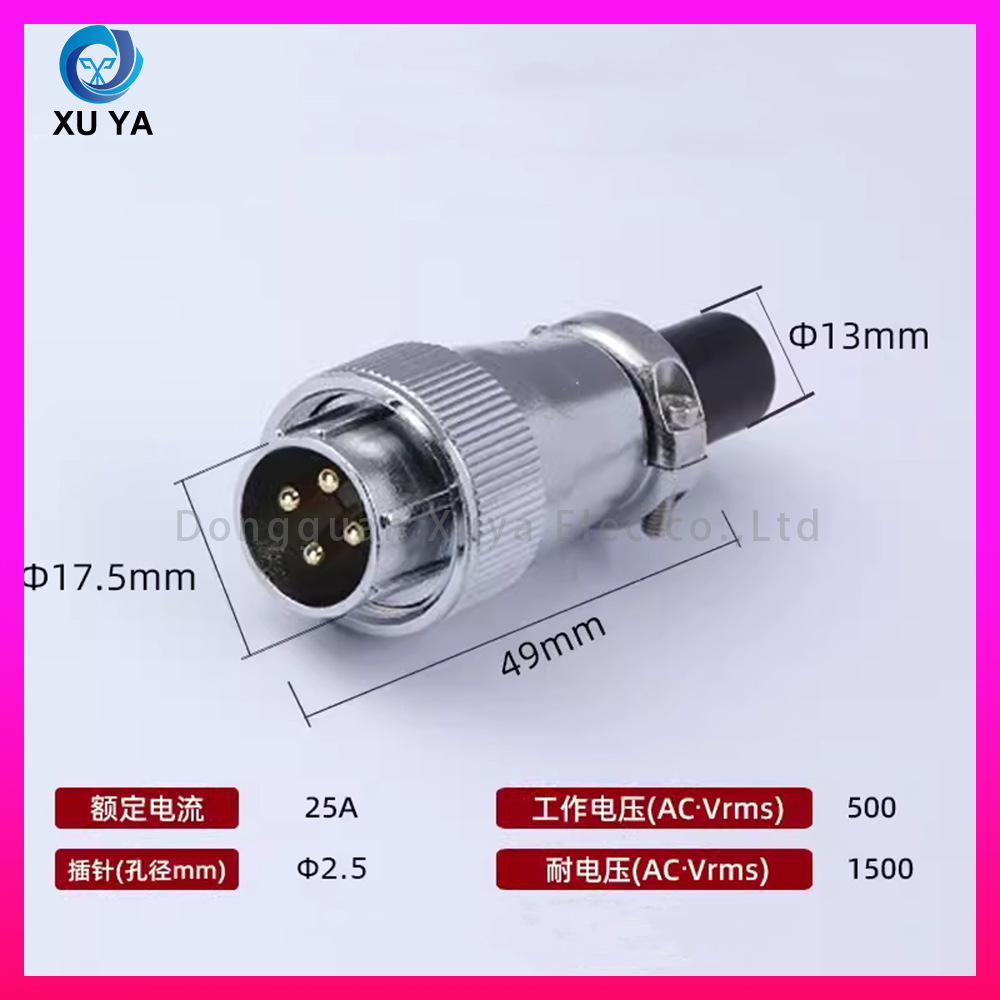

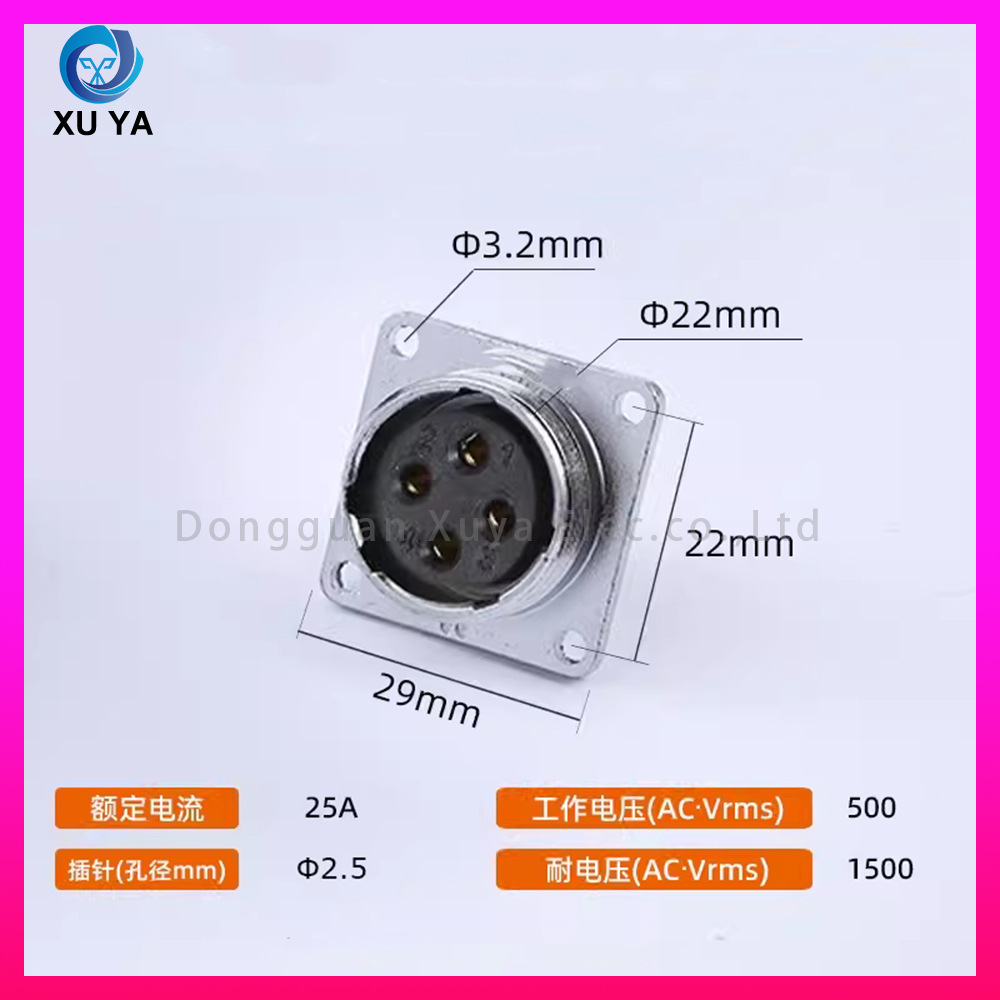

WS20 方形法兰航空方座成品线束，搭配 WS20 直式公插头，螺纹旋紧锁止，震动工况不易松脱；方形四孔法兰座安装便捷，适配设备面板开孔；导电插针采用铜镀金工艺，接触稳定、抗氧化、载流性能优异，单针可承载 25A 大电流，满足大功率设备供电需求；2 至 12 芯多规格可选，兼顾动力供电与多路信号传输；金属外壳防锈耐磨，防护防尘；配套黑色加厚柔性 PVC 电缆，可反复弯折不易开裂，内部多色分芯导线，接线区分清晰，降低检修难度；线束长度按需定制，广泛用于伺服设备、数控机床、大功率自动化机械、工业检测仪器的电源与信号对接。
WS20 square flange aviation square socket finished cable, matched with WS20 straight male plug. Thread locking design prevents loosening under vibration. The 4-hole square flange socket is easy to install on equipment panels. Gold-plated copper pins deliver stable, oxidation-resistant contact with excellent current-carrying capacity, rated 25A per pin for high-power equipment power supply. Multiple pin options from 2Pin to 12Pin support both power transmission and multi-channel signal transmission. Metal housing features rust and wear resistance with dust protection. Thickened flexible black PVC cable withstands repeated bending without cracking; multi-color inner wires simplify wiring identification and maintenance. Custom cable lengths are available, widely applied for power and signal connection of servo equipment, CNC machine tools, high-power automatic machinery and industrial testing instruments.
FAQ
1.Q：WS20 航空插头有哪些芯数规格？
Q: What core specifications are available for WS20 aviation plug?
A：2/3/4/5/6/7/8/9/10/12 芯全规格现货。
A: Full stock pin counts:2/3/4/5/6/7/8/9/10/12Pin.
2.Q：WS20 连接器电气性能参数是多少？
Q: What are the electrical performance parameters of WS20 connector?
A：单针额定电流 25A，工作电压 AC500V，耐压 AC1500V，插针孔径 Φ2.5mm。
A: Rated current per pin:25A; Operating voltage:500V AC; Withstand voltage:1500V AC; Pin hole diameter:Φ2.5mm.
3.Q：线束可定制的长度范围是多少？
Q: Custom length range of the cable?
A：0.1 米至 20 米均可按需定做，常规长度库存充足。
A: Custom lengths from 0.1m to 20m are available, standard lengths are in sufficient stock.
4.Q：WS20 大功率航空连接线适配哪些设备？
Q: Applicable equipment for WS20 high-power aviation cable?
A：伺服电机、数控机床、大功率自动化设备、工业工控设备、大功率检测仪器。
A: Servo motors, CNC machine tools, high-power automation equipment, industrial control equipment, high-power testing instruments.
5.Q：现货与定制线束发货周期？
Q: Lead time for stock and customized cables?
A：标准现货短线 1-2 天发货；特殊长度定制线束交期 3-7 个工作日。
A: Standard stock cables ship in 1-2 days; custom-length cables take 3-7 working days.
