WS16 方形法兰航空公头带线
WS16 Square Flange Aviation Male Cable
核心要点
WS16 工业圆形航空连接器，配套方形法兰面板座、直式公插头，同系列含 WS16/WS20/WS28 多尺寸；芯数 2/3/4/5/6/7/8/9/10 芯齐全，螺纹锁紧结构，连接牢固抗震

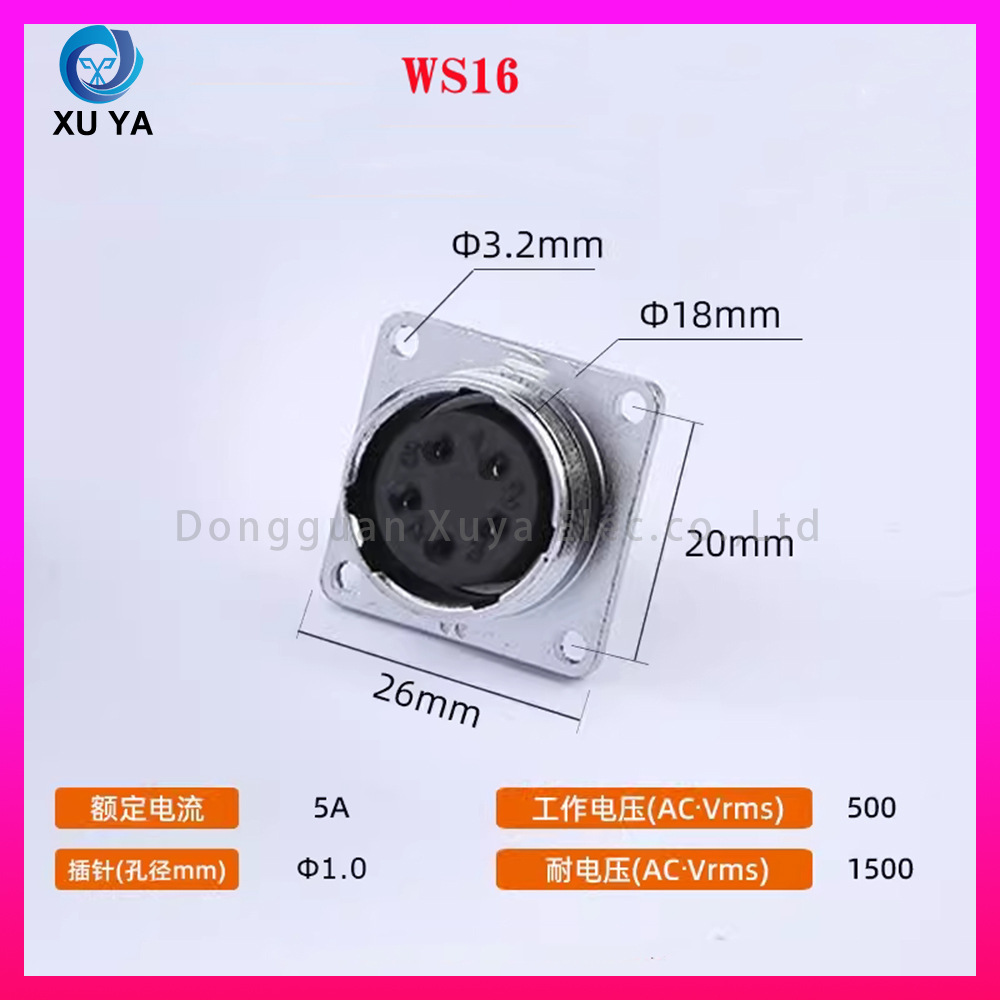

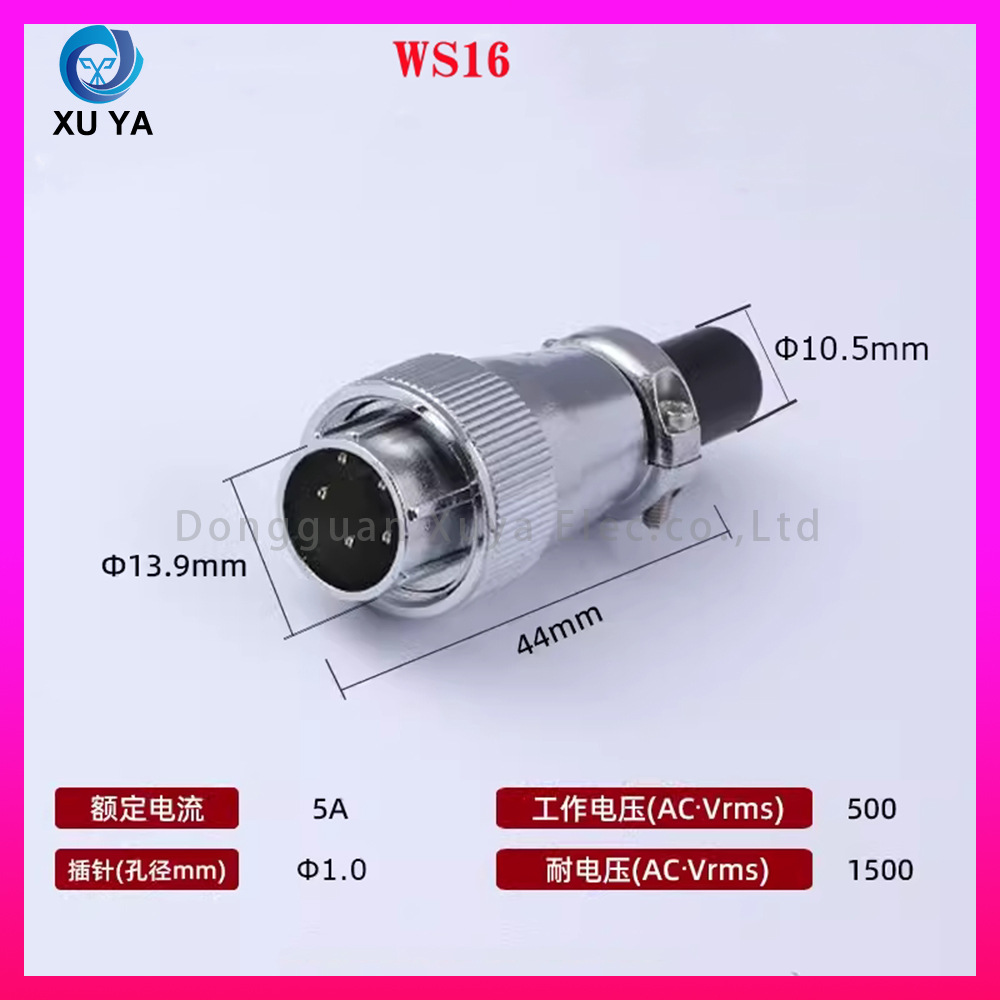

电气参数稳定：额定电流 5A，工作电压 500V AC，耐压 1500V AC，插针孔径 1.0mm，绝缘性能优良；出厂预焊成型线束，长度 0.1m-20m 可定制
金属锌合金外壳，防尘抗电磁干扰，加厚黑色耐磨电缆，耐弯折抗老化，内部多色分线，布线检修便捷
应用场景：工业自动化设备、仪器仪表、伺服电机、工控控制柜、检测设备电源信号连接
产品描述

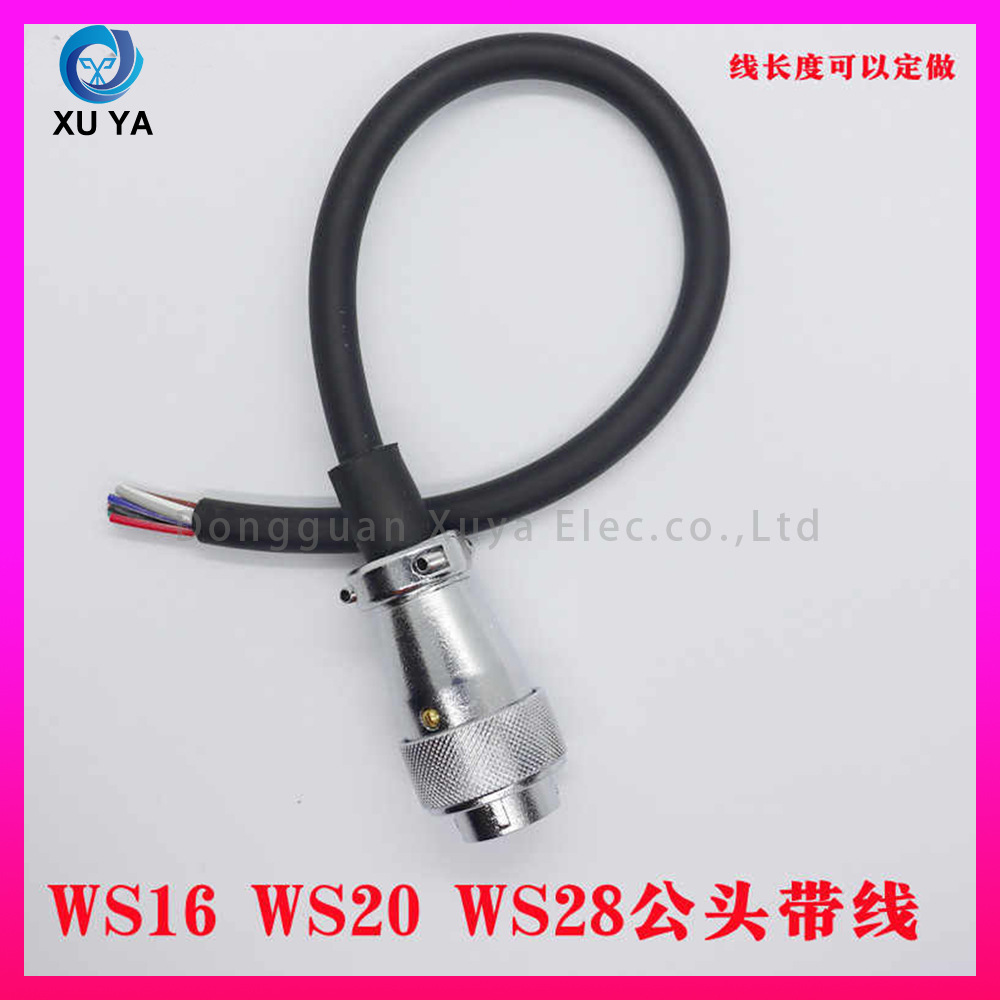

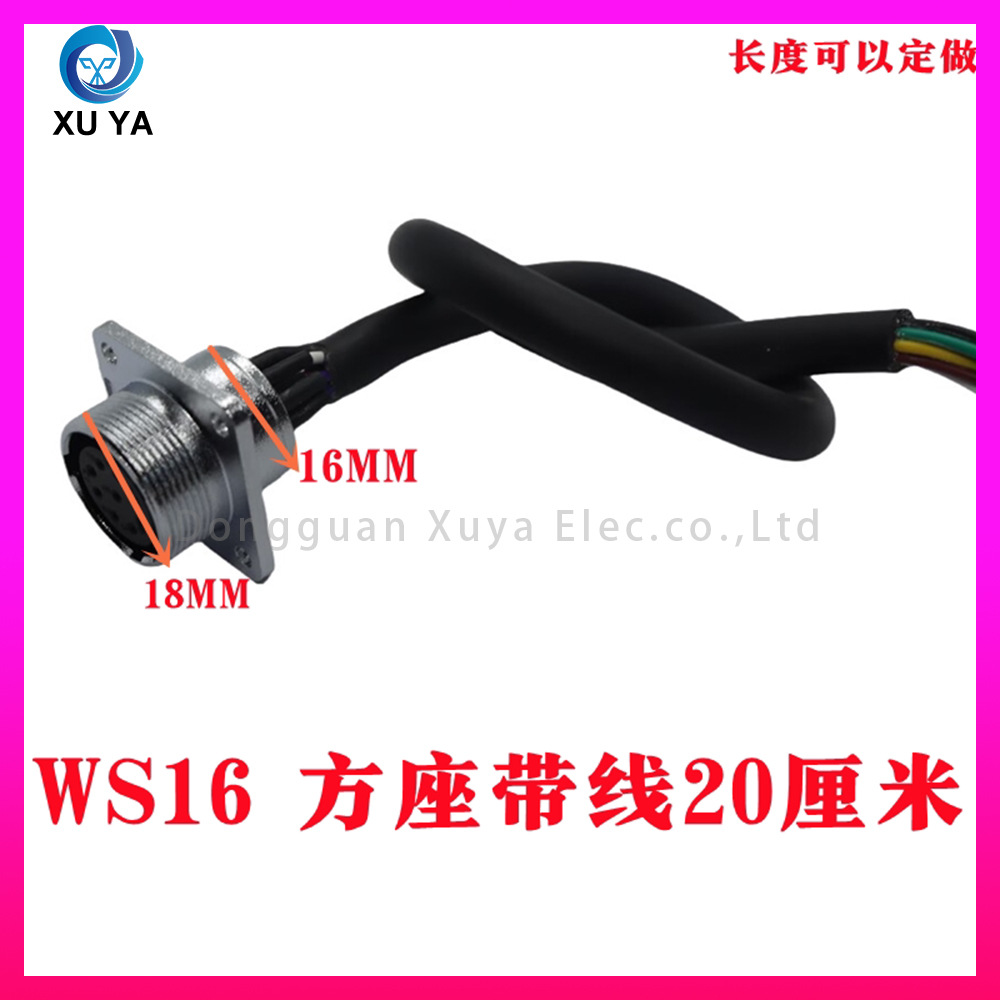

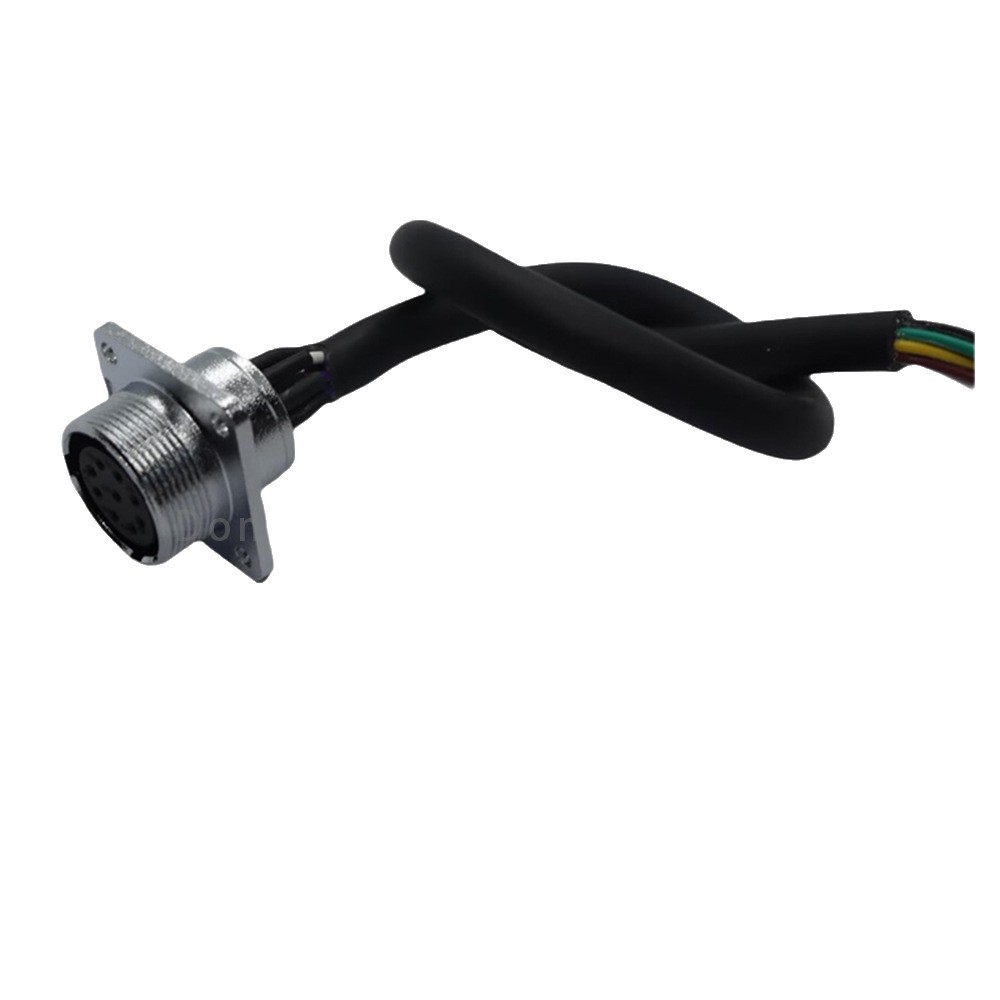

WS16 方形法兰航空公头预焊出线线束，配套方形四孔法兰插座与直式公插头，螺纹旋紧锁止，设备震动环境不易松脱；同系列覆盖 WS16、WS20、WS28 多种规格，2 至 10 芯多规格可选；电气性能稳定可靠，额定 5A 电流、500V 工作电压，1500V 高压耐冲击，适配中小型设备供电与信号传输；连接器与线缆一体化焊接完工，无需客户二次加工，线缆长度按需定制；金属外壳有效屏蔽电磁干扰，黑色加厚 PVC 电缆耐磨、耐弯折、抗老化，内部分色导线便于线路区分与故障检修；广泛应用于伺服设备、自动化机械、精密检测仪器、工控控制柜等工业设备电源与信号对接。
WS16 square flange aviation male pre-soldered cable, matched with 4-hole square flange socket and straight male plug. Thread locking structure prevents loosening under equipment vibration. The product series includes WS16, WS20, WS28 with full pin options from 2Pin to 10Pin. Stable electrical performance: rated current 5A, operating voltage 500V AC, withstand voltage 1500V AC, suitable for power supply and signal transmission of medium and small equipment. Connectors and cables are integrally welded without secondary processing for customers, and custom cable lengths are available. Metal housing shields electromagnetic interference. Thickened black PVC cable features wear resistance, bending resistance and anti-aging performance, multi-color inner wires simplify wiring and maintenance. Widely used for power and signal connection of servo equipment, automatic machinery, precision testing instruments and industrial control cabinets.
FAQ
1.Q：WS16 航空插头有哪些芯数与系列型号？
Q: What pin counts and series models are available for WS16 aviation plug?
A：芯数 2/3/4/5/6/7/8/9/10 芯；系列 WS16、WS20、WS28 现货齐全。
A: Pin counts:2/3/4/5/6/7/8/9/10Pin; Series WS16,WS20,WS28 full stock.
2.Q：WS16 公头带线成品线束有什么优势？
Q: Advantages of finished pre-wired WS16 male aviation cable?
A：方形法兰安装稳固，螺纹锁紧抗震；金属外壳抗干扰；出厂预焊即插即用；线缆长度任意定制；耐压绝缘性能优异。
A: Stable square flange mounting, anti-vibration thread lock; metal housing anti-interference; factory pre-welded plug-and-play; custom cable length; excellent voltage resistance & insulation.
3.Q：线束支持多长的定制范围？
Q: Custom cable length range?
A：0.1 米至 20 米均可定做，常规长度库存充足。
A: Custom lengths from 0.1m to 20m available, standard lengths in sufficient stock.
4.Q：WS16 工业航空连接器适配哪些设备？
Q: Applicable equipment for WS16 industrial aviation connector?
A：伺服电机、自动化机械设备、精密检测仪器、工控控制柜、中小型工业设备信号电源线。
A: Servo motors, automatic machinery, precision testing instruments, industrial control cabinets, signal & power cables for medium and small industrial equipment.
5.Q：现货和定制线束的发货周期？
Q: Lead time for stock and customized cables?
A：标准现货短线 1-2 天发货；特殊长度定制线束交期 3-7 个工作日。
A: Standard stock cables ship in 1-2 days; custom-length cables take 3-7 working days.
