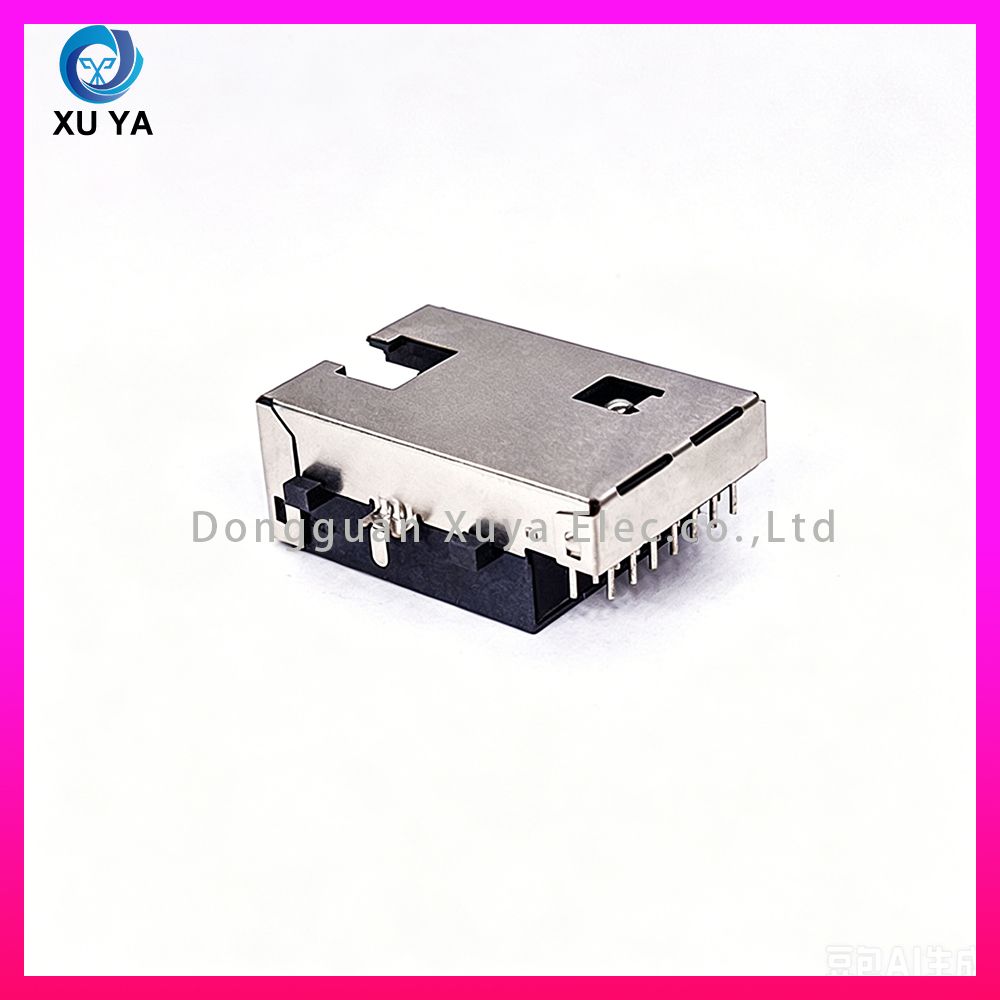

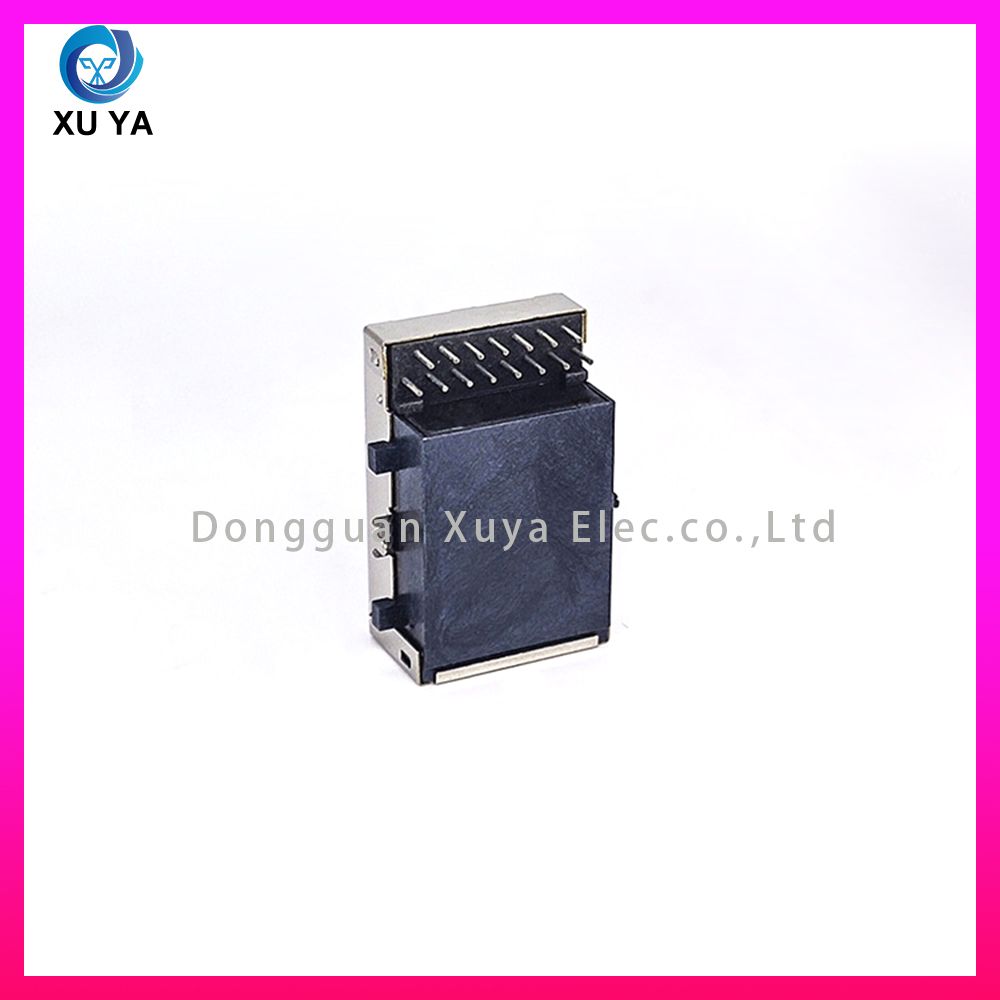

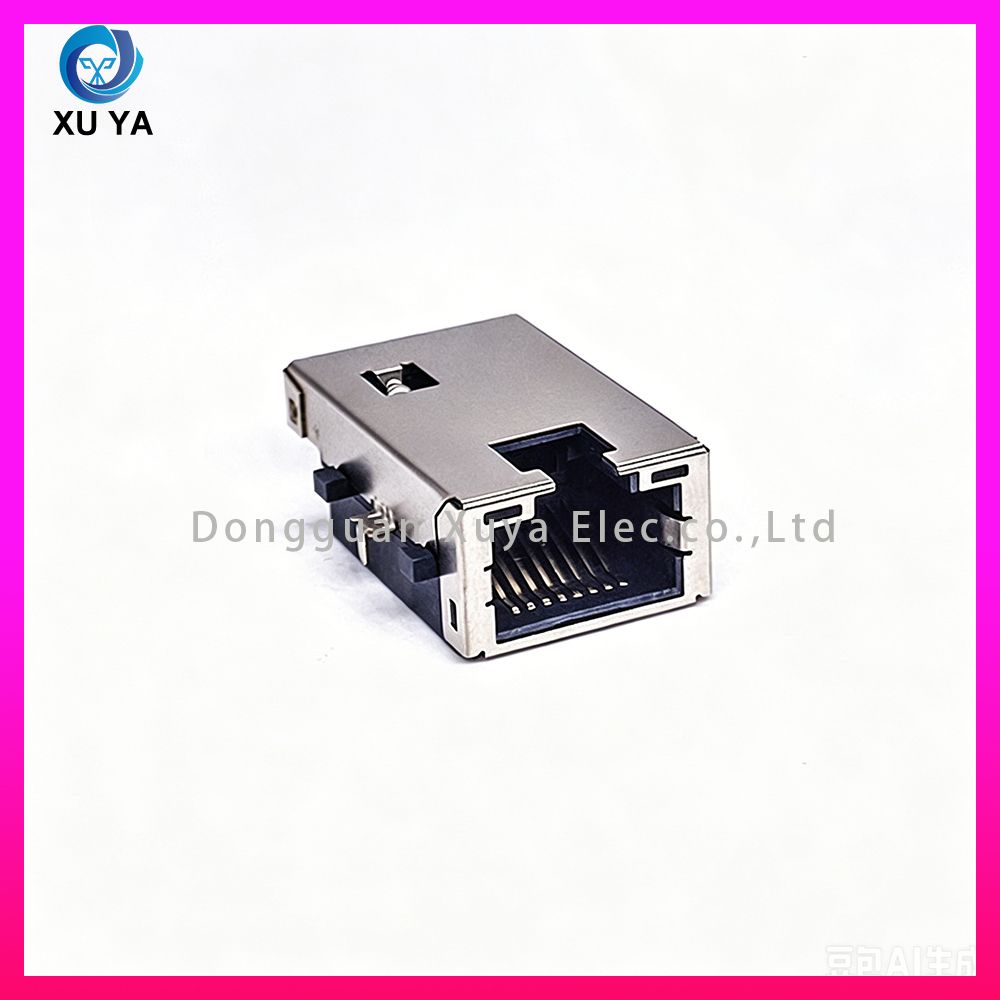

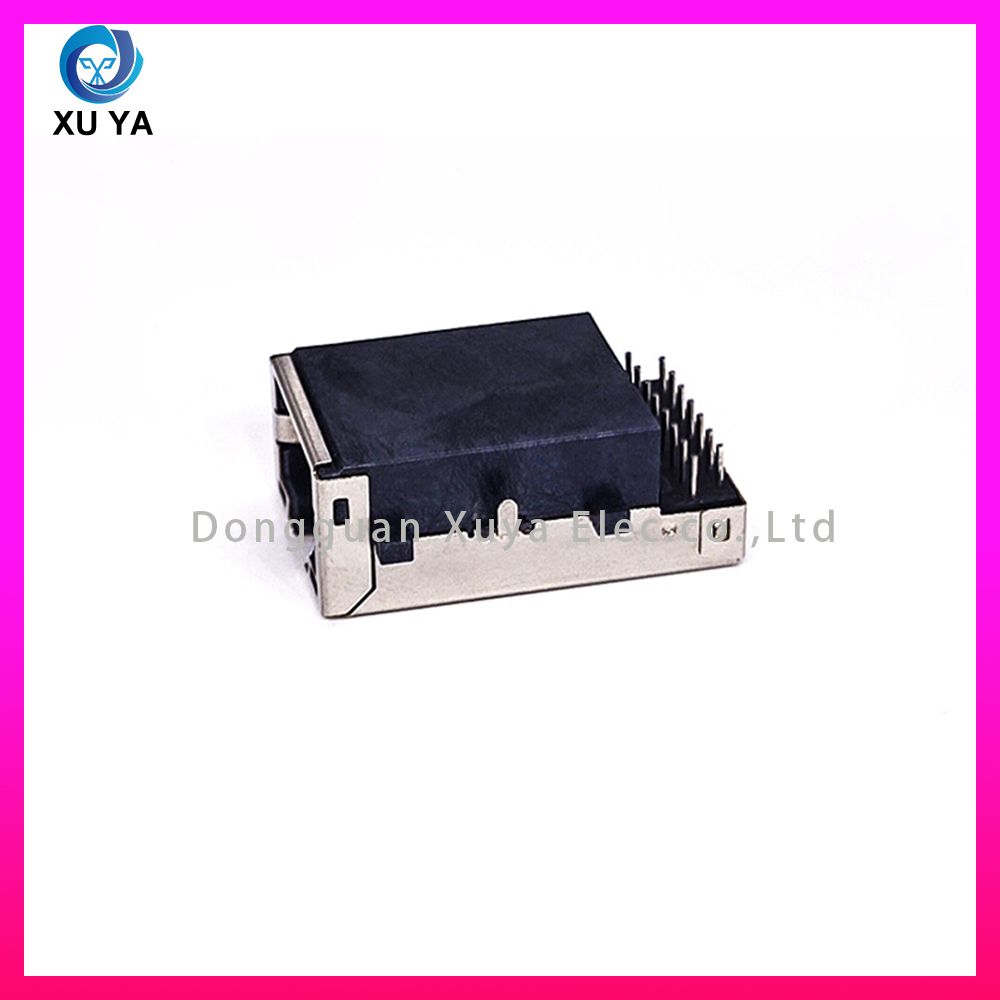

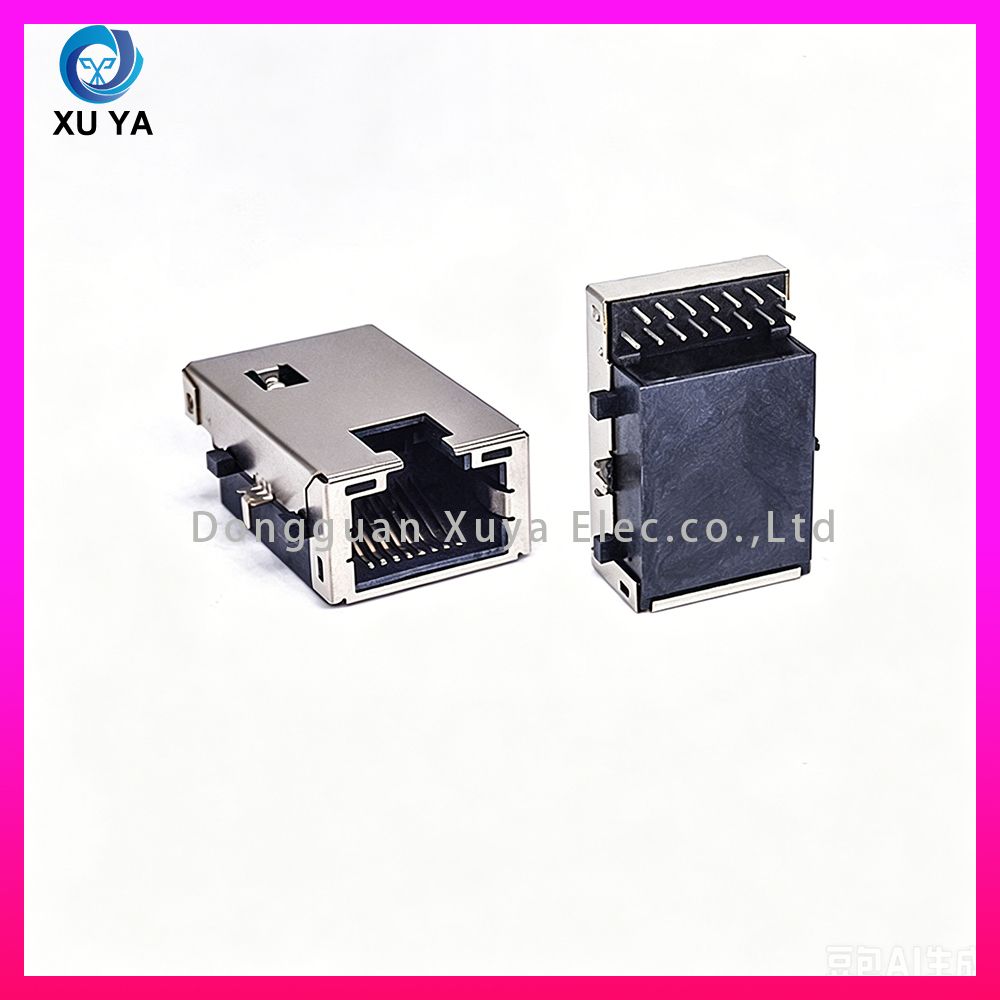

沉板 DIP 直插 RJ45 以太网连接器

颜色：
重量：
长度：
产品描述：沉板 DIP 直插 RJ45 以太网连接器，带 LED 指示灯与金属屏蔽，百兆内置集成网络磁环RJ45 Ethernet Connector, Sinking Board DIP Type, with LED Shield, 100Mbps Integrated Network Magnetics 沉板式 DIP 直插 RJ45 屏蔽...

在线购买

沉板 DIP 直插 RJ45 以太网连接器，带 LED 指示灯与金属屏蔽，百兆内置集成网络磁环RJ45 Ethernet Connector, Sinking Board DIP Type, with LED & Shield, 100Mbps Integrated Network Magnetics

沉板式 DIP 直插 RJ45 屏蔽网口，插座主体可沉入 PCB 板内，有效降低设备整体厚度；内置一体式网络隔离滤波磁环，支持 10/100Mbps 自适应百兆网络传输；端口配备双色 LED 指示灯，可实时反馈链路连通与数据传输状态；全包金属屏蔽外壳搭配接地弹片，高效抑制外界电磁干扰；接触针脚加厚镀金，耐磨抗氧化，长期插拔信号传输稳定；DIP 直插针脚适配 PCB 波峰焊工艺，耐高温阻燃塑胶内芯，适用于百兆交换机、路由器、超薄工控主板、小型安防设备；标准装箱 1050PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。

Sinking board DIP through-hole shielded RJ45 jack, the main body of the socket can sink into the PCB to effectively reduce the overall thickness of equipment. Built-in integrated network isolation magnetic ring, supporting 10/100Mbps adaptive fast ethernet transmission. Dual-color LED indicators on the port can feed back link connection and data transmission status in real time. Full metal shielding shell with grounding springs efficiently suppresses external electromagnetic interference. Thick gold-plated contact pins are wear-resistant and anti-oxidation to maintain stable signal transmission after long-term plugging. DIP through-hole pins are compatible with PCB wave soldering process, matched with high-temperature resistant flame retardant plastic inner housing. Widely used in 100M switches, routers, ultra-thin industrial control mainboards and small security equipment. Standard packing: 1050 PCS per carton, lead time 3-7 working days, RoHS compliant.

Q1：这款 RJ45 连接器安装类型、传输速率与内置配件是什么？
沉板式 DIP 直插安装，支持 10/100Mbps 百兆传输，内置一体式网络隔离滤波磁环。
What are the installation type, transmission rate and built-in accessories of this RJ45 connector?
Sinking board DIP through-hole mounting, supporting 10/100Mbps fast ethernet transmission, with built-in integrated network isolation magnetic ring.

Q2：产品是否配备指示灯与屏蔽结构，屏蔽效果如何？
端口自带双色 LED 状态指示灯，全包金属屏蔽外壳搭配接地弹片，抗电磁干扰性能优异。
Does the product have indicator lights and shielding structure, and what about its shielding effect?
The port is equipped with dual-color LED status indicators, full metal shielding shell with grounding springs delivers excellent anti-electromagnetic interference performance.

Q3：适配哪种 PCB 焊接工艺？
DIP 直插针脚设计，适配 PCB 波峰焊批量焊接加工。
Which PCB soldering process is it compatible with?
Designed with DIP through-hole pins, suitable for mass PCB wave soldering processing.
