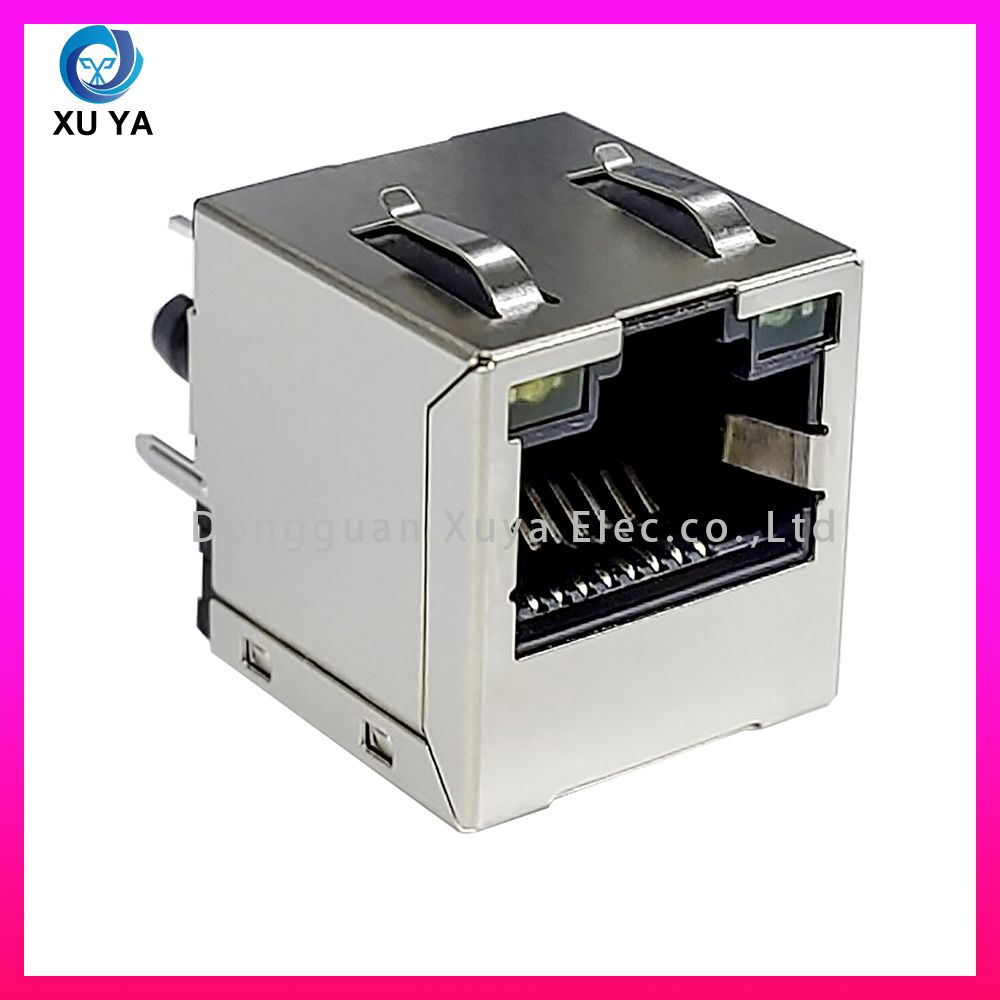

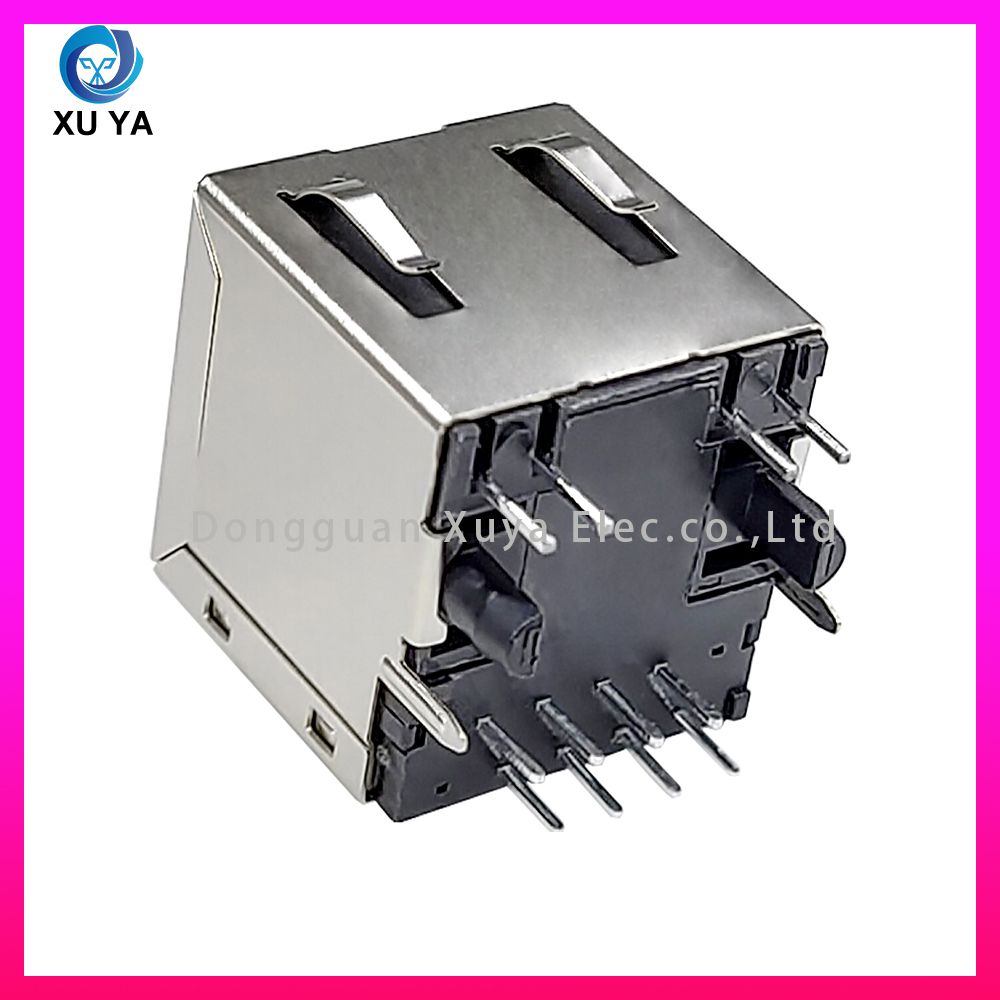

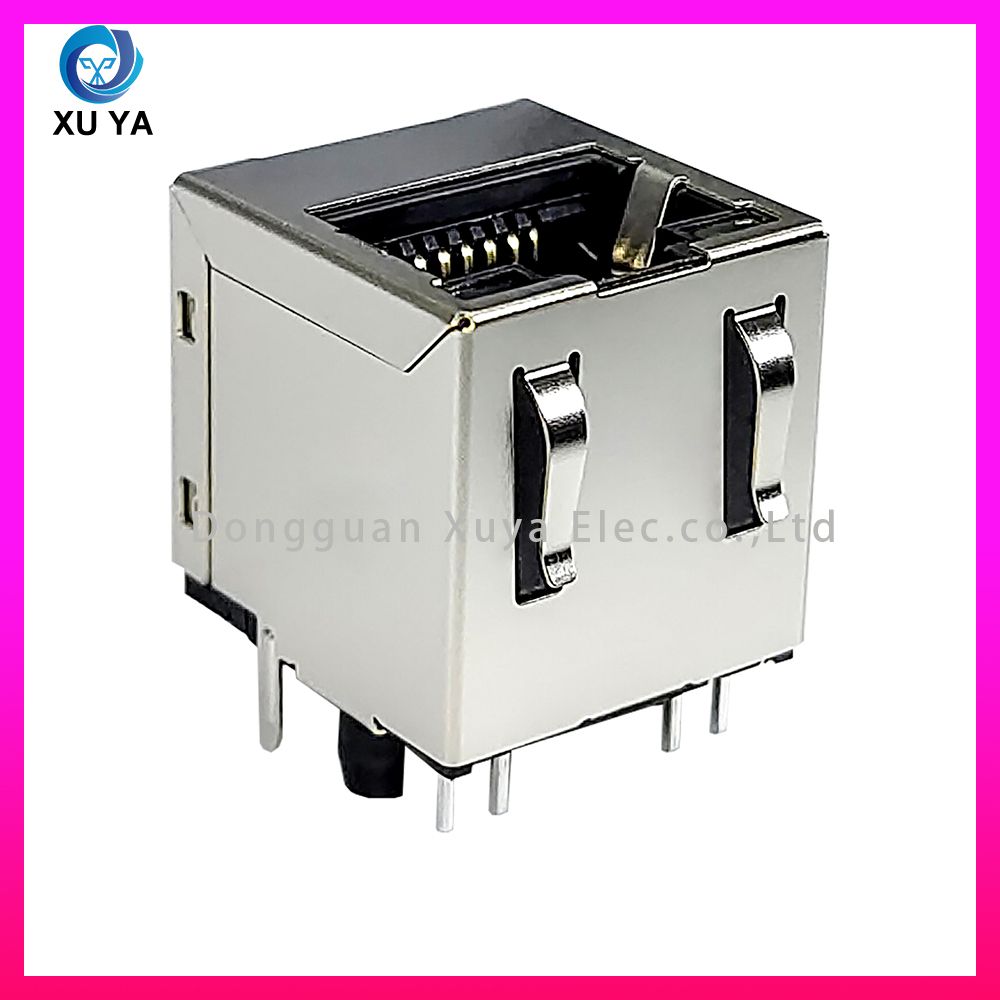

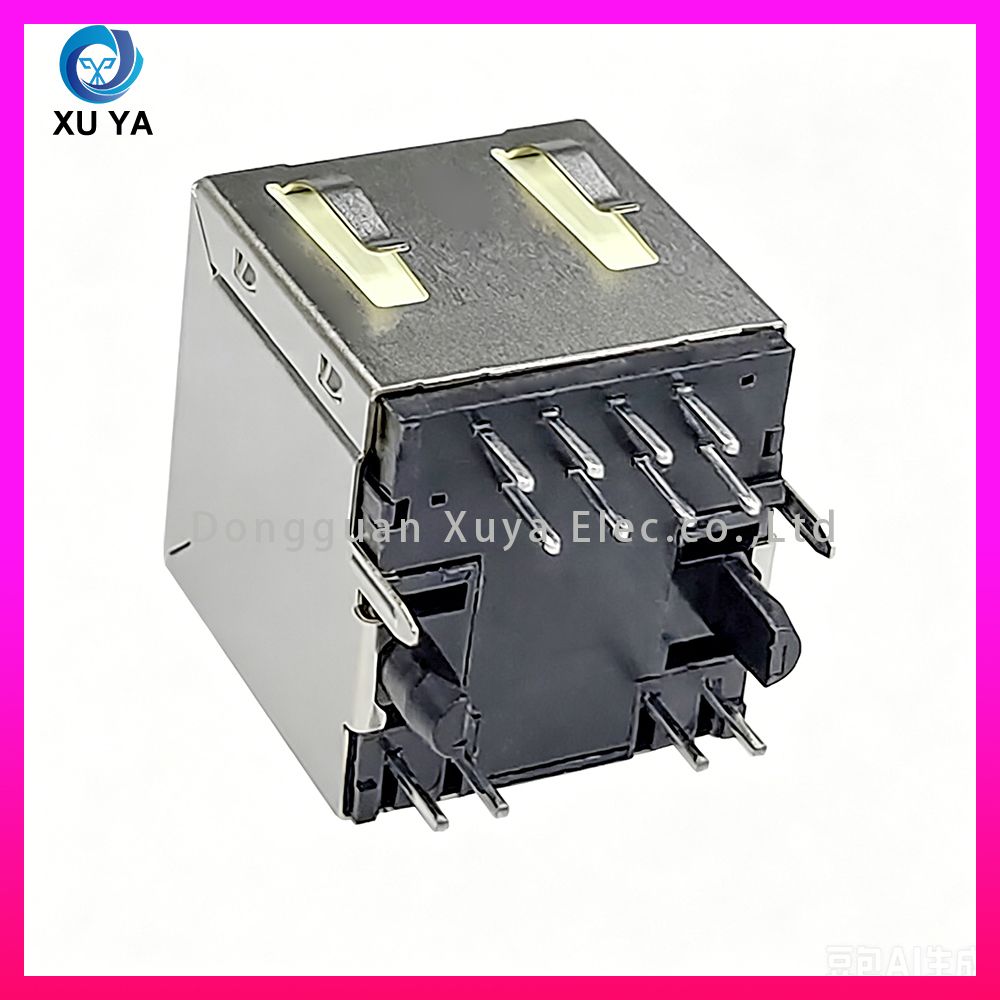

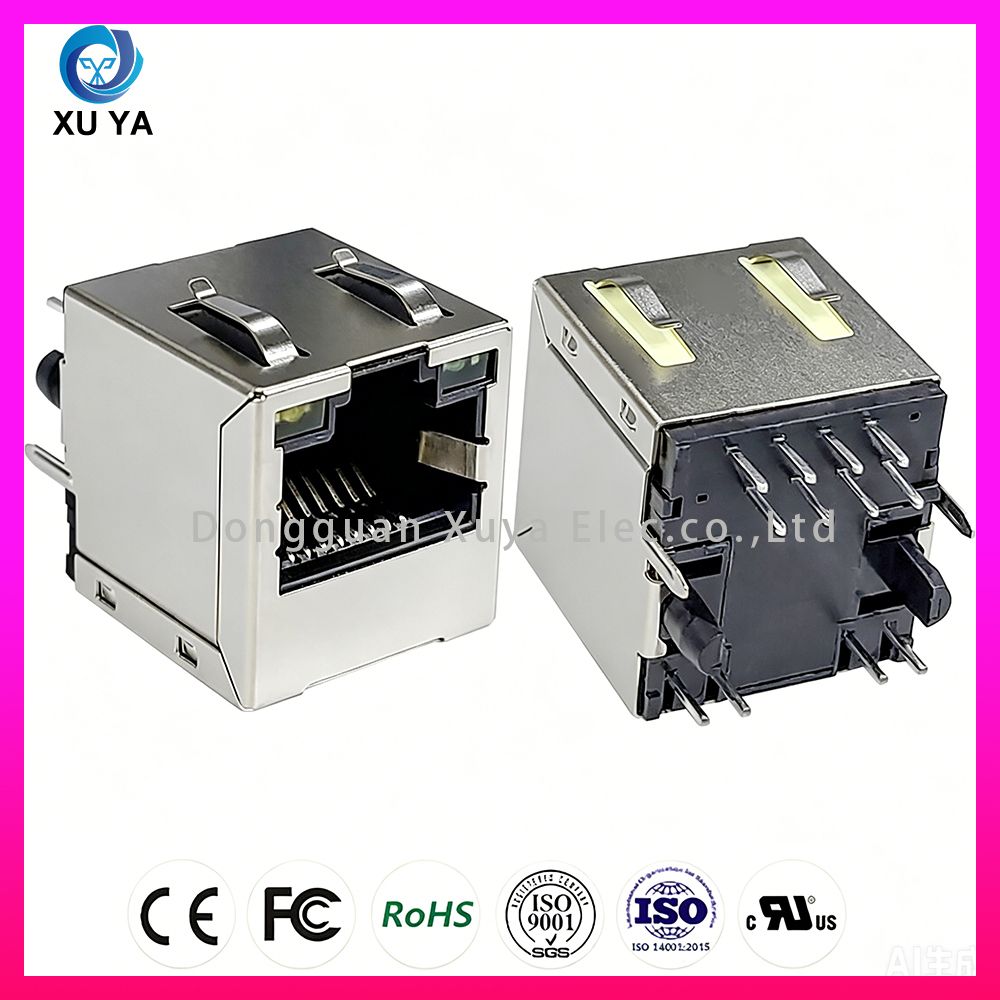

产品描述：百兆立式 RJ45 集成磁环连接器，带 LED 指示灯与弹性卡扣 RJ45 Vertical Interface 100Mbps Integrated Magnetics Connector with LED Spring Tab 180 度立式百兆 RJ45 屏蔽网口，内置一体式隔离滤波磁环，支持...
180 度立式百兆 RJ45 屏蔽网口，内置一体式隔离滤波磁环，支持 10/100Mbps 自适应百兆网络传输；端口配备双色 LED 指示灯，可实时显示链路连通与数据收发状态；外壳带有弹性卡扣弹片，搭配全包金属屏蔽外壳与接地弹片，有效抑制电磁干扰；触点加厚镀金处理，耐磨抗氧化，长期插拔信号传输稳定；立式直插针脚适配 PCB 波峰焊工艺，耐高温塑胶内芯，适用于百兆交换机、路由器、工控主板、安防监控设备；标准装箱 1150PCS / 箱，交期 3-7 个工作日，符合 RoHS、CE、FC 安规环保认证。
180-degree vertical 100Mbps shielded RJ45 jack with built-in integrated isolation magnetic ring, supporting 10/100Mbps adaptive fast ethernet transmission. Dual-color LED indicators on the port display link connection and data transmission status in real time. The shell is equipped with spring fixing tabs, full metal shielding shell and grounding springs to effectively suppress electromagnetic interference. Thick gold-plated contacts are wear-resistant and anti-oxidation to keep stable signal transmission after long-term plugging. Vertical through-hole pins are compatible with PCB wave soldering process, matched with high-temperature resistant plastic inner housing. Widely used in 100M switches, routers, industrial control mainboards and security monitoring equipment. Standard packing: 1150 PCS per carton, lead time 3-7 working days, RoHS, CE and FC certified.
Q1：这款 RJ45 接口插板角度、传输速率与内置配件是什么？
180 度立式插板，支持 10/100Mbps 百兆传输，内置一体式隔离滤波磁环。
What are the PCB mounting angle, transmission rate and built-in accessories of this RJ45 interface?
180-degree vertical PCB mounting, supporting 10/100Mbps fast ethernet transmission, with built-in integrated isolation magnetic ring.
Q2：产品是否配备指示灯与固定结构，屏蔽性能如何？
端口自带双色 LED 状态指示灯，外壳配有弹性卡扣弹片；
全包金属 屏蔽外壳搭配接地弹片，抗电磁干扰能力强。
Does the product have indicator lights and fixing structures, and what about its shielding performance?
The port is equipped with dual-color LED status indicators, and the shell has spring fixing tabs.
The full metal shielding shell with grounding springs has strong anti-electromagnetic interference ability.
Q3：适配哪种 PCB 焊接工艺？
立式直插针脚设计，适配 PCB 波峰焊批量焊接加工。
Which PCB soldering process is it compatible with?
Designed with vertical through-hole pins, suitable for mass PCB wave soldering processing.
所有端子胶壳线材执行MIL-STD 105E检验标准，按照来料检验标准检验，确保上生产线的每一个端子、连接器、线材都是合格品；
所有端子线、成型线都制定清晰明确的制程检验标准、IPQC巡检标准，每款线束制定作业指导标准，确保线束制程品质可靠；
严格按照APQP流程，研发设计每一款电线组件、端子线、音视频线，提高电线产品可靠性、方案可落实性、质量可控性；
遵照每款端子线、啤头线的成品检验标准，对产品实行功能测试、外观检查、成品检验，确保出厂的每款成品质量可靠。
