6 引脚百兆 100BASE-TX 以太网网络隔离变压器

6 引脚百兆 100BASE-TX 以太网网络隔离变压器源头供货
100base-Tx Network Transformer, Ethernet Transformer, 6pin Supplier

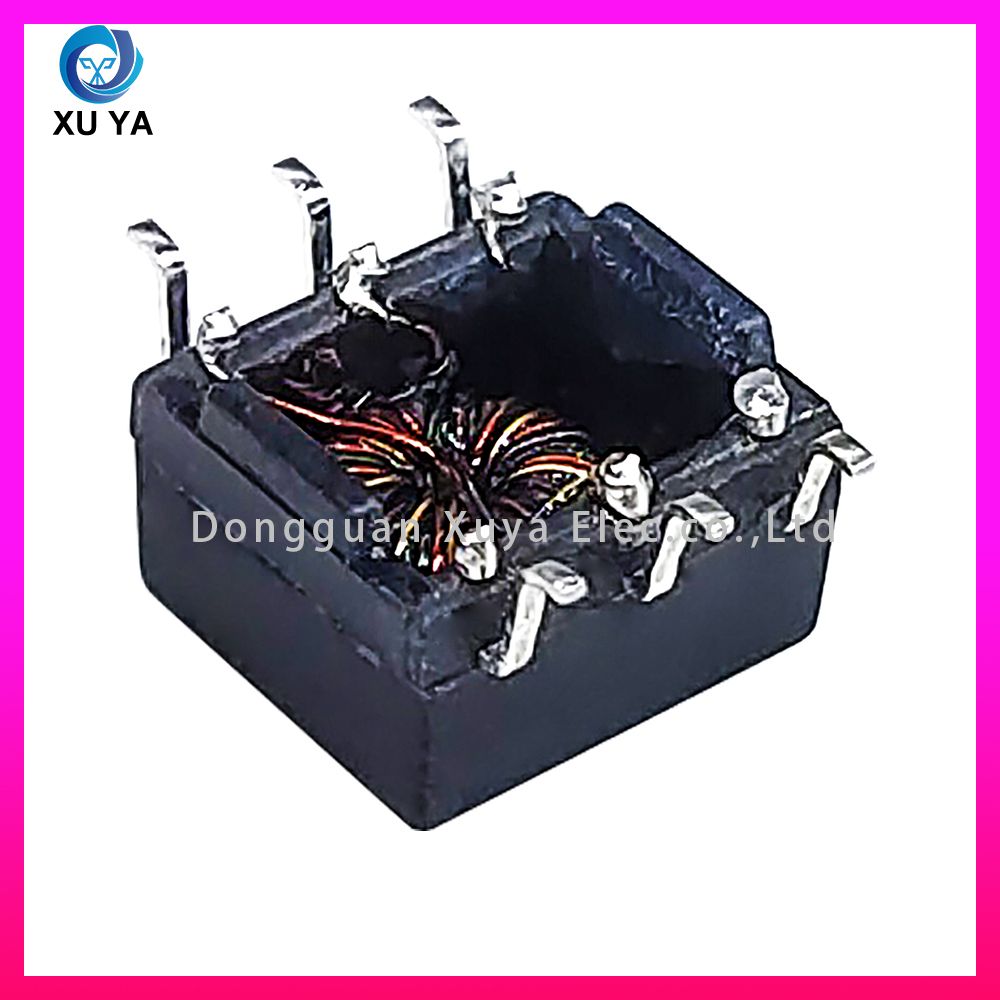

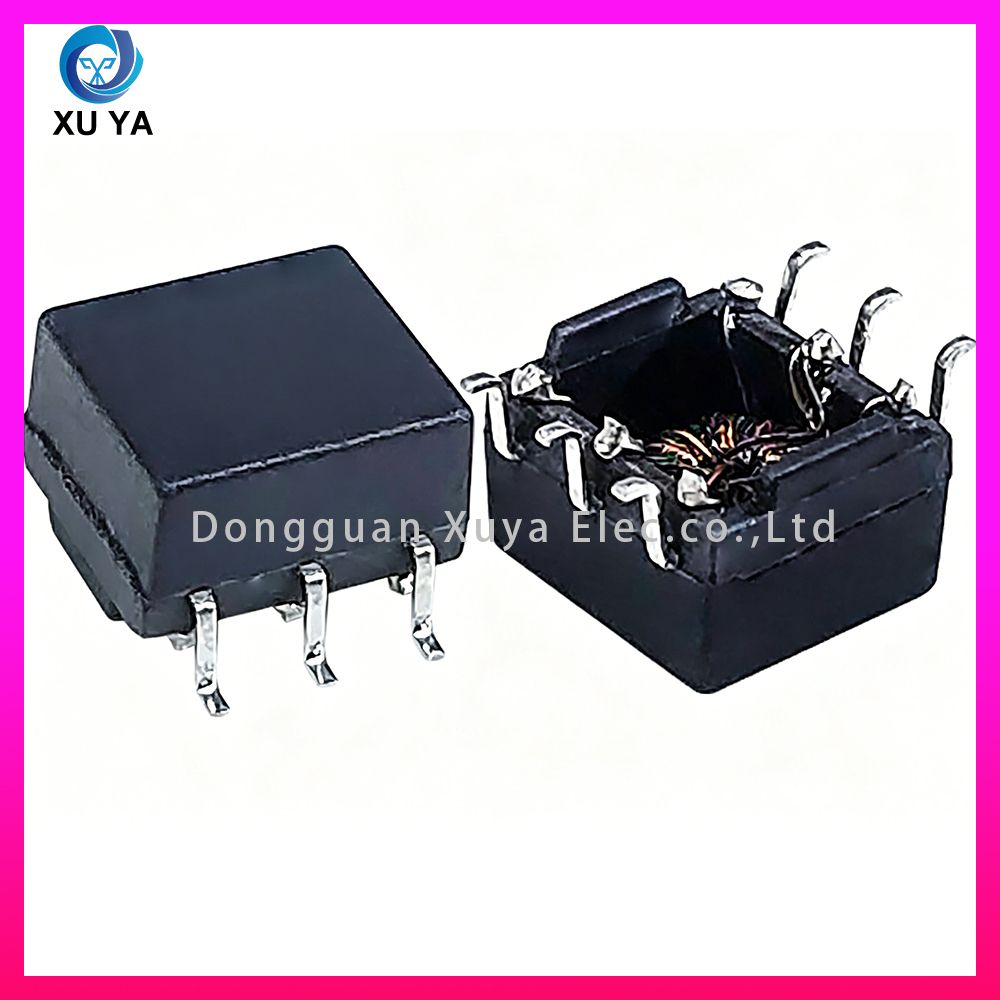

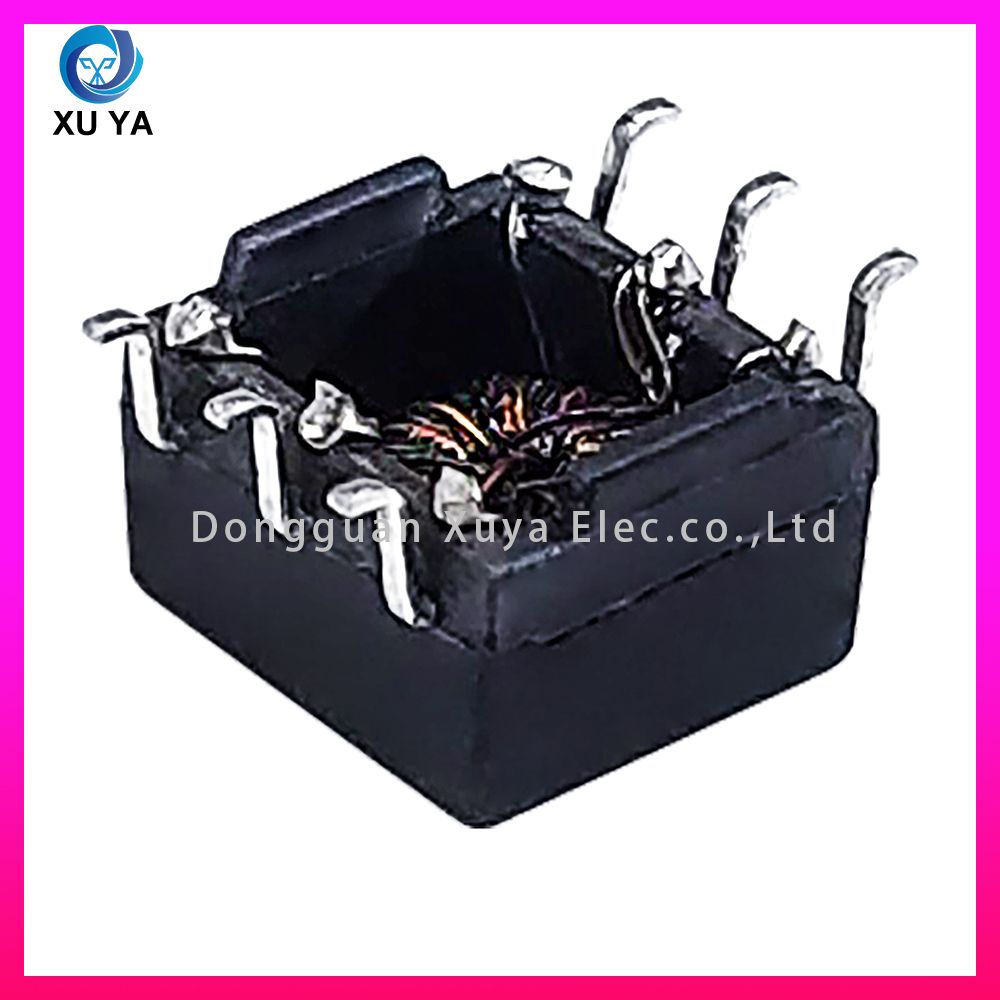

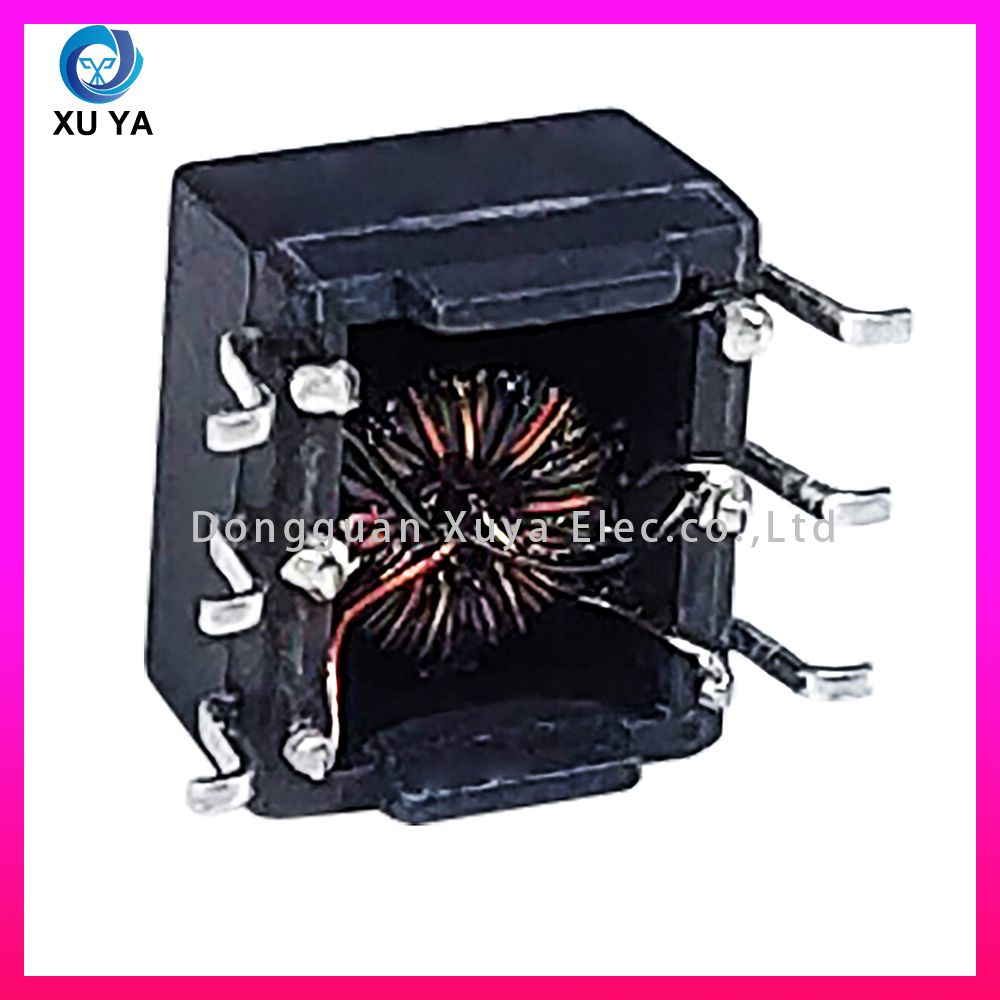

        SMT 贴片式 6PIN 百兆网络脉冲变压器，适配 100BASE-TX 百兆以太网传输标准；内部精密漆包线绕组，具备电气隔离、阻抗匹配、滤除杂波、抗共模干扰作用，可保护后端电路；黑色耐高温塑胶封装，贴片引脚定位精准，适配自动化 SMT 回流焊工艺；小型化体积，可内置 RJ45 网口内部或独立贴片于通信 PCB；适配百兆交换机、路由器、工业网络模块、安防监控主板；标准装箱 5000PCS / 盘，常规交期 3-7 个工作日，符合 RoHS 环保标准，绕线均匀、传输损耗低、绝缘耐压性能稳定。
       SMT surface-mount 6-pin 100BASE-TX fast ethernet pulse transformer, compliant with 100Mbps 100BASE-TX ethernet standard. Equipped with precise enameled wire winding inside, it realizes electrical isolation, impedance matching, clutter filtering and common-mode interference suppression to protect post-stage circuits. Packaged with high-temperature resistant black plastic, the SMT pins offer accurate positioning for automatic reflow soldering. Compact size allows integration inside RJ45 jack or independent mounting on communication PCB boards. Widely used in 100M switches, routers, industrial network modules and security monitoring mainboards. Standard packing: 5000 PCS per reel, normal lead time 3-7 working days, RoHS compliant. Uniform winding brings low transmission loss and stable insulation voltage resistance.

Q1：这款网络变压器适用什么网络传输标准？
        适配 100BASE-TX 百兆以太网，支持 10/100M 自适应设备。
        What ethernet standard does this transformer support?
        It matches 100BASE-TX fast ethernet, compatible with 10/100M auto-adaptive devices.

Q2：该变压器引脚数量与焊接类型是什么？
        6 引脚 SMT 贴片式，适配自动贴片机回流焊。
        What is the pin count and soldering type of this transformer?
        6-pin SMT surface mount type, fit for automatic placement & reflow soldering.

Q3：以太网变压器主要起到什么作用？
        隔离高低压、匹配线路阻抗、过滤电磁干扰，防护通信芯片。
        What’s the main function of ethernet transformer?
        Isolate high/low voltage, match line impedance, filter EMI noise and protect communication chips.
