单口屏蔽 RJ45插座 以太网连接器

单口屏蔽 RJ45 插座 10P10C 立式通孔 带黄绿双色 LED 网口连接器 工厂直供
Single Port Shielded RJ45 Jack 10p10c Vertical Through Hole with Green&Yellow LED Network Connector Factory

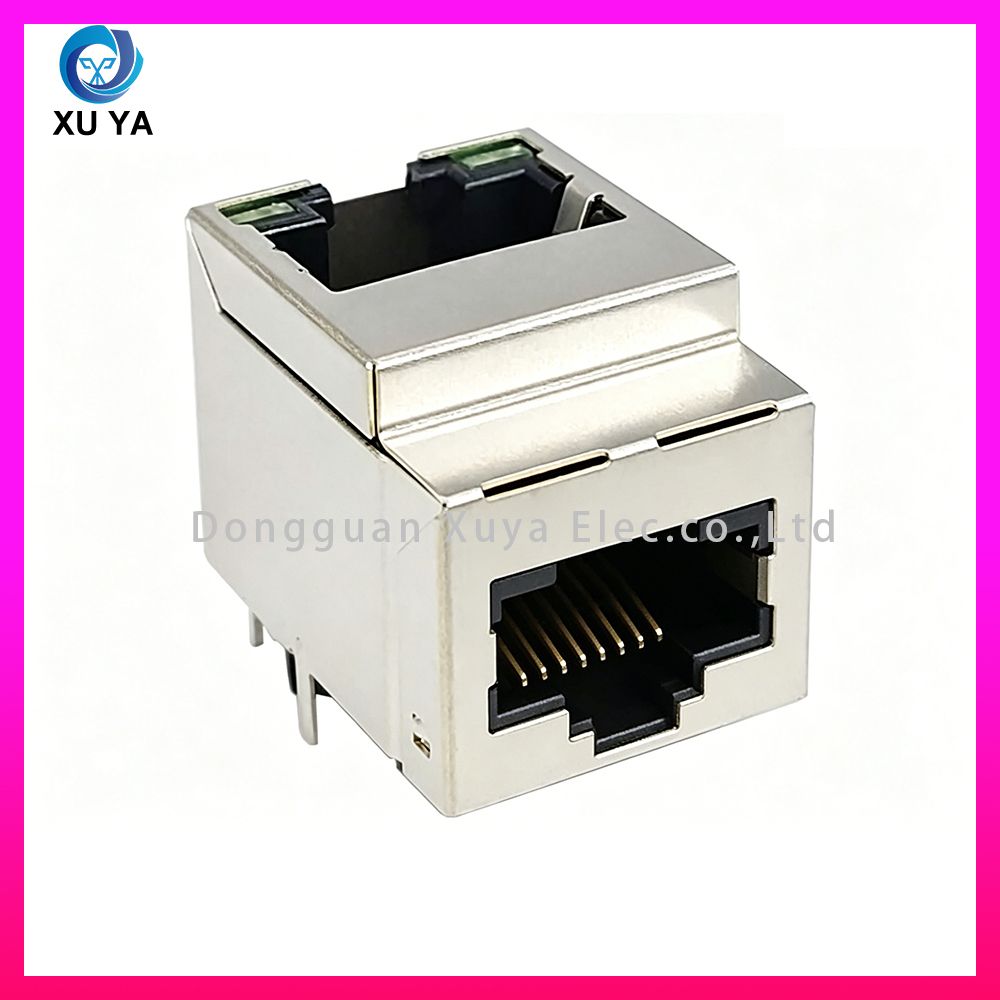

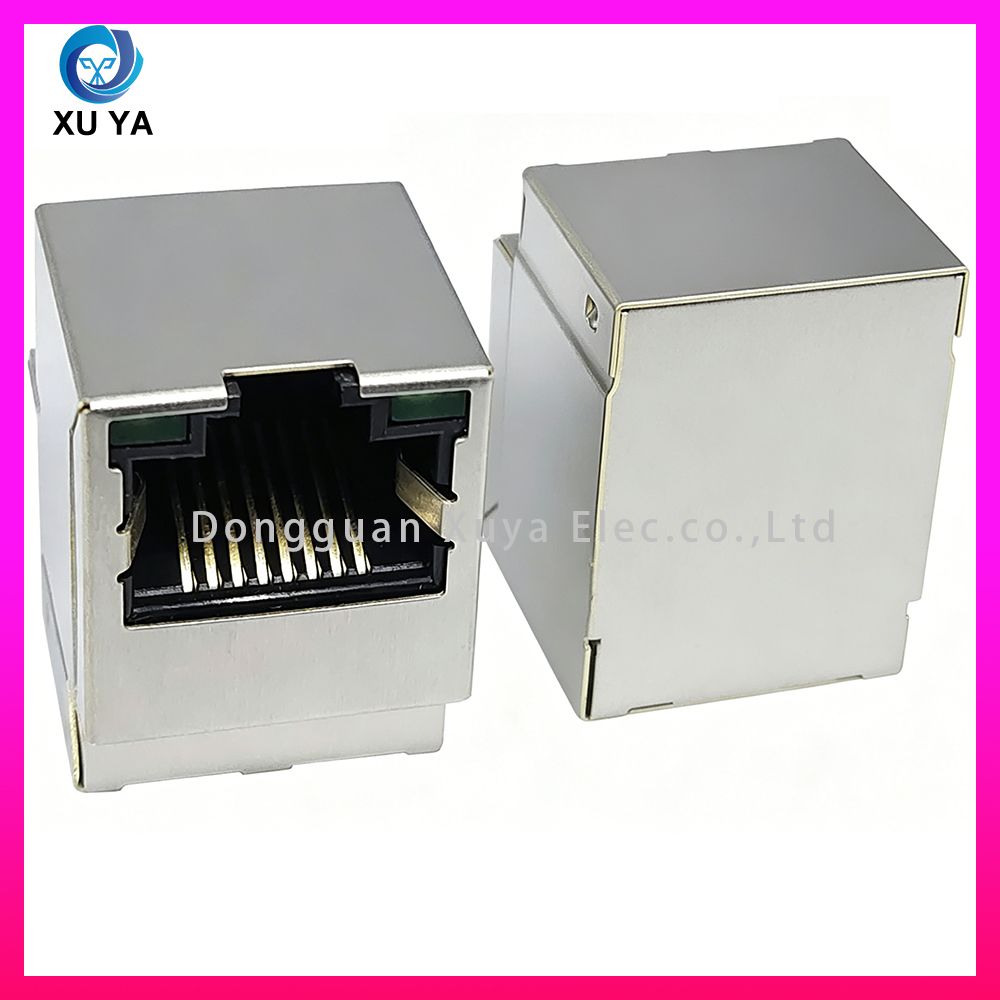

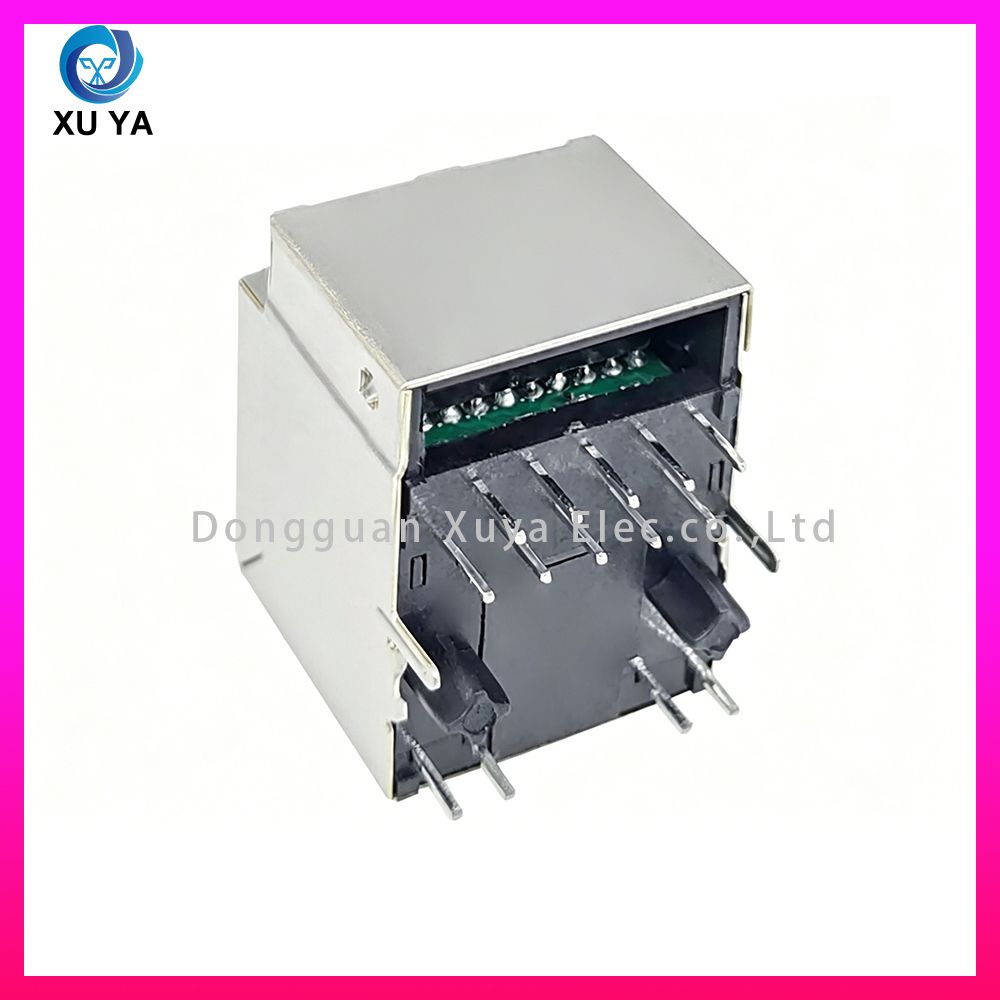

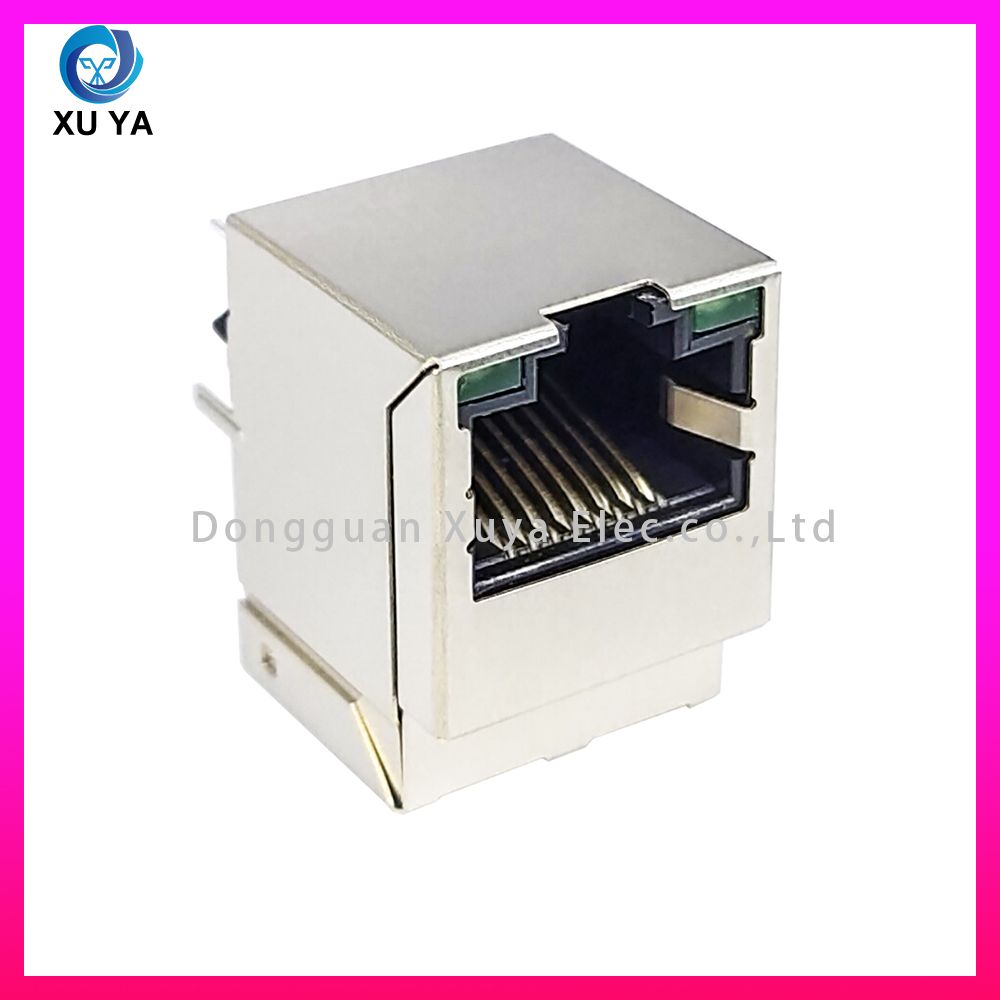

       10P10C 立式通孔单口屏蔽 RJ45 网口母座，180 度立式 DIP 通孔焊接，内置绿、黄双色 LED 指示灯；一体镀锌钢全包金属屏蔽外壳，内置滤波磁环，有效抑制电磁干扰，稳定支持千兆网络传输；10 针加长镀金针脚，导电性能强、抗氧化耐磨，适配各类 PCB 主板焊接；绿灯常亮代表链路连通，黄灯闪烁提示数据传输，方便设备运行状态识别；广泛应用于路由器、交换机、工业工控板、安防监控主板、嵌入式网络设备；标准整箱 4200PCS，现货交期 2-3 个工作日，可定制无灯、沉板、贴片款，源头工厂跨境批量供货。
      Single port shielded RJ45 jack with 10P10C pins, vertical 180° DIP through-hole soldering, built-in green & yellow dual LED indicator lights. Integrated galvanized steel full shielding shell with built-in filter coil restrains electromagnetic interference and ensures stable gigabit network transmission. 10 extended gold-plated pins deliver excellent conductivity with anti-oxidation and wear resistance, compatible with all kinds of PCB circuit boards. Solid green light means normal link connection, flashing yellow light indicates data transmission for easy equipment status checking. Widely used in routers, switches, industrial control boards, surveillance mainboards and embedded network equipment. 4200 pieces per export carton, stock lead time 2-3 working days. Custom versions without LED, sunken board and SMD types are available, factory mass supply for cross-border merchants.

Q1. 规格 Spec
这款 RJ45 插座针脚规格、焊接方式与指示灯配置是什么？
10P10C 加长针脚，180 度立式通孔 DIP 焊接，自带绿色、黄色双色 LED 状态指示灯，支持千兆传输。
What are the pin spec, soldering type and LED configuration of this RJ45 jack?
Extended 10P10C pins, 180° vertical DIP through-hole soldering, equipped with green & yellow dual LED lights, support gigabit network transmission.

Q2. 屏蔽与滤波 Shield & Filter
产品屏蔽结构与抗干扰配置如何？
整体金属全包屏蔽罩，内部集成隔离滤波线圈，工业复杂电磁环境下网络信号无丢包。
What is the shielding and anti-interference configuration of this product?
Full wrap metal shielding shell with built-in isolated filter coil, zero packet loss under industrial complex electromagnetic environment.

Q3.LED 指示灯作用 LED Function
黄绿两个指示灯分别代表什么网络状态？
绿色常亮 = 网线链路正常连通；黄色闪烁 = 设备正在收发数据。
What network status do green and yellow LED lights indicate respectively?
Solid green light: Normal network link; Flashing yellow light: Data receiving & transmitting.

Q4. 适用设备 Application
带灯 10P10C 屏蔽 RJ45 插座适配哪些网络主板？
家用路由器、迷你交换机、工业控制主板、监控 NVR、嵌入式物联网设备。
Which network mainboards fit this LED-equipped 10P10C shielded RJ45 jack?
Household routers, mini switches, industrial control boards, surveillance NVR and embedded IoT devices.

Q5. 装箱数量 Carton Qty
标准外贸纸箱一箱可装多少个该款 RJ45 连接器？
每箱 4200 个，独立防静电袋分装，防止金属外壳刮花、针脚弯折氧化。
How many pieces of this RJ45 connector can be packed in one export carton?
4200 pieces per carton with separate anti-static packaging to avoid shell scratch, pin bending and oxidation during shipment.
