DT 型德驰汽车防水连接器线束 2P-12P 公母对插防水接插件
DT Style Deutsch Automotive Waterproof Connector Harness, 2P-12P Male Female Waterproof Plug
产品描述【中文】
DT 系列德驰型防水连接器线束，规格覆盖 2P~12P，橙色硅胶密封圈实现密封防水，卡扣自锁结构，抗震防脱。采用耐高温汽车专用线缆，耐油耐高低温，导电稳定。广泛应用工程机械、卡车、农机、车载设备、户外工控线路连接。线长、线规、线色均可定制，公母成套线束现货供应。
Product Description【English】

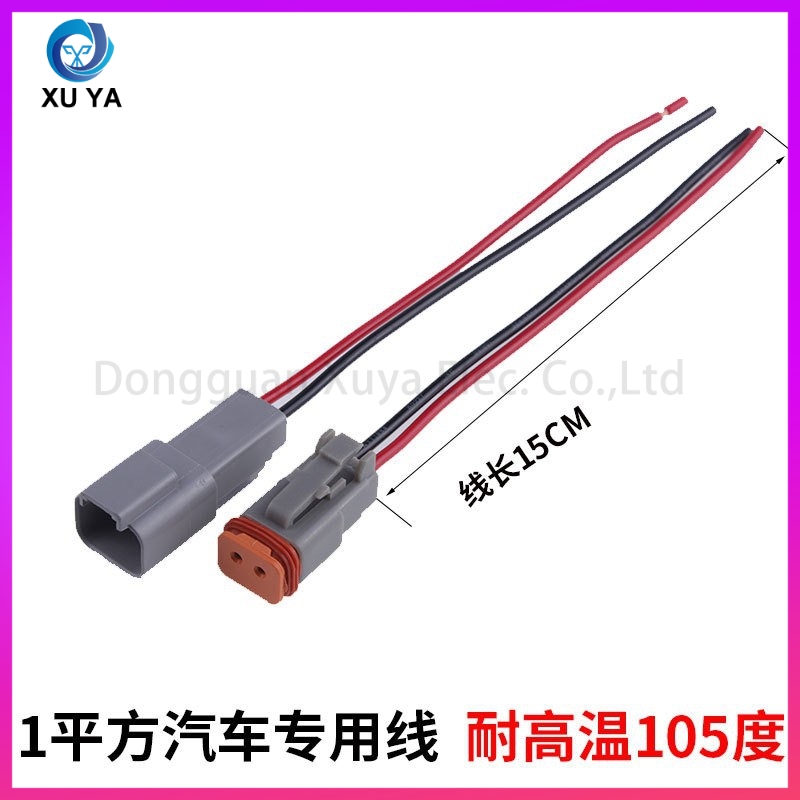

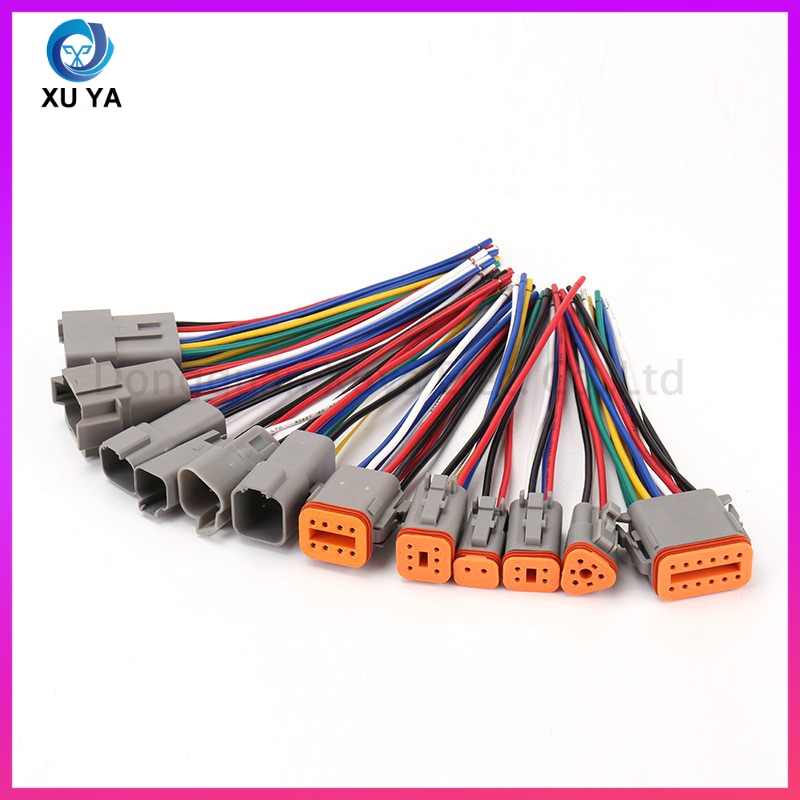

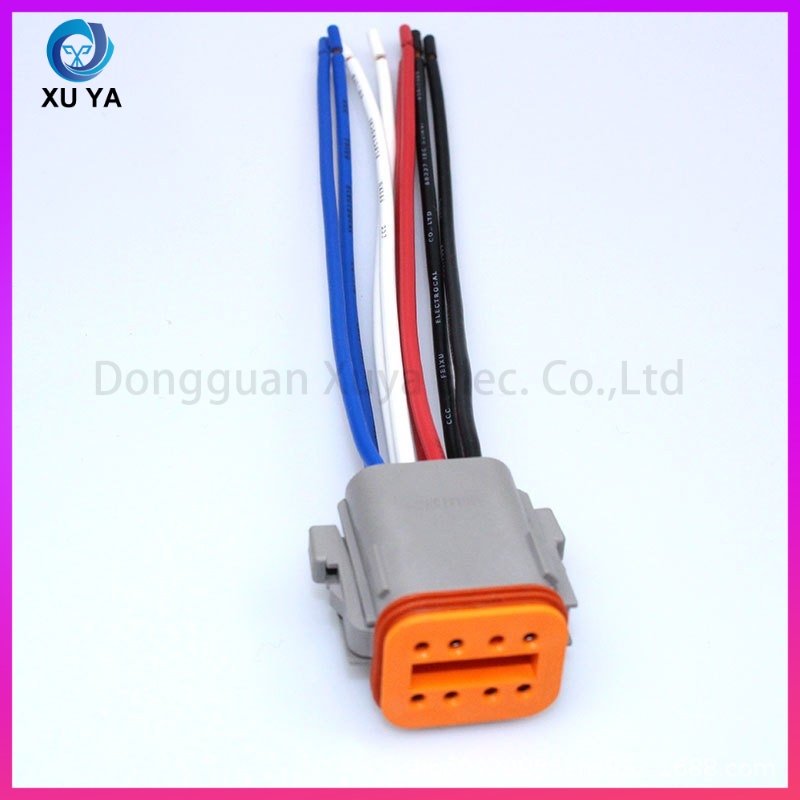

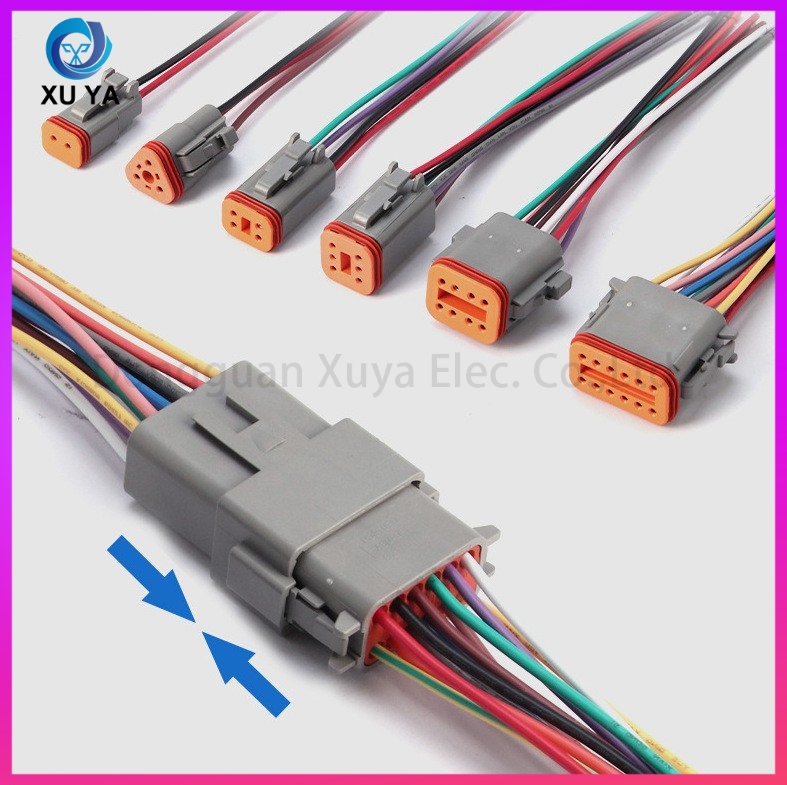

DT series Deutsch-style waterproof connector harness, available from 2P to 12P. Equipped with orange silicone sealing gasket for waterproof performance. Self-locking buckle design provides shock resistance and anti-loosening. Adopts high-temperature resistant automotive cable with oil and temperature tolerance, stable electrical conductivity. Widely used in construction machinery, trucks, agricultural machinery, vehicle equipment and outdoor industrial control wiring. Wire length, gauge and colors support customization. Matched male & female harnesses are in stock.
FAQ 中英双语
Q1：有哪些芯数规格可选？
A1：支持 2P、3P、4P、6P、8P、12P 多种规格，可单独选购公头或母头线束。
Q1: How many pin options are available?
A1: 2P,3P,4P,6P,8P,12P optional. Male or female cable assemblies can be ordered separately.
Q2：工作温度范围是多少？
A2：线缆耐温 105℃，连接器可适应 - 40℃~125℃宽温环境。
Q2: What is the operating temperature range?
A2: Cable withstands 105℃, connector works stably from -40℃ to 125℃.
Q3：线材规格与长度能否定制？
A3：支持，常规 0.75/1.0/1.5 平方线缆可选，任意长度均可加工。
Q3: Can wire length and cross-section be customized?
A3: Yes, 0.75/1.0/1.5mm² cables are commonly used, any length can be processed.
Q4：防水等级是多少？
A4：装配到位后可达 IP67，适合潮湿、户外车载工况。
Q4: What waterproof rating can reach?
A4: IP67 with proper assembly, suitable for humid, outdoor and vehicle applications.
Q5：样品与大货交期多久？
A5：样品快速打样；标准规格现货可当天发货，定制线束 3-7 个工作日。
Q5: Lead time for samples and bulk orders?
A5: Fast sample service. Standard stock ships same day, custom harness takes 3-7 working days.
