中文：M14 面板式防水连接器 2 芯带线公头 IP67 LED 灯具电源线束

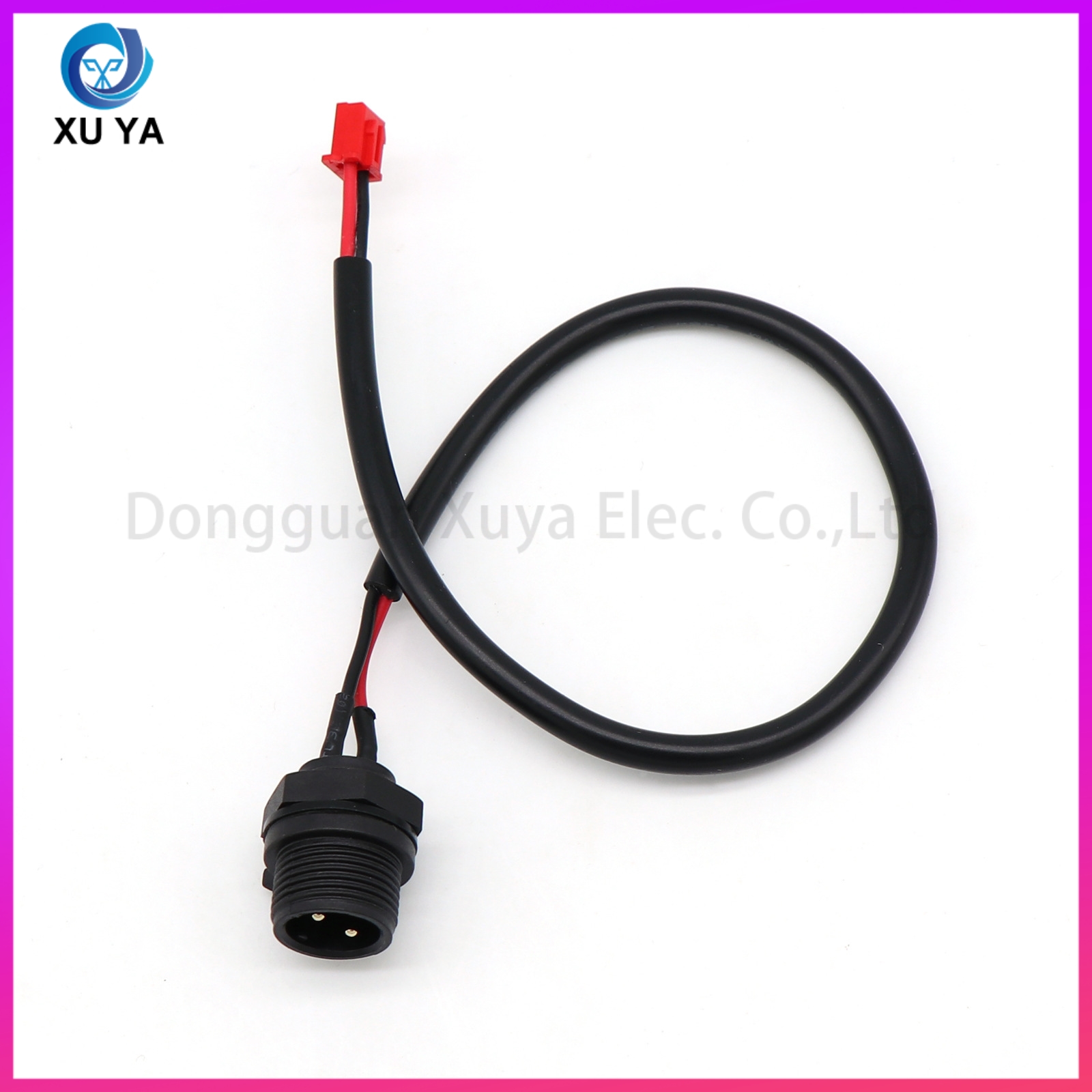

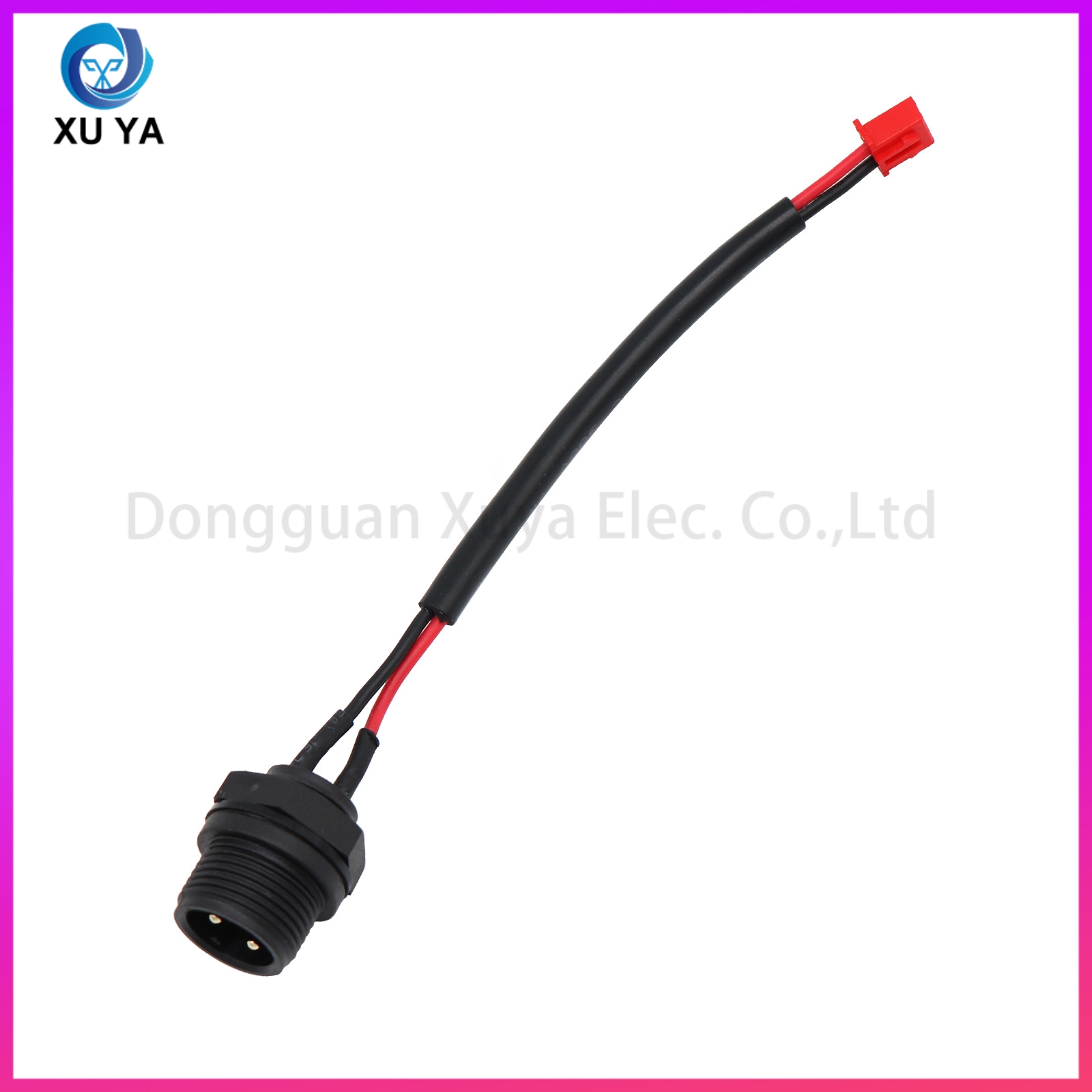

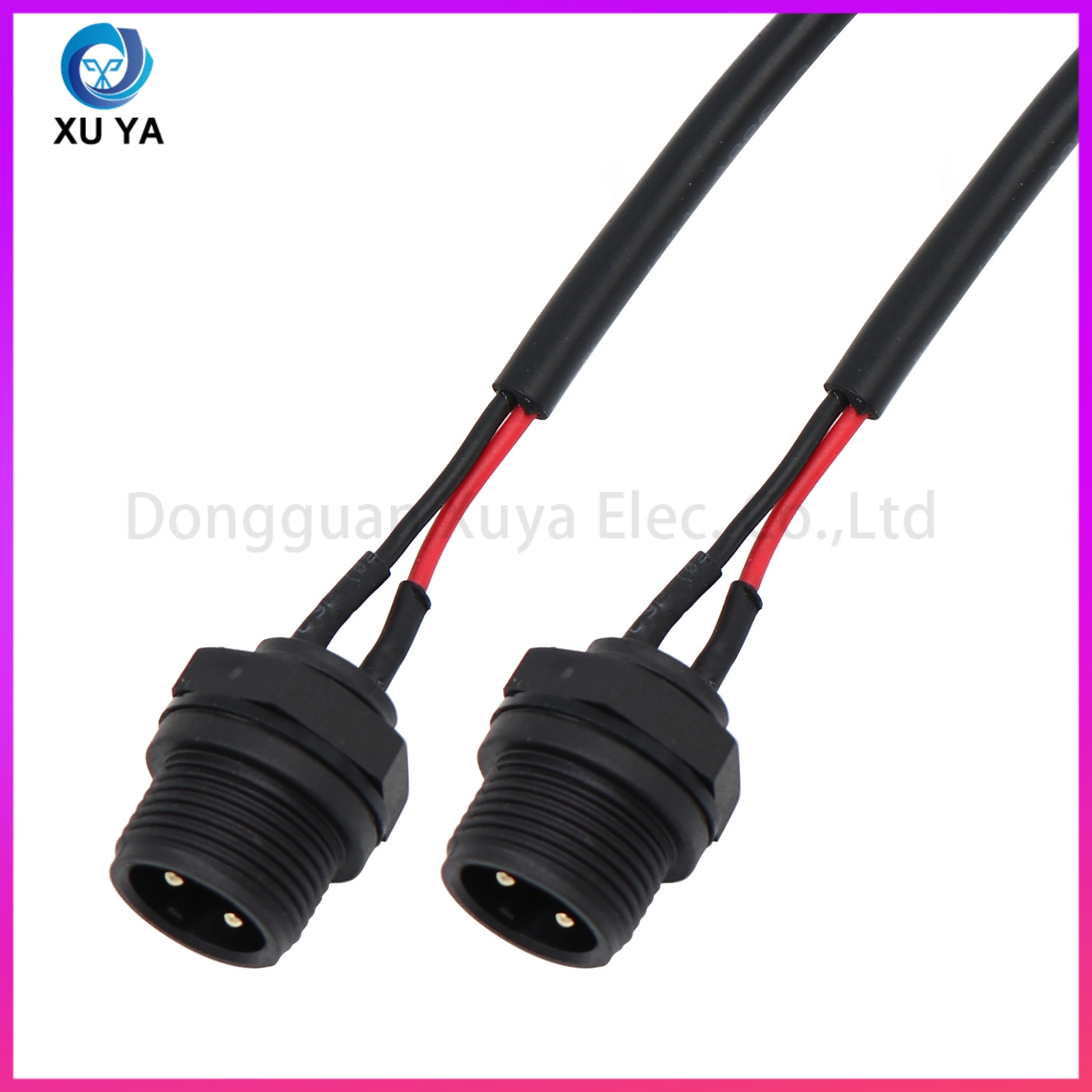

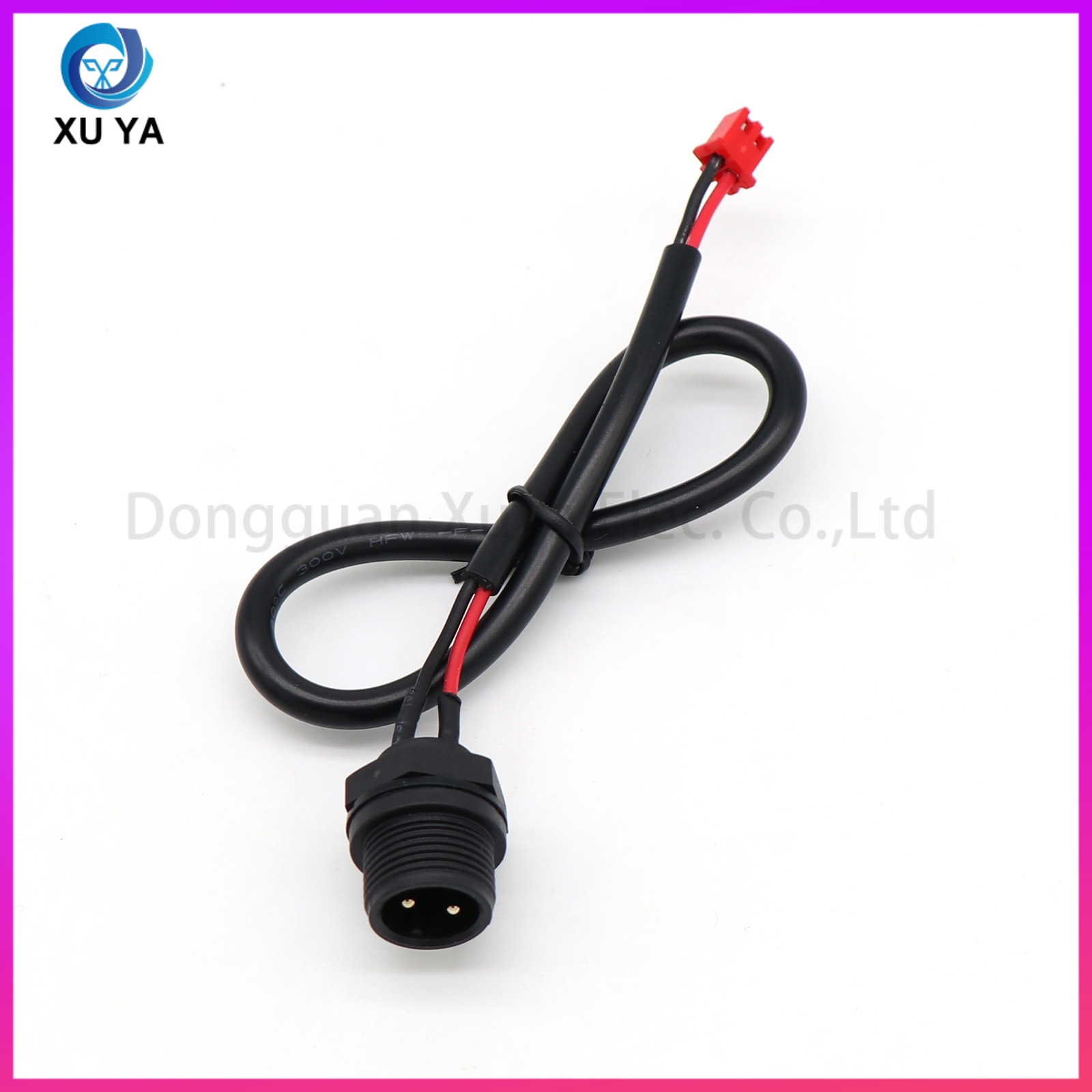

English: M14 Panel Mount Waterproof Connector, 2Pin Male Cable, IP67 LED Lighting Power Plug
产品描述（中英双语）
中文：M14 螺纹面板安装防水插头，2 芯公头一体注塑出线，自带外螺纹可直接锁附机箱面板，装配便捷。内置密封胶圈，防护等级 IP67，有效防尘防水。黄铜镀金触点，导电稳定；PVC 耐候线缆，适配户外 LED 灯、景观灯、洗墙灯电源连接。支持裸线尾端、PH 端子等多种出线方式，线长可定制。
English: M14 thread panel mount waterproof plug, 2-pin male integrated injection cable. External thread for direct panel locking, easy installation. Built-in sealing gasket achieves IP67 waterproof & dustproof performance. Gold-plated brass contacts provide stable conductivity. Weather-resistant PVC cable widely used for outdoor LED lights, landscape lamps, wall washer power connection. Bare wire, PH terminal and other wire ends optional, cable length customizable.
FAQ 中英双语
Q1：连接器可以穿过多厚的面板？
A1：标准螺纹规格适配常规 5mm 以内面板，可按需加长螺纹。
Q1: What maximum panel thickness can the connector pass through?
A1: Standard thread fits panel within 5mm; extended thread can be customized.
Q2：能否做母头版本以及 3 芯 / 4 芯规格？
A2：支持，可生产 M14 公头、母头，2/3/4 芯均可定制。
Q2: Can female version and 3/4 pin versions be made?
A2: Yes, M14 male/female, 2/3/4 pin connectors are available.
Q3：长期户外使用会不会渗水老化？
A3：优质塑胶 + 一体注塑工艺，搭配密封圈，适合户外潮湿环境使用。
Q3: Will it leak and age after long outdoor use?
A3: Premium plastic and integrated molding with sealing ring, suitable for outdoor humid environment.
Q4：尾端可以更换其他型号端子吗？
A4：支持，可更换 PH、XH、VH 等各类端子，也可直接裸线出货。
Q4: Can other types of terminals be equipped on cable end?
A4: Yes, PH, XH, VH and other terminals optional, bare wire output is also available.
Q5：防护等级稳定达到 IP67 吗？
A5：锁紧到位、正确装配条件下，稳定满足 IP67 防尘防水标准。
Q5: Can it steadily reach IP67 protection grade?
A5: It meets IP67 standard reliably under correct locking and installation.
