BNC 单头 RG58 同轴射频信号线 Q9 示波器纯铜屏蔽延长线
BNC Single-end RG58 Coaxial RF Signal Cable Q9 Oscilloscope Pure Copper Shielded Extension Wire

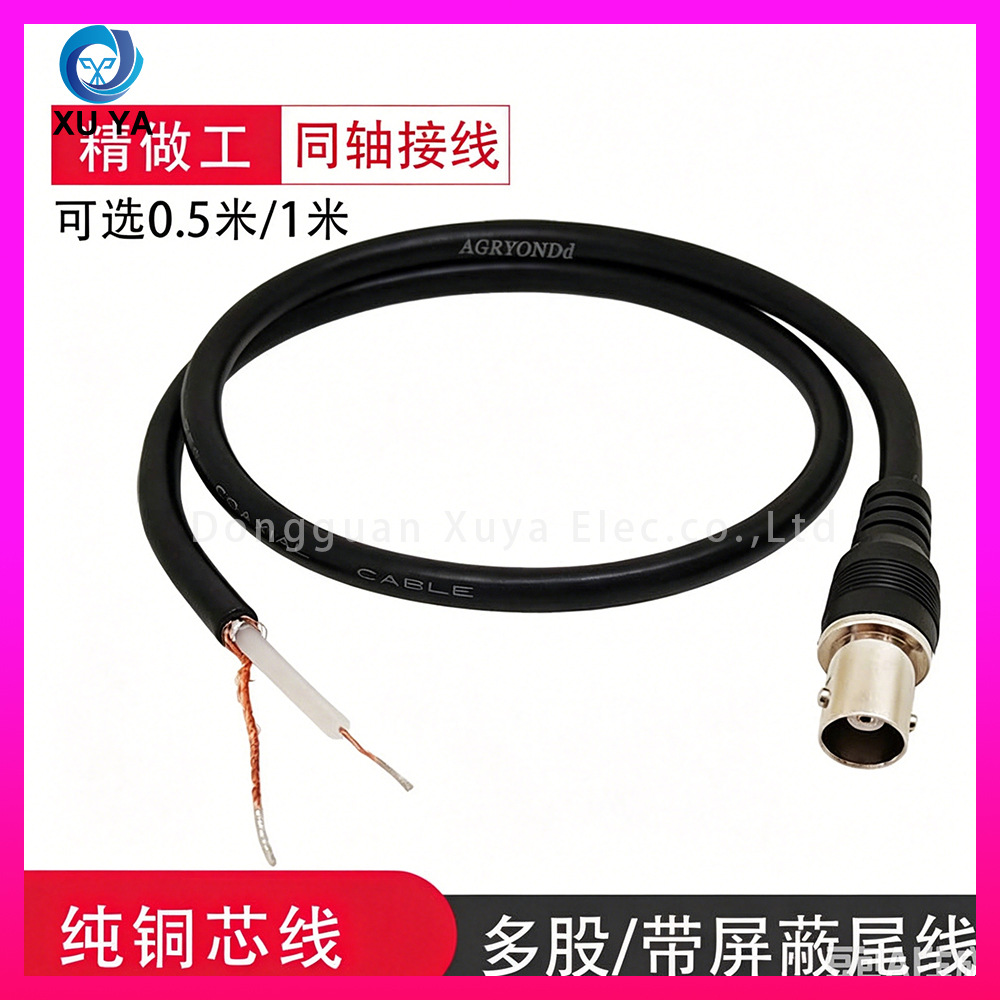

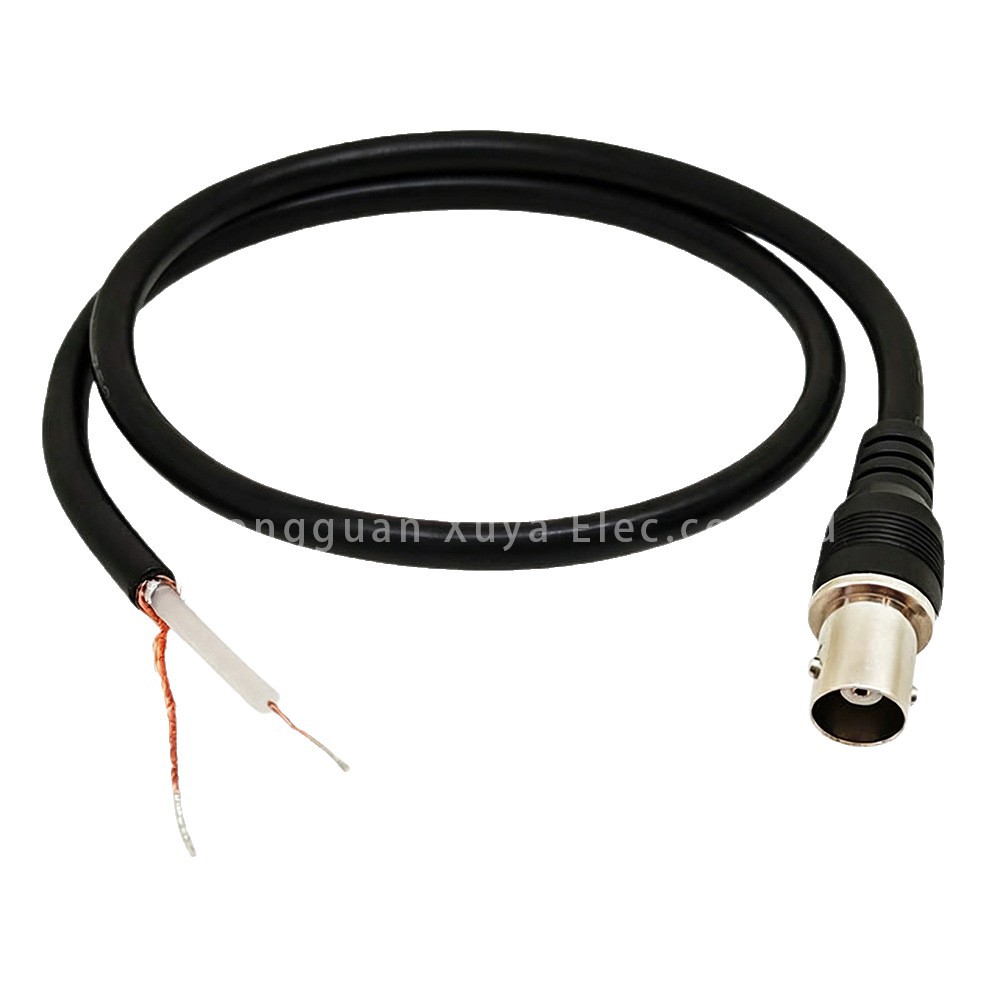

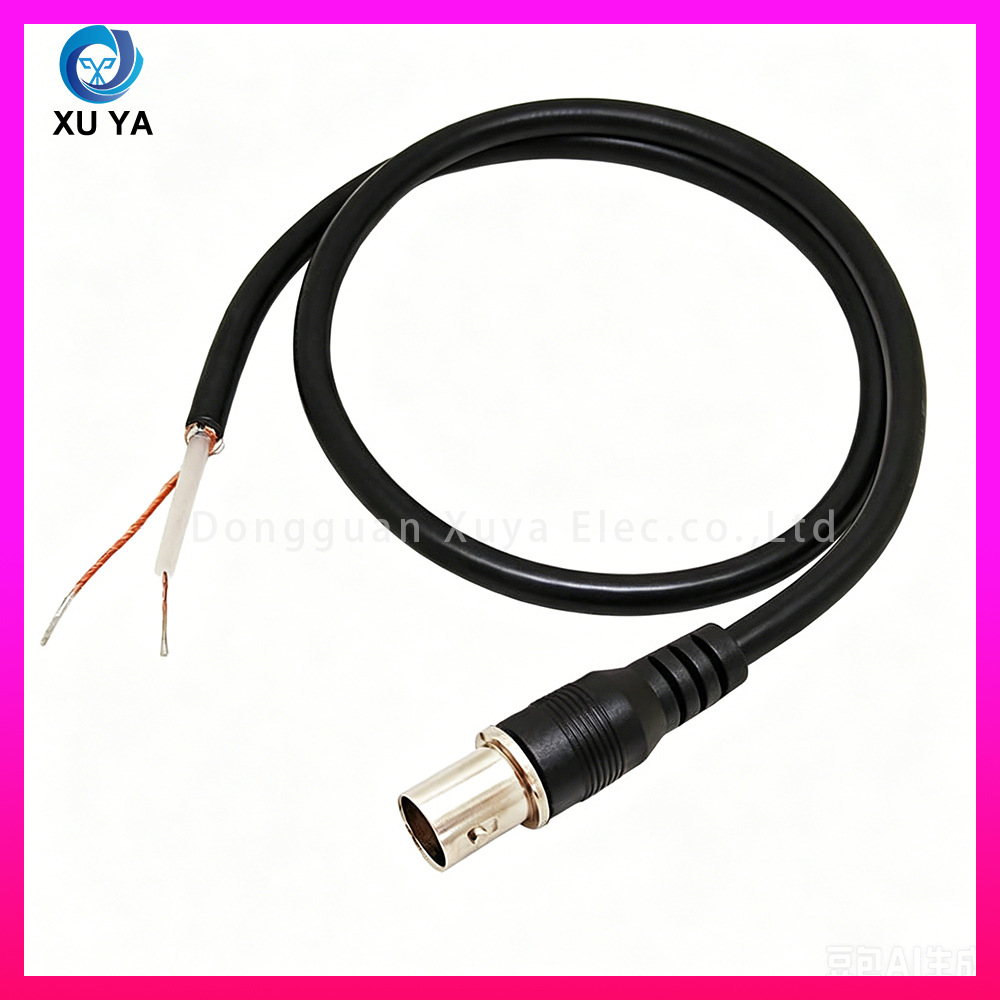

本产品为 BNC/Q9 单头 RG58 同轴屏蔽射频线，整线纯铜同轴芯搭配双层编织屏蔽层，抗电磁干扰能力强，信号传输损耗低；BNC 金属推拉自锁接头带防弯折护线尾，末端分开正负极裸线，便于焊接接线。适配示波器、SDI 高清摄像、射频模块、模拟传感器、安防监控设备信号传输；BNC 公 / 母头、线材长度、线材绝缘材质均可定制，符合 RoHS 环保标准，现货充足，支持批量 OEM 定制。
This product is BNC/Q9 single-end RG58 coaxial shielded RF cable, with pure copper coaxial core and double-layer braided shielding layer, strong anti-electromagnetic interference ability and low signal transmission loss. The BNC metal push-pull self-locking connector is equipped with anti-bending cable protection tail, and the bare wires of positive and negative poles are separated at the end for easy welding and wiring. It is suitable for signal transmission of oscilloscopes, SDI high-definition cameras, RF modules, analog sensors and security monitoring equipment. BNC male/female connector, cable length and wire insulation material are fully customizable, RoHS compliant. Goods in stock, bulk OEM customization supported.
1 产品规格
这款 RG58 BNC 同轴射频线线材型号、屏蔽结构、接头类型是什么？参数能否定制？

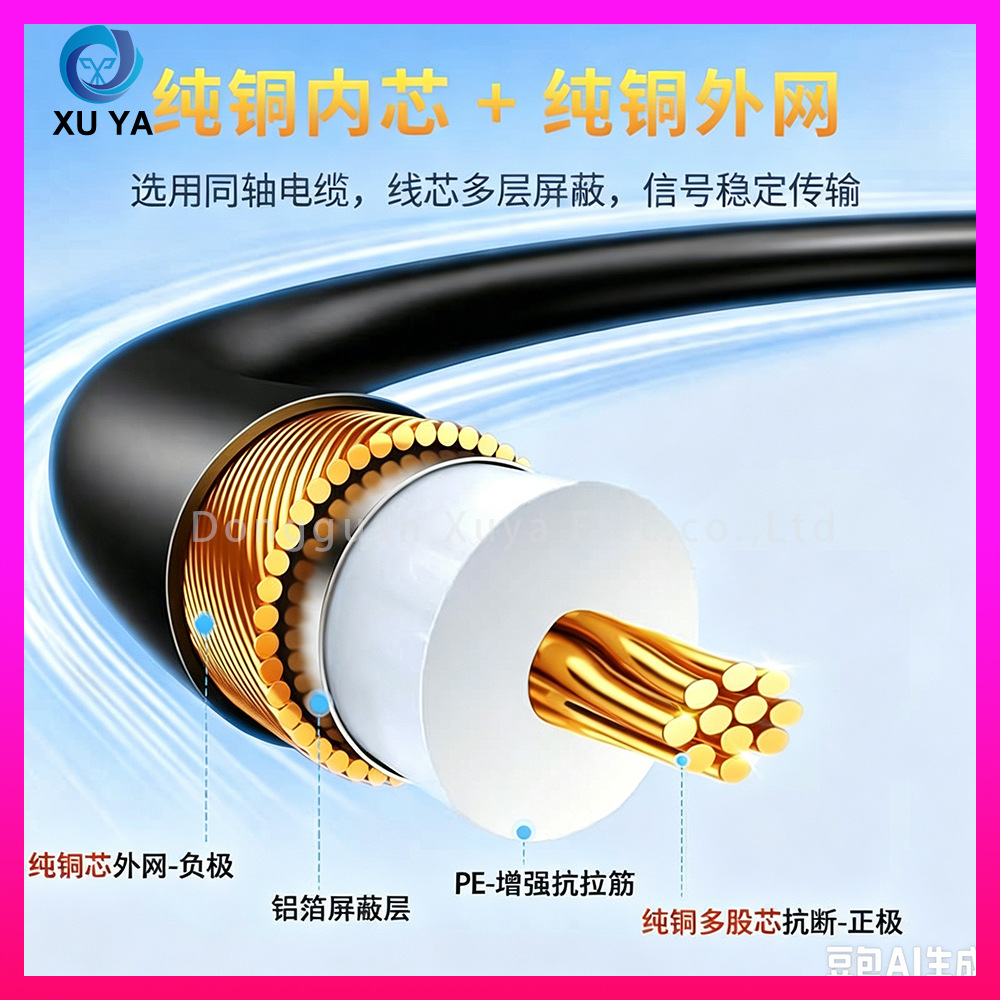

标准线材 RG58 同轴电缆，双层纯铜编织屏蔽结构，可选 BNC 公头 / BNC 母头；线材总长、BNC 接头规格、线材绝缘材质均可按需定制。
What are the wire model, shielding structure and connector type of this RG58 BNC coaxial RF cable? Are parameters customizable?
Standard wire model RG58 coaxial cable with double-layer pure copper braided shielding structure, optional BNC male / BNC female connector. Total cable length, BNC connector specification and wire insulation material can all be customized as required.
2 线材颜色与材质
线材标准颜色是什么？双层屏蔽结构有什么作用？高温场景可更换线材材质吗？

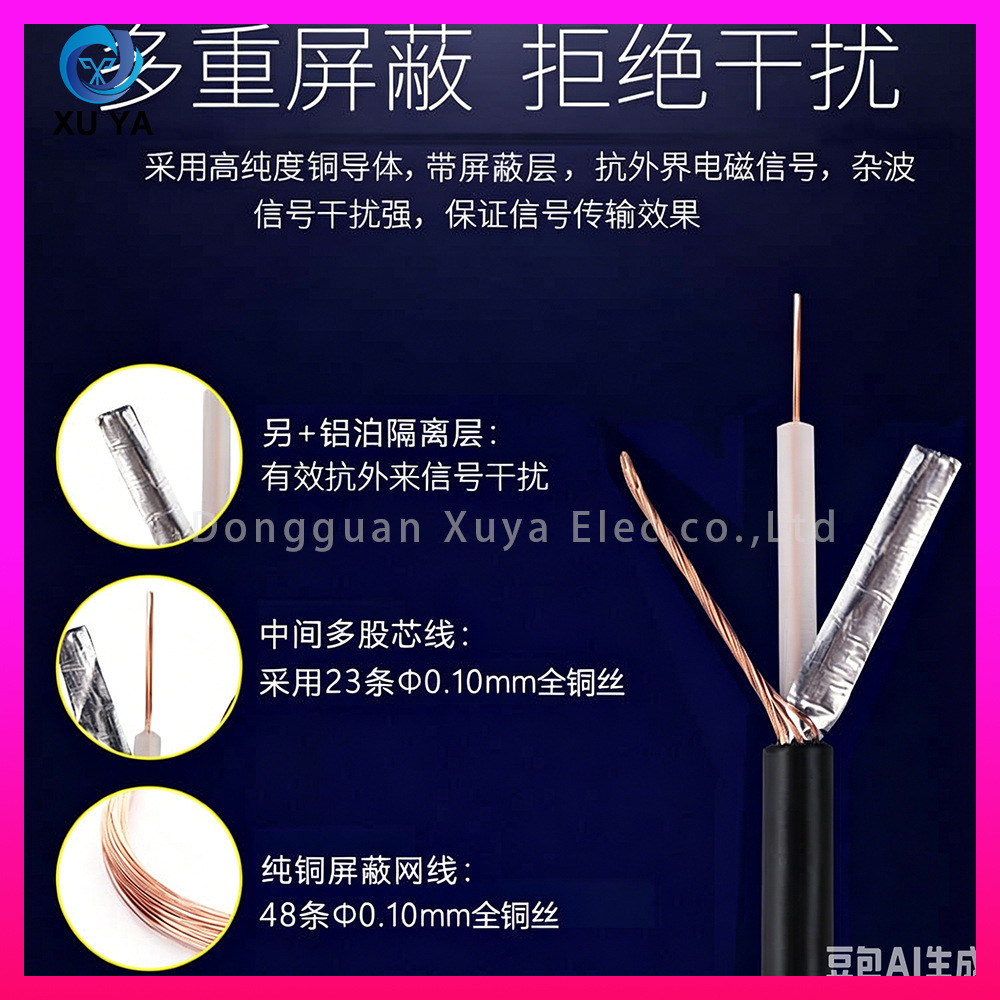

标准线材为黑色 PVC 绝缘；双层编织屏蔽层可隔绝外界电磁杂波，保证射频、模拟信号稳定低损耗传输；可按需更换耐高温硅胶、铁氟龙 PTFE 线材适配高温射频仪器。
What is standard cable color? What is the function of double-layer shielding structure? Can wire material be replaced for high temperature working conditions?
Standard cable color: black PVC insulation. The double-layer braided shielding layer can isolate external electromagnetic clutter to ensure stable and low-loss transmission of RF and analog signals. High temperature resistant silicone and PTFE wire can be replaced on demand for high-temperature RF instruments.
3 适用设备用途
RG58 BNC 同轴屏蔽线适配哪些设备？BNC 推拉自锁接头有什么使用优势？
适配设备：数字示波器、SDI 高清摄像头、射频发射接收模块、工业模拟量传感器、安防监控信号传输仪器；BNC 推拉自锁金属接头插拔卡扣牢固，不易松脱，尾部加厚防弯折护套，线材反复弯折不易开裂断线，双层屏蔽杜绝外界干扰，高频射频信号传输衰减小。
What equipment fit RG58 BNC coaxial shielded cable? What advantages of BNC push-pull self-locking connector?
Applicable equipment: digital oscilloscopes, SDI high-definition cameras, RF transmit-receive modules, industrial analog sensors, security monitoring signal transmission instruments. The BNC push-pull self-locking metal connector has firm plug-in buckle and is not easy to loose. The thickened anti-bending sheath at the tail prevents the wire from cracking and breaking after repeated bending. The double-layer shielding eliminates external interference and reduces attenuation during high-frequency RF signal transmission.
4 发货与定制交期
现货 RG58 BNC 射频信号线多久发货？是否包邮？改线长、BNC 公母头、线材材质交期多久？
标准现货规格下单当天即可发货，全国包邮；小批量改线材长度、更换 BNC 公 / 母接头、更换绝缘线材定制交期 2-3 工作日，大批量 OEM 定制 5-7 工作日，可协商加急出货。
How long for in-stock RG58 BNC RF signal cables to ship? Free shipping? Lead time for customized cable length, BNC male/female connector and wire material?
Standard in-stock items ship same day with free nationwide shipping. Lead time for small customized orders (cable length, BNC male/female connector replacement, insulation wire change): 2-3 working days; mass OEM orders: 5-7 working days, expedited delivery negotiable.
