环氧头 / 不锈钢圆柱防水 NTC 温度传感器带 XH2.54 端子
Epoxy Head / Stainless Steel Cylindrical Waterproof NTC Temp Sensor With XH2.54 Terminal

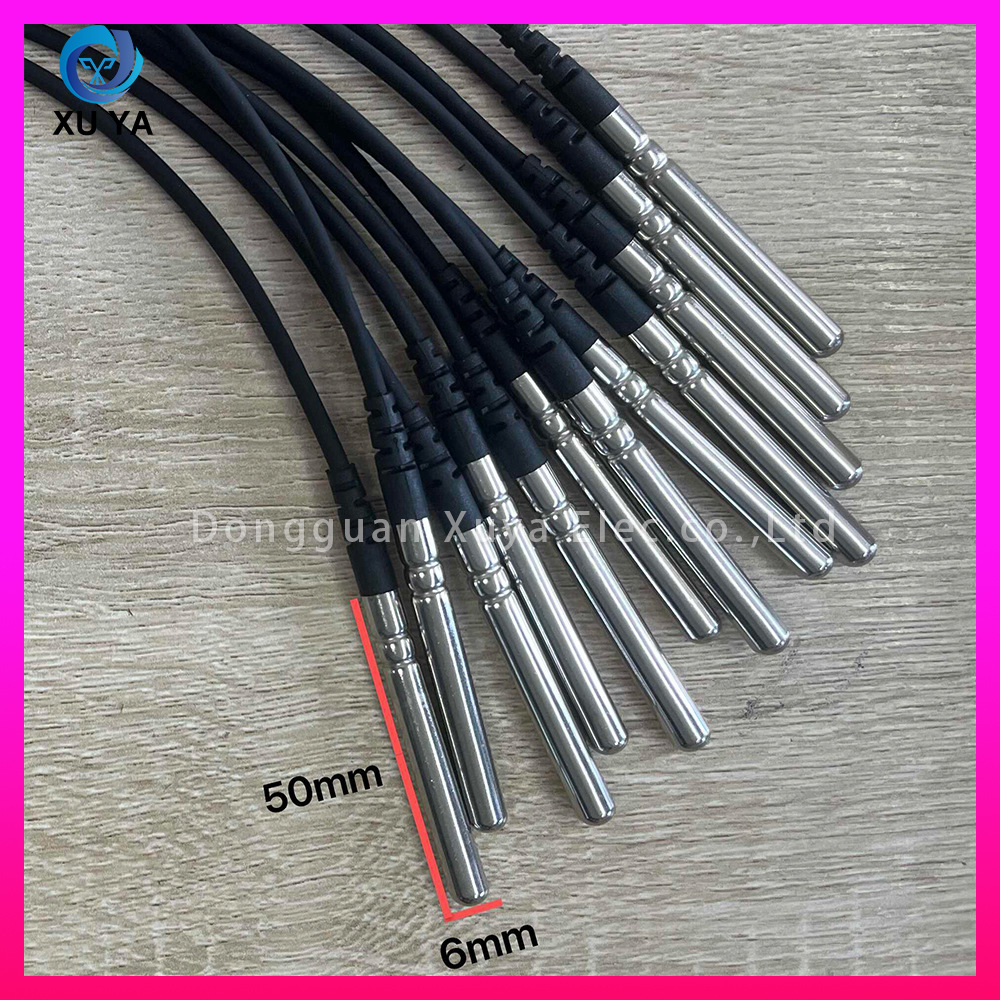

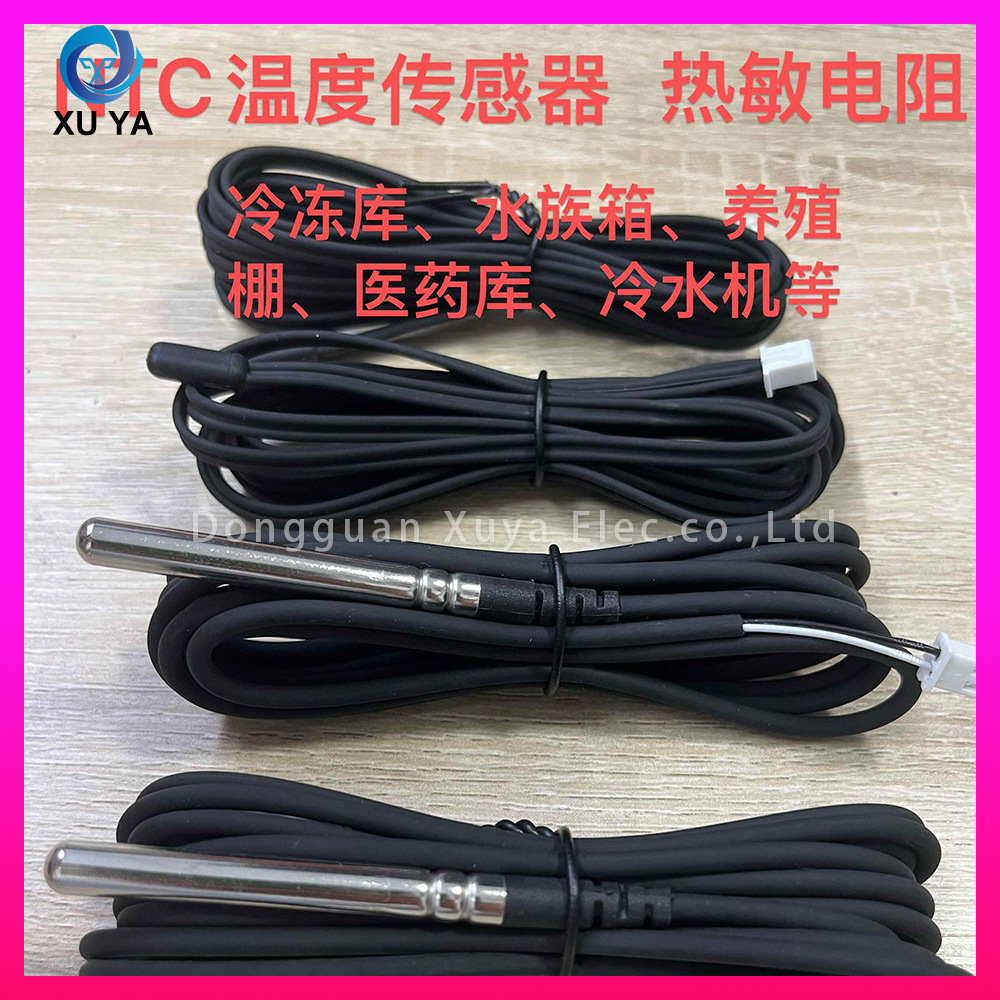

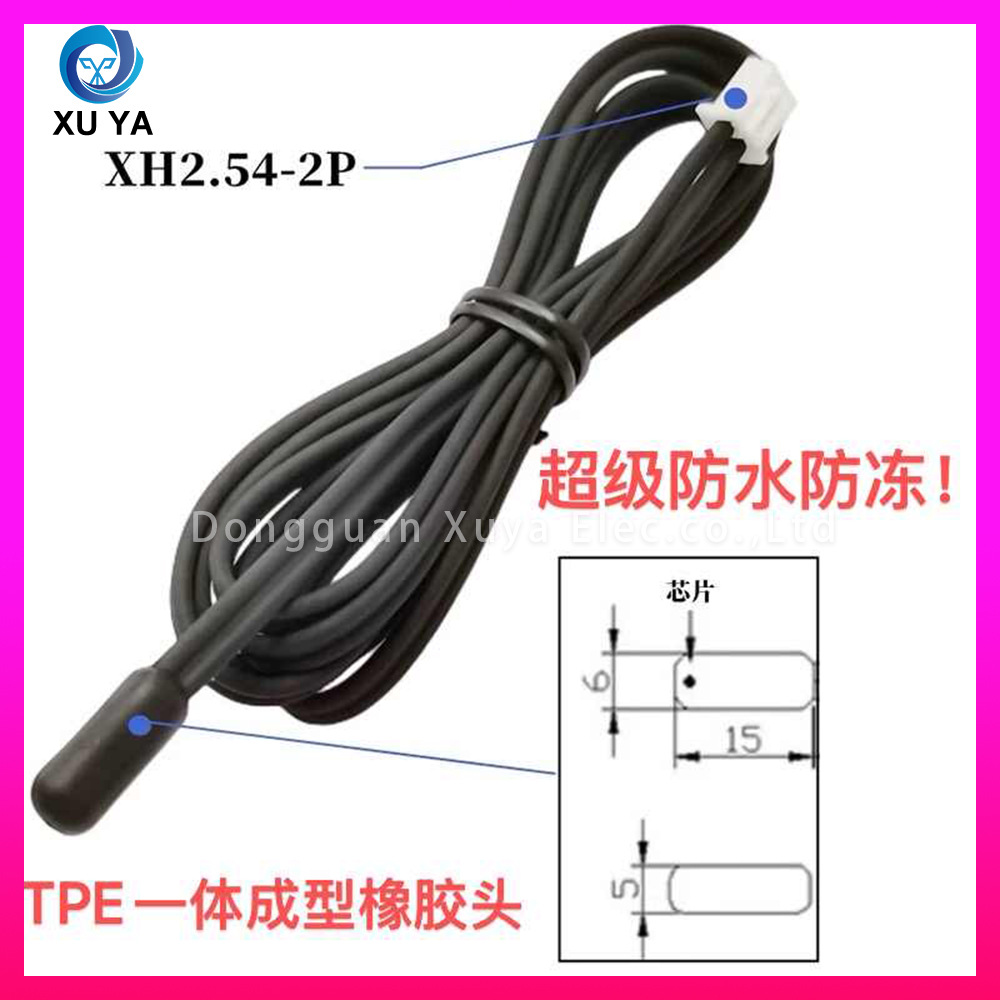

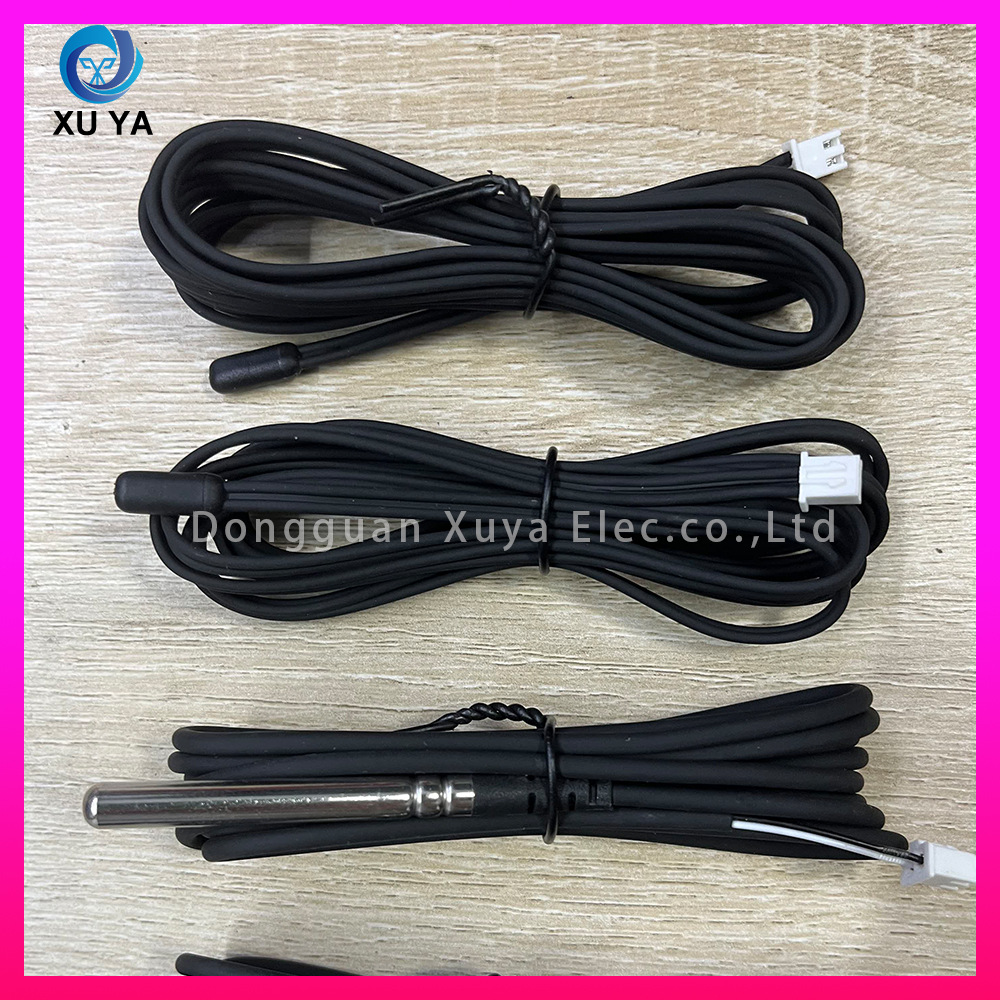

本款 NTC 温度传感器分为两种探头结构，黑色环氧树脂空气探头适配空气测温，不锈钢密封圆柱防水探头可浸入液体测温；尾部统一搭配 XH2.54 白色插接端子，接线便捷，无需焊接。测温精度 ±1%，可选阻值 5K、10K、15K、20K、50K、100K，标准 B 值 3435K/3950K。线材长度、探头尺寸、端子规格、电阻参数均可按需定制，产品符合 RoHS 环保标准，广泛应用于空调、热水器、冷水机、3D 打印机、壁挂炉、储能设备温度采集，现货充足，支持批量 OEM 定制。
This NTC temperature sensor has two types of probe structures. The black epoxy air probe is suitable for air temperature measurement, and the sealed stainless steel cylindrical waterproof probe can be immersed in liquid for temperature detection. The tail is uniformly equipped with XH2.54 white plug terminal for convenient wiring without welding. The temperature tolerance is ±1%, available resistance values:5K,10K,15K,20K,50K,100K, standard B-value 3435K/3950K. Cable length, probe size, terminal specification and resistance parameters are fully customizable. RoHS compliant, widely used for temperature monitoring of air conditioners, water heaters, chillers, 3D printers, wall-hung boilers and energy storage equipment. Goods in stock, bulk OEM customization supported.
1 产品规格
这款带端子 NTC 传感器有哪两种探头？常规阻值、精度、配套端子型号是什么？参数能否定制？
分为环氧树脂空气探头、不锈钢圆柱防水探头；常规阻值 5K/10K/15K/20K/50K/100K，测温精度 ±1%，B 值 3435K、3950K；标配 XH2.54 白色插接端子；线材长度、探头直径长度、端子型号、热敏电阻参数均可按需定制。
What two probe types does this terminal-equipped NTC sensor have? What are the standard resistance, tolerance and matched terminal model? Can parameters be customized?
It includes epoxy air probe and stainless steel cylindrical waterproof probe. Standard resistance:5K/10K/15K/20K/50K/100K, temperature tolerance ±1%, B-value 3435K/3950K. Matched with standard XH2.54 white plug terminal. Cable length, probe diameter & length, terminal model and thermistor parameters can all be customized as required.
2 线材颜色与材质
线材标准颜色是什么？不同使用环境可以更换线材材质吗？
标准线材为黑色；可选 PVC 普通线材、耐高温硅胶线、铁氟龙 PTFE 高温线；空气常温测温选用 PVC 线材，烤箱、高温腔体等高温场景选用硅胶或铁氟龙线材。
What is the standard color of the cable? Can we change cable materials for different working environments?
The standard cable color is black; PVC wire, high temperature silicone wire and PTFE wire are optional. PVC wire is adopted for normal-temperature air temperature measurement, silicone or PTFE wire is selected for high-temperature scenarios such as ovens and high-temperature chambers.
3 适用设备用途
两种探头分别适配哪些设备测温？尾部 XH 插接端子有什么使用优势？
环氧空气探头适配空调、冰柜、新风系统空气环境测温；不锈钢圆柱防水探头适配热水器、冷水机、壁挂炉、水箱液体测温；XH2.54 插接端子优势为免焊接，可直接对接设备主板插座，拆装检修便捷，适配自动化批量装配。
What equipment are the two probes suitable for temperature measurement respectively? What are the usage advantages of the rear XH plug terminal?
The epoxy air probe fits air temperature detection of air conditioners, freezers and fresh air systems. The stainless steel cylindrical waterproof probe applies to liquid temperature measurement of water heaters, chillers, wall-hung boilers and water tanks. The advantage of XH2.54 plug terminal is welding-free, it can be directly connected to the mainboard socket of equipment, easy for disassembly, maintenance and mass automatic assembly.
4 发货与定制交期
现货带端子传感器下单多久发货？是否包邮？定制探头、改端子规格交期多长？
常规环氧头、不锈钢圆柱带 XH 端子现货规格下单当天即可发货，全国包邮；少量改线长、换探头尺寸、更换端子型号定制订单交期 2-3 个工作日，大批量 OEM 定制订单交期 5-7 个工作日，可协商加急出货。
How long will in-stock terminal-equipped sensors be shipped after order? Is shipping free? What is the lead time for customized probes and modified terminal specifications?
Standard in-stock sensors with epoxy head /stainless steel cylinder and XH terminal can be shipped on the same day after order, free shipping nationwide. Lead time for small customized orders with modified wire length, probe size or terminal model is 2-3 working days, 5-7 working days for mass OEM orders, expedited delivery can be negotiated.
