动力电池铝探头 NTC 温度传感器 10K/100K
NTC Temp Sensor Aluminum Lug Probe 10K/100K
新能源动力电池模组专用 NTC 温度传感器，采用铝片冲压探头，可直接贴合电池表面安装，热传导效率高，测温响应迅速、数据稳定。支持 10K、100K 主流阻值，线材长度、探头样式、热敏电阻参数均可定制。广泛用于锂电池 PACK、储能电池、电动车动力电池 BMS 温度采集，产品抗震耐温，符合 RoHS 环保标准，支持批量定制。

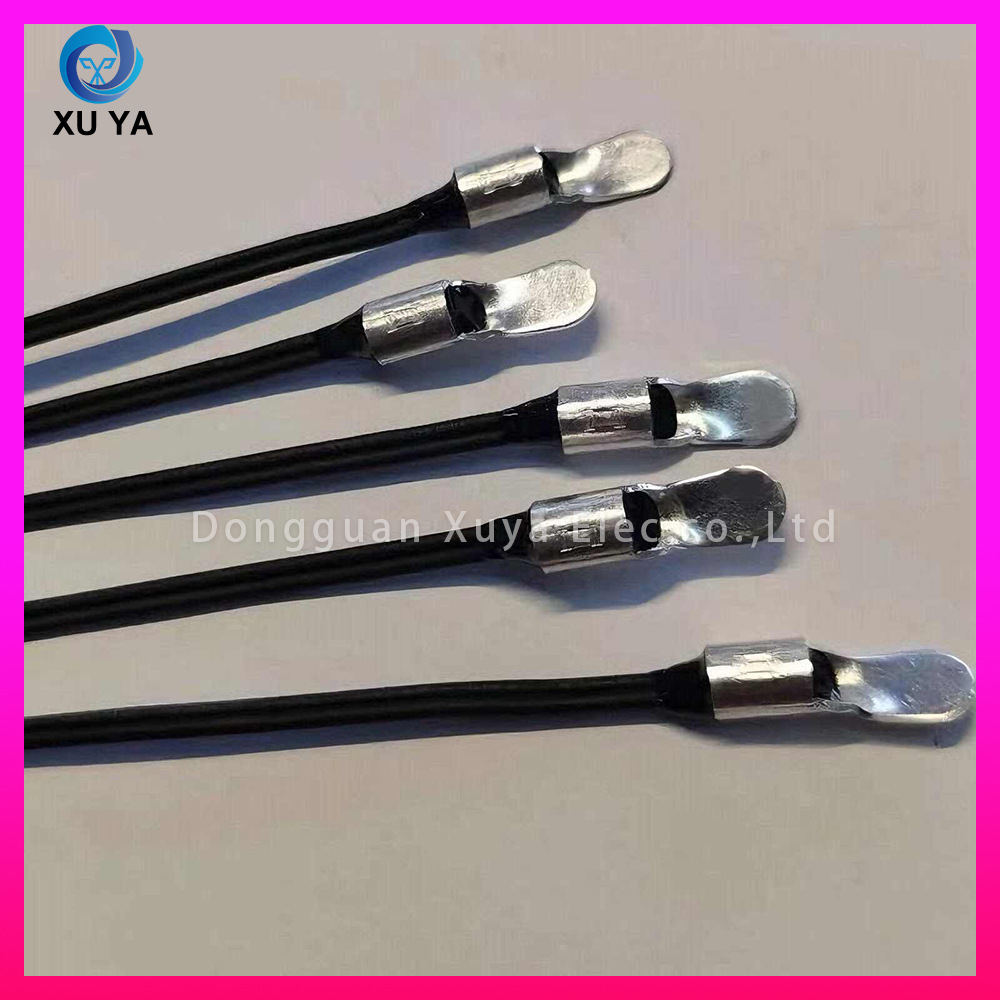

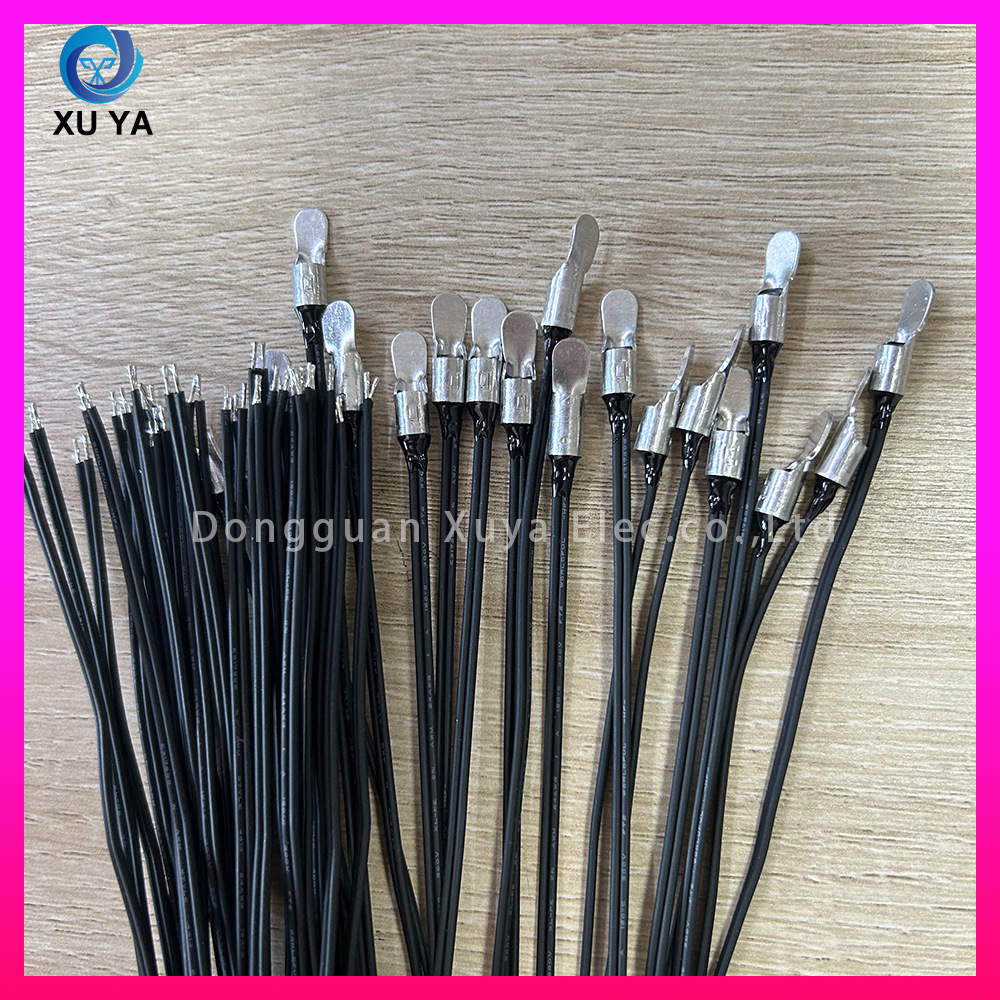

NTC temperature sensor dedicated for new energy power battery modules. Equipped with stamped aluminum lug probe, which can be closely attached to the battery surface. It features high heat conduction efficiency, fast temperature response and stable measurement. Main resistance options: 10K and 100K. Cable length, probe type and thermistor parameters are customizable. Widely applied in lithium battery PACK, energy storage battery, EV power battery BMS temperature collection. Anti-vibration, wide temperature range, RoHS compliant, OEM mass customization available.
常规阻值 10K、100K；B 值 3435K、3950K；精度 ±1%/±2%；探头支持直铝片、U 型铝端子、带孔铝耳。
What standard specifications are available?

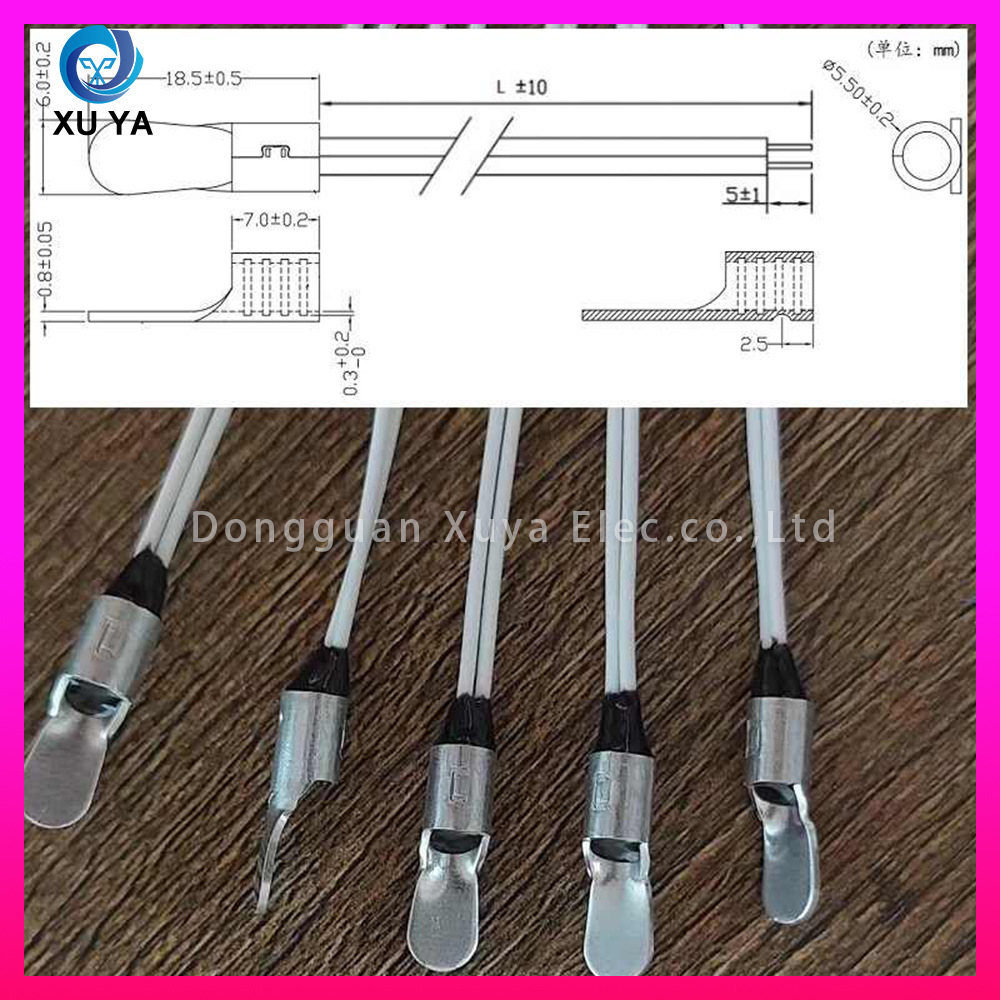

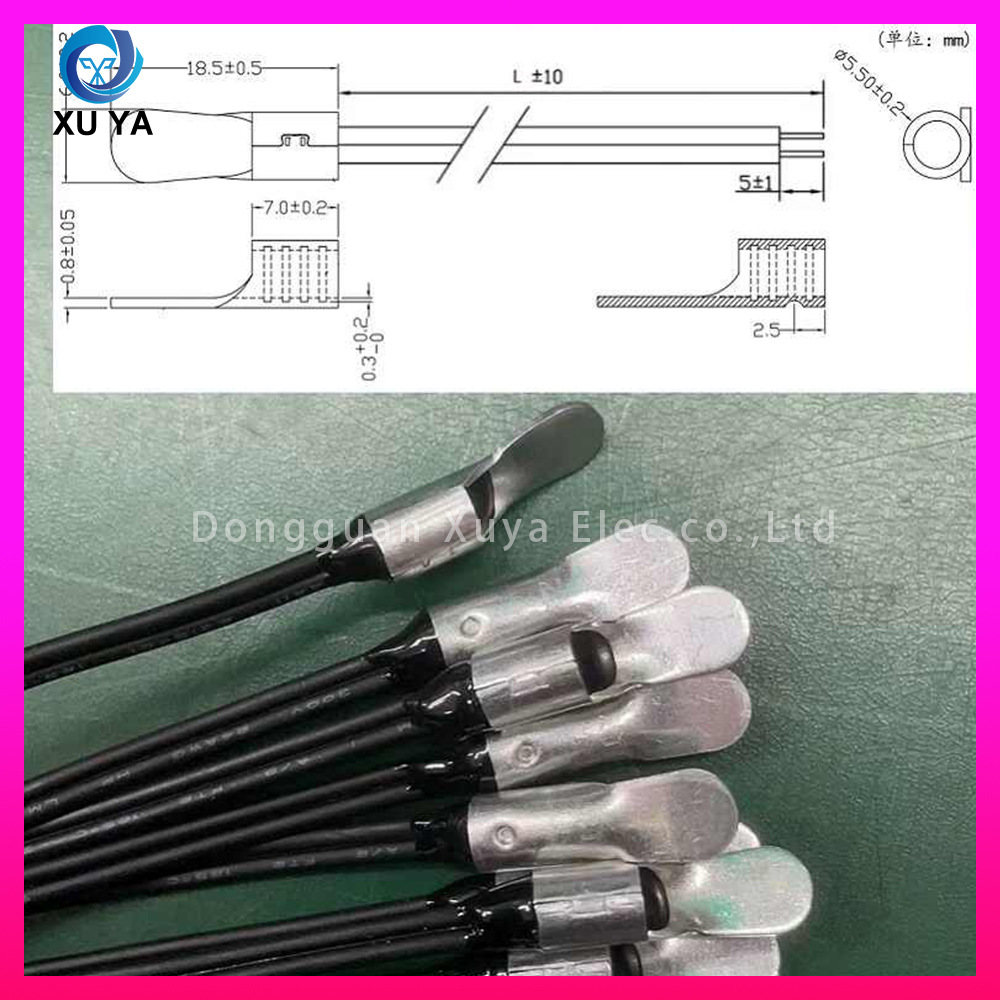

Standard resistance:10K,100K; B-value:3435K,3950K; Tolerance:±1%/±2%; Probe types: straight aluminum tab, U-terminal, hole aluminum lug.
标准线材为黑色；线材可选耐高温硅胶线或者铁氟龙（PTFE）线。
What is the cable color? Are different cable materials optional?
Standard cable color is black; High temperature silicone wire or PTFE wire for selection.
支持长度定制，常规可做 50mm～2000mm。
Can cable length be customized? What is the length range?
Custom length is supported, available range: 50mm ~ 2000mm.
用于动力电池模组、锂电池 PACK、储能电池包、新能源汽车电池、BMS 电池管理系统测温、电池热管理采集温度。
Where is this product mainly used?
Power battery modules, lithium battery PACK, energy storage battery packs, EV batteries, temperature monitoring and thermal management for BMS system.
样品交期 2-4 个工作日；批量订单交期 7-12 个工作日，特殊定制规格交期另行协商。
What are the lead time for samples and bulk orders?
Sample lead time: 2-4 working days; Bulk order lead time:7-12 working days. Lead time for special customized items needs separate negotiation.
500PCS / 袋，标准整箱 5000PCS/CTN。
How many pieces per carton?
500PCS per bag, standard package: 5000PCS/CTN.
