多色 O 型耳片 NTC 温度传感器 多 Pin 端子

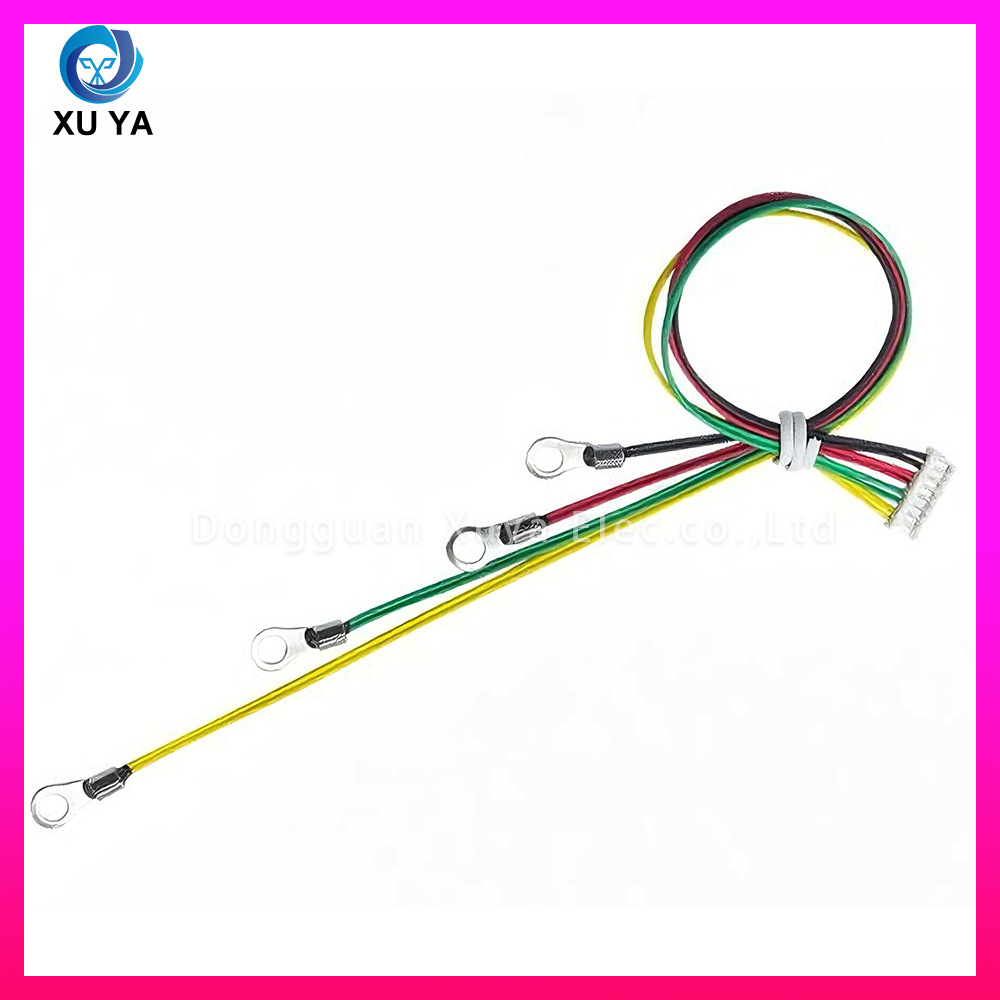

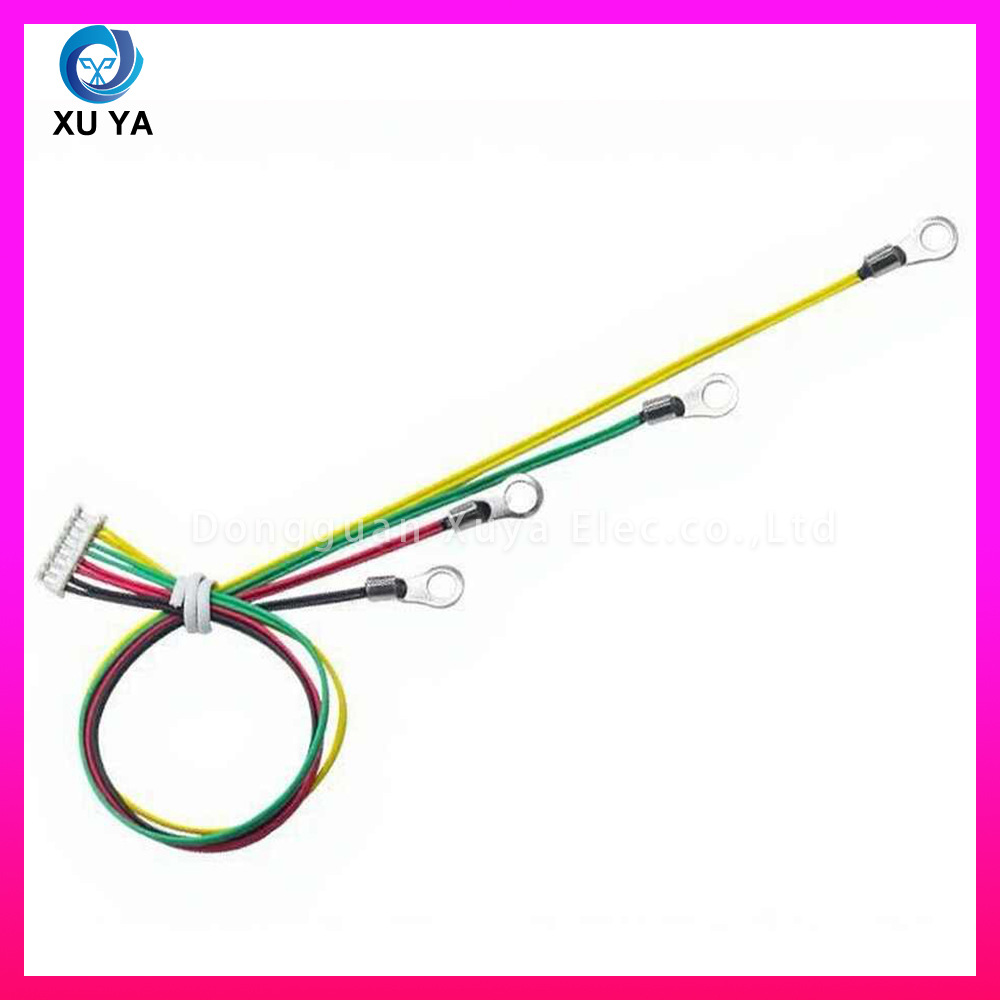

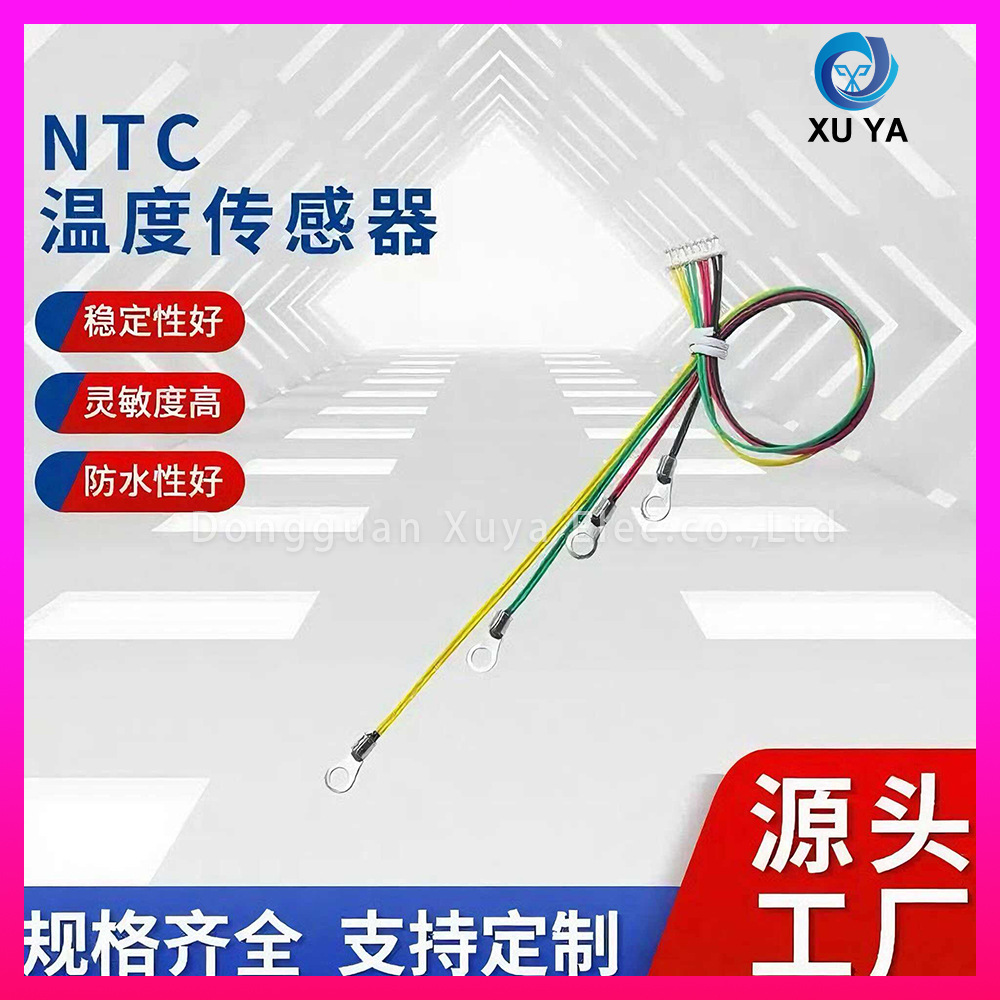

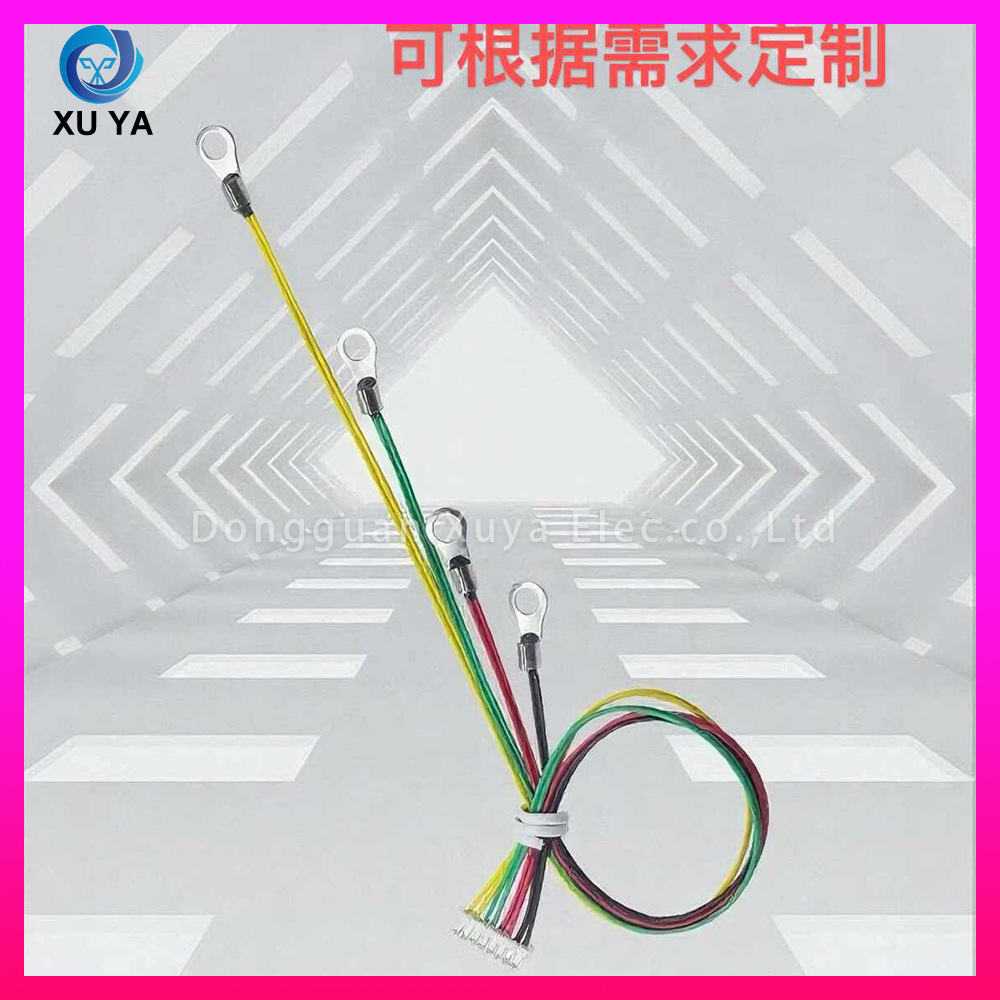

       O 型固定耳片 NTC 温度传感器，多色分色绝缘导线（黄 / 绿 / 红 / 黑），前端冲压成型 O 型金属固定耳，可螺丝锁紧在电机、散热器、功率模块金属表面；线材尾部配套多 Pin 塑胶端子，装配便捷；标准阻值 10K、B 值 3950，精度 1%/3%/5% 可选；分色线材便于电路区分布线，O 型耳片贴合金属导热快，现货标准线长 0.8m/1m，支持线长、线色、耳片孔径、端子 Pin 数、电气参数全规格 OEM 定制。
      O-shaped fixing lug NTC temperature sensor with multi-color separated insulated wires (yellow/green/red/black). The front end is stamped O-shaped metal lug, which can be locked on metal surfaces of motors, heat sinks and power modules by screws. Multi-Pin plastic connector is matched at wire tail for convenient assembly. Standard resistance 10K, B value 3950, tolerance optional 1%/3%/5%. Multi-color wires facilitate circuit wiring identification. O-type lug closely fits metal for fast heat conduction. Standard stock wire lengths 0.8m/1m, full-spec OEM customization is supported for wire length, wire color, lug hole diameter, connector pin count and electrical parameters.

Q1：这款耳片 NTC 传感器的 O 型固定耳结构有什么优势？
O 型金属耳片一体冲压成型，平整度高，可紧密贴合金属发热面，无空隙阻碍导热；自带标准通孔，直接用螺丝锁紧固定，无需额外夹具、胶水，拆装方便可重复使用；金属耳片导电导热性能优异，测温响应速度快。
What advantages does the O-shaped fixing lug structure of this lug NTC sensor have?
The O-shaped metal lug is integrally stamped with high flatness, which can closely fit the metal heating surface without gaps hindering heat conduction. It comes with standard through holes, which can be directly locked and fixed by screws without additional fixtures or glue, easy to disassemble and reusable. The metal lug has excellent heat conduction performance for fast temperature response.

Q2：线材与末端端子支持哪些定制配置？
线材采用多色区分绝缘导线，现货标配黄、绿、红、黑四色，可按需定制蓝、白、棕等其他线色；标准现货线长 0.8m、1m，0.5m~3m 任意长度均可定制；尾部配套多 Pin 塑胶端子，可调整端子 Pin 位数量、端子间距（XH2.54/PH2.0），也可改为裸线镀锡出线。
What customized configurations are supported for wires and end connectors?
Multi-color separated insulated wires are adopted. Standard stock colors include yellow, green, red and black, other wire colors such as blue, white and brown can be customized as required. Standard stock wire lengths are 0.8m and 1m, any length from 0.5m to 3m is customizable. Multi-Pin plastic connector is matched at wire tail, the pin quantity and pitch (XH2.54/PH2.0) of the connector can be adjusted, and it can also be changed to tinned bare wire outlet.

Q3：该 O 型耳片 NTC 核心电气参数可定制范围是多少？
支持全电气参数定制，现货标准参数：25℃阻值 10K，B 值 3950，精度 5%；阻值可覆盖 1K~200K 全区间；B 值可选 3435/3977/4100/4200；精度分高精度 1%、常规 3%、经济型 5%；同时可调整 O 型耳片内径、金属耳片厚度。
What is the customizable range of core electrical parameters for this O-lug NTC sensor?
Full electrical parameter customization is supported. Standard stock parameters: resistance 10K at 25℃, B value 3950, tolerance 5%. Custom resistance covers full range from 1K to 200K; optional B values include 3435/3977/4100/4200; tolerance grades: high precision 1%, standard 3%, economy 5%. The inner diameter and thickness of O-shaped lug can also be adjusted.

Q4：O 型固定耳 NTC 温度传感器适配哪些设备测温？
适配工业电机外壳、变频器散热片、功率半导体模块、电源散热器、充电桩温控模块、空压机金属壳体；O 型耳片螺丝固定，适合长期稳定监测金属发热部件温度，广泛用于工控自动化、新能源设备温控。
What equipment temperature detection is O-shaped fixing lug NTC temperature sensor suitable for?
It is applicable to industrial motor shells, frequency converter heat sinks, power semiconductor modules, power supply radiators, charging pile temperature control modules and air compressor metal shells. Fixed by screws via O-lug, it is suitable for long-term stable temperature monitoring of metal heating parts, widely used in temperature control of industrial automation and new energy equipment.

Q5：现货订单、全规格定制 OEM 交期以及标准装箱数量是多少？
标准线长、标准阻值现货订单 3 个工作日内完成发货；线色、线长、耳片尺寸、端子、阻值全规格定制 OEM 批量订单交期 5-8 个工作日；单支独立中性塑料袋分装，标准出口纸箱每箱 9000PCS。
What are the delivery time for stock orders, lead time for fully customized OEM orders and standard packing quantity?
In-stock orders with standard wire length and resistance will be shipped within 3 working days. Bulk OEM orders with fully customized wire color, wire length, lug size, connector and resistance take 5-8 working days. Each sensor is packed in independent neutral polybag, 9000 PCS per standard export carton.
