MF52D 环氧水滴 NTC 热敏电阻 10K B3950 精度 1% 多线长
MF52D Epoxy Drop NTC Thermistor 10K B3950 1% Tolerance Multiple Lengths
MF52D 环氧水滴小黑头 NTC 热敏电阻温度传感器，一体成型环氧树脂水滴型封装，体积小巧、防潮耐腐蚀；线材为黑色绝缘 PVC 引线，末端双线剥皮镀锡，焊接装配便捷；标准电气参数：阻值 10K，B 值 3950，测温精度 ±1%；现货可选引线总长 40mm/50mm/60mm/80mm/100mm/150mm，可按需定制非标线长、阻值、B 值；环氧树脂密封防护，绝缘性好，可用于空气、液体表层测温；广泛适配锂电池 BMS、家电温控板、小型工控电源、加湿器、热水器、充电器温度检测；标准整箱 10000PCS，现货交期 2-3 个工作日，支持定制封装尺寸、线材长度、电阻参数，源头线束工厂批量供货。

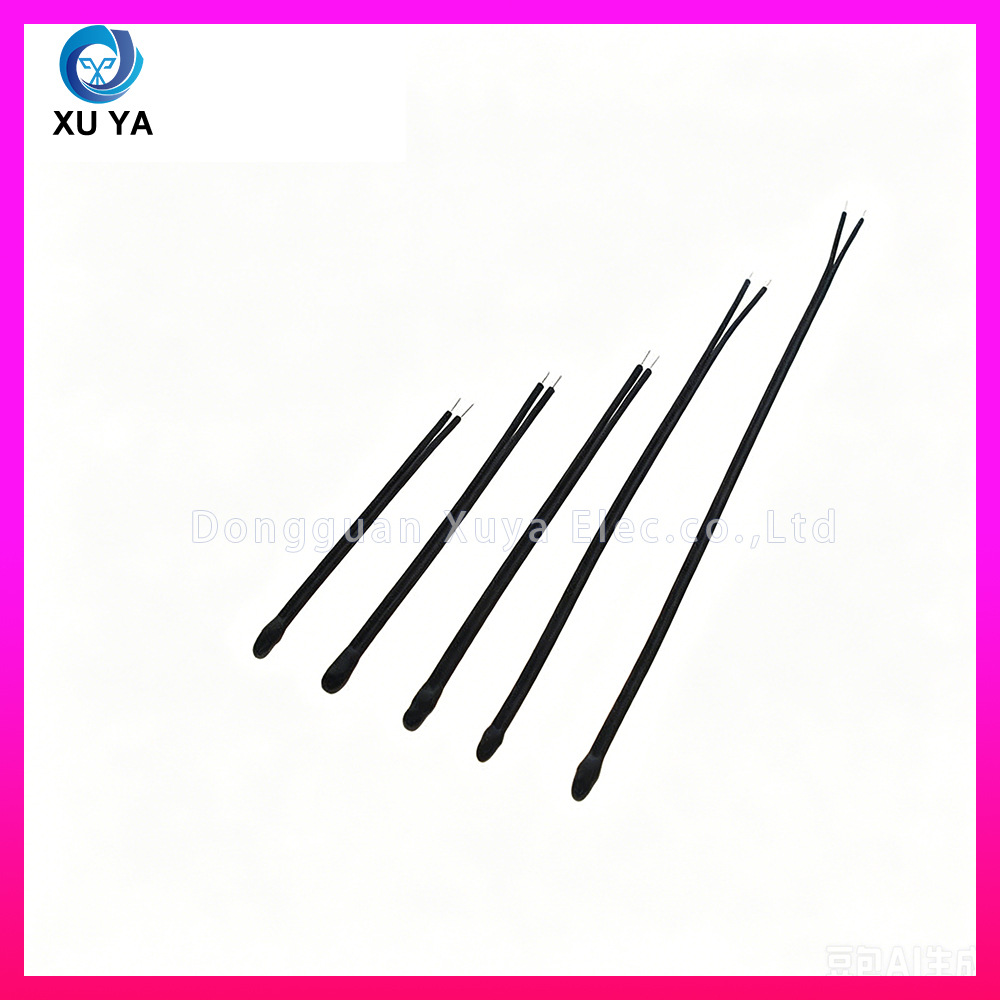

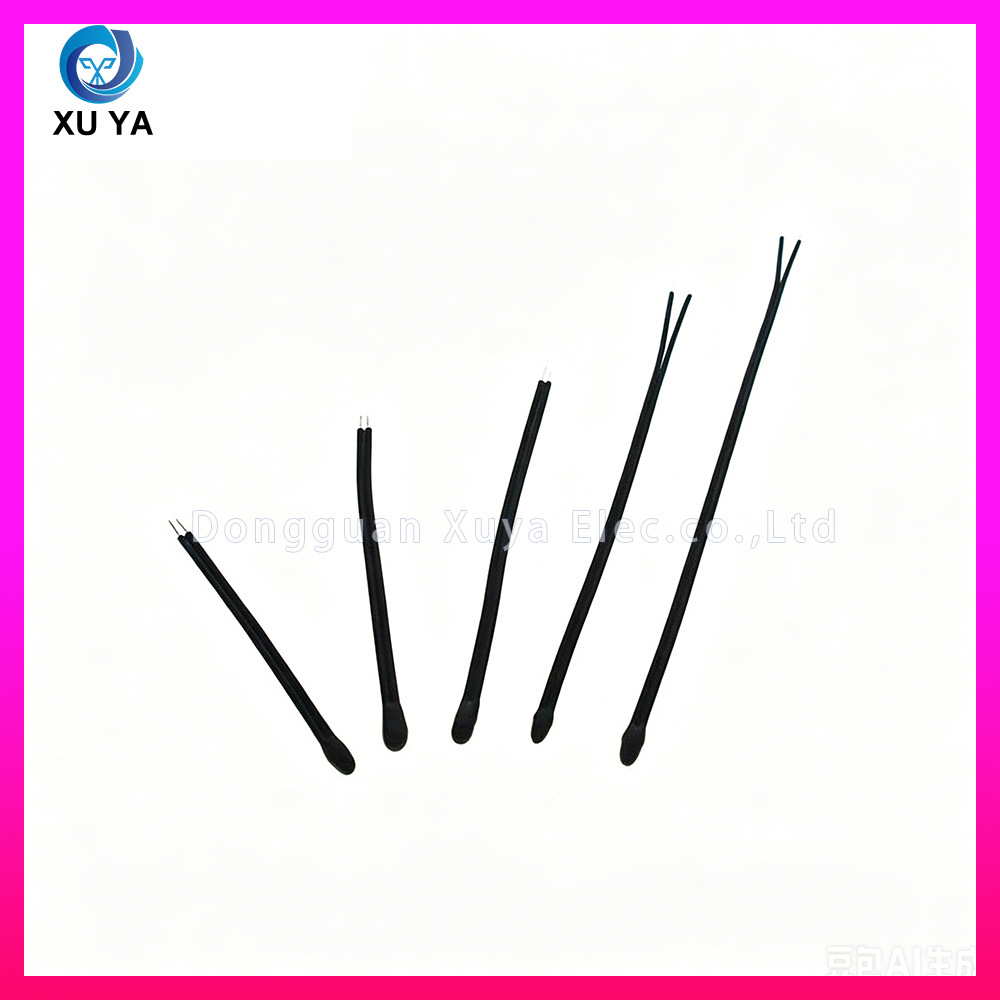

MF52D epoxy drop small-head NTC thermistor temperature sensor, integrally molded epoxy water-drop encapsulation, compact size, moisture-proof and corrosion-resistant. The wire is black insulated PVC lead wire, double wires stripped and tinned at the end for easy welding assembly. Standard electrical parameters: resistance 10KΩ, B-value 3950, temperature tolerance ±1%. Stock optional total wire lengths:40mm/50mm/60mm/80mm/100mm/150mm, non-standard wire length, resistance and B-value can be customized as required. The epoxy sealing structure provides good insulation performance, suitable for air and liquid surface temperature measurement. Widely applied to lithium battery BMS, household appliance temperature control boards, small industrial control power supplies, humidifiers, water heaters and charger temperature detection. 10000 pieces per export carton, stock lead time 2-3 working days. Custom encapsulation size, wire length and resistance parameters are supported, factory provides mass customized wiring harnesses.
Q1. 规格 Spec
这款 MF52D 水滴头 NTC 热敏电阻标准电气与尺寸规格是什么？
环氧水滴小黑头封装，标称阻值 10K，B 值 3950，测温精度 ±1%；现货引线长度可选 40/50/60/80/100/150mm，双线末端剥皮上锡。
What are the standard electrical and dimensional specifications of this MF52D drop-head NTC thermistor?
Small epoxy drop head encapsulation, nominal resistance 10KΩ, B-value 3950, temperature tolerance ±1%; optional stock wire lengths:40/50/60/80/100/150mm, double stripped & tinned wire ends.
Q2. 颜色材质 Color & Material
水滴探头、引线分别是什么材质与颜色？
测温水滴探头为黑色环氧树脂密封材质；引线是黑色 PVC 绝缘细线，内部纯铜导电丝。
What material and color are the drop probe and lead wire?
The temperature measuring drop probe is made of black epoxy resin sealing material; the lead wire is thin black PVC insulated cable with pure copper conductive wires inside.

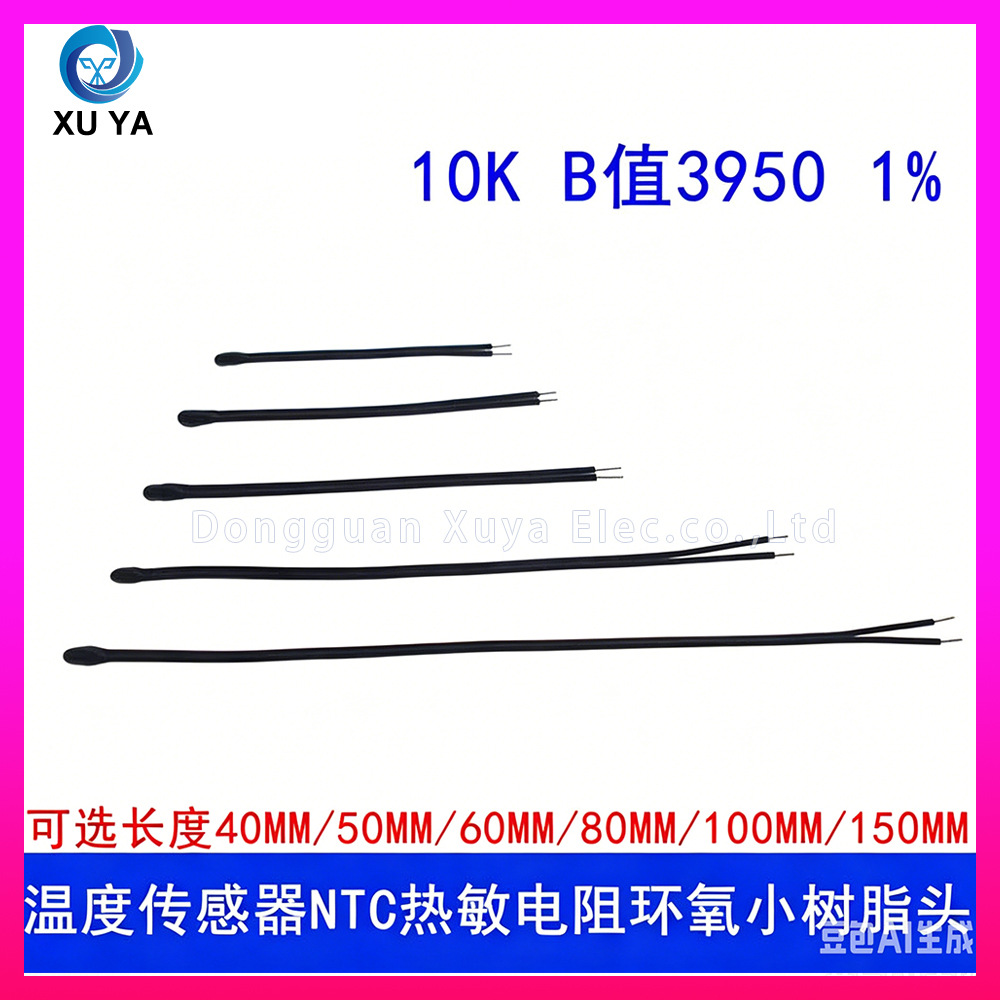

Q3. 引线长度 Wire Length
MF52D 环氧小黑头 NTC 热敏电阻常规现货有哪些长度，能否定制特殊长度？
常备现货总长 40mm、50mm、60mm、80mm、100mm、150mm，可根据客户需求任意定制其他非标线材长度。
What standard stock lengths are available for this MF52D epoxy small-head NTC thermistor?
Can special custom lengths be made? Standard stock total lengths include 40mm,50mm,60mm,80mm,100mm,150mm. Any other non-standard wire lengths can be arbitrarily customized according to customer requirements.
Q4. 用途 Application
环氧水滴小黑头 10K NTC 热敏电阻适配哪些设备，起到什么测温作用？
适配储能锂电池保护板 BMS、各类家电温控主板、小型开关电源、加湿器、净水热水器、充电器；采集环境与设备表层温度，实现恒温控制、高温过热断电保护。
What equipment is this epoxy drop small-head 10K NTC thermistor compatible with, and what temperature measurement function does it perform?
It fits energy storage lithium battery protection board BMS, various household appliance temperature control mainboards, small switching power supplies, humidifiers, water heaters and chargers. It collects ambient and equipment surface temperature to realize constant temperature control and power-off protection against high temperature overheating.

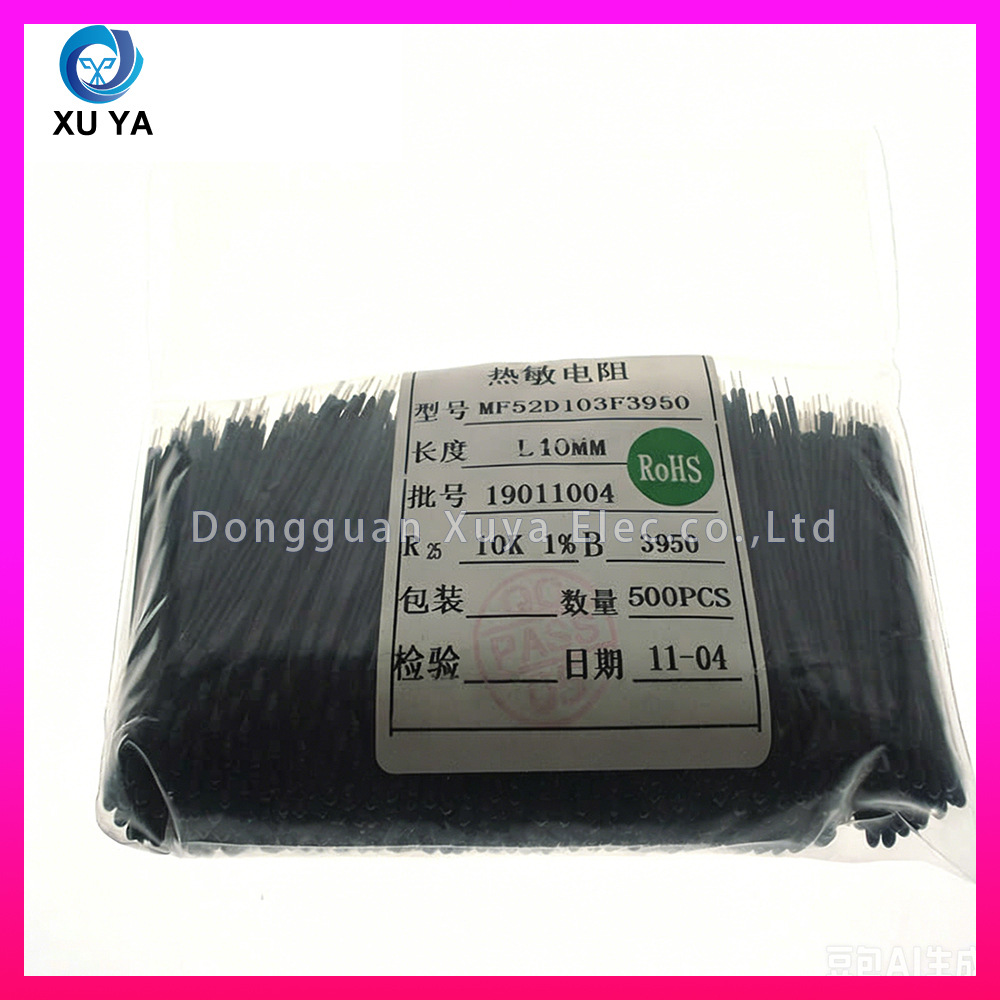

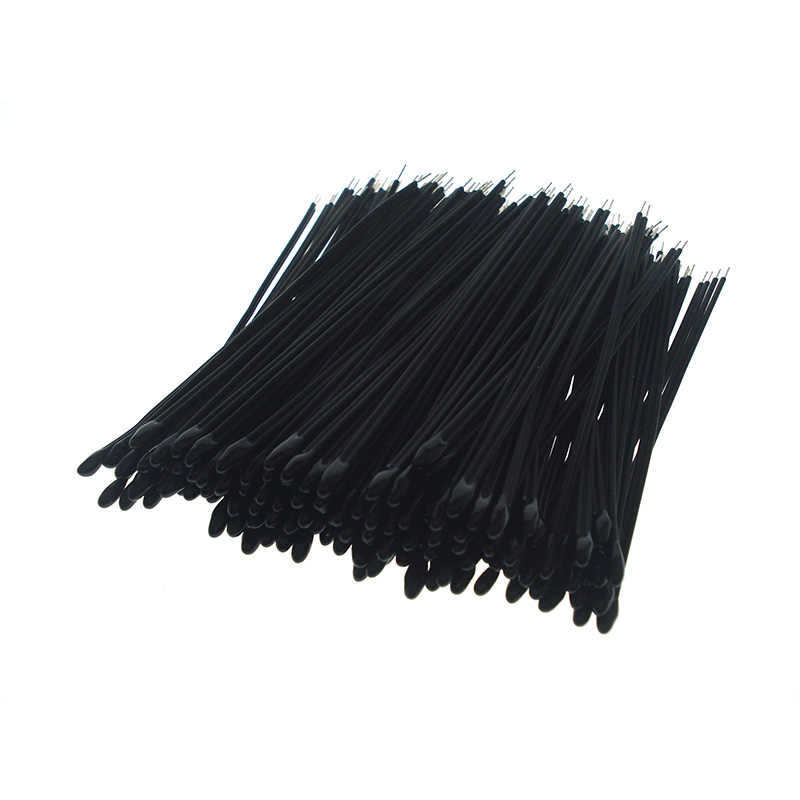

Q5. 装箱数量 Carton Qty
MF52D 环氧水滴 NTC 热敏电阻标准出口纸箱一箱可装多少个？
标准出口纸箱每箱 10000PCS，线材分捆整齐收纳，环氧水滴探头分层隔开，大批量堆叠不会挤压破损封装层。
How many pieces of this MF52D epoxy drop NTC thermistor can be packed in one standard export carton?
10000 pieces per export carton. All wires are neatly bundled, epoxy drop probes are layered separated, and the encapsulation layer will not be crushed and damaged during mass stacking transportation.
