6.35 单声道公头一分二 2.0 插针理疗导线 1.8 米中频康复仪电极线
6.35mm Mono Male Plug 1-to-2 2.0mm Pin Physiotherapy Wire 1.8m Medium Frequency Rehabilitation Electrode Cable

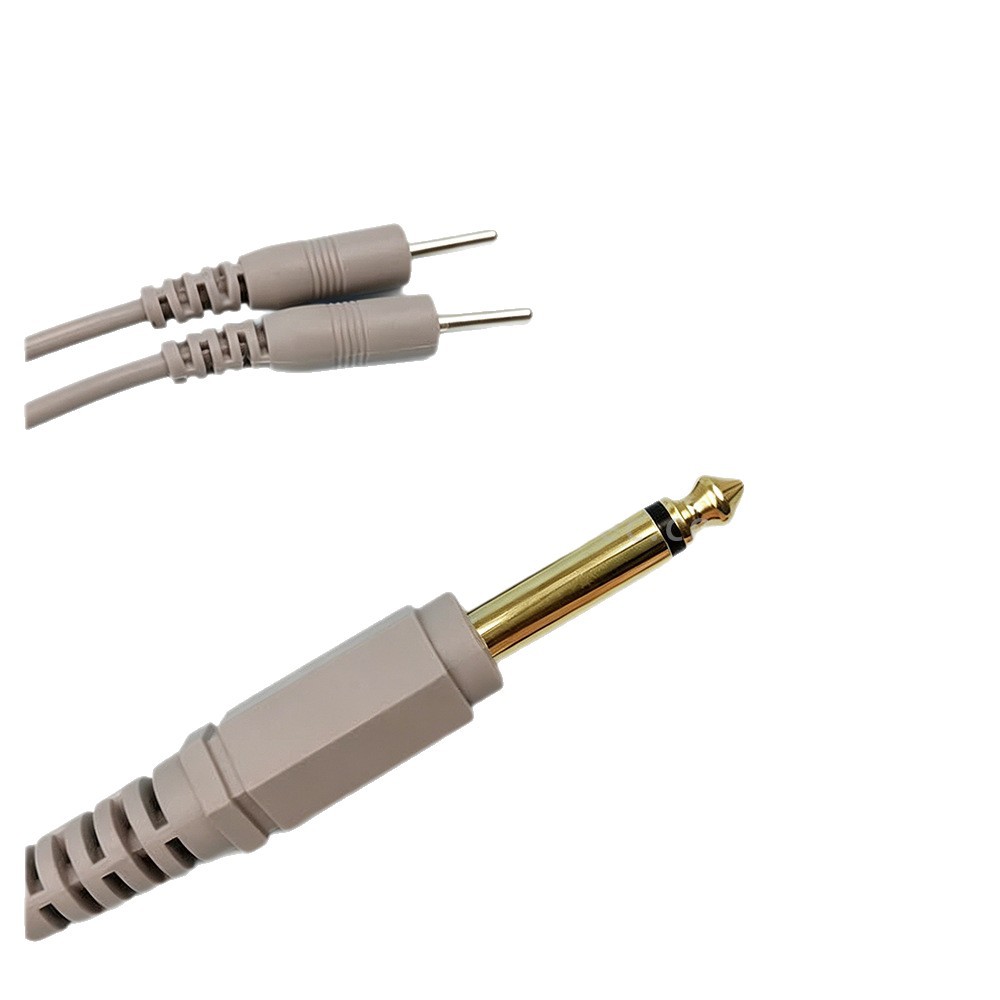

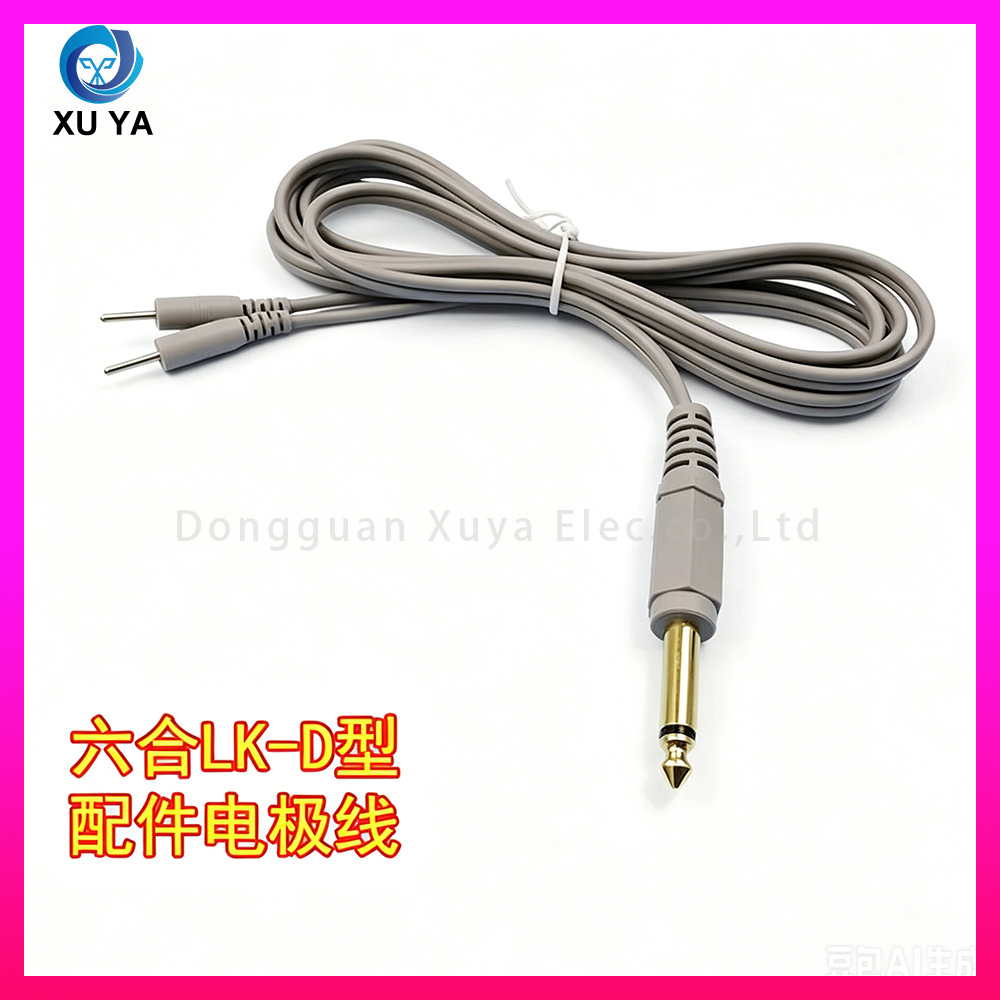

本产品为中频痉挛治疗仪、多功能脉冲理疗设备专用电极线束，输入端 6.35mm 单声道镀金音频公头，输出一分二两根标准 2.0mm 金属插针，适配插孔式理疗贴片；成品标准长度 1.8 米，浅灰色 PVC 绝缘线材，多股超细纯铜软芯，两端接头配备螺旋伸缩防弯折护套，反复拉扯弯折不易断线，镀金插头接触阻抗低，中频脉冲信号传输无衰减。线材总长、6.35 单 / 双声道插头、1.5/2.0 插针、线材配色均可定制，符合 RoHS 医用环保标准，现货充足，支持批量 OEM 定制。
This product is dedicated electrode wire harness for medium frequency spasm therapeutic apparatuses and multi-function pulse physiotherapy equipment. The input terminal is 6.35mm mono gold-plated audio male plug, the output splits into two standard 2.0mm metal pins matched with jack-type physiotherapy pads. The standard finished length is 1.8m, adopting light gray PVC insulated wire and multi-strand ultra-fine flexible pure copper core. Spiral telescopic anti-bending sheaths are equipped on both connectors to prevent wire breakage after repeated pulling and bending. The gold-plated plug features low contact impedance without attenuation of medium-frequency pulse signal transmission. Total cable length, 6.35 mono/stereo plug spec, 1.5/2.0 pin size and wire color are fully customizable, compliant with medical-grade RoHS environmental standards. Goods in stock, bulk OEM customization supported.
1 产品规格
这款 6.35 单声道理疗线插头规格、输出插针尺寸、标准线长、适配设备是什么？参数能否定制？

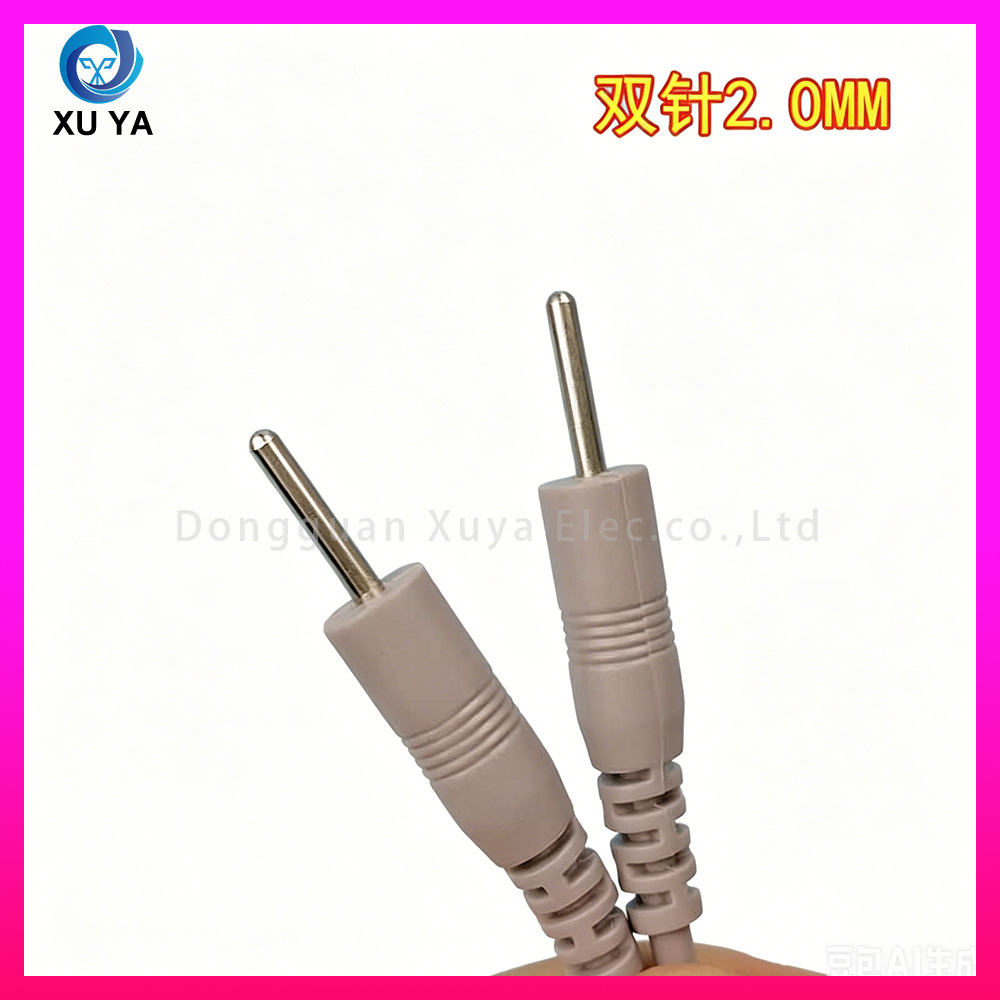

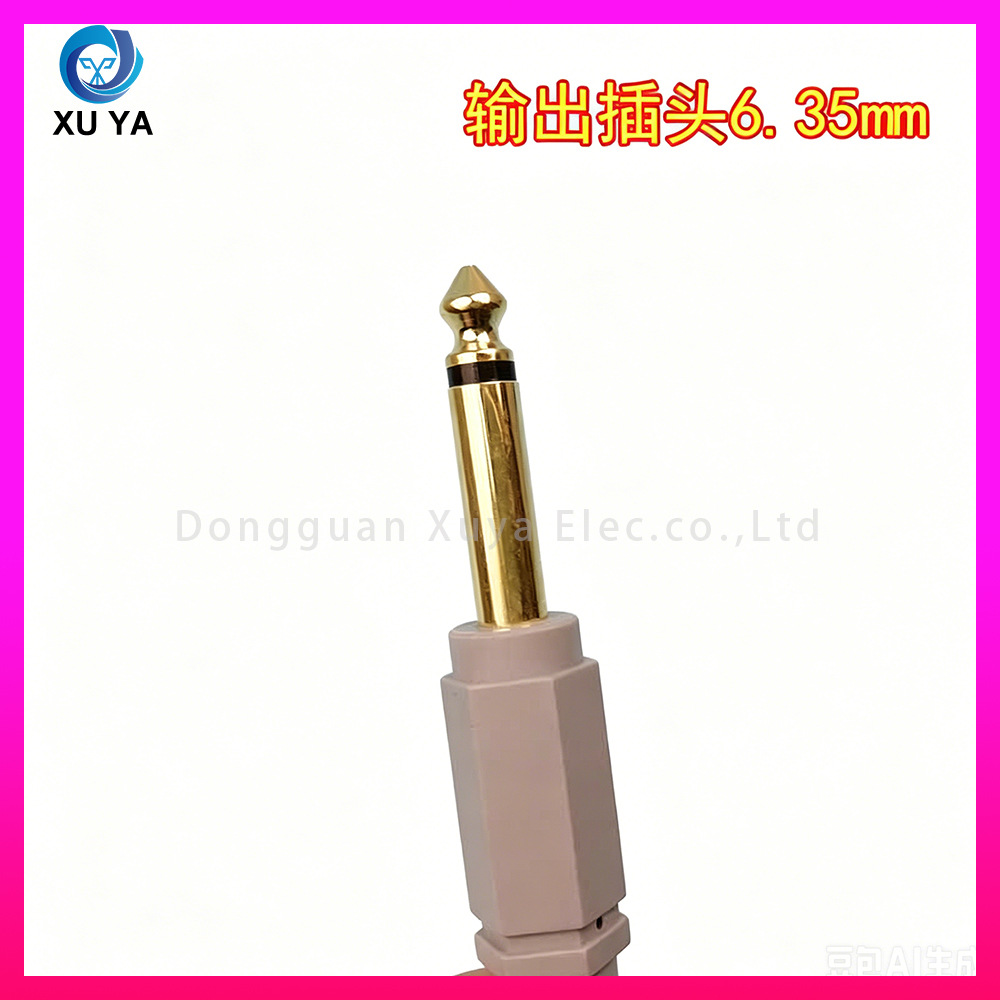

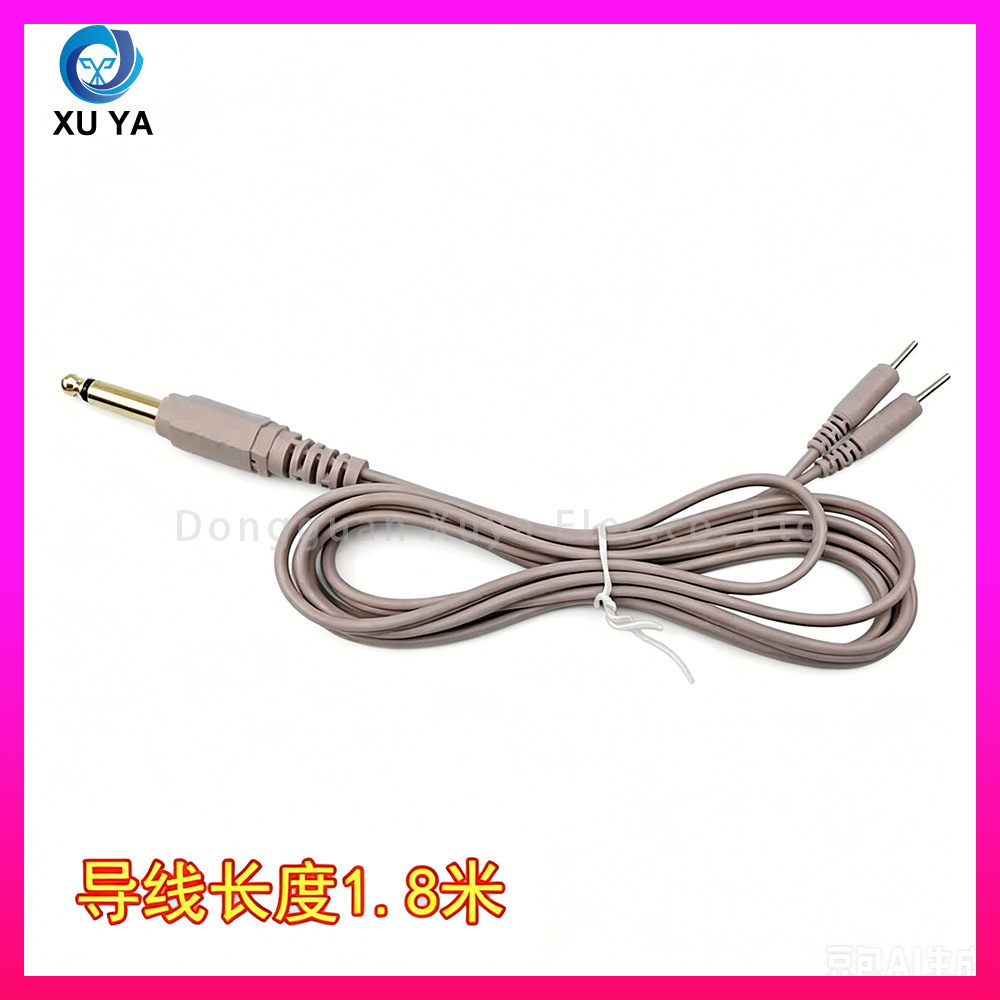

输入端 6.35mm 单声道镀金音频公头，一分二输出 2.0mm 金属插针，标准导线长度 1.8 米；适配中频痉挛康复仪、多功能家用脉冲经络理疗设备；线材总长、6.35 单声道 / 双声道插头、1.5/2.0 插针粗细、线材外壳颜色均可按需定制。
What are the plug spec, output pin size, standard wire length and compatible equipment of this 6.35 mono physiotherapy cable? Are parameters customizable?
Input terminal: 6.35mm mono gold-plated audio male plug, 1-to-2 output with 2.0mm metal pins, standard wire length 1.8m. Compatible with medium frequency spasm rehabilitation instruments and multi-function household pulse meridian physiotherapy equipment. Total cable length, 6.35 mono/stereo plug, 1.5/2.0 pin diameter and wire jacket color can all be customized as required.
2 线材颜色与材质
线材标准外皮配色是什么？镀金 6.35 插头 + 1.8 米长线材有什么材质优势？医用理疗场景可更换线材材质吗？
标准线材为浅灰色 PVC 绝缘外皮；①6.35 插头表面镀金处理，抗氧化、降低接触电阻，长时间使用信号稳定无杂波；②超细多股纯铜软线柔韧性强，康复过程肢体大幅度活动、反复弯折不会断裂；③1.8 米加长线材，患者坐卧理疗活动空间充足，无需频繁挪动理疗主机；接头螺旋护套缓冲弯折应力，延长线材使用寿命；可按需更换医用低噪硅胶线材，抗电磁干扰，适配高端医用中频康复器械。
What is standard outer jacket color of the cable? What material advantages do gold-plated 6.35 plug and 1.8m long wire have? Can wire material be replaced for medical physiotherapy scenarios?
Standard cable outer jacket: light gray PVC insulation. ① The 6.35 plug is gold-plated on the surface, anti-oxidation and low contact resistance, ensuring stable signal without clutter noise during long-term use. ② Ultra-fine multi-strand flexible pure copper wire features strong flexibility, and will not break after large-scale limb movement and repeated bending during rehabilitation. ③ The 1.8m extended wire provides sufficient moving space for patients sitting or lying for physiotherapy, without frequently moving the main physiotherapy machine. The spiral sheath at connectors buffers bending stress to extend wire service life. Medical low-noise silicone wire can be customized as alternative material, which resists electromagnetic interference for high-end medical medium-frequency rehabilitation equipment.
3 适用设备用途
6.35 单声道 1.8 米插针理疗线适配哪些康复设备？单声道镀金插头 + 一分二插针结构有什么使用优势？
适配设备：奔奥等品牌中频痉挛治疗仪、家用多功能中频脉冲按摩仪、颈肩腰肢体麻木经络疏通电疗设备；
使用优势：①6.35 单声道镀金插头，匹配主流中频理疗仪设备接口，可直接替换原厂配套导线，通用性强；②一分二双 2.0 插针，可同时连接两片理疗贴片，双穴位、双肢体同步理疗，提升康复效率；③1.8 米适中长度，兼顾设备摆放与人体活动范围，线材收纳不易缠绕打结；浅灰色线材耐脏，外观简约整洁。
What rehabilitation equipment fit 6.35 mono 1.8m pin physiotherapy cable? What advantages of gold-plated mono plug + 1-to-2 pin structure?
Applicable equipment: medium frequency spasm therapeutic apparatuses of brands such as Benao, household multi-function medium-frequency pulse massagers, electrotherapy devices for meridian dredging of numb neck, shoulder, waist and limbs.
Usage advantages: ① The 6.35 mono gold-plated plug matches the interface of mainstream medium-frequency physiotherapy equipment, and can directly replace the original supporting wire with strong versatility. ② 1-to-2 dual 2.0mm pins support simultaneous connection of two physiotherapy pads for synchronous physiotherapy on double acupoints or limbs to improve rehabilitation efficiency. ③ The moderate 1.8m length balances equipment placement and human moving range, and the wire is not easy to tangle during storage. The light gray wire is stain-resistant with simple and neat appearance.
4 发货与定制交期
现货 1.8 米 6.35 单声道插针理疗线多久发货？是否包邮？改线长、插头 / 插针规格交期多久？
现货库存当天即可安排发货；小批量改线材总长、6.35 单声道 / 双声道音频插头、1.5/2.0 插针尺寸定制交期 2-3 工作日，大批量 OEM 定制 5-7 工作日，可协商加急出货。
How long for in-stock 1.8m 6.35 mono pin physiotherapy cables to ship? Free shipping? Lead time for customized cable length, plug & pin spec?
In-stock goods can be shipped on the same day of order. Lead time for small customized orders (total cable length, 6.35 mono/stereo audio plug, 1.5/2.0 pin size adjustment): 2-3 working days; mass OEM orders: 5-7 working days, expedited delivery negotiable.
