6.35 大三芯转 2.0 插针中频理疗导线 2.5 米奔奥痉挛康复治疗仪电极线
6.35mm Stereo Plug To 2.0mm Pin Medium Frequency Physiotherapy Wire 2.5m Benao Spasm Rehabilitation Therapeutic Device Electrode Cable
本产品适配奔奥中频痉挛治疗仪、家用中频康复理疗设备，输入端标准 6.35mm 大三芯音频公头，输出一分二两根 2.0mm 金属插针，配套插孔式理疗电极贴片；成品标准长度 2.5 米，浅灰色扁平 PVC 绝缘线材，多股纯铜软芯，耐弯折、拉伸，两端接头带螺旋防弯折护套，脉冲传导稳定，长线材适配大范围肢体康复理疗。线材总长、6.35/3.5 插头、1.5/2.0 插针、线材配色均可定制，符合 RoHS 医用环保标准，现货充足，支持批量 OEM 定制。

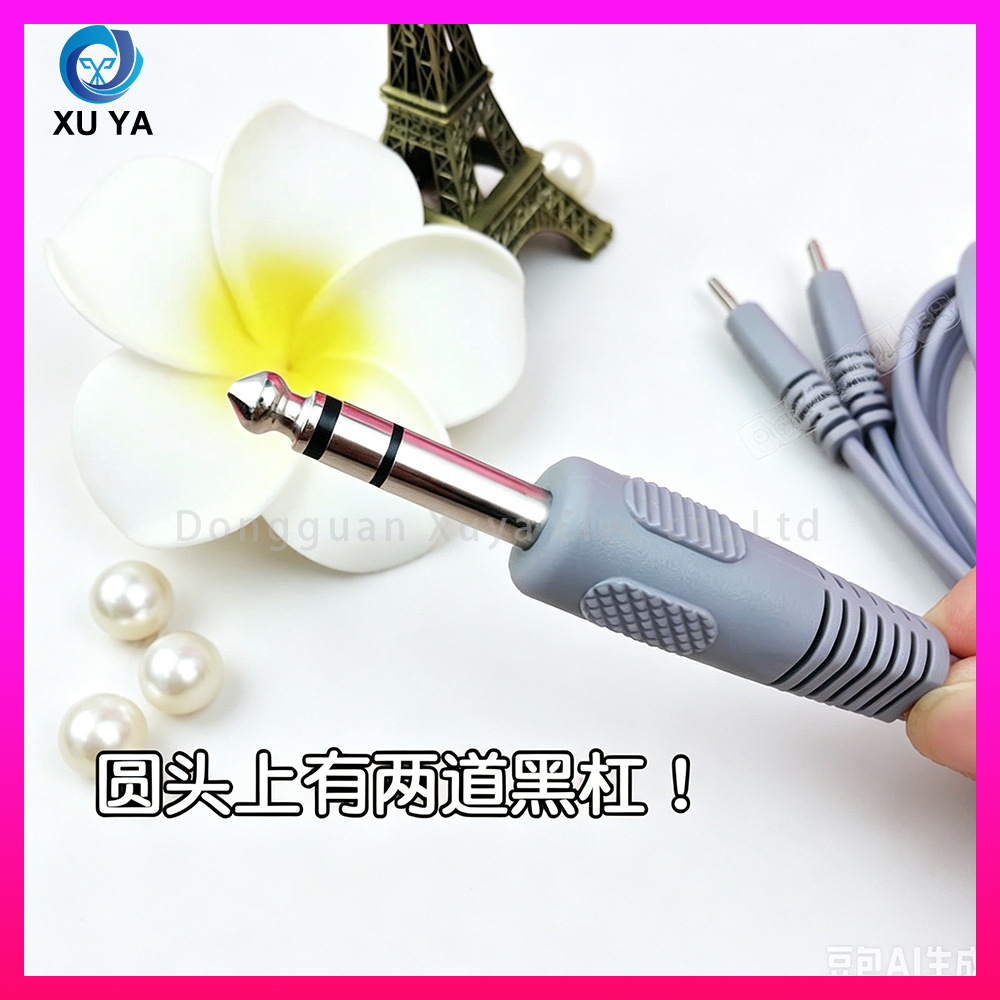

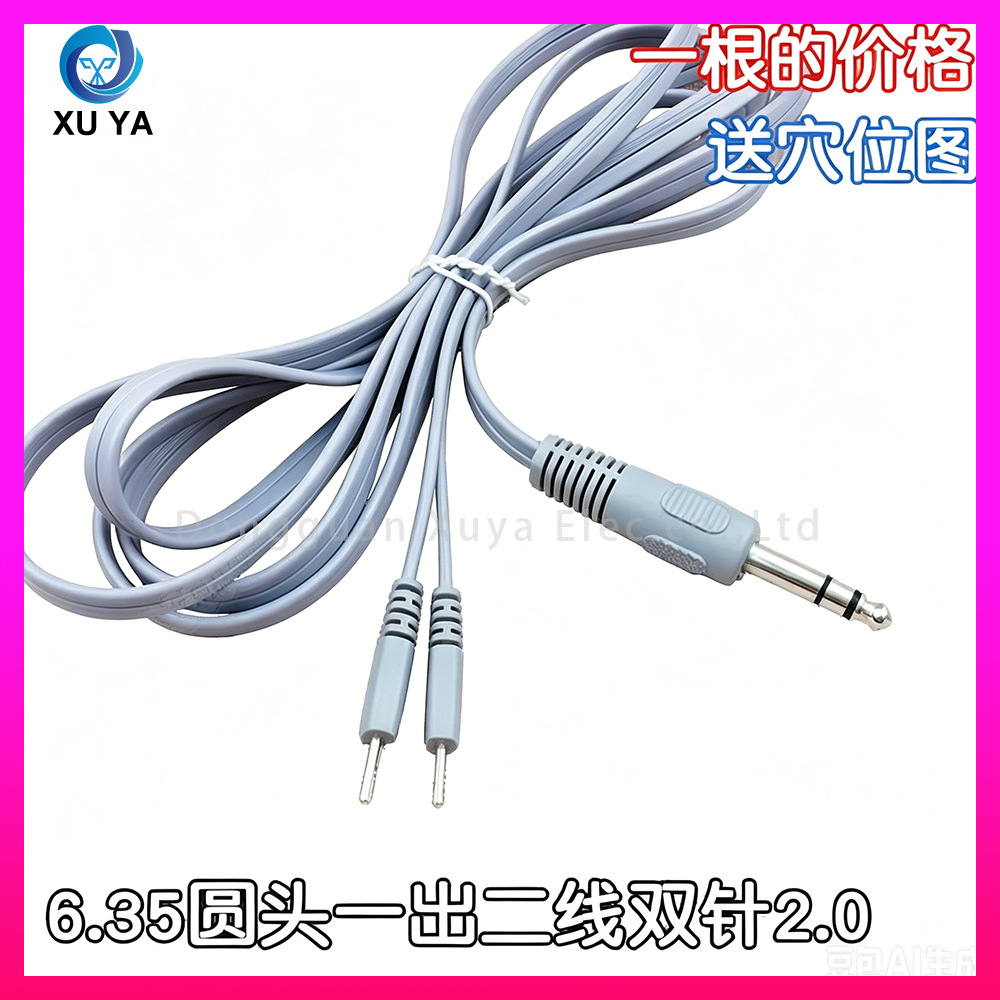

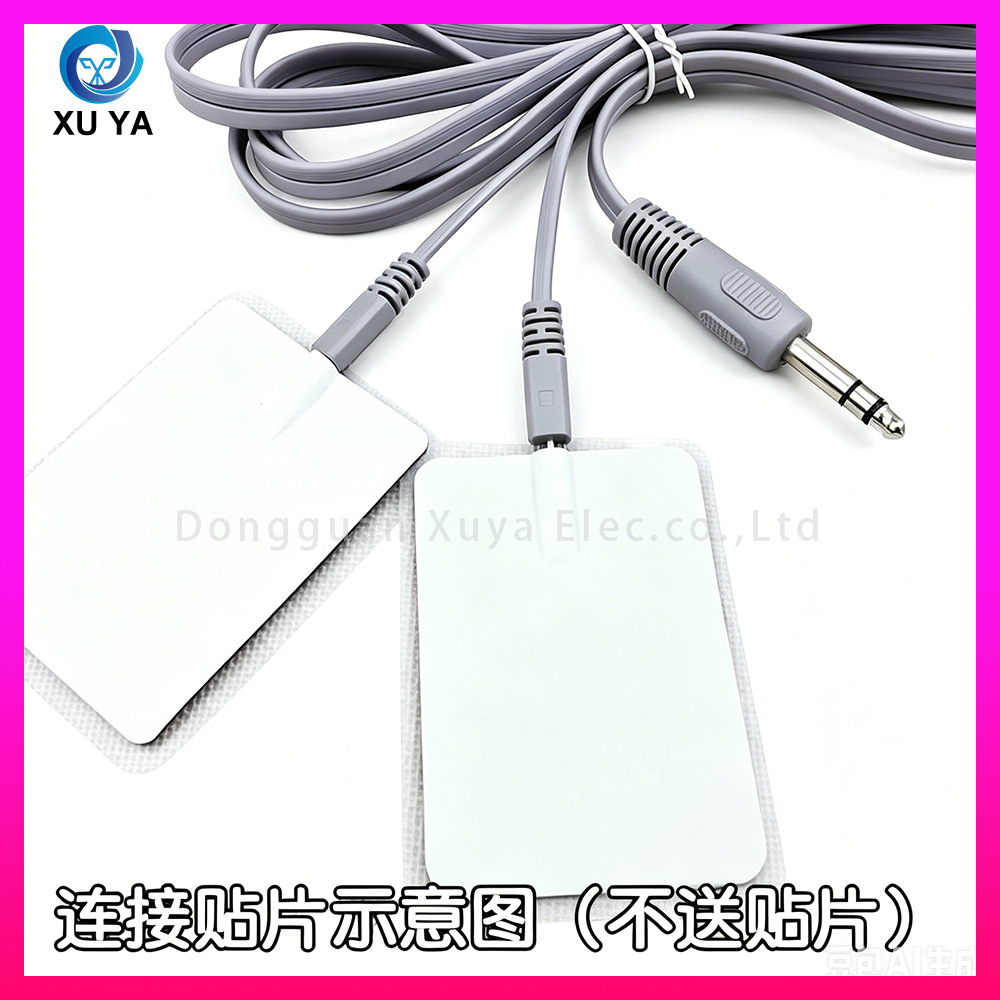

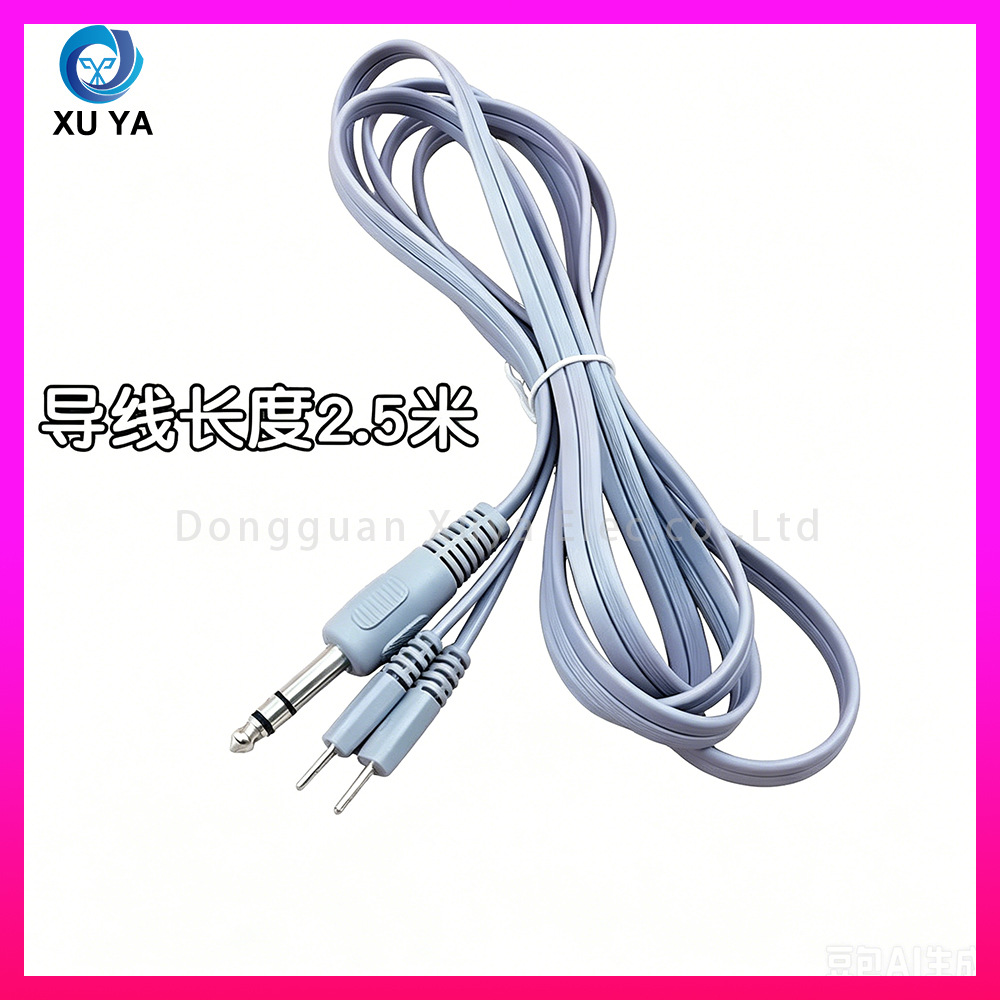

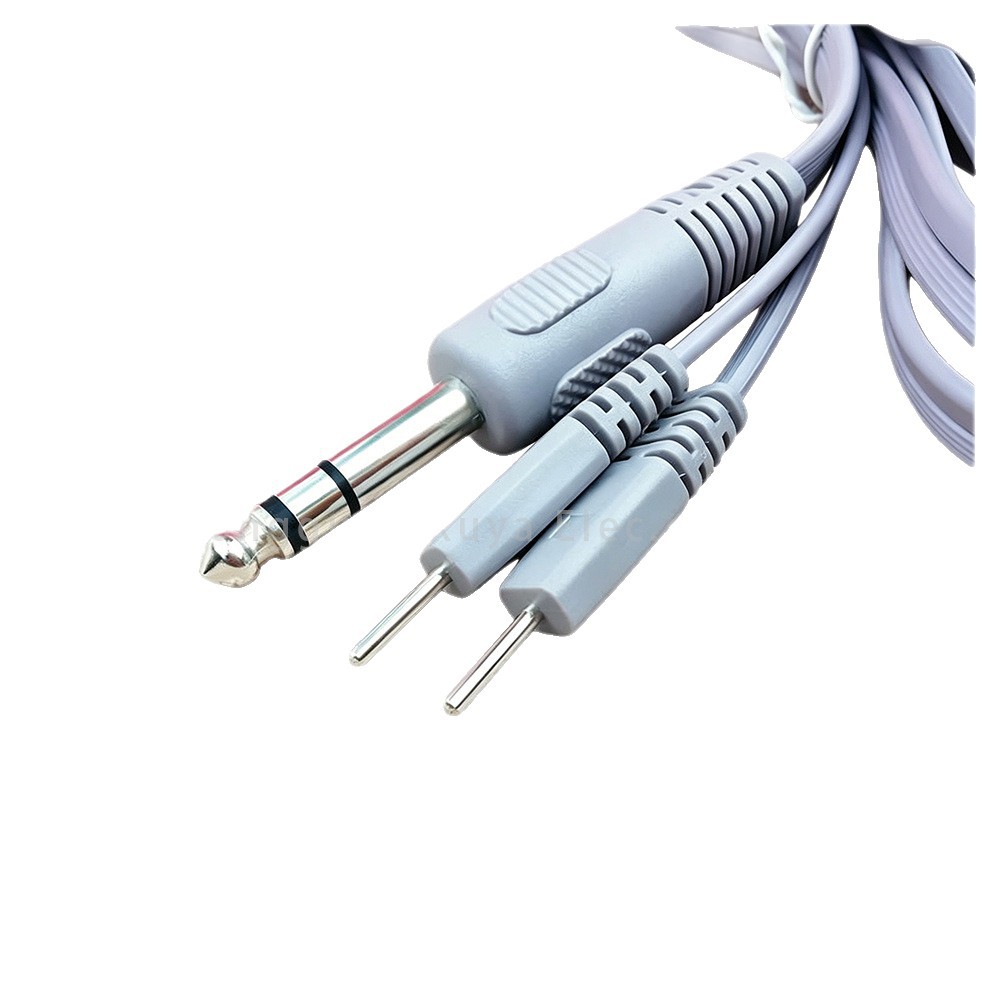

This cable is compatible with Benao medium frequency spasm therapeutic apparatus and household medium frequency rehabilitation physiotherapy equipment. The input terminal is standard 6.35mm stereo audio male plug, the output splits into two 2.0mm metal pins matched with jack-type physiotherapy electrode pads. The standard finished length is 2.5m, adopting light gray flat PVC insulated wire and multi-strand pure copper flexible core, resistant to bending and stretching. Spiral anti-bending sheaths are equipped on both connectors for stable pulse transmission. The long wire is suitable for large-range limb rehabilitation physiotherapy. Total cable length, 6.35/3.5 plug spec, 1.5/2.0 pin size and wire color are fully customizable, compliant with medical-grade RoHS environmental standards. Goods in stock, bulk OEM customization supported.
1 产品规格
这款中频治疗仪导线插头规格、输出插针尺寸、标准线长、适配设备是什么？参数能否定制？
输入端 6.35mm 大三芯音频公头，一分二输出 2.0mm 金属插针，标准导线长度 2.5 米；专用适配奔奥中频痉挛康复机、中频脉冲理疗仪；线材总长、6.35 直头 / 弯头、1.5/2.0 插针粗细、线材外壳颜色均可按需定制。
What are the plug spec, output pin size, standard wire length and compatible equipment of this medium frequency therapeutic cable? Are parameters customizable?
Input terminal: 6.35mm stereo audio male plug, 1-to-2 output with 2.0mm metal pins, standard wire length 2.5m. Specially compatible with Benao medium frequency spasm rehabilitation machines and medium-frequency pulse physiotherapy instruments. Total cable length, 6.35 straight/elbow plug, 1.5/2.0 pin diameter and wire jacket color can all be customized as required.
2 线材颜色与材质
线材标准配色与结构是什么？扁平长线材 + 螺旋防弯折护套有什么优势？医用理疗场景可更换线材材质吗？
标准线材为浅灰色扁平 PVC 绝缘；①扁平线材柔软贴肤，收纳不易缠绕打结，2.5 米加长长度，四肢、腰腹大范围理疗无需挪动设备；②接头螺旋伸缩护套缓冲反复弯折应力，长期使用接头不易开裂断线；③多股纯铜内芯阻抗低，中频脉冲信号无衰减，理疗输出稳定；可按需更换医用硅胶线材，亲肤、耐高低温，适配高端医用中频康复器械。
What is the standard wire color and structure? What advantages of flat long wire and spiral anti-bending sheath? Can wire material be replaced for medical physiotherapy scenarios?
Standard wire: light gray flat PVC insulation. ① Flat wire is soft and skin-friendly, free of tangling during storage. The 2.5m extended length allows large-area physiotherapy on limbs, waist and abdomen without moving equipment. ② Telescopic spiral sheath at connectors buffers stress from repeated bending, preventing cracking and wire breakage after long-term use. ③ Multi-strand pure copper core delivers low impedance without medium-frequency pulse attenuation for stable therapeutic output. Medical silicone wire can be customized as alternative material, which is skin-friendly and resistant to high & low temperatures for high-end medical medium-frequency rehabilitation equipment.
3 适用设备用途
6.35 转 2.0 插针 2.5 米理疗线适配哪些康复设备？大三芯插头 + 加长一分二插针结构有什么使用优势？
适配设备：奔奥全系列中频痉挛治疗仪、中频脉冲康复仪、颈肩腰肢体麻木理疗设备；
使用优势：①6.35mm 大三芯标准插头，完美匹配奔奥痉挛机原厂设备接口，直接替换原装导线；②2.5 米超长线材，患者坐姿、躺卧康复活动空间充足，不受线材拉扯限制；③一分二双插针设计，可同时粘贴两片电极片，同步双部位理疗，提升康复效率；扁平线材收纳整洁，不易缠绕。
What rehabilitation equipment fit 6.35 to 2.0mm pin 2.5m physiotherapy cable? What advantages of stereo plug + extended 1-to-2 pin structure?
Applicable equipment: all Benao medium frequency spasm therapeutic apparatuses, medium-frequency pulse rehabilitation instruments, physiotherapy devices for numbness of neck, shoulder, waist and limbs.
Usage advantages: ① Standard 6.35mm stereo plug perfectly matches the original interface of Benao spasm machines and can directly replace original cables. ② The 2.5m extra-long wire provides sufficient moving space for sitting or lying patients without pulling restriction during rehabilitation. ③ 1-to-2 dual-pin design supports simultaneous use of two electrode pads for dual-position synchronous physiotherapy to improve rehabilitation efficiency. The flat wire is neat for storage and free of tangling.
4 发货与定制交期
现货 2.5 米 6.35 大三芯中频插针理疗线多久发货？是否包邮？改线长、插头 / 插针规格交期多久？
现货库存当天即可安排发货；小批量改线材总长、6.35/3.5 音频插头、1.5/2.0 插针尺寸定制交期 2-3 工作日，大批量 OEM 定制 5-7 工作日，可协商加急出货。
How long for in-stock 2.5m 6.35 stereo medium frequency pin physiotherapy cables to ship? Free shipping? Lead time for customized cable length, plug & pin spec?
In-stock goods can be shipped on the same day of order. Lead time for small customized orders (total cable length, 6.35/3.5 audio plug, 1.5/2.0 pin size adjustment): 2-3 working days; mass OEM orders: 5-7 working days, expedited delivery negotiable.
