3.5mm 弯头一分二 2.0 插针理疗电极线 针式贴片康复仪连接线

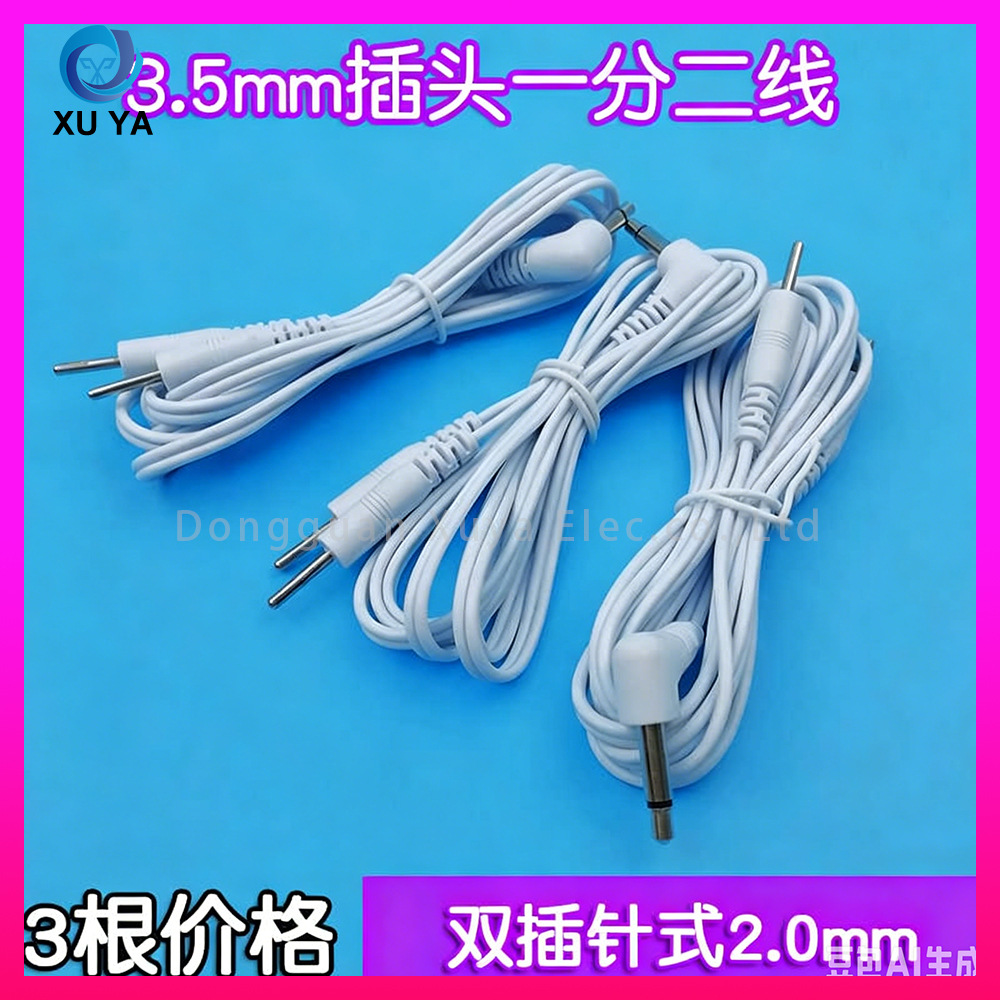

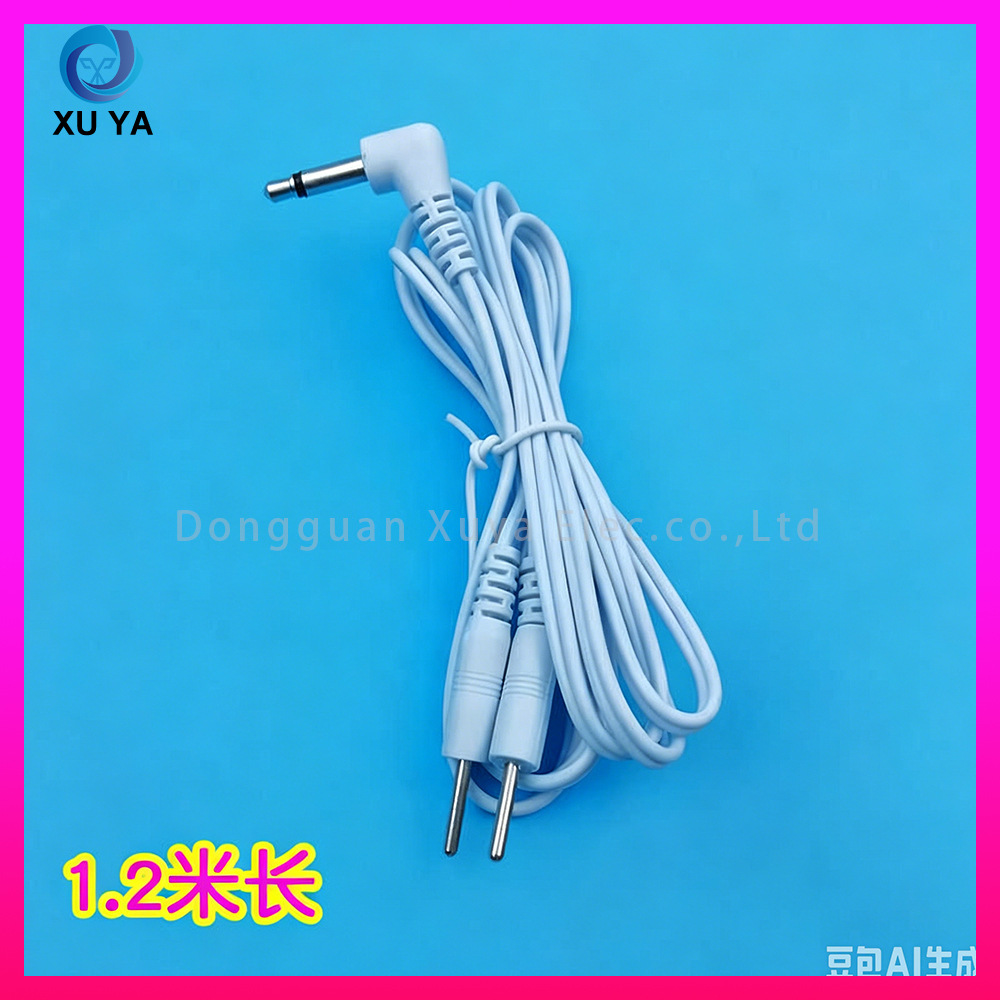

3.5mm Elbow 1-to-2 2.0mm Pin Physiotherapy Electrode Cable Pin-type Pad Rehabilitation Wire
本产品为家用低频理疗、脉冲按摩设备专用一分二电极线束，输入端 3.5mm 弯头音频公头，输出分两路 2.0mm 金属插针，适配带插孔的针式理疗电极贴片；线材白色医用级 PVC 绝缘，超细多股纯铜软芯，接头带防弯折伸缩护套，反复拉扯弯折不易断线，脉冲导电稳定，3 根起批量优惠。线材总长、3.5 直头 / 弯头、2.0/1.5 插针规格均可定制，符合 RoHS 医用环保标准，现货充足，支持批量 OEM 定制。
This product is dedicated 1-to-2 electrode wire harness for household low-frequency physiotherapy and pulse massage equipment. Input terminal is 3.5mm elbow audio male plug, output splits into two 2.0mm metal pins, compatible with pin-hole physiotherapy electrode pads. The wire adopts white medical-grade PVC insulation and ultra-fine multi-strand flexible pure copper core. Each connector is equipped with telescopic anti-bending sheath to prevent wire breakage after repeated pulling and bending, with stable pulse conductivity. Discount for orders starting from 3 pcs. Total cable length, 3.5 straight/elbow plug, 2.0/1.5 pin spec are fully customizable, compliant with medical-grade RoHS environmental standards. Goods in stock, bulk OEM customization supported.
1 产品规格
这款一分二插针理疗线插头规格、输出插针尺寸、适配配件是什么？参数能否定制？
输入端 3.5mm90 度弯头音频公头，一分二输出两根 2.0mm 金属插针，配套插孔式针疗电极贴片；适配家用中频按摩仪、低频经络理疗仪；线材总长、3.5 直头 / 弯头、1.5/2.0 插针粗细、线材配色均可按需定制。
What are the plug spec, output pin size and compatible accessories of this 1-to-2 pin physiotherapy cable? Are parameters customizable?

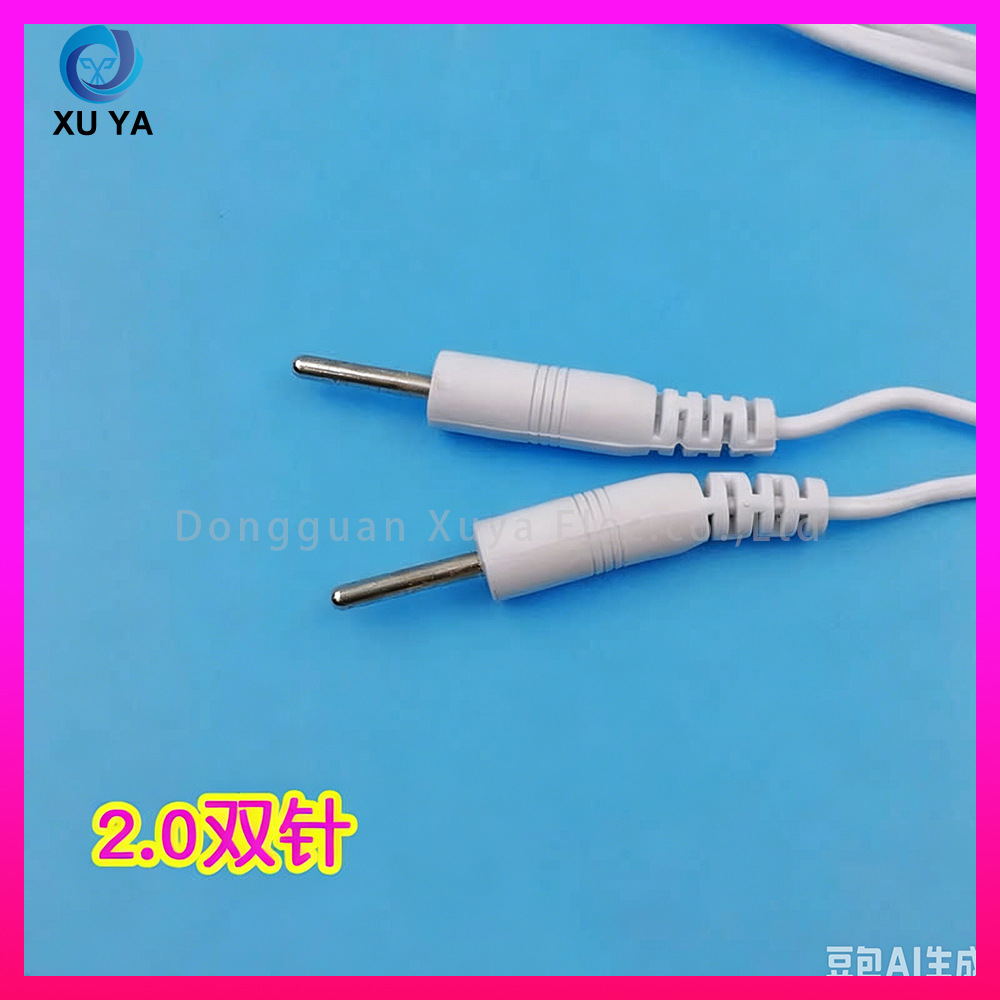

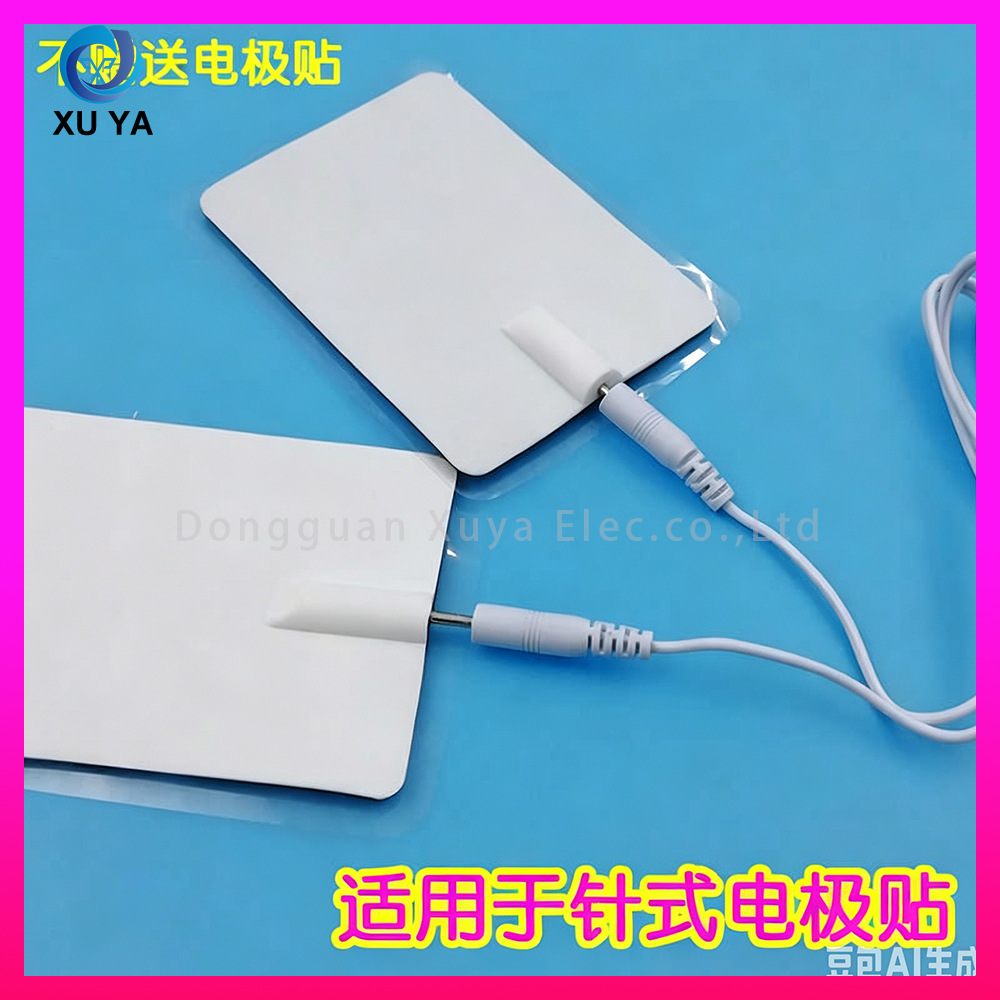

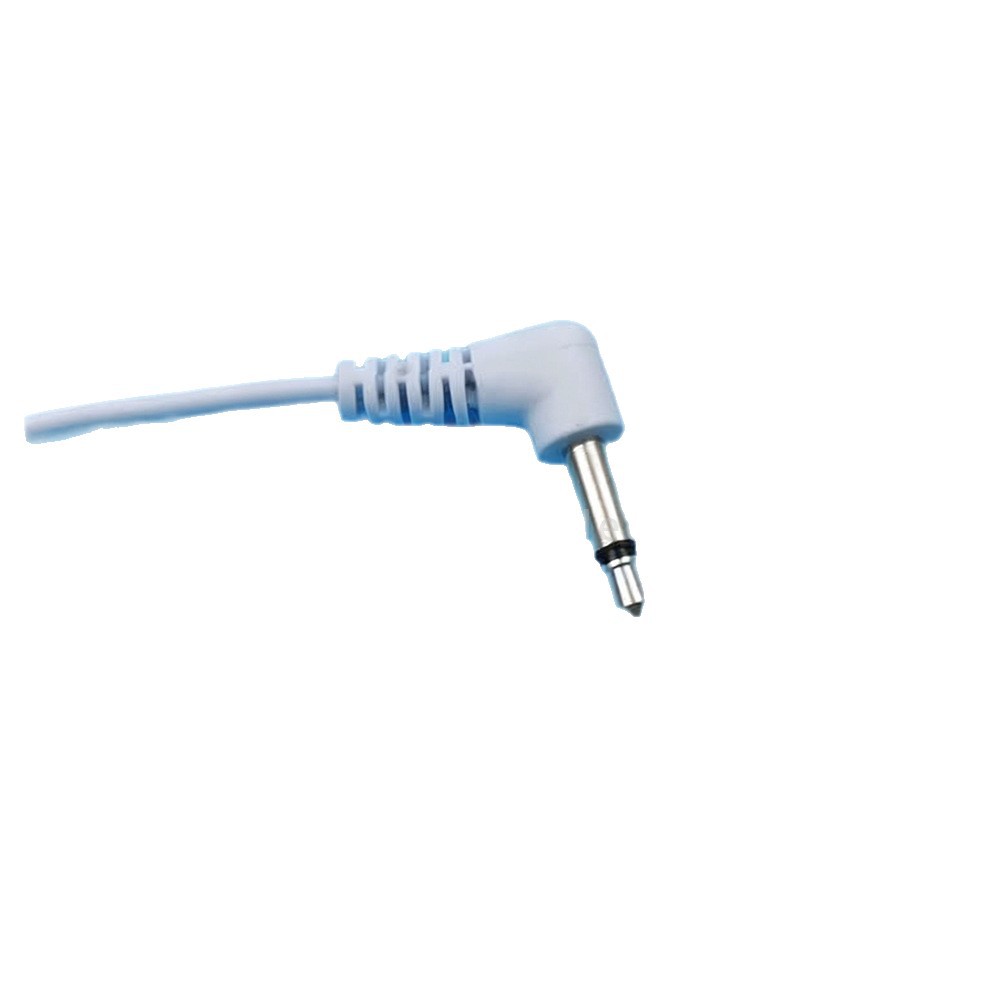

Input terminal: 90-degree elbow 3.5mm audio male plug, 1-to-2 output with two 2.0mm metal pins, matched with hole-type pin physiotherapy electrode pads. Compatible with household medium-frequency massagers and low-frequency meridian physiotherapy instruments. Total cable length, 3.5 straight/elbow plug, 1.5/2.0 pin diameter and wire color can all be customized as required.
2 线材颜色与材质
线材标准外皮配色是什么？一分二插针 + 防弯折护套有什么优势？医用理疗场景可更换线材材质吗？
标准线材为白色医用 PVC 绝缘外皮；①一分二分流设计，单根线材同时连接两片电极贴片，布线简洁；②2.0mm 加粗金属插针插入电极贴片插孔贴合紧密，电脉冲无衰减；③接头伸缩螺旋护套缓冲弯折应力，长期使用不易开裂断线；可按需更换医用硅胶线材，亲肤耐高低温，适配高端康复器械。
What is standard outer jacket color of the cable? What advantages of 1-to-2 pin design and anti-bending sheath? Can wire material be replaced for medical physiotherapy scenarios?
Standard cable outer jacket: white medical-grade PVC insulation. ① 1-to-2 split design connects two electrode pads with one wire for tidy wiring. ② Thickened 2.0mm metal pin fits tightly into electrode pad jacks without pulse attenuation. ③ Telescopic spiral sheath at connectors buffers bending stress to avoid cracking and wire breakage after long-term use. Medical silicone wire can be customized as alternative material, which is skin-friendly and resistant to high & low temperatures for high-end rehabilitation equipment.
3 适用设备用途
3.5 弯头一分二 2.0 插针理疗线适配哪些康复设备？弯头音频头 + 一分二插针结构有什么使用优势？
适配设备：家用低频脉冲按摩仪、中频肩颈腰理疗仪、多功能经络疏通电疗仪；
使用优势：①90 度弯头 3.5 插头，设备侧边接口布线不顶线、不会硬折线材；②一分二双线一体成型，无需两根单独线材，收纳不杂乱；③2.0 标准插针市面绝大多数针式电极贴片通用，替换配件便捷；批量采购 3 根起享优惠。
What rehabilitation equipment fit 3.5 elbow 1-to-2 2.0mm pin physiotherapy cable? What advantages of elbow audio plug + 1-to-2 pin structure?
Applicable equipment: household low-frequency pulse massagers, medium-frequency neck shoulder waist physiotherapy instruments, multi-function meridian dredging electrotherapy devices.
Usage advantages: ① 90-degree elbow 3.5mm plug avoids wire jacking and hard bending when wiring on side equipment ports. ② Integrated 1-to-2 dual wire design eliminates two separate wires for tidy storage. ③ Standard 2.0mm pins are compatible with most pin-hole electrode pads on the market for convenient accessory replacement. Discount available for bulk orders of 3 pcs and above.
4 发货与定制交期
现货 3.5 弯头一分二 2.0 插针理疗线多久发货？是否包邮？改线长、插头 / 插针规格交期多久？
现货库存当天即可安排发货；小批量改线材总长、3.5 直头 / 弯头、1.5/2.0 插针尺寸定制交期 2-3 工作日，大批量 OEM 定制 5-7 工作日，可协商加急出货。
How long for in-stock 3.5 elbow 1-to-2 2.0mm pin physiotherapy cables to ship? Free shipping? Lead time for customized cable length, plug & pin spec?
In-stock goods can be shipped on the same day of order. Lead time for small customized orders (total cable length, 3.5 straight/elbow plug, 1.5/2.0 pin size adjustment): 2-3 working days; mass OEM orders: 5-7 working days, expedited delivery negotiable.
