一拖二理疗电极线 白色医疗连接线

达佳夹子一拖二理疗电极线 白色医疗连接线
Dajia Clip 1 To 2 Therapy Electrode Wire White Medical Connecting Cable

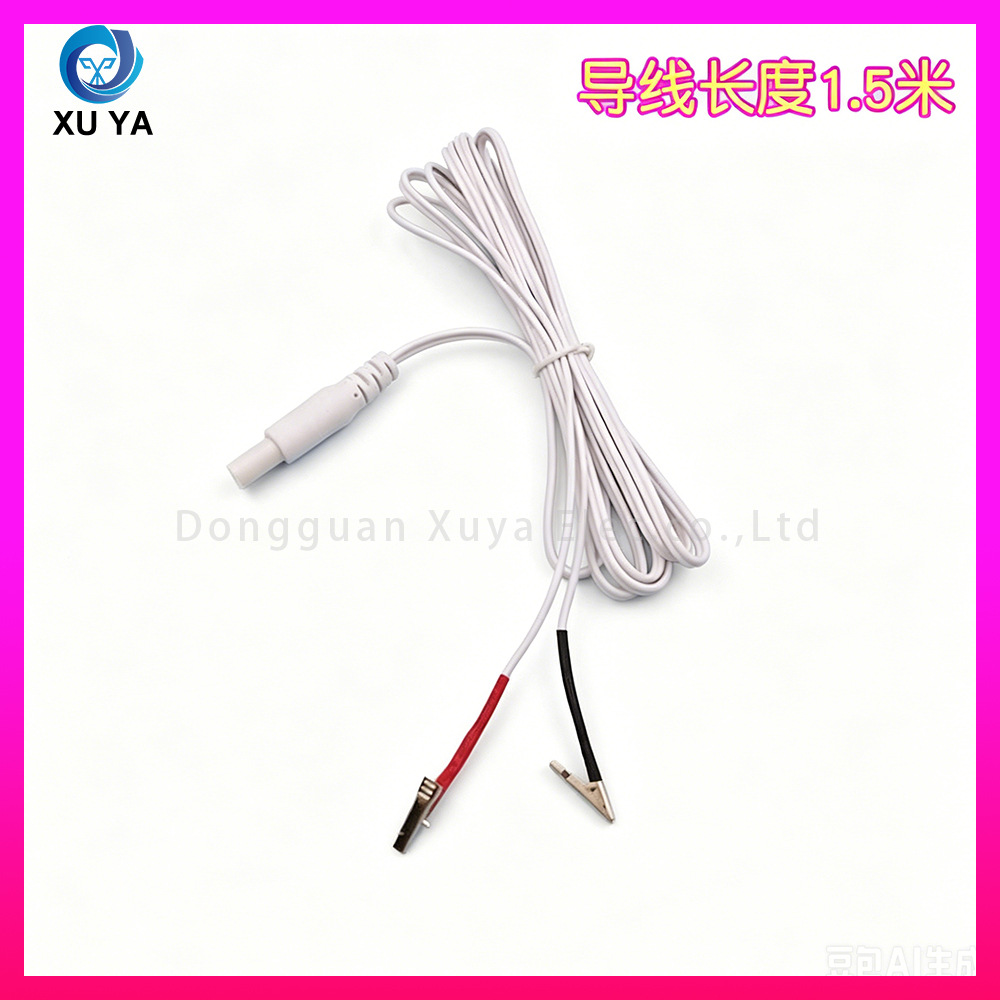

       达佳夹子式一拖二理疗电极连接线，单头 2.0mm 安规插针，分出红黑双色金属鳄鱼夹，白色环保 PVC 绝缘线材；适配达佳理疗仪、中频脉冲按摩设备，一对二输出可同时连接两处穴位电极夹，线材柔软耐弯折，金属夹导电稳定，出厂配套穴位图；现货标准线长，支持定制线长、线色、插头规格、夹子款式，属于医疗理疗设备配套线束。
       Dajia clip-style 1-to-2 physical therapy electrode connecting wire, equipped with 2.0mm safety pin plug on one end, split into red and black double-color metal alligator clips, white eco-friendly PVC insulated wire. It is compatible with Dajia physical therapy machines and medium-frequency pulse massage equipment. The one-to-two output can connect two acupoint electrode clips at the same time. The wire is soft and bending-resistant, the metal clips deliver stable conductivity, and acupoint charts are provided as factory matching gifts. Standard wire lengths are in stock, customization of wire length, color, plug specifications and clip styles is supported, it is a supporting wire harness for medical physiotherapy equipment.

Q1：这款达佳一拖二理疗电极线的核心接头规格是什么？

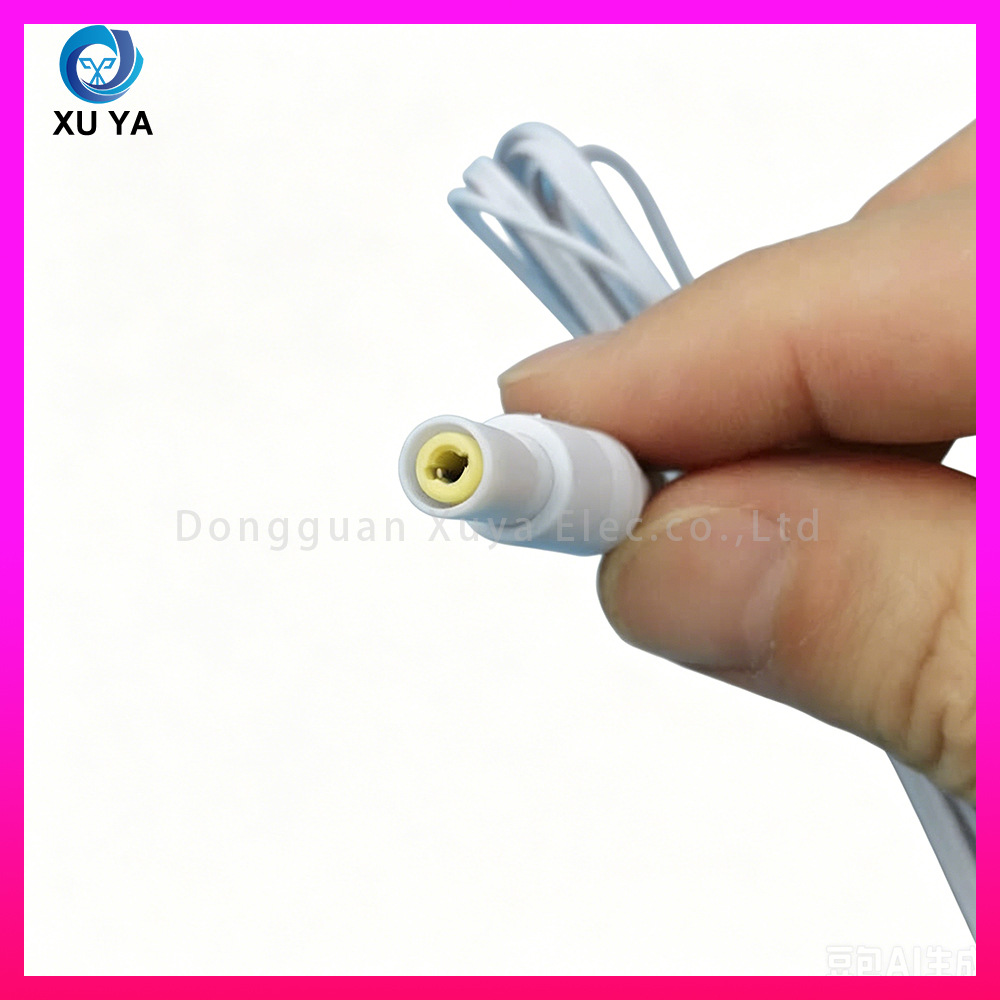

主线末端为 2.0mm 标准安规插针公头，另一端分线红、黑独立两股，每股末端为金属导电鳄鱼夹；一拖二分流结构，单设备接口可同步输出两路脉冲电流，适配达佳系列中频理疗仪器。
What is the core connector specification of this Dajia 1-to-2 physical therapy electrode wire?
The end of the main wire is a standard 2.0mm safety pin male plug. The other end is split into two independent red and black wires, each wire ends with a metal conductive alligator clip. It adopts 1-to-2 shunt structure, one device port can output two channels of pulse current simultaneously, compatible with Dajia series medium-frequency physiotherapy equipment.

Q2：线材、鳄鱼夹材质与使用优势有哪些？

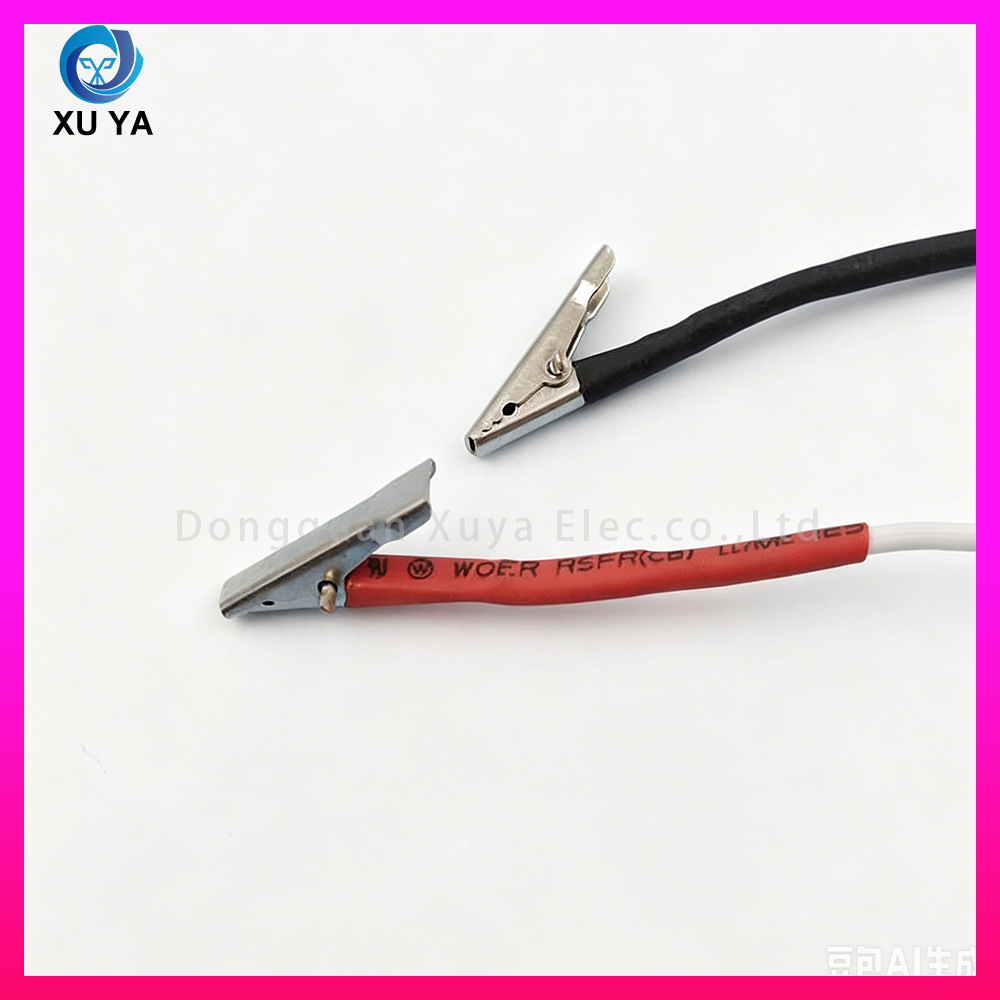

线材外层为白色柔软 PVC 绝缘胶料，韧性强、反复弯折不易断裂，绝缘安全无漏电风险；红黑分色导线便于区分正负极；鳄鱼夹为金属镀镍材质，导电性能稳定，夹口咬合牢固，可直接夹持穴位电极片、导电贴片，拆装便捷。
What are the material and usage advantages of the wire and alligator clips?
The outer layer of the wire is made of soft white PVC insulation material, featuring strong toughness and anti-breakage after repeated bending, with safe insulation to avoid electric leakage. Red and black color-coded wires make positive and negative pole identification easy. The alligator clips are nickel-plated metal with stable conductivity, tight clip jaw grip, which can directly clamp acupoint electrode pads and conductive patches for easy assembly and disassembly.

Q3：线材长度、插头、夹子款式是否支持定制？
全部支持定制：现货标准常规长度，可按需定制 0.3m~3m 任意总长；插头可更换 1.8mm/2.5mm 插针、3.5 音频头；鳄鱼夹可更换绝缘塑料包夹、加长金属夹；线材护套可定制黑色、灰色等其他配色。
Can we customize wire length, plug and clip styles?
All items support customization: standard regular lengths are available in stock, arbitrary total lengths from 0.3m to 3m can be customized as required. The plug can be replaced with 1.8mm/2.5mm pin plugs or 3.5 audio jacks. The alligator clips can be changed to insulated plastic covered clips or extended metal clips. Wire jackets can be customized to black, gray and other colors.

Q4：达佳夹子一拖二电极线适配哪些设备与理疗场景？
适配达佳品牌中频理疗仪、脉冲按摩仪、经络疏通治疗仪；用于家用康复理疗、肩颈腰腿穴位电疗、针灸脉冲辅助治疗；一拖二双线设计可同时对身体两处穴位进行通电理疗，金属夹直接夹持导电贴片使用，操作简单。
What equipment and physiotherapy scenarios are compatible with this Dajia 1-to-2 clip electrode wire?
It is suitable for Dajia brand medium-frequency physiotherapy machines, pulse massage devices and meridian dredging therapeutic instruments. It is used for household rehabilitation physical therapy, electric therapy for shoulder, neck, waist and leg acupoints, and auxiliary acupuncture pulse treatment. The 1-to-2 dual-wire design allows simultaneous electrotherapy on two body acupoints. The metal clips can directly clamp conductive patches for simple operation.

Q5：现货订单、全规格定制 OEM 交期以及标准装箱数量是多少？

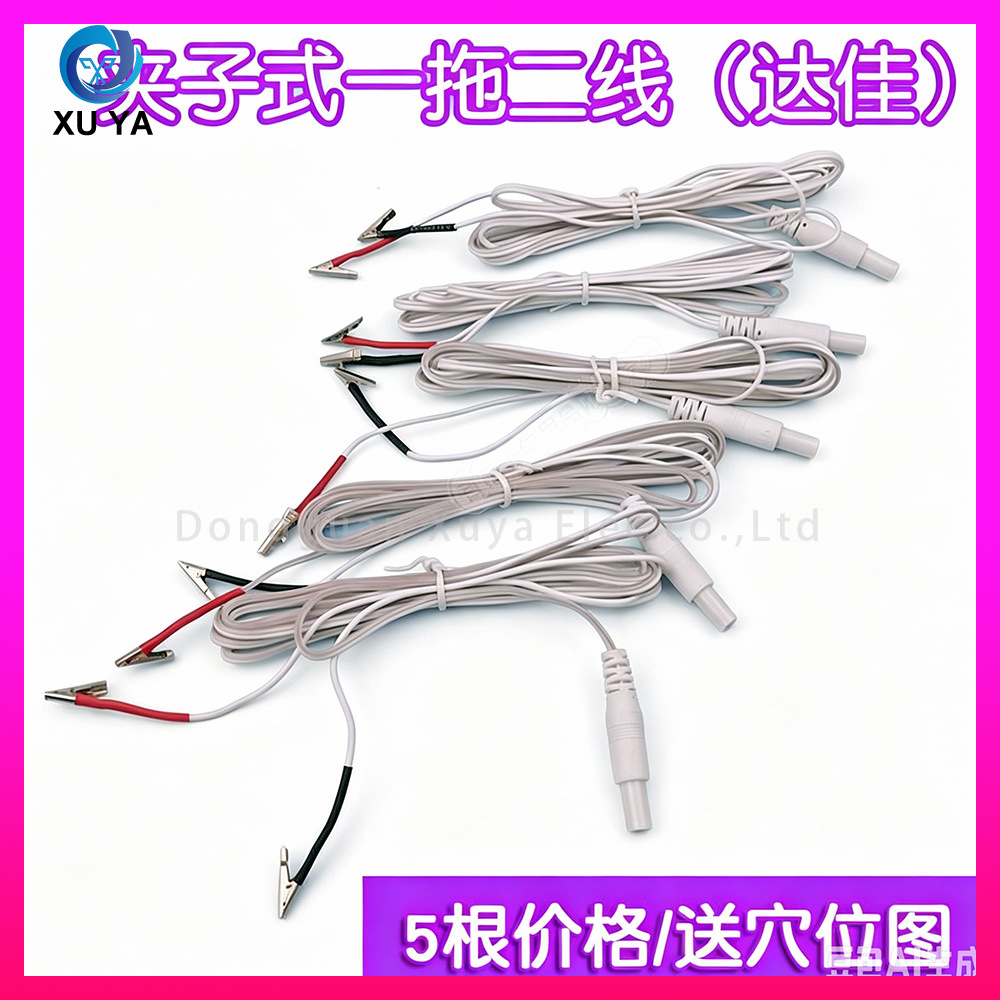

标准规格达佳理疗电极线现货订单 3 个工作日内完成发货；线长、插头、夹子、线色全规格定制 OEM 批量订单交期 4-7 个工作日；5 根为一组独立包装，标准出口纸箱每箱 3000PCS。
What are the delivery time for stock orders, lead time for fully customized OEM orders and standard packing quantity?
In-stock orders of standard Dajia physiotherapy electrode wires will be shipped within 3 working days. Bulk OEM orders with fully customized wire length, plug, clip and wire color take 4-7 working days. Each set contains 5 pieces with independent packaging, 3000 PCS per standard export carton.
