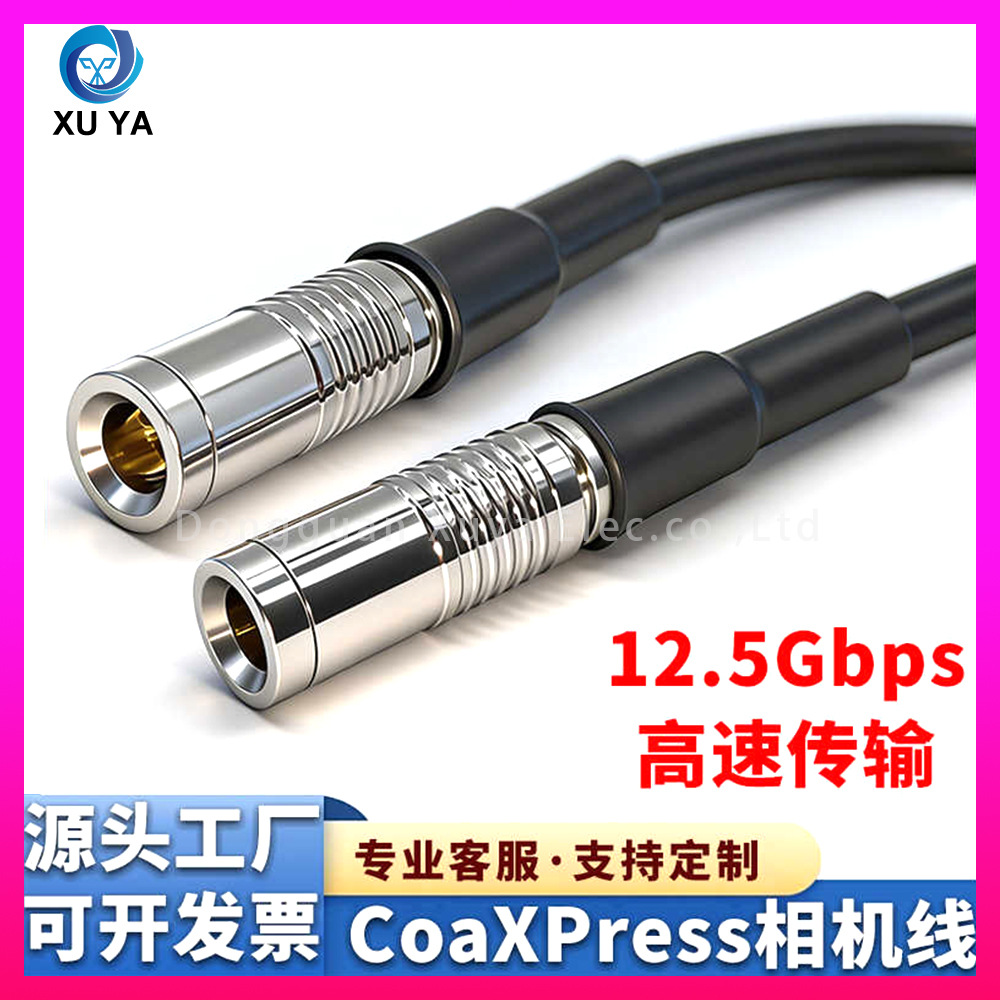

CoaXPress 双母头高速相机同轴电缆 12.5Gbps 工业视觉传输线
CoaXPress Dual Female High-Speed Camera Coaxial Cable 12.5Gbps Machine Vision Transmission Wire
一、产品基础概述

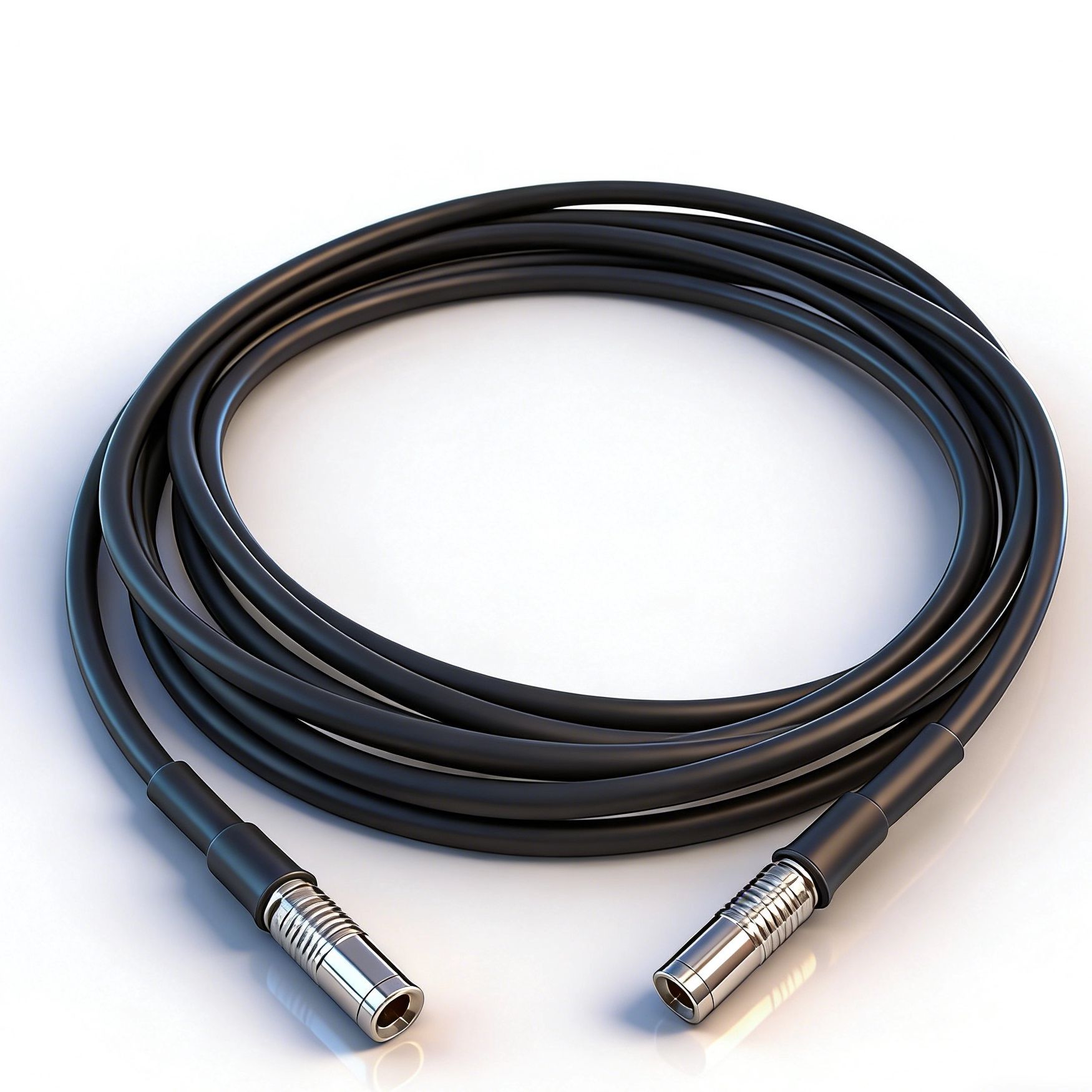

本产品为工业机器视觉专用 CoaXPress 同轴信号线，两端均采用金属屏蔽加固型 CXP 母座，支持最高 12.5Gbps 高速数据传输；外层黑色耐油耐磨 PVC 护套，线芯多层屏蔽结构，抗电磁干扰能力强，适配工业相机、视觉检测设备、高精度图像采集设备。源头工厂生产，支持全参数定制，可开具增值税发票。
English Introduction
This product is a dedicated CoaXPress coaxial signal wire for industrial machine vision. Both ends adopt metal shielded reinforced CXP female connectors, supporting high-speed data transmission up to 12.5Gbps. The outer layer is covered with black oil-resistant and wear-resistant PVC sheath. The multi-layer shielding structure of wire core provides strong anti-electromagnetic interference performance. It is compatible with industrial cameras, visual inspection equipment and high-precision image acquisition devices. Manufactured by original factory, full parameter customization is supported, and VAT invoices can be issued.
二、核心规格参数
-

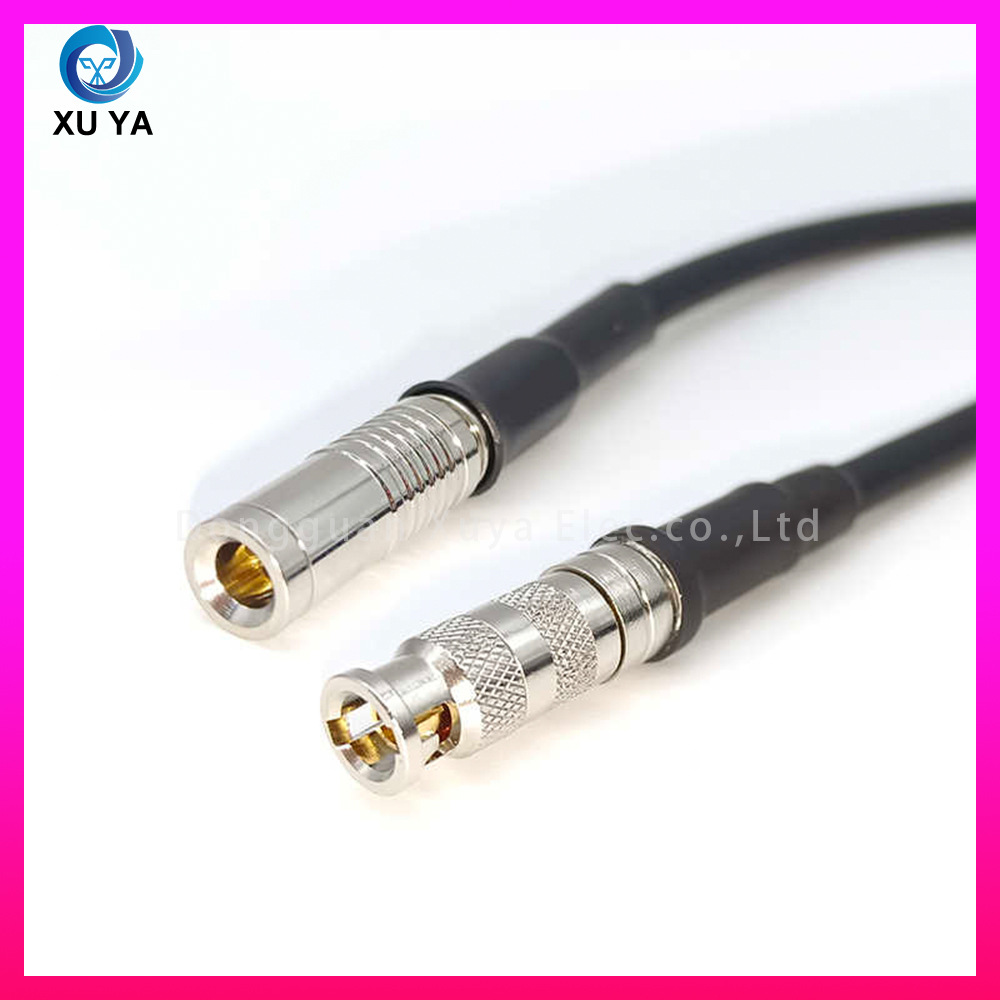

接口类型：两端 CXP 母头（CoaXPress 同轴连接器），金属螺纹锁紧屏蔽外壳
-
传输带宽：12.5Gbps 高速图像数据传输
-
线缆结构：多层铜箔 + 编织网双重屏蔽同轴线芯
-
外皮材质：黑色耐弯折、耐油污工业级 PVC 护套
-
标准用途：工业视觉相机、自动化检测设备、机器视觉图像采集系统
-

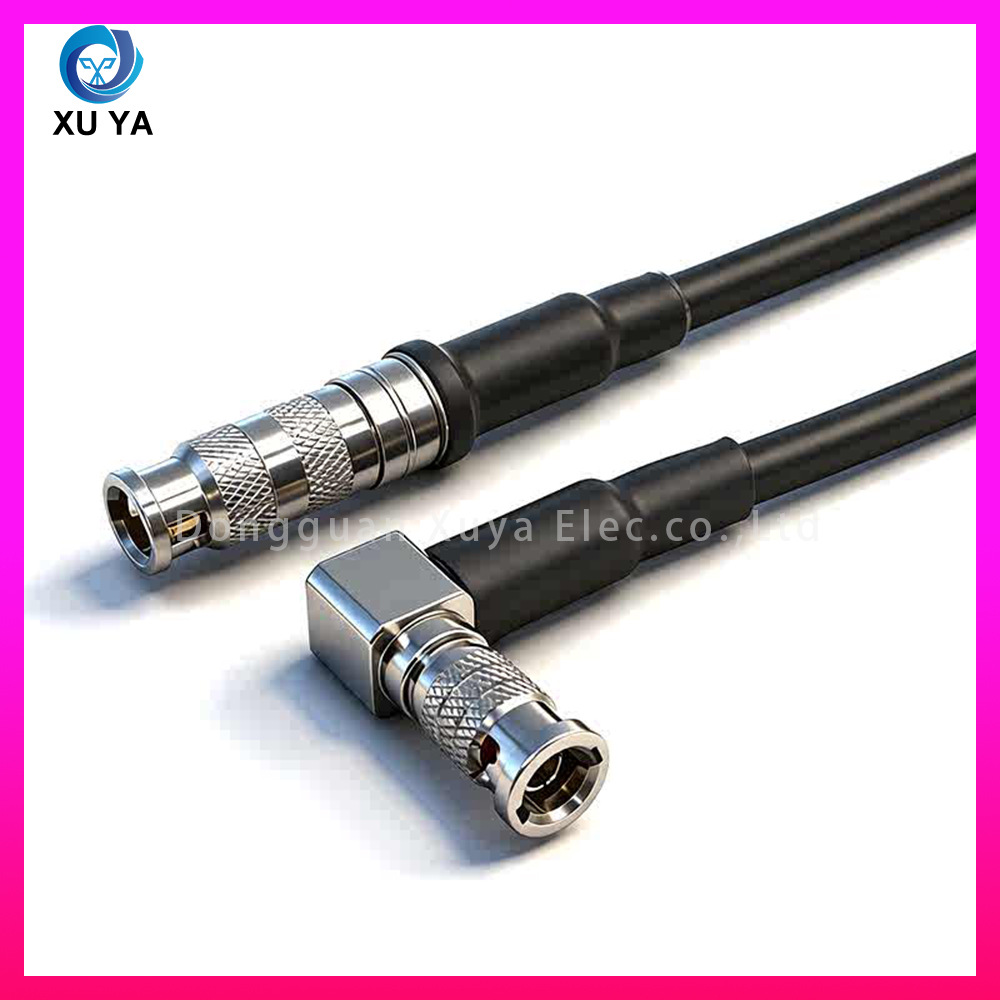

定制范围：线缆长度、公 / 母头搭配、单 / 双通道、屏蔽等级、线材外皮颜色均可定制
English Specs
-
Connector Type: CXP female connectors on both ends (CoaXPress coaxial connectors), metal threaded locking shield housing
-
Transmission Bandwidth: 12.5Gbps high-speed image data transmission
-
Cable Structure: Coaxial wire core with double shielding of multi-layer copper foil and braided mesh
-
Outer Sheath Material: Black industrial-grade PVC sheath with bending resistance and oil resistance
-
Standard Application: Industrial vision cameras, automatic inspection equipment, machine vision image acquisition systems
-
Customizable Items: Cable length, male/female connector matching, single/dual channel, shielding grade, wire sheath color
三、材质与结构核心优势
-
12.5Gbps 超高带宽：满足高速面阵 / 线阵工业相机大分辨率图像实时传输，无丢帧、无信号衰减，适配高精度视觉检测场景。
-

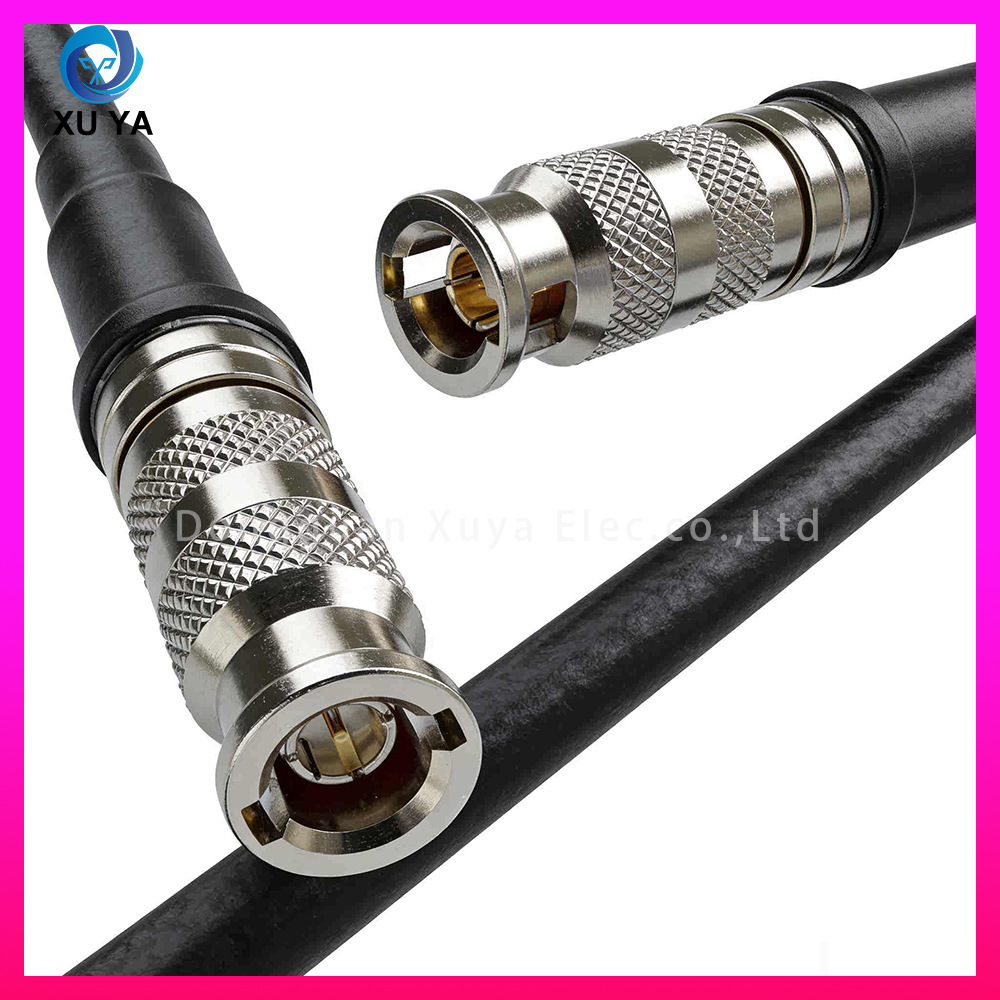

全金属屏蔽 CXP 接头：螺纹旋紧式金属外壳，360° 完整屏蔽，有效隔绝变频器、电机、强电设备产生的电磁干扰，工业复杂环境稳定运行。
-
双层屏蔽同轴线芯：内层铜箔屏蔽 + 外层编织铜网双重防护，信号隔离性能优异，长距离传输图像无噪点、无杂波。
-
工业耐候线缆外皮：黑色 PVC 耐油、耐磨、耐反复弯折，设备移动、流水线拖拽使用不易开裂断线，使用寿命更长。
-
加固接头缓冲结构：接头与线缆衔接处加厚缓冲护套，杜绝长期弯折导致的内部线芯断裂，适配自动化产线长期连续工作。
English Material Advantages
-
Ultra-high bandwidth up to 12.5Gbps: Real-time transmission of high-resolution images for high-speed area/line scan industrial cameras, no frame loss or signal attenuation, suitable for high-precision visual inspection scenarios.
-
All-metal shielded CXP connectors: Threaded locking metal housing with 360° full shielding, effectively isolating electromagnetic interference generated by inverters, motors and high-voltage equipment, ensuring stable operation in complex industrial environments.
-
Double-shielded coaxial wire core: Double protection of inner copper foil shield and outer braided copper mesh, excellent signal isolation performance, no image noise or clutter during long-distance transmission.
-
Industrial weather-resistant cable sheath: Black PVC with oil resistance, wear resistance and repeated bending resistance, not easy to crack or break when dragged by mobile equipment and assembly lines, extending service life.
-
Reinforced connector buffer structure: Thickened buffer sheath at the joint of connector and cable to avoid internal wire core breakage caused by long-term bending, suitable for long-term continuous work on automatic production lines.
四、适配设备与使用优势
适配设备
CoaXPress 标准工业相机、机器视觉图像采集卡、自动化流水线视觉检测设备、半导体精密检测设备、高速外观缺陷检测设备。
核心使用优势
-
标准双母头对接方案，可作为设备延长转接线缆，快速拓展相机布线距离，兼容市面全部 CXP 接口工业视觉设备。
-
12.5Gbps 超大传输速率，适配 4K/8K 高分辨率高速相机，图像传输延迟极低，满足流水线高速抓拍检测需求。
-
强抗干扰工业级设计，工厂车间电机、焊接、变频设备等强电磁环境下，图像信号纯净稳定，不出现条纹、雪花噪点。
-
源头工厂直供，支持长度、接头、屏蔽等级个性化定制，大批量采购价格优势明显，可配套整机设备提供发票。
English Application Advantages
Compatible Equipment
CoaXPress standard industrial cameras, machine vision image capture cards, automatic assembly line visual inspection equipment, semiconductor precision inspection equipment, high-speed appearance defect detection equipment.
Core Usage Advantages
-
Standard dual-female connector docking solution, which can be used as equipment extension transfer cable to quickly expand camera wiring distance, compatible with all CXP interface industrial vision equipment on the market.
-
Ultra-large transmission rate of 12.5Gbps, compatible with 4K/8K high-resolution high-speed cameras, ultra-low image transmission delay, meeting the demand of high-speed capture and inspection on assembly lines.
-
Industrial-grade design with strong anti-interference capability. In strong electromagnetic environments such as motors, welding and frequency conversion equipment in factory workshops, the image signal is pure and stable without stripes or snow noise.
-
Direct supply from original factory, supporting personalized customization of length, connectors and shielding grade. It has obvious price advantage for mass procurement, and invoices can be provided for complete equipment sets.
