90 度 6.35mm 大二芯音频插头 6.5 单声道直角镀金话筒焊接插头
90 Degree 6.35mm TS Audio Plug, 6.5mm Mono Right Angle Gold-Plated Microphone Soldering Connector
产品描述（中英双语）
中文

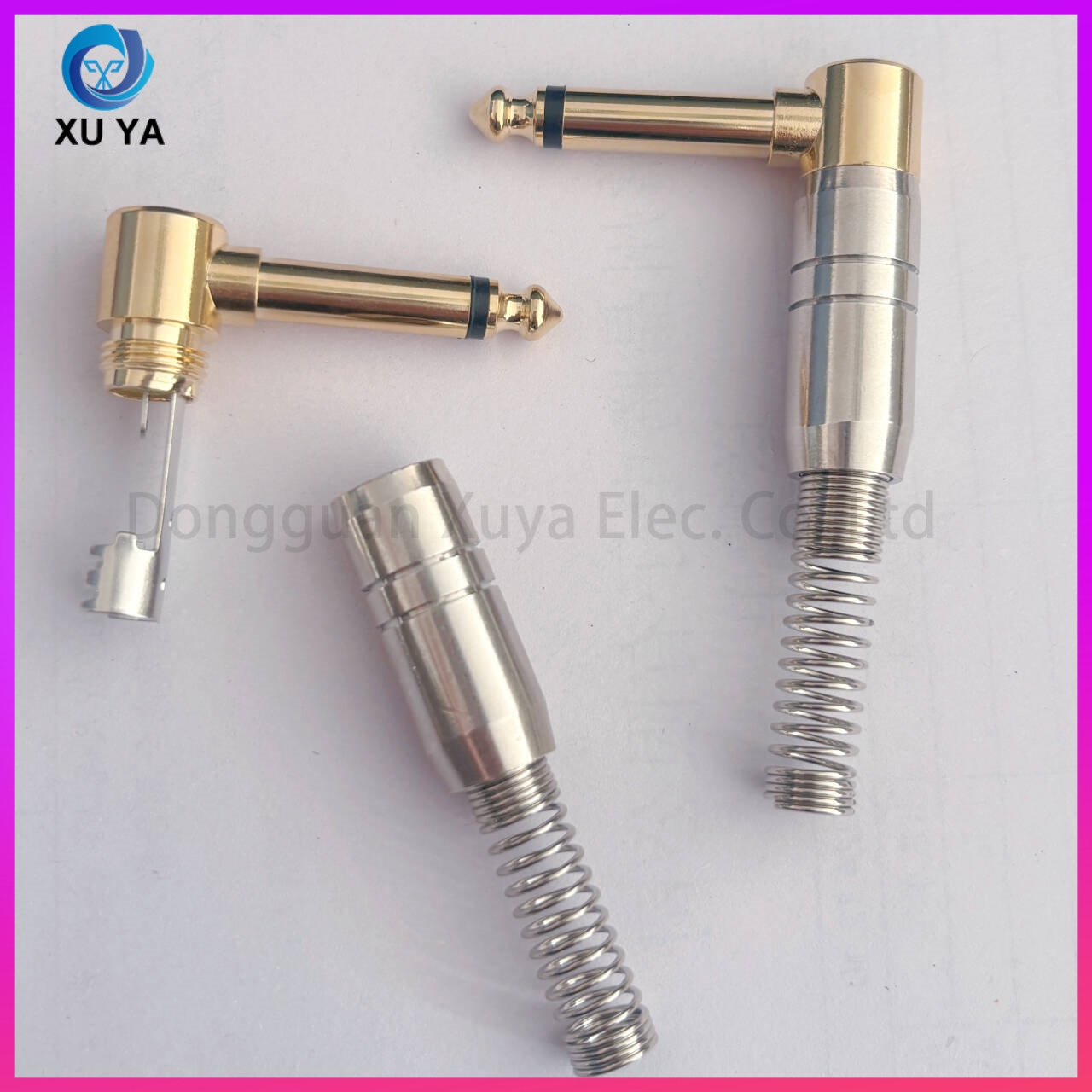

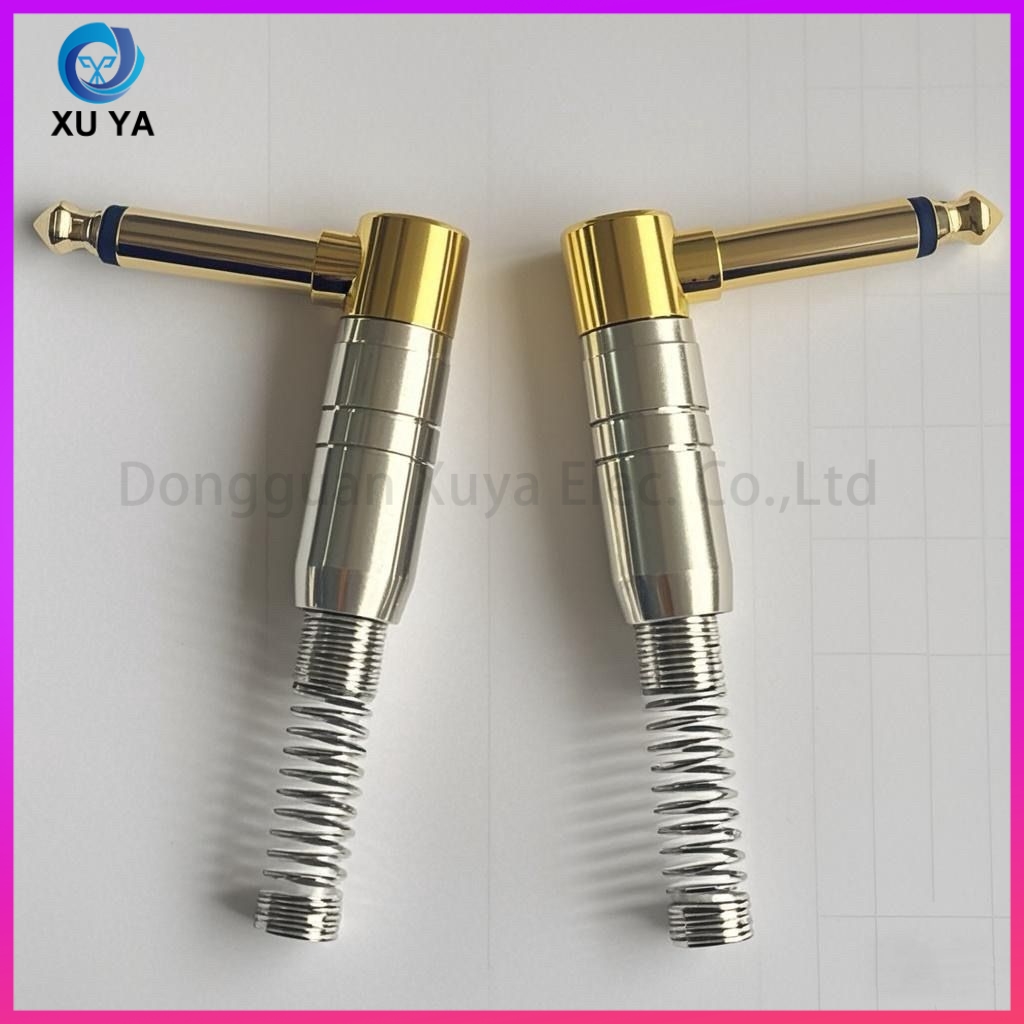

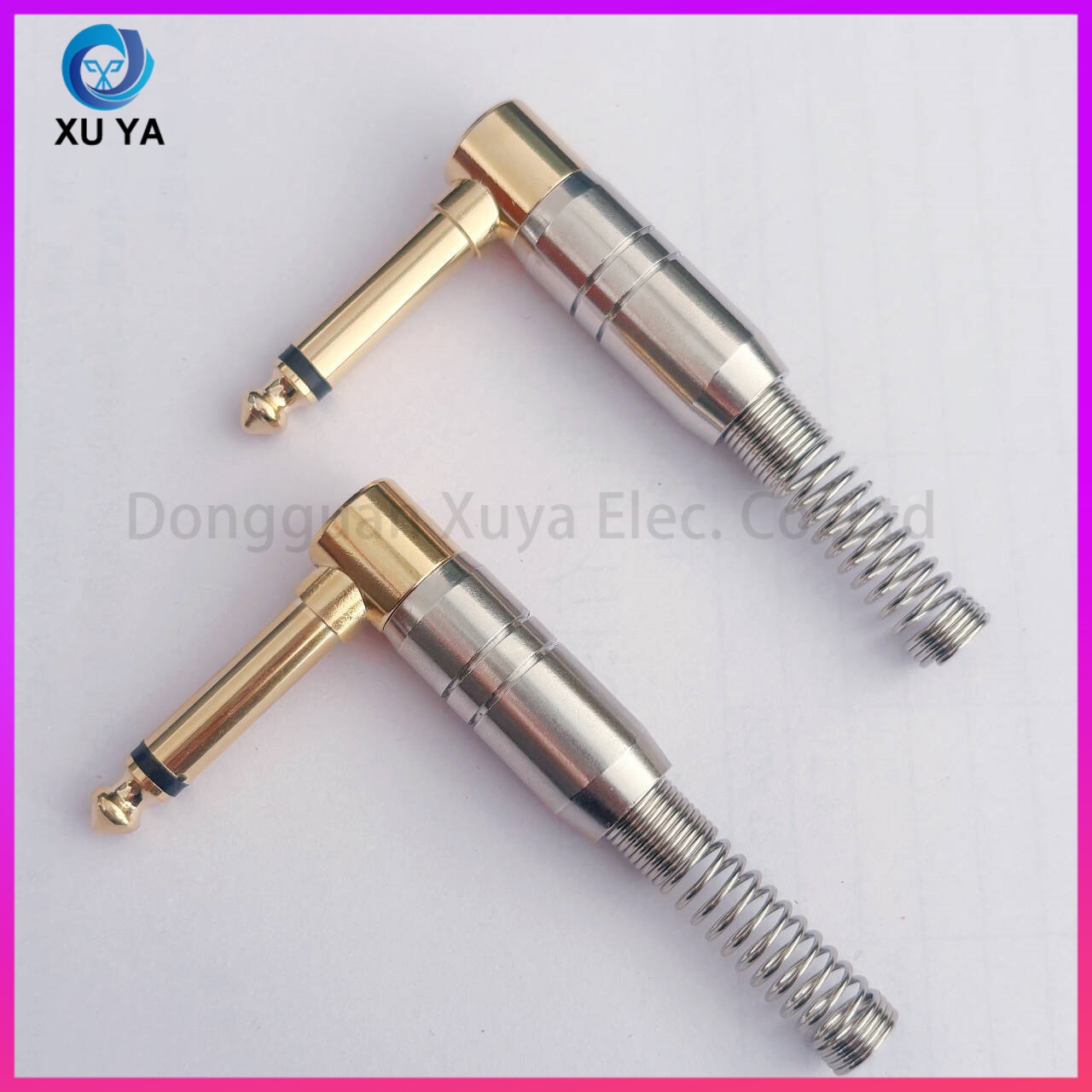

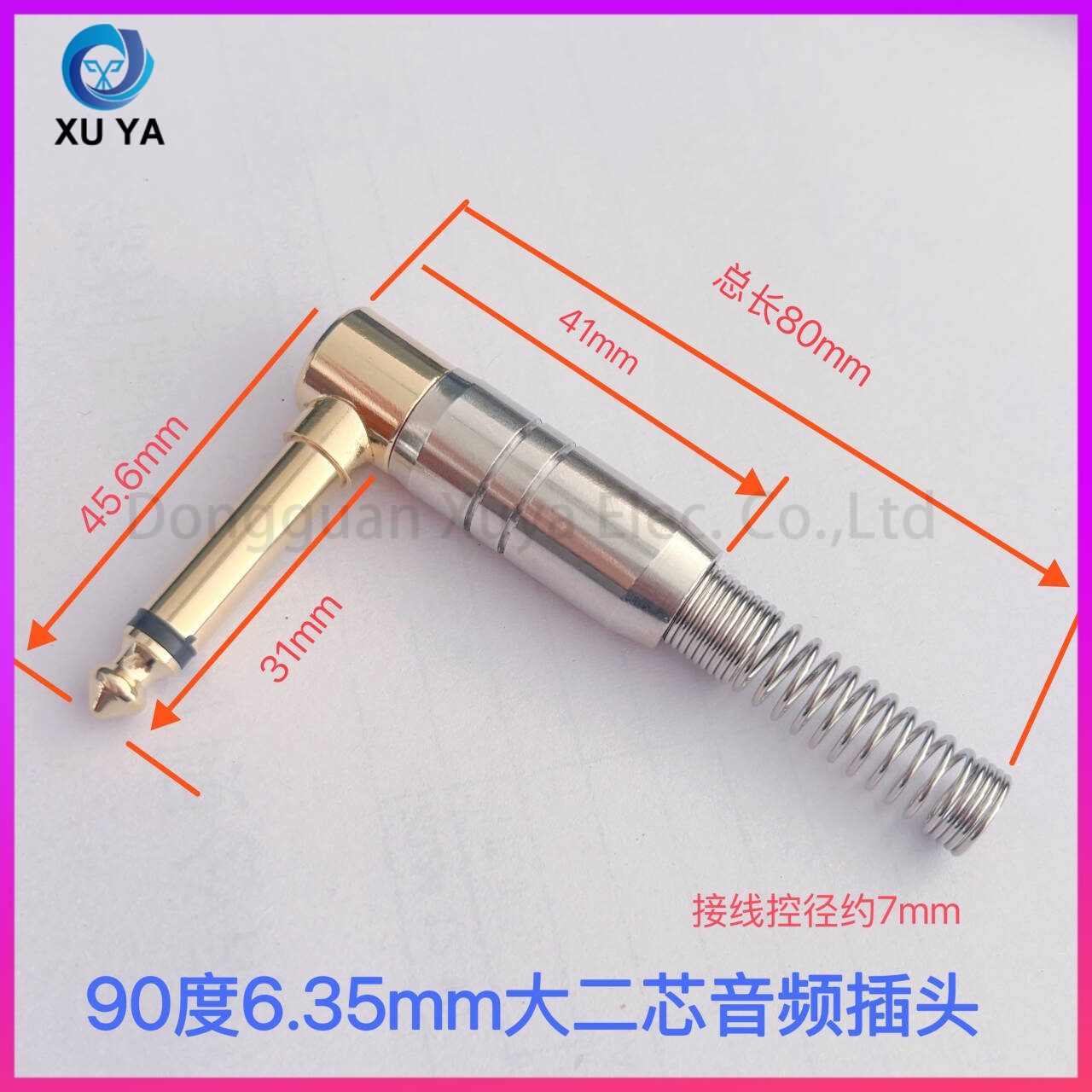

6.35mm（6.5mm）大二芯单声道直角音频插头，90° 弯头 L 型结构，插针镀金，导电性能优良、抗氧化。金属外壳搭配尾部缓冲弹簧，有效防护线材弯折断裂。支持手工焊接，适配线径约 7mm 音频线材，常用于电吉他、麦克风、调音台音频线自制加工，狭小空间布线，避免线材硬折。
English
6.35mm (6.5mm) TS mono right-angle audio plug with 90° L-shaped design. Gold-plated pin provides good conductivity and oxidation resistance. Metal housing equipped with rear buffer spring prevents cable breakage from frequent bending. Soldering type, suitable for audio cables with outer diameter approx 7mm. Widely used for self-made cables of electric guitars, microphones and mixers, ideal for installation in limited space.
FAQ 中英双语
Q1：这款是单声道大二芯还是立体声大三芯？
A1：大二芯单声道（TS），只有两个触点，不支持立体声传输。
Q1: Is it mono TS or stereo TRS type?
A1: TS mono type with 2 contacts, not for stereo audio.
Q2：弯头 90 度设计适合吉他线使用吗？
A2：非常适合，直角出线可以减少线材弯折，防止插头松动。
Q2: Suitable for guitar cable assembly?
A2: Yes. Right angle design reduces cable bending and prevents loose connection.
Q3：尾部弹簧作用是什么，适配多大外径线缆？
A3：弹簧缓解弯折应力，适配外径 7mm 以内音频线焊接。
Q3: What’s the function of rear spring? What cable OD it fits?
A3: Spring relieves bending stress, fits audio cable OD up to 7mm.
Q4：插针表层是镀金材质吗？
A4：信号插针镀金，降低接触电阻，提升音质与耐用性。
Q4: Is the pin gold-plated?
A4: Yes, gold plating reduces contact resistance, improves sound performance and durability.
Q5：直头与弯头款式是否都有现货，支持批量采购？
A5：直头、90 度弯头均常备库存，大批量订单可洽谈。

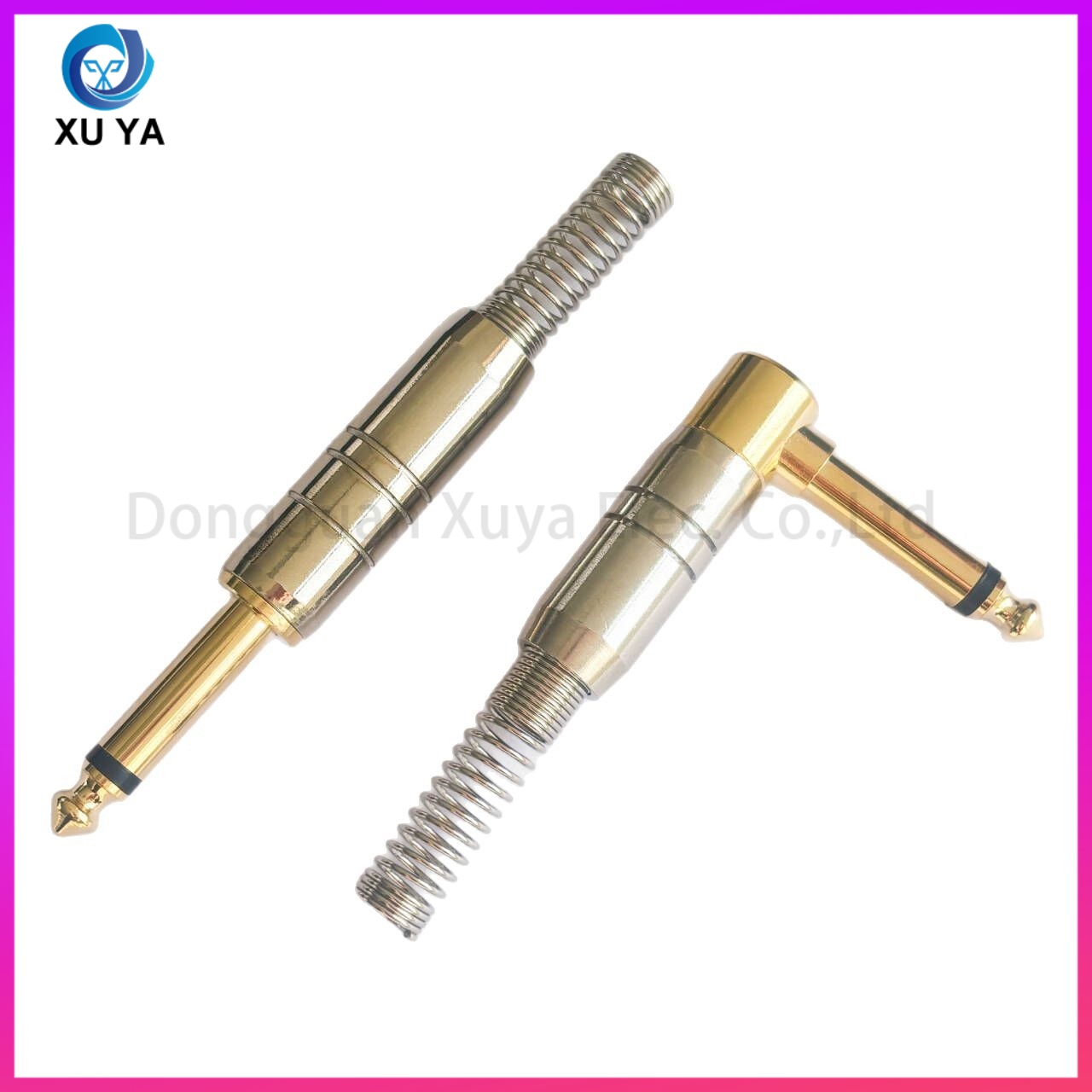

Q5: Are straight and right angle versions in stock for bulk purchase?
A5: Both straight and 90-degree elbow are available, welcome bulk orders.
