大 DIN 5P 装配插头 圆形 MINI DIN 公母插头 S 端子 5 芯焊接组装连接器
Large DIN 5Pin Assembled Plug, Mini DIN Male & Female S-Video Solder Connector
产品描述（中英双语）
中文

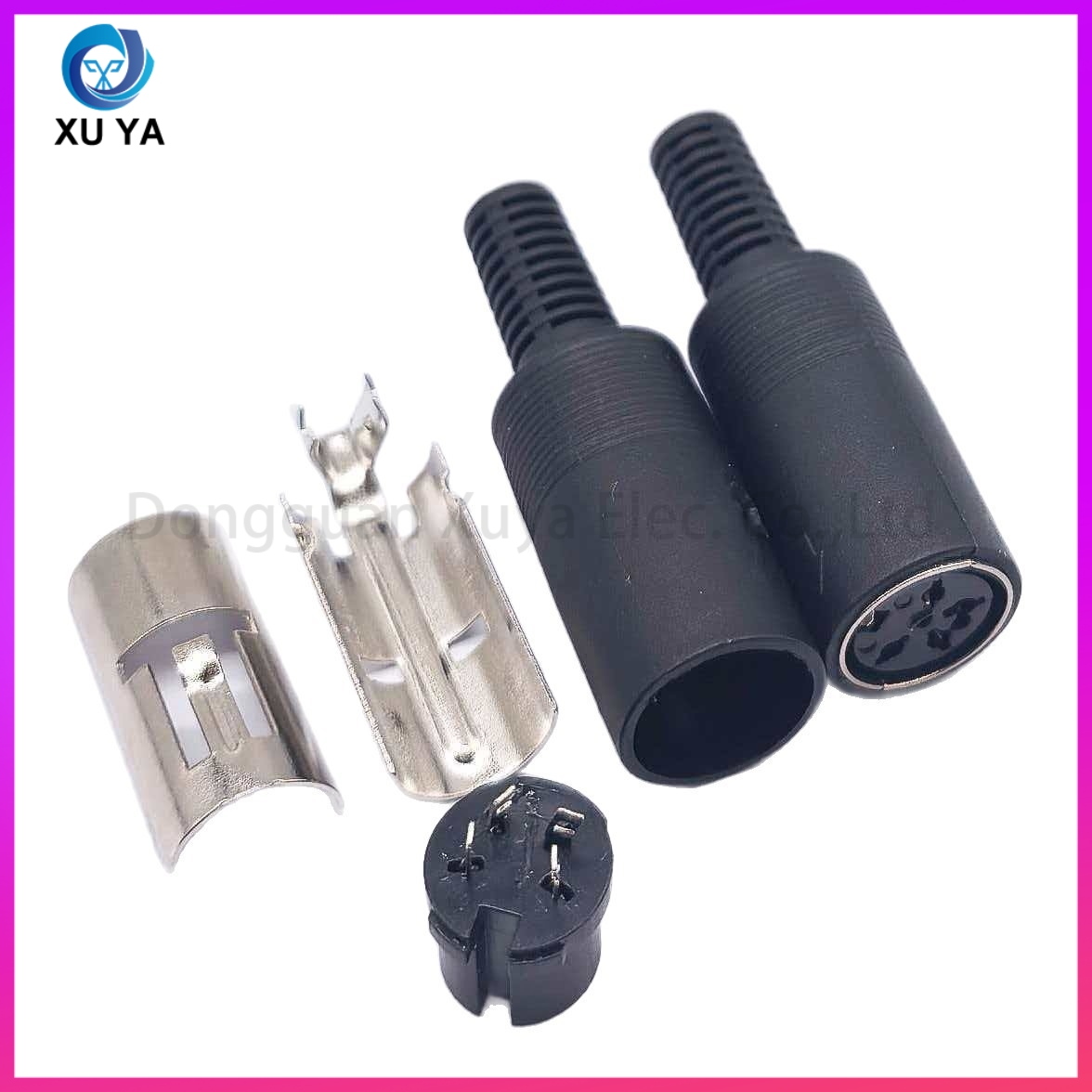

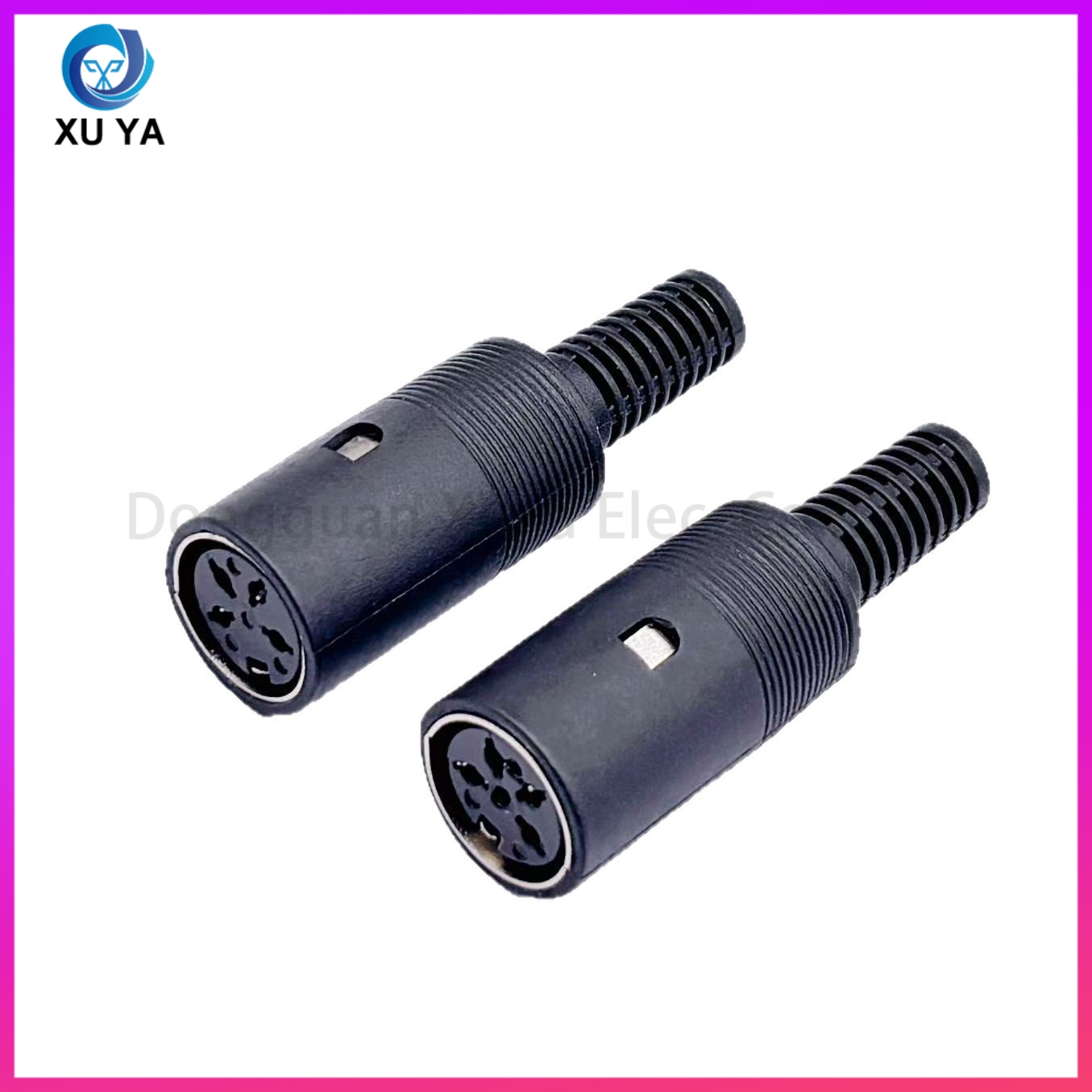

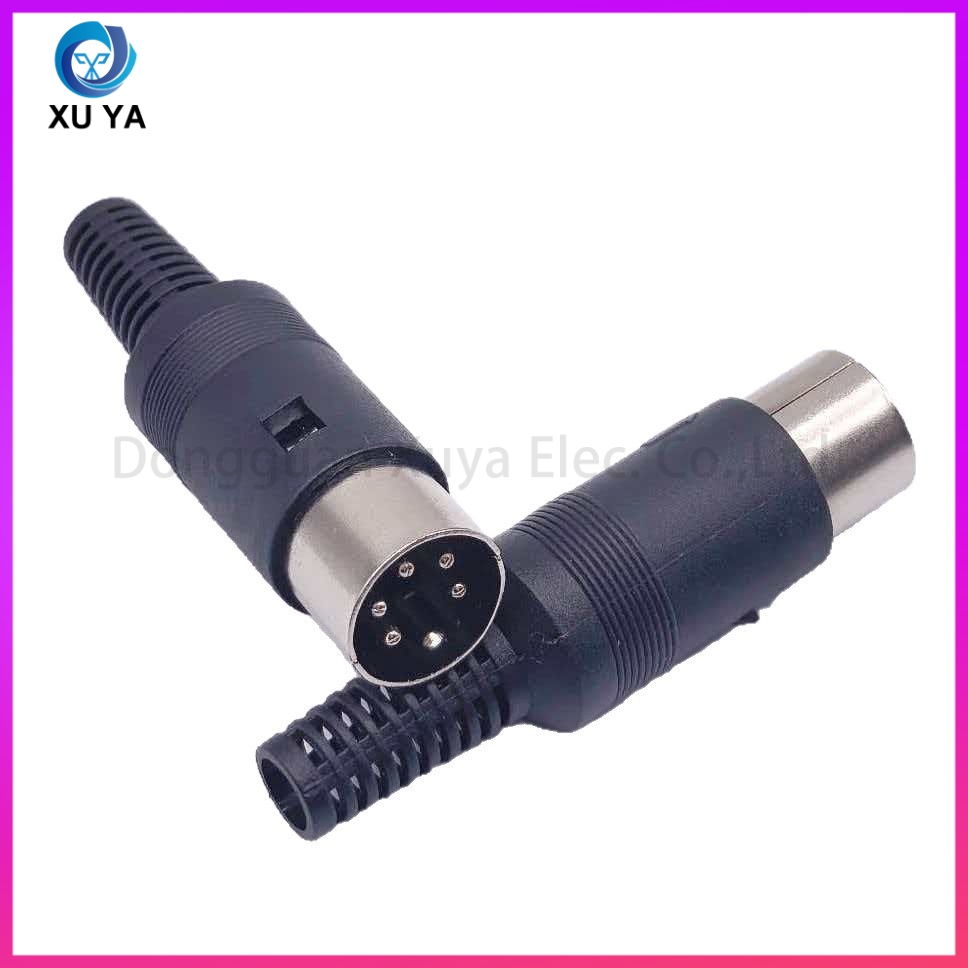

MINI DIN（大 DIN）5 芯组装式连接器，分为公头、母头、面板母座款式，支持手工焊接接线。尾部带防弯折波纹护套，有效保护线材不易断裂；金属外壳屏蔽效果优良，降低信号干扰。广泛用于工业控制线、医疗设备、老款视频 S 端子、键盘鼠标、仪器仪表信号连接，可按需选配 3P/4P/5P/6P/7P/8P 多芯规格。
English
Mini DIN 5Pin solder-type connector, available in male plug, female plug and panel mount socket. Equipped with anti-bend strain relief to prevent wire damage. Metal shell provides good shielding and reduces signal interference. Widely used for industrial control cables, medical equipment, vintage S-Video connection, keyboard, mouse and instrumentation signals. 3P/4P/5P/6P/7P/8Pin versions are optional.
FAQ 中英双语
Q1：这款插头是焊接组装款吗？需要压接工具吗？
A1：为焊接装配式，直接焊线，无需压接钳。
Q1: Is this solder assembly type? Do I need crimp tool?
A1: Solder construction, soldering wires directly, crimping tool not required.

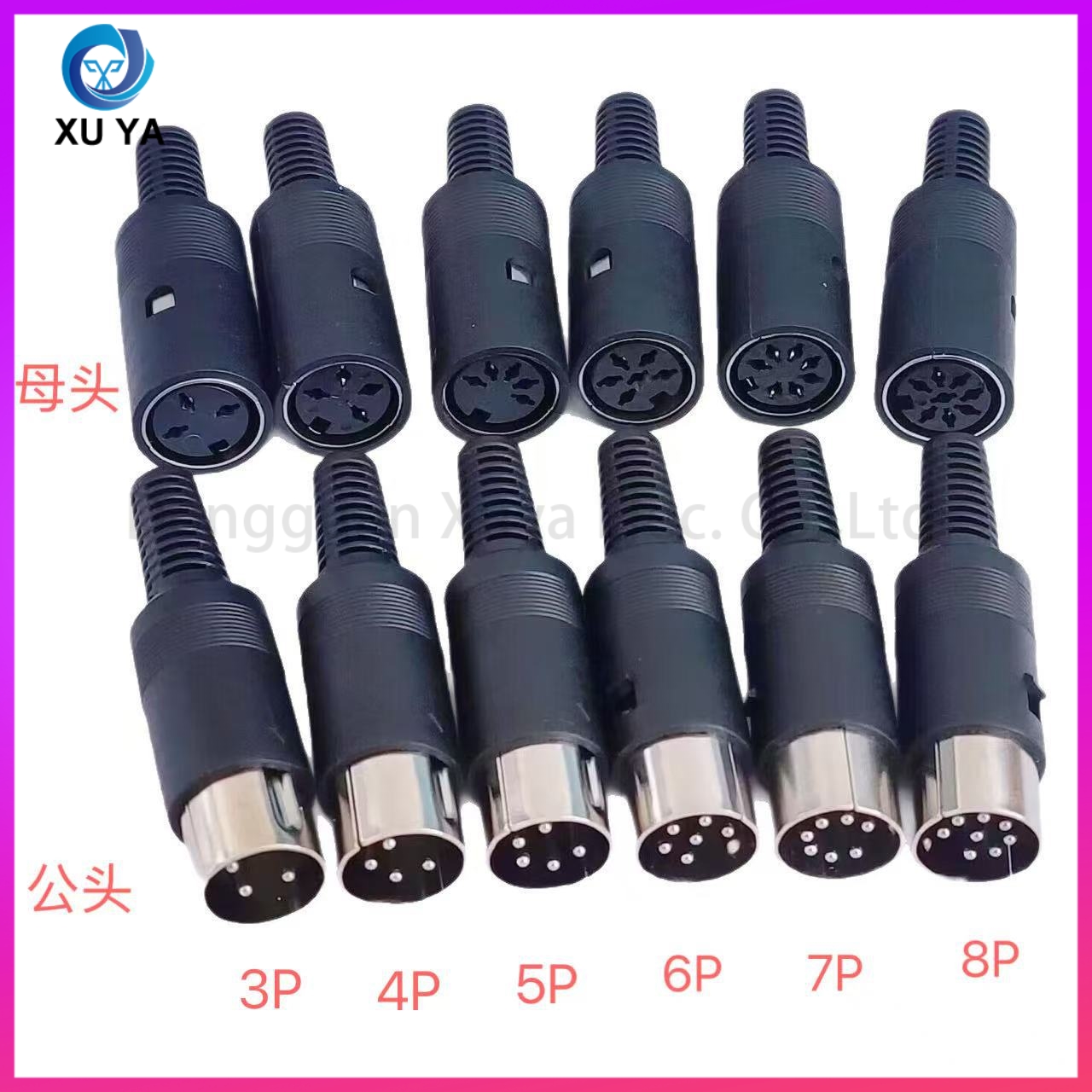

Q2：是否有 3P、4P、6P、8P 其他芯数可选？
A2：支持 3/4/5/6/7/8PIN 多种规格，可批量订货。
Q2: Are 3P,4P,6P,8Pin versions available?
A2: 3/4/5/6/7/8Pin optional, support bulk order.
Q3：可以用作 S 端子视频连接线接头吗？
A3：5PIN 规格适配常规 S-Video 信号线路使用。
Q3: Can it be used for S-Video cable connection?
A3: 5Pin version fits standard S-Video signal wiring.

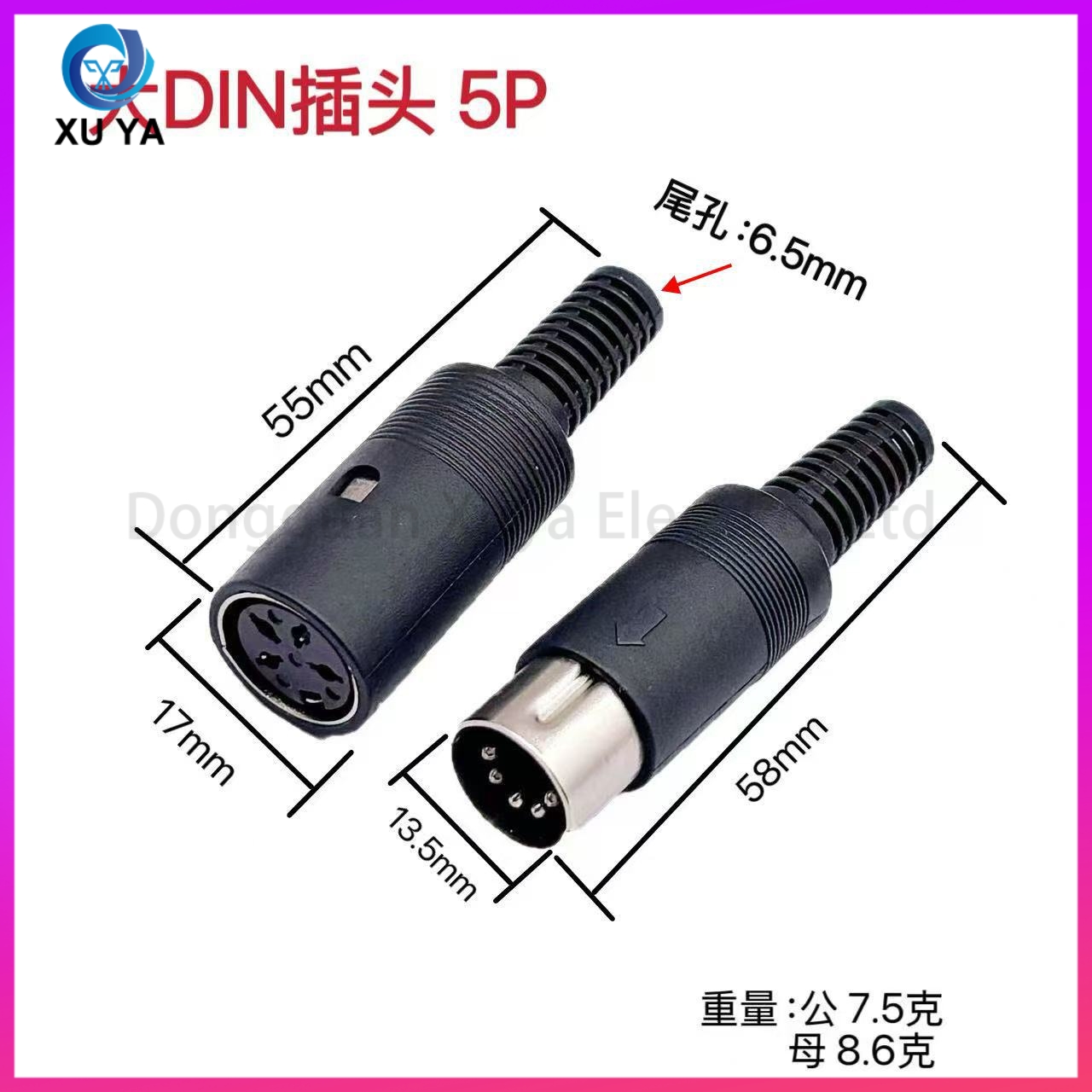

Q4：尾部护线套最大可以穿过多大外径线材？
A4：尾孔 6.5mm，适配外径≤6.5mm 线缆。
Q4: Max wire outer diameter for cable entry?
A4: Cable hole 6.5mm, suit wire OD ≤6.5mm.

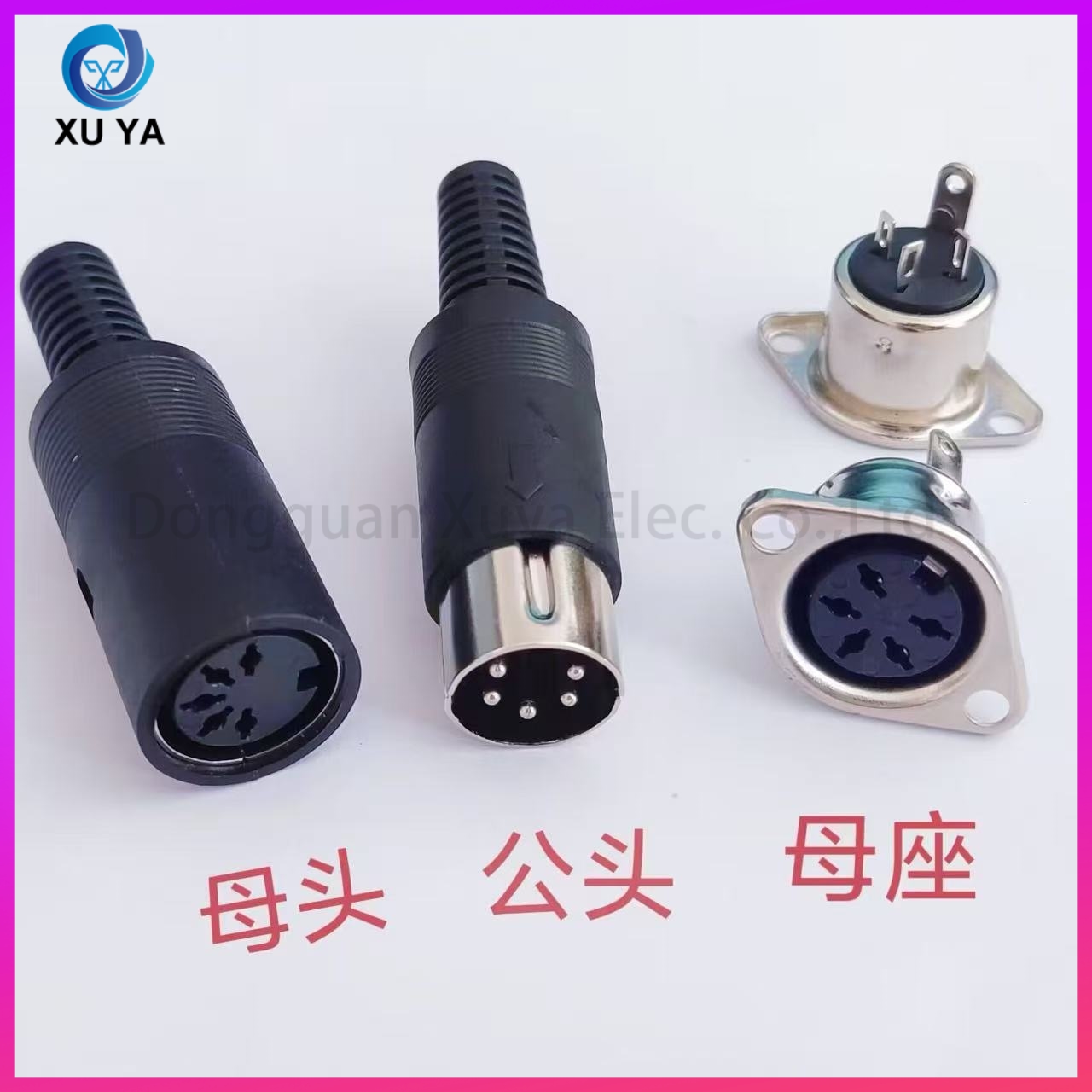

Q5：支持面板固定式母座配套采购吗？
A5：公头、母头、面板母座全套现货供应。
Q5: Can I purchase panel mount female socket together?
A5: Male plug, female plug and panel socket are all in stock.
