3×6 贴片侧按轻触开关 3x6x5~6.3H 带定位柱 白色按键编带耐高温

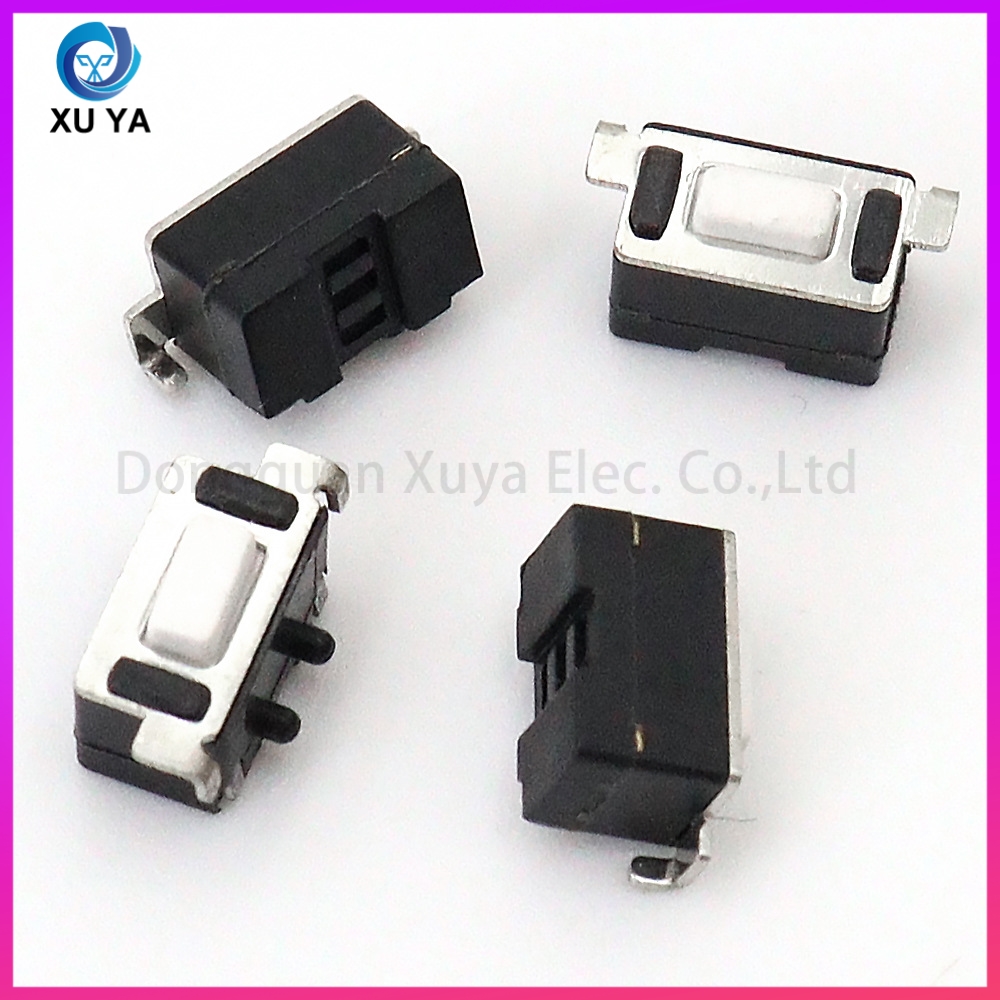

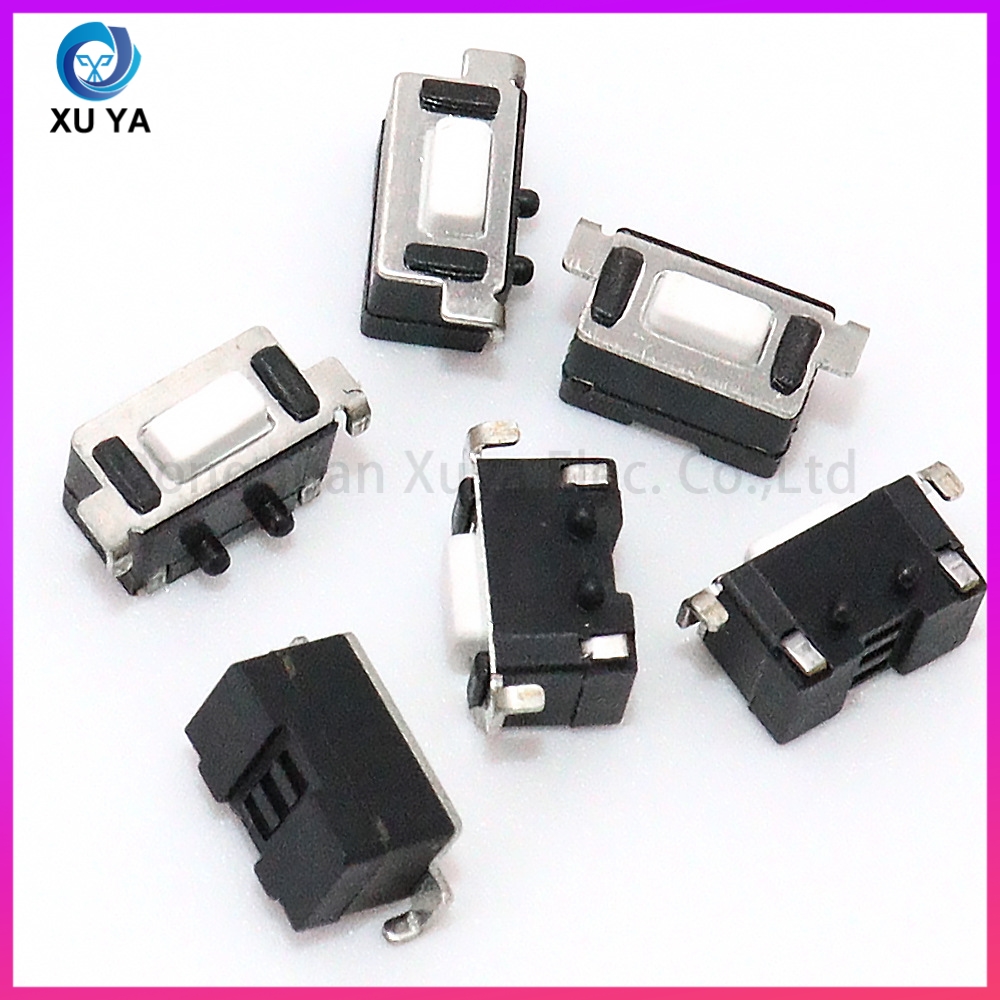

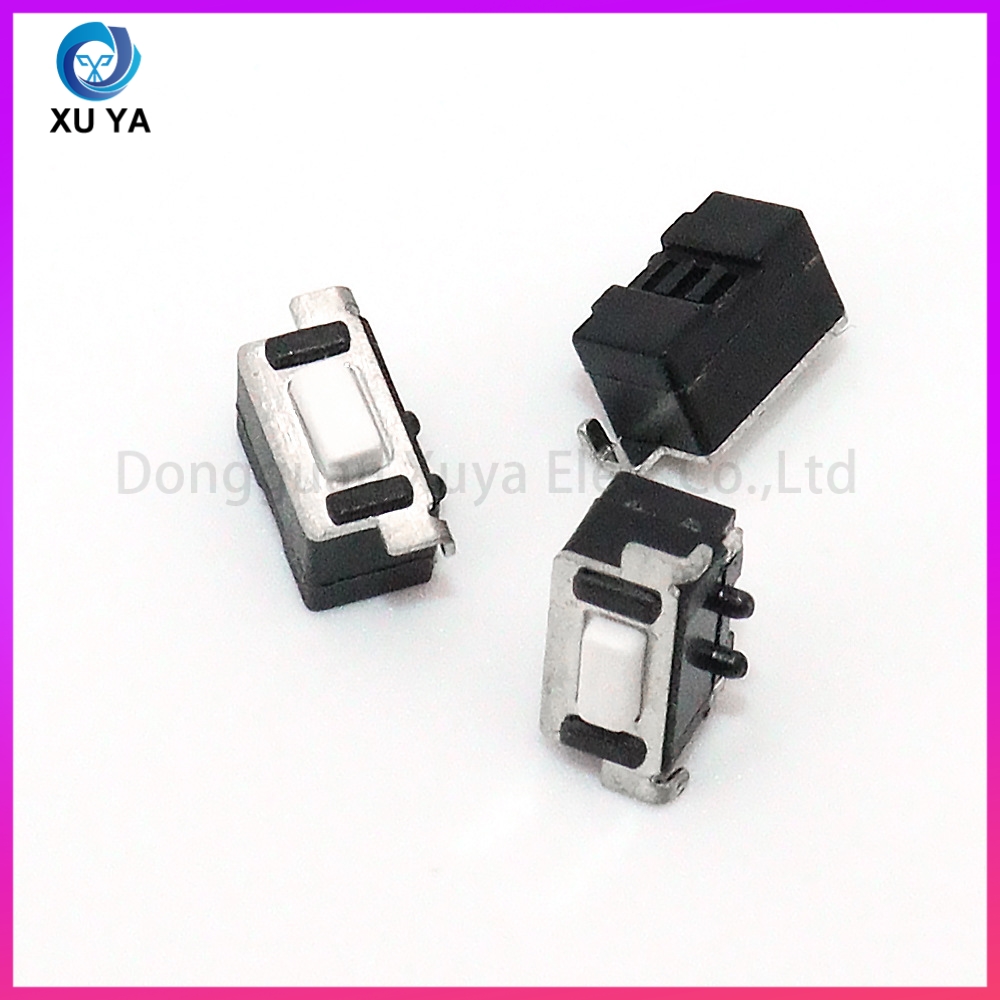

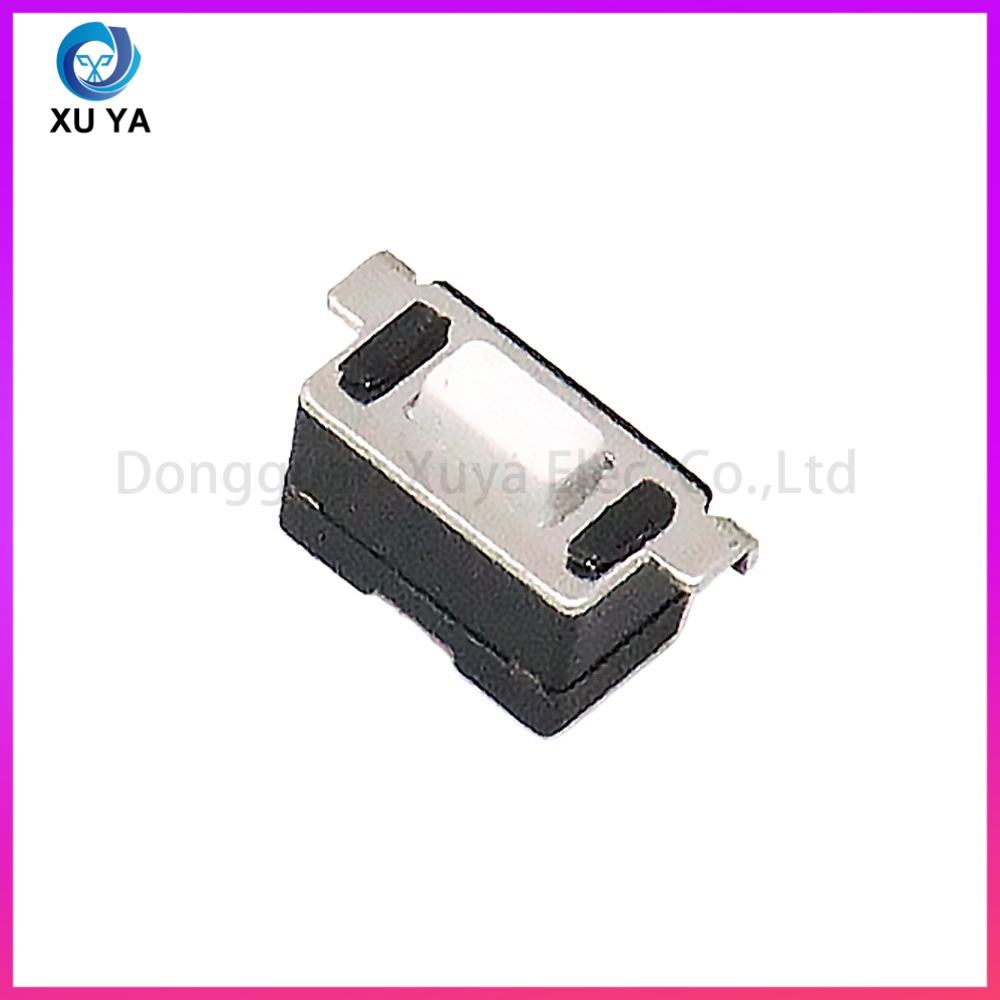

3×6 SMD Side Tactile Switch, 3x6x5~6.3H With Locating Post, White Button, Tape Packed High Temperature Resistant
产品描述（中英双语）
中文：3*6 卧式贴片侧按轻触开关，带定位柱防偏位，白色按键，高度 5mm/6.3mm 可选。耐高温塑胶适配 SMT 回流焊，金属弹片接触稳定，手感清晰。适用于数码产品、遥控器、主板控制按键，支持编带包装，克力、高度均可定制。
English: 3×6 horizontal SMD side tactile switch with locating post for anti-offset, white button, height optional 5mm/6.3mm. High-temperature plastic suitable for SMT reflow soldering. Stable contact with metal dome and crisp feedback. Widely used in digital devices, remote controllers and mainboard keys. Tape packing available, force & height customizable.
FAQ 中英双语
Q1：开关主体规格尺寸？
A1：主体 3×6mm，高度 5mm、6.3mm 可选。
Q1: What are the main dimensions?
A1: 3×6mm body, height optional 5mm, 6.3mm.
Q2：安装方式是贴片侧按吗？
A2：卧式贴片、侧向按压，自带定位柱。
Q2: Is it SMD side actuation type?
A2: Horizontal SMD, side push, equipped with locating posts.
Q3：能否过 SMT 回流焊？
A3：耐高温材质，支持贴片回流焊工艺。
Q3: Can it pass SMT reflow soldering?
A3: High temperature resistant material, compatible with reflow soldering.
Q4：出货包装形式？
A4：标准编带包装，方便自动化贴装。
Q4: What is the shipping package?
A4: Standard tape packing for automatic mounting.
Q5：是否支持样品测试？
A5：可提供样品，参数支持定制调整。
Q5: Can samples be provided for testing?
A5: Samples available, parameters support customization.
